U0284 on 2009-2016 Volkswagen Jetta: Active Grille Shutter Communication Failure

What's Unique About the 2009-2016 Volkswagen JETTA

Active Grille Shutters were introduced on some Jetta models (primarily the Mk6 generation, 2011-2018) to meet fuel economy standards. Not all Jettas in this year range have them. The system is shared across the VW MQB platform, affecting models like the Golf, Passat, and Atlas. Owners often discover this system only when it fails, as it's not a widely advertised feature. The shutter motor itself is a common failure point, and VW has updated the part number over time (e.g., from revision 'D' to 'AA'), indicating revisions to address reliability issues.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Generation note: This issue primarily affects the Mk6 Jetta (2011-2018), as active grille shutters were not common on the Mk5 Jetta (2009-2010). The diagnosis and repair are specific to models equipped with this feature and are also applicable to other VWs from the era like the Passat and Atlas.

Symptoms You May Notice

• Check Engine Light (MIL) is on
• Grille shutters are visibly stuck in one position (either open or closed)
• Engine takes longer than usual to warm up
• Slight decrease in fuel economy, especially at highway speeds
• Engine running slightly hotter than normal, especially in stop-and-go traffic
• In some vehicles, cruise control may be disabled when this fault is active.

Most Likely Causes

1. Failed Active Grille Shutter Motor/Actuator 🔴 High Probability → Shop Grille Shutter Actuator The motor is exposed to the elements at the front of the vehicle and is a known failure point. Several part number revisions (e.g., from an early 'D' version to a later 'AA' version) suggest manufacturer updates to improve reliability.
   How to confirm: After removing the front bumper for access, check if the motor responds to an output test using a capable scan tool (like VCDS or OBDeleven). If it doesn't move, makes grinding noises, or has visible water/corrosion damage, it has failed.
   Typical fix: Replace the shutter motor. The entire shutter assembly is often replaced if the slats are also damaged. A 'basic setting' or adaptation is required after replacement.
   Est. part cost: $60 - $250
2. Damaged Wiring or Connector 🟡 Medium Probability The wiring harness is located at the front of the car and is susceptible to damage from road debris, front-end impacts, or corrosion from road salt. In some cases, the wire can break inside the protective loom, often near a point where factory tape is wrapped, suggesting a stress point from manufacturing.
   How to confirm: Visually inspect the wiring harness and 4-pin connector going to the shutter motor for any cuts, corrosion, or loose pins. Peel back the loom near the connector to check for hidden breaks. Check for 12V power, ground, and communication signal continuity at the connector with a multimeter.
   Typical fix: Repair the damaged section of the harness or replace the connector pigtail. Ensure repaired wires are sealed against moisture.
   Est. part cost: $20 - $60
3. Obstruction in Shutter Assembly ⚪ Low Probability Road debris, ice, or snow can physically block the shutters from moving, which can strain the motor and lead to a communication fault over time.
   How to confirm: Visually inspect the shutter slats for any foreign objects preventing their movement. This is the first step recommended by VW's technical tip.
   Typical fix: Carefully remove the obstruction.
   Est. part cost: $0

Rare But Worth Checking

• Failed Powertrain Control Module (PCM): This is extremely rare. Before condemning the PCM, all other possibilities, including wiring and the shutter module itself, must be exhaustively ruled out.

Diagnosis Steps

1. Scan for Codes: Use an OBD-II scanner to confirm U0284 is present and check for any other related codes like P05A0, as noted in VW TSBs.
2. Visual Inspection: Look through the lower front grille. Are the shutters open or closed? Can you see any debris like leaves, plastic bags, or ice blocking them? This is the first step in VW's diagnostic procedure.
3. Check Fuses: Consult your owner's manual to locate and check the fuse related to the active grille shutter system (often 10A or 15A).

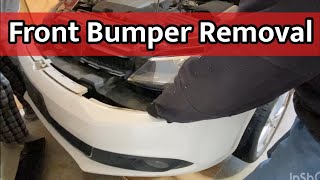

4. Bumper Removal: To access the components, you will likely need to remove the front bumper cover.
5. Inspect Wiring: Carefully examine the 4-pin electrical connector and wiring going to the shutter motor (-V544-). Look for any signs of damage, corrosion, or loose connections. Consider peeling back the protective loom to check for internal wire breaks.
6. Test the Motor: If you have a compatible advanced scan tool (like VCDS or OBDeleven), perform an output test on the radiator shutter to command it open and closed. If it doesn't move, the motor is the primary suspect.
7. Check Power and Ground: Using a multimeter, verify that the motor's 4-pin connector is receiving proper voltage and has a good ground connection, as specified by VW's technical tip.
8. Replace the Faulty Component: Based on your findings, replace the shutter motor or repair the wiring. VW's TSB suggests replacing the entire shutter assembly if wiring and obstructions are ruled out.
9. Perform Basic Setting / Adaptation (CRITICAL STEP): After replacing the motor, the new component must be calibrated. Use a scan tool like VCDS to run the 'Basic Setting' for 'Adaptation of radiator shutter' (on UDS modules, this is often IDE10304). Tools like OBDeleven may offer this as a one-click app. Failure to do this step will likely result in the code returning. After adaptation, clear all DTCs.

Parts You'll Likely Need

• Active Grille Shutter Motor (OEM #5C6-965-501-A (or B, AA)) — This is the most common failure point. The original motor part numbers (e.g., ending in 'D') have been superseded by updated versions (e.g., ending in 'AA') for better reliability. Note: The functionally identical Porsche part 95B-965-501-AA is often sold for this repair.
  Trusted brands: Genuine Volkswagen
  OEM price range: $150 - $250
  Aftermarket price range: $60 - $180
• Active Grille Shutter Assembly — If the shutter slats themselves are broken from an impact or if the motor is not sold separately. VW's official TSB recommends replacing the entire assembly if basic electrical checks pass and no obstruction is found.
  Trusted brands: Genuine Volkswagen
  OEM price range: $400 - $550
  Aftermarket price range: $250 - $400

Related Codes That Often Appear With This One

• P05A0 — This code means "Active Grille Air Shutter 'A' Stuck On." It often appears alongside U0284 because a physical obstruction or motor failure (P05A0) can lead to the control module giving up and ceasing communication (U0284). VW Technical Tip 01-18-15 groups these codes together for diagnosis.

Technical Service Bulletins (TSBs) & Recalls

• TT 01-18-15 / 2052932/1: Titled 'Radiator Shutter Faults P05A3, P05A0, U0284', this document provides a specific diagnostic workflow: inspect for blockage, test power/ground, and if those are good, replace the entire shutter assembly and perform basic settings.
• TT 01-21-02 / 2063552/1: An updated version of the technical tip for newer models like the Atlas, but with the same diagnostic procedure, confirming the persistence of this issue.

Platform-Specific Known Issues

• VW Technical Tip TT 01-18-15 (2052932/1): Volkswagen issued a technical tip for faults U0284, P05A0, and P05A3 affecting the Jetta, Atlas, and Passat. The procedure is to first inspect for obstructions. If none, test for power and ground at the 4-pin motor connector. If circuitry is OK, VW advises replacing the complete shutter assembly and then performing a basic setting calibration.

Mechanic-Grade Diagnostic Values

• Voltage at motor power pin — expected: 12 V ± 0.5 V with ignition on. Failure: Significantly lower or no voltage indicates a power supply issue (fuse, wiring).
• Continuity to chassis ground — expected: Less than 0.1 Ω. Failure: High resistance indicates a poor ground connection.
• LIN Bus wire voltage — expected: This is a single-wire communication line. Voltage will fluctuate rapidly. A static voltage or 0V indicates a communication line fault.. Failure: No fluctuation, 0V, or battery voltage.

Scan Tool Commands That Help

• VCDS (VAG-COM): Basic Setting: IDE10304 - Adaptation of radiator shutter — This is a mandatory step after replacing the active grille shutter motor or assembly. It calibrates the new motor's start and end points. Failure to run this will cause the fault to return.
• VCDS (VAG-COM): Output Test: IDE08493 - Activation radiator shutter — Use this function during diagnosis to command the shutter motor to move. If the motor does not respond to this command but has power and ground, the motor itself is likely faulty.

Wiring & Ground Locations

• Ground Point 12 — In the engine compartment on the left side, below the battery tray.. This is a primary ground point for the front headlight and fan control wiring harnesses. A corroded or loose connection here can cause various front-end electrical issues, including communication faults with modules like the grille shutter.
• 4-Pin Connector to Shutter Motor — Directly on the active grille shutter motor, behind the front bumper's lower grille.. This is the single point of failure for power, ground, and communication to the motor. Pin assignments can be mis-wired during repair, leading to persistent codes. It typically contains pins for 12V power, ground, and a LIN bus communication wire.

Real Owner Repair Stories

• Ross-Tech Forums user 'ebushnell' (2015 VW Jetta, 147,588 miles) — Check Engine Light on.
  ❌ Tried (didn't work) Replaced the active grille shutter motor.
  ✅ What actually fixed it The Check Engine Light remained on immediately after replacing the motor. The fault changed from 'Open Circuit' to 'Implausible Signal'. The final fix was running the VCDS Basic Setting 'IDE10304 - Adaptation of radiator shutter', which calibrated the new part and cleared the persistent fault code.
• Ross-Tech Forums user on a 2017 Audi Q7 (2017 Audi Q7 (shares similar system)) — Growling noise from grille area, 'Drive System Malfunction' warning.
  ❌ Tried (didn't work) Replacing the shutter motor and immediately trying to run the adaptation., Installing the new motor while the shutter slats were in the open position.
  ✅ What actually fixed it The adaptation procedure failed until the user physically moved all shutter slats to the fully closed position *before* installing the new motor. Once the motor was installed onto the closed shutters, the 'Adaptation of radiator shutter' (IDE10304) function ran successfully and resolved the issue.

OEM Part Supersession History

• 5C6-965-501-D (or earlier) → 5C6-965-501-A, 5C6-965-501-B, and most recently 95B-965-501-AA — Improved reliability and durability. Early versions were prone to failure.
  Heads up: The part ending in 'AA' is a Porsche part number but is functionally identical and commonly used as the latest revision for this repair on VW models.
