OBD-II Code U0285: Lost Communication With Active Grille Air Shutter Module 'B'

What Does U0285 Mean?

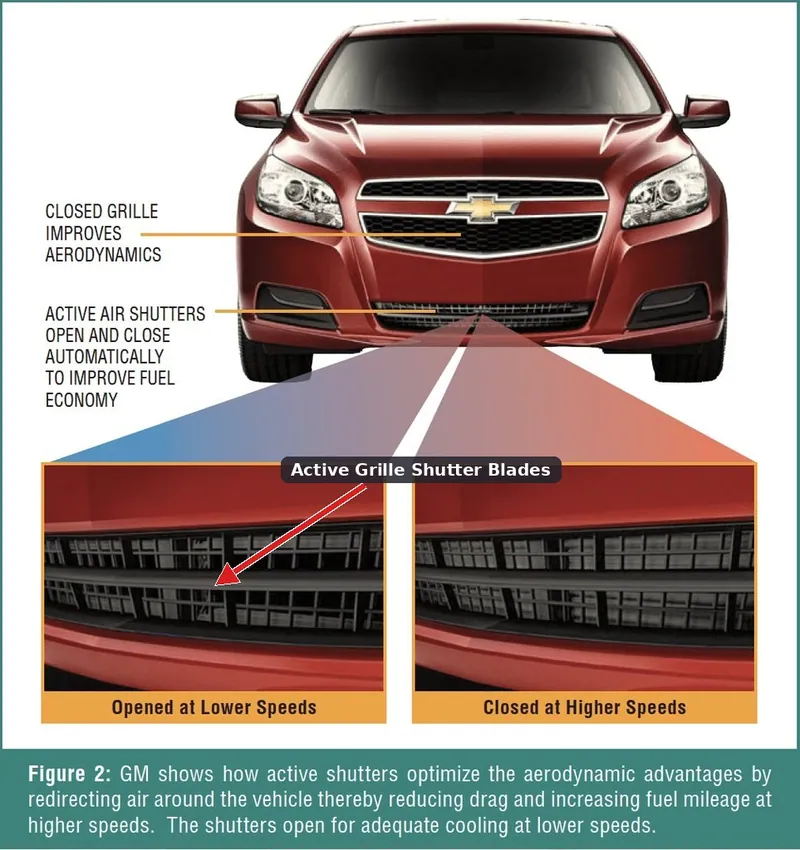

Code U0285 means the Powertrain Control Module (PCM) lost communication with the 'B' module controlling the active grille shutters. These shutters, located in the lower front bumper, adjust automatically to optimize engine temperature and aerodynamics. When the PCM stops receiving signals over the Local Interconnect Network (LIN bus), it logs this fault, triggers the check engine light, and disables the start-stop system.

Technical definition: The official SAE/OBD-II definition is "Lost Communication With Active Grille Air Shutter Module 'B'". This specifies that a primary control module failed to receive a valid data signal from the lower shutter module within a calibrated timeframe. This is strictly a network communication failure indicating the module is offline, not a mechanical performance code.

Can I Drive With U0285?

⚠️Yes, But With Caution. Yes, but it requires prompt attention. The system defaults to the open position to prevent overheating. If stuck open, the engine takes longer to warm up, reducing fuel efficiency by 1-2 MPG and increasing engine wear. If stuck closed, the engine overheats rapidly in warm weather or traffic, risking a $2,000+ head gasket failure. Do not drive without visually confirming the shutters are open.

Common Causes

• Damaged or Corroded Wiring/Connectors (Very Common) — Positioned at the front bumper, the wiring harness is highly exposed to road salt, moisture, and debris. Frayed wires or corroded connectors are the number one cause of U0285.
• Faulty LIN Bus Splice or Shared Network Issue (Common) — The shutter module shares a LIN bus with other components. A corroded splice point (like J171 in GM vehicles) disrupts 🎬 Watch: How to fix code U0285 on a Chevy Traverse the network, triggering U0284, U0285, and U1345 simultaneously.
• Broken Stop Tab on Shutter Frame (Ford Specific) (Common) — On Ford models, a plastic tab on the shutter frame acts as a physical stop. When it breaks, the motor endlessly cycles trying to find its home position, generating a fault code and a distinct clicking noise on startup.
🎬 See this video for Ford F-150 shutter troubleshooting and repairs
• Faulty Active Grille Shutter Module 'B' (Common) — The electronic control module fails due to internal component breakdown, short circuits, or water intrusion. A shorted motor locks up the microprocessor, ceasing communication.
• Loose or Blown Fuse (Less Common) — A blown or poorly seated fuse cuts power to the module, dropping it off the network. This is a crucial first check.
• Physical Damage or Obstruction of Shutter Assembly (Less Common) — Road debris or minor collisions damage the shutter blades or linkage. 🎬 Watch: Step-by-step active grille shutter replacement on a Ram 1500 This binds the motor, leading to an electrical fault as it overheats or shorts out.
• Software Glitch or Outdated Module Software (Less Common) — A temporary software glitch causes communication loss. The module's firmware sometimes requires a manufacturer update to resolve compatibility issues.
• Low Battery Voltage or Unstable Power Supply (Rare) — Control modules require stable voltage. A weak battery or failing alternator causes voltage drops that force modules offline.

Symptoms

• Check Engine Light is on — The light illuminates immediately when the PCM detects the communication loss.
• Active grille shutters visibly stuck open or closed — A visual inspection confirms the shutters are not moving. Most systems default to the open fail-safe position.
• Clicking or Grinding Noise From Front of Vehicle on Startup — A repetitive clicking sound for 5-10 seconds after starting the engine indicates a failed calibration cycle, common on Ford vehicles.
• Stop/Start System Disabled Message — A fault in the active grille shutter system disables the automatic engine stop/start feature on modern vehicles.
• Engine takes a long time to warm up — If stuck open in cold climates, the engine takes significantly longer to reach optimal operating temperature, reducing fuel efficiency.
• Engine running hot or overheating — If stuck closed, airflow to the radiator is restricted. This causes rapid overheating in stop-and-go traffic or hot weather.
• HVAC system performance issues — A fault triggers an HVAC warning light or leads to poor A/C performance on platforms where shutters manage A/C condenser airflow.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Repairing Damaged Wiring or Connectors — Parts: $10-$50, Labor: $150-$300 (for 1-2.5 hours of diagnostic and repair time), ~2 hr book time (Intermediate)
• Clearing an Obstruction and Resetting Codes — Parts: $0, Labor: $0-$125 (if a shop does it), ~0.5 hr book time (DIY)
• Replacing the Active Grille Shutter Assembly — Parts: $150-$500 (aftermarket) to $400-$700 (OEM), Labor: $300-$800 (often requires bumper removal, 2-4 hours of labor), ~3.5 hr book time (Professional)
  Chevrolet Silverado 1500 (2019-2023): OEM 84652494, 84652495 (Alt: Dorman 601-387, TRQ BDA71910)
  Ford F-150 (2018-2020): OEM JL3Z8475C, JL3Z8475F (Alt: Dorman 601-317, A-Premium APAGS039)
  Ram 1500 (2019-2022): OEM 68405137AB, 68437500AC, 68405073AE (Alt: Dorman 601-326, Autopart Premium APAGS052)
• Repairing a Faulty LIN Bus Splice Point — Parts: $5-$20, Labor: $200-$400 (Labor-intensive to locate and access the splice in the harness), ~2.5 hr book time (Professional)
• Updating or Reprogramming the Control Module — Parts: $0, Labor: $100-$200 (for software access and programming time), ~1 hr book time (Professional)

Used vs. New Parts: Buying Guide

When a used part is worth it: For a simple mechanical part like a shutter frame without a motor, a used part from a low-mileage, non-collision vehicle is cost-effective. However, since the entire assembly including the electronic module is often replaced, buying used is risky.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Verify the part number matches exactly.
• Inspect for cracks in the plastic frame or linkage, especially on Ford models.
• Avoid parts from vehicles in the rust belt, as the actuator motor and connector are prone to corrosion.

Decision logic:

• If The failure is a broken plastic tab or frame damage on a high-mileage vehicle → A new aftermarket assembly is the best value, providing a new motor and electronics with a warranty.
• If The vehicle is relatively new and the budget is tight → A low-mileage OEM used part from a reputable salvage yard with a warranty is acceptable, but the risk of electronic failure remains.
• If The root cause was wiring and the original part is undamaged → Do not replace the assembly; focus on repairing the harness properly.

Warranty tradeoff: Used parts typically offer a 30-90 day warranty, which fails to cover intermittent electronic issues. New aftermarket parts (like Dorman) come with a 1-year to limited lifetime warranty. New OEM parts carry a 1-2 year warranty.

Worst-case if a used part fails: $300-$800 if a used part fails after the warranty period, requiring payment for labor to remove the bumper and replace the assembly again.

What Happens If You Wait — Timeline

1. 0-1 month (Fail-Safe: Stuck Open): Code U0285 is set and the Check Engine Light is on. The system enters its fail-safe mode, leaving the shutters permanently open. The auto start/stop system is disabled. (MPG impact: 1-3% decrease% · Added cost: $0-25 in wasted fuel.)
2. 1-6 months (Fail-Safe: Stuck Open): Engine takes noticeably longer to reach operating temperature in cooler weather. This leads to inefficient combustion, a consistent drop in fuel economy, and poor heater performance inside the cabin. (MPG impact: 2-5% decrease% · Added cost: $50-150 in wasted fuel and accelerated oil degradation.)
3. 6-12+ months (Fail-Safe: Stuck Open): Prolonged operation below optimal temperature leads to increased carbon buildup on valves and moisture contamination in the engine oil, accelerating long-term engine wear. (MPG impact: 2-5% decrease% · Added cost: $200-500 for potential induction cleaning services or more frequent oil changes.)
4. Immediate Risk (Critical Failure: Stuck Closed): If the shutters fail while closed, airflow to the radiator is blocked. The engine runs hot within minutes of driving in traffic. If the driver does not stop immediately, severe overheating occurs. (MPG impact: N/A% · Added cost: $2,000-$5,000+ for catastrophic damage, such as a warped cylinder head or failed head gasket, which happens in a single overheating event.)

Cost of Not Fixing It

• 0-3 months: If stuck open, expect a 1-2 MPG drop in fuel economy and longer engine warm-up times. If stuck closed, the engine risks running hot in warm weather or traffic. (Added cost: $20-$60 in wasted fuel per month.)
• 3-12 months: Stuck open: Increased carbon buildup and moisture in the crankcase from the engine running cold leads to premature oil degradation. Stuck closed: Repeatedly running hot stresses cooling system components like hoses and the water pump. (Added cost: $200-$500 for potential oil system cleaning or cooling system repairs.)
• 12+ months: Stuck closed: Catastrophic engine damage from overheating, such as a warped cylinder head or failed head gasket. Stuck open: Accelerated wear on internal engine components reduces engine life. (Added cost: $2,000-$5,000+ for major engine repairs like a head gasket replacement.)

Diagnosis Steps

1. Scan for All DTCs
   Read codes from all modules using a professional OBD-II scanner. Confirm U0285 is present. U0284 ('A' shutter) or U1345 (LIN Bus fault) point to a shared wiring problem, while P05AE indicates a mechanical jam.
   Tools: OBD-II Scan Tool (Beginner)
2. Check for Manufacturer TSBs
   Search for Technical Service Bulletins (TSBs) for your specific vehicle. GM bulletins 22-NA-252 and 21-NA-077 point directly to wiring harness routing or splice issues, saving hours of diagnostic time.
   Tools: Internet Access (Beginner)
3. Perform a Thorough Visual Inspection
   Look behind the grille at the lower shutter assembly. Check for obstructions like leaves or ice. Inspect the wiring harness for cuts, chafing against the radiator support, or rodent damage.
   Tools: Flashlight, Inspection Mirror (Beginner)
4. Check Fuses and Listen for Clicks
   Verify the active grille shutter fuse is intact. Have a helper cycle the ignition on while you listen at the front bumper. A repetitive clicking noise confirms a mechanical binding issue or broken stop tab.
   Tools: Fuse Puller, Owner's Manual (Beginner)
5. Inspect the Electrical Connector
   Disconnect the 'B' shutter module. Examine pins for green/white corrosion, moisture, or physical damage. Clean with electrical contact cleaner and apply dielectric grease upon reassembly.
   Tools: Electrical Contact Cleaner, Dielectric Grease (Intermediate)
6. Load Test Power and Ground Circuits
   [PRO TIP] A multimeter checking for 12V is insufficient; a single wire strand shows voltage but fails under load. Connect a high-impedance test light to a known good ground and probe the power wire. It must illuminate brightly. Connect the clip to battery positive and probe the ground wire to confirm load capacity.
   Tools: Multimeter, High-Impedance Test Light, Wiring Diagram (Advanced)
7. Perform a LIN Bus Network Integrity Test
   [PRO TIP] Use an oscilloscope on the LIN bus wire. A healthy signal shows square waves dropping from 12V to near 0V. If voltage is stuck at 12V, the line is open or the module is dead. If stuck near 0V, the line is shorted to ground.
   Tools: Multimeter or Oscilloscope, Wiring Diagram (Advanced)
8. Isolate the Module
   If the LIN bus signal is stuck high/low, disconnect the shutter module. If the proper waveform reappears on the wire from the PCM, the module is shorting the network. If the signal remains bad, the fault is in the wiring harness or a shared splice.
   Tools: Scan Tool, Multimeter or Oscilloscope (Advanced)
9. Check Actuator Motor Resistance
   [PRO TIP] Disconnect the actuator and measure resistance between the two motor pins using a multimeter set to Ohms (Ω). A reading between 5 and 20 Ohms is typical. Infinity (O.L.) indicates an open circuit, while near zero indicates a short circuit.
   Tools: Multimeter, Wiring Diagram (Advanced)
10. Monitor Live Data PIDs
    [PRO TIP] Use a bi-directional scan tool to view 'AGS B Commanded Position' and 'AGS B Actual Position'. With U0285, the 'Actual Position' shows 'Fault' or 'Unknown'. Commanding the shutter open/closed with no change confirms communication loss.
    Tools: Bi-directional Scan Tool (Advanced)

When This Code Triggers (Freeze-Frame Conditions)

• Engine Coolant Temp: 175-210°F (The fault logs when the engine is at full operating temperature, as the PCM actively commands shutter positions based on cooling needs.)
• Vehicle Speed: 0 mph (at startup) or 45-70 mph (at cruise) (Communication is checked at startup during a calibration sweep and continuously during driving, especially at highway speeds when shutters close for aerodynamics.)
• RPM: 700-800 (idle) or 1500-2500 (cruise) (The code sets at any engine speed, from idle after startup to steady-state cruising, as the module must maintain constant communication.)
• Calculated Engine Load: 20-50% (The code is a network fault, not a performance fault, triggering under any load condition where the module fails to respond on the LIN bus.)

Related Codes

• U0284 — This is the identical fault for the 'A' shutter module (usually the upper one). It is very common to see U0284 and U0285 together.
• P05AE — This is a performance code for the 'B' shutter. U0285 means the module is offline, while P05AE means the PCM communicates with the module, but the shutters are physically stuck.
• U1345 — This is a GM-specific code for a fault on 'Engine Control Module LIN Bus 1'. It frequently appears with U0284 and U0285, indicating a broader network problem.
• U01B0 — Lost Communication with Battery Monitor Module. On many GM vehicles, this module shares the LIN bus with the active grille shutters.

Climate & Environmental Factors

• Cold Weather / Snow & Ice: Ice and packed snow physically block the shutter blades from moving, stressing the motor to the point of electrical failure, which triggers U0285. This is a very common cause in winter climates.
• Road Salt & High Humidity: In regions using road salt, the electrical connector pins and wiring for the shutter module are highly susceptible to corrosion. This corrosion creates high resistance, disrupting the power, ground, or LIN bus signal.

How to Talk to a Mechanic About This Code

Say this: "I have a U0285 code, which points to a communication loss with the lower active grille shutter. I'd like to schedule a diagnostic, but please do not replace the shutter assembly without first load testing the power and ground wires and checking the LIN bus signal at the connector. I'm aware that wiring issues are the most common cause for this specific code."

This signals that you are an informed customer. It directs the technician to perform a proper electrical diagnosis first, preventing them from immediately replacing an expensive part that may not be the root cause of the problem.

Avoid saying:

• 'My check engine light is on, can you just fix it?'
• 'I think I need a new grille shutter motor.'
• 'Just do whatever it takes to get the light off.'

Questions to ask before authorizing the repair:

• Did you find the failure in the wiring, the connector, or the module itself?
• Can you show me the voltage and ground readings you took at the connector?
• If the module needs replacement, is there any chance this is covered by a TSB or an extended warranty?
• What is the warranty on both the parts and the labor for this repair?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Recommended if the vehicle is under warranty or has a known manufacturer-specific issue (like GM TSBs). For out-of-warranty vehicles, a trusted independent shop is more cost-effective.
  Best for: Vehicles under warranty (base or extended), Known TSBs or recalls related to U0285 for your specific model, Complex electrical issues involving multiple modules on the LIN bus
  Downsides: Highest labor rates, Quick to replace the entire assembly rather than perform a detailed wiring repair (Typical cost: +50% vs. baseline)
• Independent Shop: Best overall fit for most out-of-warranty U0285 repairs, provided you choose a shop with strong electrical diagnostic skills. Vet them by checking reviews and asking about their experience with communication codes.
  Best for: Out-of-warranty vehicles where cost is a major factor, Diagnosing and repairing common wiring and connector issues
  Downsides: Shop quality and diagnostic capabilities vary greatly, Lacks access to the latest manufacturer software updates or TSBs (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID for diagnosing a U0285 code. This type of network communication fault requires a higher level of diagnostic skill than is typically found at chain repair shops.
  Best for: Simple, unrelated maintenance like oil changes or tires
  Downsides: Technicians lack the specialized electrical diagnostic training for communication codes, High pressure to sell parts leads to misdiagnosis (e.g., selling a shutter assembly when only a wire is broken) (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the U0285 repair cost exceeds 50% of the vehicle's private-party value, sell or trade the vehicle.

• Car worth $5000, fix is $2600: Walk away. The repair cost is over 50% of the vehicle's value.
• Car worth $15000, fix is $1200: Fix it. The repair cost is well under the 50% threshold and is a reasonable investment to keep a more valuable car running properly.
• Car worth $3000, fix is $1000: Borderline. At 33% of the car's value, the decision depends on the car's overall condition. If it needs other repairs soon, it is better to sell.

What Scan Tool You Need for This Code

Minimum: A scan tool that reads manufacturer-specific codes and views live data PIDs for the shutter module.

A basic $20 code reader only confirms the U0285 code. It cannot see if other modules on the LIN bus are offline, nor can it command the shutter to move, which is a critical diagnostic step.

Budget: BlueDriver Pro (~$100) — Connects to your smartphone to read manufacturer-specific codes, view freeze-frame data, and graph live data.

Mid-range: Innova 5610 / Foxwell NT710 (~$350) — Provides bi-directional control. This allows you to send commands directly to the active grille shutter module to test its function after a repair, confirming the communication link is restored.

Professional: Autel MaxiCOM MK900-TS / Topdon Phoenix Lite 2 (~$500-900) — Provides full bi-directional control, shows network topology to visualize offline modules, and offers advanced features like ECU coding if a module replacement requires programming.

Rent vs buy: AutoZone or O'Reilly scans codes for free, but their basic scanners cannot perform necessary diagnostic tests. To diagnose the issue yourself, buy at least a mid-range scanner with bi-directional capabilities.

How to Clear the Code After You Fix It

1. Use a professional OBD-II scan tool to clear the U0285 fault code from the PCM.
2. Perform a key-on, engine-off self-test or actuator test with the scan tool to confirm the module communicates and the shutters cycle.
3. Perform a complete drive cycle to allow the vehicle's readiness monitors to become 'Ready'.

Drive cycle (~20 minutes): A general drive cycle includes: 1) Cold start and idle for 2-3 minutes. 2) Drive in stop-and-go city traffic for 10-15 minutes, including several stops. 3) Drive at a steady highway speed (55-65 mph) for 5-10 minutes. 4) Allow the vehicle to cool down completely.

Readiness monitors affected: Comprehensive Component Monitor, Catalyst Monitor (may be affected by engine warm-up time)

Before emissions retest: drive at least 50 miles to fully set monitors.

Watch out for:

• Clearing the code without fixing the root cause results in the code returning immediately.
• Disconnecting the battery clears the code but resets all readiness monitors, requiring an extended drive cycle before passing an emissions test.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: An illuminated Check Engine Light for code U0285 is an automatic failure. After repair, a full drive cycle must be completed to set all readiness monitors before a re-test.
• New York: The NYS DMV inspection includes an OBD-II scan. Any active communication fault code like U0285 results in an immediate inspection failure.
• Texas: In the 17 counties requiring emissions testing, a vehicle with an active U0285 code and illuminated MIL fails the OBD portion of the inspection.

Most Commonly Affected Vehicles

• Chevrolet Silverado 1500 (2019-2023) — Subject of GM TSBs 22-NA-252 and 21-NA-077. Issues are frequently caused by wiring harnesses being improperly routed, pinched, or having poor connections, rather than a failed shutter.
• GMC Sierra 1500 (2019-2023) — Shares the same platform and issues as the Silverado. TSB 21-NA-077 specifically provides diagnostic tips for U0284/U0285 codes on these trucks.
• Ford F-150 (2015-2020) — Extremely common failure of the plastic stop tab on the shutter frame, causing a loud clicking on startup. The entire assembly usually requires replacement to fix the broken tab.
• Chevrolet Traverse (2018-2023) — Prone to wiring harness damage near the shutter assembly. TSB 19-NA-215 addresses water intrusion into harness connectors for 2018-2019 models. A broken wire within the first 6 inches of the harness is a frequent cause.
• Ford Explorer (2016-2019) — Similar to the F-150, these are known for brittle plastic components in the shutter assembly failing, including stop tabs and actuator linkages.
• Ram 1500 (2019-2022) — Owners report issues with corroded wires in the connector and wires rubbing through near the end of the protective loom. Some dealerships have incorrectly identified 'B' as the upper shutter.
• Cadillac Escalade (2021-2023) — Included in GM service bulletin 22-NA-252 for potential LIN bus communication DTCs, including U0285, often tied to wiring issues.
• Subaru Outback / Forester (2015-2024) — On Subarus, this code is often intermittent. It triggers from minor debris, ice buildup, or a weak battery. A system reset or clearing debris resolves it temporarily.

Manufacturer-Specific Notes

• General Motors (Chevrolet, GMC, Cadillac): GM has multiple TSBs (22-NA-252, 21-NA-077, 19-NA-215) for this issue. The root cause is frequently the wiring harness being pinched at the radiator support, improperly routed, or having a poor connection at a LIN bus splice (J171), not a failed shutter.
• Ford: The most common failure on models like the F-150 and Explorer is a small, brittle plastic stop tab on the shutter frame breaking off. This results in a distinct clicking/grinding noise on startup as the motor fails its calibration. The entire shutter assembly must be replaced to fix it.
• Chrysler / Ram: On Ram 1500 trucks, the issue traces to corroded wires within the module's electrical connector or wires rubbing through insulation near the end of the protective loom. Power washing the grille area forces water intrusion and causes this damage.
• BMW: BMW issued an extended warranty for the active air flap grille assemblies on some models, extending coverage to 15 years or 150,000 miles. Owners must check with a dealer to verify specific vehicle coverage.

Real Owner Stories

2018 Chevy Traverse at 63K miles

Check engine light for U0285 came on intermittently, then stayed on. Owner noted physical damage to the shutter blades.

What they tried:

1. Assumed the damaged shutters burned out the motor.
2. Replaced both upper and lower shutter assemblies for $400 in parts.
3. The U0285 code did not go away after replacement.

Outcome: Owner found a TSB related to wiring. Inspecting the harness revealed a completely separated wire inside the insulation 6 inches from the connector. Repairing the wire solved the problem.

Lesson: Do not replace expensive parts for a communication code without testing the wiring first. A TSB search pointed to the real problem, saving $400 in unnecessary parts.

2022 Ram 1500 EcoDiesel

U0285 code appeared, preventing vehicle registration. Owner frequently power washes the truck's grille area.

What they tried:

1. Attempted to install a 'delete kit' to trick the computer, but the check engine light returned.
2. Dealer incorrectly identified 'B' as the upper shutter.
3. Owner suspected the motor was damaged by water from power washing.

Outcome: Forum members reported the issue is caused by a corroded wire in the connector or wires rubbing through insulation near the end of the protective loom. Repairing the damaged wiring harness fixed it.

Lesson: On Ram trucks, the wiring harness connector is a known weak point. High-pressure water causes moisture intrusion and corrosion, leading to U0285. Check for corroded pins before considering motor replacement.

2016 Ford F-150 with clicking noise

A repetitive clicking or grinding noise from the front of the truck upon startup. Check engine light was on.

What they tried:

1. Misdiagnosed by some as a cam phaser or internal engine issue.
2. Owner was considering expensive engine diagnostics.

Outcome: The issue was correctly identified as the active grille shutter assembly failing its calibration sequence. Caused by a broken plastic stop tab on the shutter frame, the entire assembly required replacement.

Lesson: A clicking noise from the grille on a Ford is almost certainly the shutter assembly, not a serious engine problem. This specific noise points directly to a well-known part failure.

2023 Hyundai Ioniq 5

U0285 code and 'Check electric vehicle system' warning appeared right after an over-the-air (OTA) software update. The passenger side air flap was stuck open.

What they tried:

1. Owner manually moved the flap to confirm there was no physical obstruction.
2. Checked for recalls and found their vehicle was not part of a known air flap actuator recall.

Outcome: The issue was a software glitch addressed by a separate Technical Service Bulletin (TSB) for the Ioniq 5. The owner scheduled a dealer appointment for diagnosis and repair.

Lesson: On highly integrated electric vehicles, software updates trigger hardware faults. If the code appears immediately after an update and there is no physical blockage, a dealer visit for a software-related fix is necessary.

How to Prevent This Code From Triggering

• Periodically Clean the Shutter Assembly (Every oil change or seasonally) — Gently rinse the grille area with low-pressure water to remove leaves, bugs, and road grime that cause the shutter blades to bind. Avoid high-pressure washers which force water into the actuator's electrical connector.
• Inspect and Protect the Electrical Connector (Once per year, especially before winter) — Disconnect the shutter module connector, inspect for corrosion, and clean if necessary. Apply dielectric grease to the connector seal to prevent moisture and road salt intrusion, a primary cause of communication failures.
• Visually Inspect for Ice/Snow Buildup in Winter (After any snow or ice storm) — Before starting the car in freezing conditions, ensure the shutters are not frozen solid. Attempting to cycle frozen shutters strips internal gears or overloads the motor, causing an electrical failure and triggering code U0285.
• Apply an Oil-Based Rust Proofing Spray (Annually, especially in the Rust Belt) — An annual undercoating service using a light, oil-based spray protects the wiring harness, connectors, and metal components from road salt. This prevents the corrosion that leads to broken wires and bad connections.

Frequently Asked Questions

What is an active grille shutter and what does it do?

It is a set of computer-controlled vents located behind your car's grille. They close at highway speeds to reduce aerodynamic drag and open when the engine needs more air for cooling.

Which shutter is 'B'?

On vehicles with two separate shutter assemblies, 'B' refers to the lower shutter. Code U0284 corresponds to the 'A' shutter, which is the upper one.

Why did U0285 return after replacing the shutter assembly?

The most common cause of U0285 is a wiring fault, not a broken shutter. If you replace the assembly without fixing the underlying broken wire or corroded connector, the new module remains offline and the code returns immediately.

Can I just remove the active grille shutters?

Physically removing them makes the U0285 code permanent, keeps the check engine light on, and causes an automatic failure on emissions tests. The vehicle's computer expects to see the shutter module on the network.

Can I fix U0285 myself?

A DIYer can inspect fuses, clear debris, and clean connectors. However, diagnosing wiring faults requires electrical knowledge and tools. Replacing the shutter assembly requires removing the entire front bumper cover, taking 2-4 hours.

How much does it cost to fix U0285?

A dealership repair for a full shutter replacement ranges from $900 to $1,500. An independent shop charges between $500 and $900. If the issue is a simple wiring repair, expect to pay $200-$400 for professional diagnosis and labor.

Will clearing the code fix the problem?

No. The moment the PCM attempts to communicate with the offline shutter module on the next ignition cycle, it detects the fault and the check engine light returns.

Does a car wash cause the U0285 code?

Yes. High-pressure water from a car wash forces its way into the shutter actuator's electrical connector, causing rapid corrosion and communication loss.

Key Takeaways

• Code U0285 indicates a total communication loss with the lower 'B' active grille shutter module, disabling the system and triggering the check engine light.
• Corroded wiring or a damaged connector at the front bumper causes over 60% of U0285 faults, making electrical testing mandatory before replacing the $400+ shutter assembly.
• Listen for a 5-second clicking noise on startup in Ford F-150s to instantly diagnose a broken stop tab, or check GM TSB 22-NA-252 for known LIN bus splice failures.
• Verify the shutters are stuck in the open fail-safe position before driving; driving with closed shutters causes catastrophic engine overheating within 15 minutes in warm weather.
• Use a high-impedance test light to load-test the 12V power and ground circuits, as a single intact wire strand shows voltage on a multimeter but fails to carry the necessary current.
