U0418 on 2021 Jeep Compass: Implausible Brake Module Data Causes & Fixes

What's Unique About the 2021-2021 Jeep COMPASS

For the 2021 Jeep Compass, this brake communication code has a very specific and unusual link to other issues. Manufacturer TSB #18-085-22 explicitly connects U0418 to an O2 sensor heater circuit code (P0031) and a symptom of long engine cranking, particularly when ambient temperatures are high. This indicates a known software issue where a fault in one system can trigger seemingly unrelated error codes in another, making a software update the most likely and required first step for a fix.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light (MIL) illuminated
• Long engine cranking before starting, especially in warm weather
• ABS warning light on
• Traction/Stability Control (ESC) light on
• Service ABS System message on the display
• Service Hill Start Assist message on the display

Most Likely Causes

1. Powertrain Control Module (PCM) Software Issue 🔴 High Probability → Shop Engine Control Module (ECM) TSB #18-085-22 was issued specifically to address U0418 being set along with P0031 and causing long crank times on the 2021 Compass with the 2.4L engine. This is a well-documented software anomaly.
   How to confirm: A Jeep dealer or qualified shop with access to OEM service information (like DealerCONNECT) can check if TSB #18-085-22 applies to the vehicle's VIN and its current software calibration.
   Typical fix: Reprogramming the Powertrain Control Module (PCM) with the latest available software using the wiTECH Diagnostic Application.
   Est. part cost: $0
2. Low Battery Voltage 🟡 Medium Probability → Shop Vehicle Battery A related TSB for Jeeps (#18-078-22) explicitly notes that code U0418 can be set erroneously if the battery voltage drops below 10 volts. Modern vehicles with many electronic modules, including the Compass and its platform mates like the Renegade, are highly sensitive to low voltage.

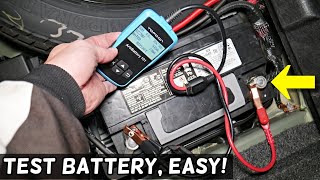

   How to confirm: Perform a full battery load test with a digital battery tester. 🎬 Watch: How to properly load test your Jeep's battery. A simple voltage check is not sufficient; the battery must be tested under load to determine its health. The charging system should also be checked.
   Typical fix: Replace the 12V battery if it fails a load test. Many modern Compasses use an auxiliary battery for the start-stop system, which can also fail and affect the main battery's health.
   Est. part cost: $150-$350
3. Faulty O2 Sensor Heater Circuit 🟡 Medium Probability → Shop Oxygen Sensor TSB #18-085-22 specifically links U0418 with P0031 (O2 Sensor 1/1 Heater Circuit Low). The PCM software issue may be triggered by the fault in the O2 sensor circuit, or the PCM may falsely report both codes. Diagnosing the P0031 is a necessary step.
   How to confirm: Diagnose the P0031 code by checking the O2 sensor's heater circuit fuse, wiring, and connector. Test the sensor's internal resistance with a multimeter; a typical reading for Chrysler/Jeep sensors is 5-7 ohms.
   Typical fix: Replace the Bank 1, Sensor 1 Oxygen Sensor if the heater circuit is confirmed to be open or shorted internally.
   Est. part cost: $50-$150
4. Wiring or Connector Issue ⚪ Low Probability On Jeeps, wiring for wheel speed sensors can be damaged during off-roading or from road debris, leading to implausible data that sets U0418. This is often accompanied by a wheel-speed-specific code like U1409 or U140A.
   How to confirm: Visually inspect the wiring harnesses and connectors going to the ABS module and all four wheel speed sensors for damage, corrosion, or loose pins. 🎬 Watch: How to test the ABS wiring harness for faults. Pinpoint testing of the CAN bus circuits with a multimeter can check for proper resistance (~60 Ω).
   Typical fix: Repair the damaged section of the wiring harness or clean/replace the faulty connector.
   Est. part cost: $10-$100

Rare But Worth Checking

• Faulty ABS Control Module: → Shop ABS Control Module This is rare and should only be considered after all other possibilities, especially software updates, battery, and wiring checks, have been exhausted. Module failure is uncommon and replacement requires a 'PROXI Alignment' procedure to program it to the vehicle.

Diagnosis Steps

1. Use an OBD-II scanner to check for all stored codes. Note if U0418 is present with P0031, as this strongly indicates a TSB-related software issue.
2. Check for and perform any applicable software updates, specifically referencing TSB #18-085-22 for the PCM. This should be the first step for a professional, and requires a dealer-level tool.
3. Fully charge and load test the 12-volt battery to ensure it is not the cause of the communication glitch. Voltage dropping below 10V is a known cause.
4. If P0031 is present, diagnose the O2 sensor heater circuit. Inspect the sensor's wiring and connector, check the related fuse, and test the sensor's internal resistance (typically 5-7 ohms).
5. Inspect the wiring harness and connectors for the ABS control module and all four wheel speed sensors for any signs of physical damage, corrosion, or loose pins. This is especially relevant if wheel speed sensor codes like U1409 are also present.
6. If all other steps fail to resolve the issue, further diagnostics on the CAN bus network and the ABS module itself may be required by a specialist.

Parts You'll Likely Need

• Powertrain Control Module Software Update — This is not a physical part, but a software reflash performed by a dealer. It is the most common fix specified by the manufacturer's TSB #18-085-22 for this exact issue.
  OEM price range: $100-$250
  Aftermarket price range: N/A
• Oxygen Sensor (Bank 1, Sensor 1) (OEM #68492338AA) — Because code P0031 is frequently seen with U0418 due to the software glitch, fixing the underlying O2 sensor fault may be required. This is the upstream sensor on the exhaust manifold. 🎬 See this walkthrough for replacing the upstream oxygen sensor.
  Trusted brands: Mopar, NTK, Denso
  OEM price range: $120-$200
  Aftermarket price range: $50-$150
• 12V AGM Battery (OEM #Commonly Group Size H7 / 94R) — Low voltage is a known cause for setting this communication code on Jeep vehicles, as documented in TSB #18-078-22.
  Trusted brands: Mopar, Interstate, Duralast
  OEM price range: $250-$400
  Aftermarket price range: $150-$350

Related Codes That Often Appear With This One

• P0031 — A known software issue documented in TSB #18-085-22 causes these two codes to appear together on the 2021 Compass, often accompanied by a long crank symptom.
• U1409 / U140A — These codes indicate an implausible wheel speed signal. A fault in a wheel speed sensor or its wiring is a direct cause for the ABS module to send invalid data, which in turn triggers U0418.

Technical Service Bulletins (TSBs) & Recalls

• 18-085-22: Links U0418 with P0031 and long crank times, recommending a PCM software update as the fix for the 2021 Compass 2.4L.
• 18-078-22: Confirms that U0418 can be set erroneously on 2.4L Jeeps if the battery voltage drops below 10 volts and also lists a PCM flash as a potential fix.

Platform-Specific Known Issues

• TSB #18-085-22 documents an issue where a software problem causes U0418 to be set along with P0031, accompanied by long engine crank times, especially in hot weather. The prescribed fix is a PCM software update.
• A Reddit user with a 2018 Compass experiencing U0418 described a scenario where one shop diagnosed bad wheel speed sensors and another diagnosed bad wheel bearings, highlighting the diagnostic confusion that can occur when the root cause is a sensor or wiring issue.

Mechanic-Grade Diagnostic Values

• CAN Bus Resistance — expected: ~60 Ω between CAN-C and CAN-D pins at the OBD-II connector (Pins 6 & 14). Failure: A reading of ~120 Ω indicates an open circuit or a missing terminating resistor. A reading of 0 Ω indicates a short between the two lines.
• Wheel Speed Sensor Resistance (Passive Type) — expected: 800 - 1,700 Ω (Varies by manufacturer, comparison between sensors on the same axle is a good diagnostic method).. Failure: An open circuit (infinite resistance) or a short circuit (0 Ω) indicates a failed sensor.
• Wheel Speed Sensor AC Voltage Output (Passive Type) — expected: Should generate an AC voltage signal that increases with wheel speed, typically above 100mV when spinning the wheel by hand.. Failure: No AC voltage produced when the wheel is spinning indicates a faulty sensor or a problem with the tone ring.

Hidden / Shadow Codes Worth Checking

• U0418-00: The '-00' is a Failure Type Byte (FTB) or symptom byte. While a universal definition isn't provided, in the context of the TSB, it signifies the specific 'Implausible Data' fault condition that the software update is designed to fix. (see via A professional scan tool like the dealer's wiTECH 2.0 or an advanced aftermarket scanner that can read manufacturer-specific codes and their symptom bytes.)

Scan Tool Commands That Help

• wiTECH 2.0: Proxy Configuration Alignment — This function is required after replacing the ABS module, BCM, or certain other network modules to synchronize the vehicle's configuration map across all ECUs. Failure to perform this can cause a flashing odometer and multiple communication faults.
• wiTECH 2.0: ABS Actuators / Bi-Directional Controls — Allows a technician to individually command ABS solenoids, the pump motor, and other components to verify their function without driving the vehicle. This helps isolate a module hardware fault from a wiring or communication issue.
• wiTECH 2.0 / Advanced Aftermarket: Live Data - Wheel Speed Sensors — To view the speed reading from all four wheels in real-time while driving or spinning the wheels by hand. A sensor that reads 0, shows an erratic signal, or doesn't match the other wheels is suspect.

Wiring & Ground Locations

• Fuse F4 — In the fuse box located in the engine compartment.. This 40A fuse supplies power to the ABS module/pump. A blown fuse will cause a complete loss of communication with the module, setting this and other codes.
• ABS Module Connector — On the ABS hydraulic control unit, typically located in the engine bay near the firewall.. This is the primary electrical connection for the ABS module. It should be inspected for corrosion, moisture intrusion, or pushed-out pins, which would directly cause communication and data errors.
• Wheel Speed Sensor Harness — Runs from each wheel hub assembly, along the suspension components, and into the main vehicle harness.. This wiring is exposed to the elements and physical movement, making it prone to damage from road debris, improper jacking, or chafing. A damaged wire is a common cause of implausible wheel speed signals, which triggers the ABS module to send bad data, resulting in U0418.

Real Owner Repair Stories

• JLwranglerforums.com (Jeep Wrangler (similar platform architecture)) — ABS, Traction Control lights, Service 4WD system message, codes U0418 and U1409.
  ❌ Tried (didn't work) Clearing codes (they returned).
  ✅ What actually fixed it The user found a broken wire at the left front ABS sensor connector. Another user in the same thread reported an identical fix for the same codes, where a pin had backed out of the harness plug.

OEM Part Supersession History

• 68492338AA → N/A — This is the current part number for the upstream oxygen sensor for the 2021-2022 Jeep Compass with the 2.4L engine.
  Heads up: No supersession found. Part is listed as fitting 2021-2022 Compass and other FCA vehicles with the 2.4L engine.
