U0418 on 2023-2025 Ram 1500: Brake System Data Fault Causes and Fixes

What's Unique About the 2023-2025 Ram 1500

On the highly networked 5th Generation Ram 1500 (DT platform), numerous systems from the engine to the transmission and driver aids rely on data from the brake module for proper function. A data integrity issue, as indicated by U0418, can cause significant and seemingly unrelated symptoms, such as putting the truck into 'limp-in mode' or illuminating the 'Service 4WD' light. Manufacturer technical service bulletins (TSBs) and a major safety recall specifically point to software issues being the root cause for this code on this platform, making a dealer visit for a software update the most common and required solution.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light (Malfunction Indicator Lamp) illuminated
• ABS warning light on
• Electronic Stability Control (ESC) warning light on
• Vehicle enters 'limp-in mode' with reduced power
• "Service 4WD" light may appear on the instrument cluster
🎬 See how to diagnose a flashing 4WD light at home.
• Adaptive Cruise Control (ACC) and Forward Collision Warning (FCW) lights may illuminate
• Transmission may not shift out of Park after entering limp mode

Most Likely Causes

1. ABS Control Module Software Glitch 🔴 High Probability → Shop ABS Control Module NHTSA Safety Recall 24V-653 (FCA #75B) was issued for over 1.2 million 2019 and 2021-2024 Ram 1500s for a software malfunction in the Continental-supplied ABS control module that can disable the ESC system. This is the most documented cause.
   How to confirm: Check the vehicle's VIN against open recalls on the NHTSA website or Mopar's recall lookup site. A Ram dealer can confirm the current software version on the module using their wiTECH scan tool.
   Typical fix: Reprogramming the ABS control module with the latest software version. This must be done by a Ram dealer and is performed for free under the recall.
   Est. part cost: $0
2. Low Battery Voltage 🟡 Medium Probability → Shop Vehicle Battery Modern vehicles, especially those with eTorque, are highly sensitive to system voltage. A weak or failing battery can cause numerous, seemingly random communication codes, including U0418. Owners on forums report various electrical gremlins, including limp mode, that are traced back to a failing battery or charging system issue.
   How to confirm: Test the battery with a digital multimeter or a professional battery tester. A healthy battery should show approximately 12.6 volts with the engine off and 13.7-14.7 volts with the engine running. Be aware that a battery can test 'good' but still cause issues under load.
   Typical fix: Recharge or replace the vehicle's battery. If the vehicle has eTorque, the generator unit could also be at fault and require dealer diagnosis.
   Est. part cost: $150-$450
3. Wiring or Connector Issue ⚪ Low Probability TSB 0823723 points to a specific issue where a transfer case shift motor connector was not fully seated on some 2023 models, leading to a cascade of codes including U0418. Other forum users have reported the 'Service 4WD' light along with communication codes due to damaged wiring harnesses to the rear differential e-locker or front axle actuator. 🎬 Watch: Troubleshooting common Service 4WD system and actuator issues.
   How to confirm: Visually inspect the wiring harnesses and connectors going to the ABS module and transfer case motor for any signs of damage, corrosion, or looseness. If TSB 0823723 applies, specifically check the transfer case shift motor connector.
   Typical fix: Repair the damaged wiring or properly seat the loose connector. In some cases, a new harness is required.
   Est. part cost: $0-$300
4. Faulty Brake System Control Module (ABS Module) ⚪ Low Probability → Shop ABS Control Module While less common than software issues, the module itself can fail internally. Recall 24V-653 also covers about 7,300 replacement ABS modules sold as service parts, indicating that hardware failure is possible. However, this should only be considered after the mandatory software update has been performed.
   How to confirm: This is a process of elimination. If the software is up to date per recall 24V-653, the battery is healthy, and all wiring is intact, the module itself becomes the primary suspect. Requires advanced diagnostics by a professional.
   Typical fix: Replace the ABS control module and have it programmed to the vehicle's VIN by a dealer or qualified shop. 🎬 Watch this walkthrough on how to access the ABS module.
   Est. part cost: $300-$1200

Rare But Worth Checking

• Corroded CAN Terminals in Transmission Valve Body: → Shop Transmission Valve Body

Diagnosis Steps

1. Check for Recalls: The first and most important step is to check your vehicle's VIN for NHTSA Safety Recall 24V-653. If it is affected, schedule an appointment with a Ram dealer to have the ABS software updated for free. This resolves the most common cause.
2. Scan for All Codes: Use a high-quality OBD-II scanner that can read codes from all vehicle modules (ABS, PCM, BCM, etc.), not just the engine. Note all codes present, as codes appearing with U0418 are critical clues.
3. Check Battery Health: Test the battery and charging system. Ensure voltage is stable and within the correct range (12.6V+ engine off, 13.7-14.7V engine on). When flashing modules, a battery charger must be used to maintain voltage between 13.0 and 13.5 volts.
4. Inspect TSB-Related Components: If your vehicle falls within the build dates of TSB 0823723 (June 16-24, 2023), inspect the transfer case shift motor wire harness connector to ensure it is fully seated.
5. Inspect Common Wiring Failure Points: Visually inspect the wiring and main connector at the ABS module for damage. Also check harnesses near the front axle and rear differential, as forum users report these can get damaged and cause related 4WD and communication faults.
6. Seek Professional Diagnosis: If the recall has been performed and the above steps do not resolve the issue, the problem requires a dealer-level diagnosis with a wiTECH tool to analyze CAN bus data and check for less common causes like the transmission valve body issue outlined in TSB 21-016-25 REV. C.

Parts You'll Likely Need

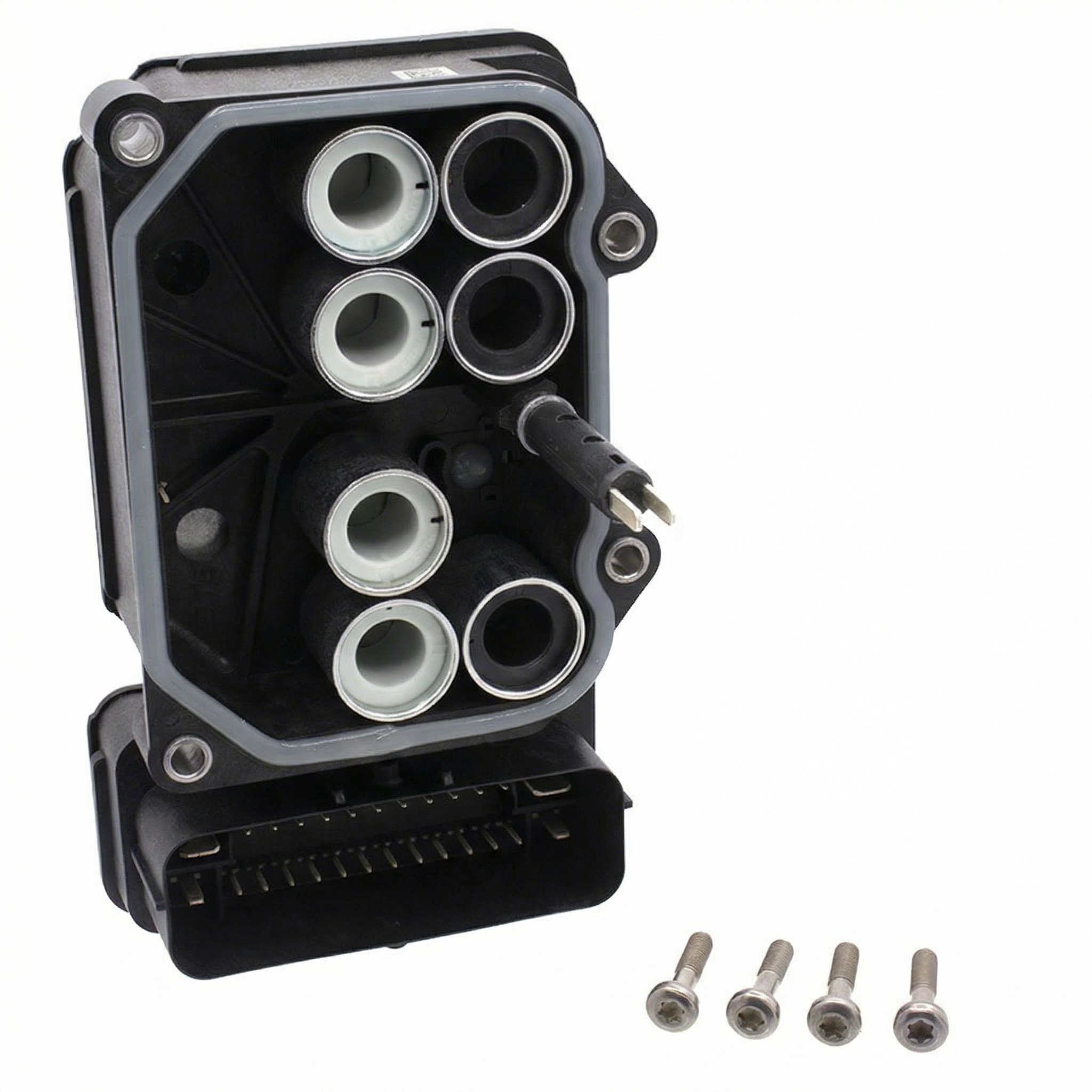

• Brake System Control Module / ABS Module (OEM #68436462AM (replaces 68436462AL), 68531864AH, 68415320AA (Varies significantly by VIN and options)) — This part is only needed in the rare case of a hardware failure after software, battery, and wiring issues have been ruled out. Multiple part numbers exist depending on the vehicle's specific configuration.
  Trusted brands: Mopar
  OEM price range: $300-$1200
  Aftermarket price range: Not typically available

Related Codes That Often Appear With This One

• U0101 — Lost Communication With The Transmission Control Module (TCM), often appears when network data is unreliable. Cited in TSB 21-016-25 REV. C.
• U0402 — Implausible Data Received From TCM, another related network communication fault. Cited in TSB 21-016-25 REV. C.
• C1444-98 — T-Case Motor Overuse-Component or System Over Temperature, can be triggered by related wiring issues. Cited in TSB 0823723.
• C00A8-13 — 4WD/AWD Transfer Case Unit Actuator Position Sensor B-Circuit Open, can be triggered by related wiring issues. Cited in TSB 0823723.

Technical Service Bulletins (TSBs) & Recalls

• 21-016-25 REV. C - Implausible Data Received From Brake System Control Module 1
• 0823723 - Implausible Data Received From Brake System Control Module

Platform-Specific Known Issues

• NHTSA Safety Recall 24V-653 (FCA #75B): Affects 2019 and 2021-2024 Ram 1500s for an ABS control module software malfunction that can disable the Electronic Stability Control (ESC) system. The remedy is a free software update from a dealer. Owner notification letters were scheduled to be mailed starting October 3, 2024.
• TSB #21-016-25 REV. C: Notes that U0418 can appear with limp mode and a no-shift-from-park condition, potentially caused by corroded CAN terminals inside the transmission valve body on certain vehicles.
• TSB #0823723: Affects a small number of 2023 Ram 1500s built between June 16, 2023, and June 24, 2023, where a loose transfer case shift motor connector can cause U0418-00 and other 4WD-related codes.

Mechanic-Grade Diagnostic Values

• CAN C Bus Network Termination Resistance — expected: Between 53.5 and 67 Ohms when measured between the CAN C (+) and CAN C (-) circuits with the ignition off. A perfect reading is 60 Ohms, indicating both 120-Ohm terminating resistors are present and correct.. Failure: A reading of ~120 Ohms indicates one of the two terminating resistors is missing or has failed. A reading below 53.5 Ohms suggests a short between the two CAN lines.
• ABS Module Power Supply Voltage — expected: 11.5V to 13.5V at the module's main power input pins with the key on. The main power pins are typically larger than the communication pins on the connector.. Failure: Voltage below 11.5V can cause the module's internal processor to malfunction and send corrupted data, triggering U0418 in other modules. No voltage indicates a blown fuse (F6 40A, F26 30A) or a break in the power wire.
• ABS Module Ground Resistance — expected: Near 0 Ohms of resistance between the module's ground pins and a known good chassis ground.. Failure: High resistance (anything more than a few ohms) indicates a corroded or loose ground connection, which can cause intermittent and strange electrical behavior.

Hidden / Shadow Codes Worth Checking

• U0418-00: The '-00' is a Failure Type Byte (FTB) that often means 'No Subtype Information' or a general component failure. In the context of TSB 0823723, it points to the implausible data being received without a more specific qualifier, directing the technician to check for the known wiring connector issue on affected build dates. (see via A professional scan tool like the dealer's wiTECH or a high-end aftermarket scanner (e.g., Appcar DiagFCA, AlfaOBD) that can read manufacturer-specific codes and their associated FTBs.)

Scan Tool Commands That Help

• wiTECH 2.0: View Network Topology — This is a critical first step in diagnosing any 'U' code. The topology map visually shows all modules on the CAN bus, which ones are communicating, and which ones are setting codes. It helps quickly identify if the ABS module is offline or if other modules are also reporting faults.
• wiTECH 2.0: ABS Module Reprogram — This is the specific function used to perform the software update required by recall 24V-653. The tool connects to FCA's servers to download the latest calibration file for the vehicle's specific VIN and flashes it to the ABS module.
• AlfaOBD / Appcar DiagFCA: ABS Module Initialization / Reset Routines — If the ABS module is replaced, these aftermarket tools (used with a compatible OBD adapter and SGW bypass) can perform some of the necessary initialization procedures, such as writing the VIN to the new module or running self-tests. This is an advanced DIY option after a hardware replacement.

Wiring & Ground Locations

• ABS Module Connector — On the driver's side of the engine compartment, below the brake master cylinder. It is a large connector with a lever-lock mechanism.. This is the primary connection point for all power, ground, and CAN bus signals to the ABS module. Corrosion or damage here can directly cause U0418. The larger pins are for power and ground; the smaller twisted-pair wires are for CAN communication.
• G902A / G905A (Ground Points) — These are common chassis ground points located on the left front of the engine compartment, often near the battery or underhood fuse box.. The ABS module relies on a clean ground connection to function. A loose or corroded ground at this location can cause a floating voltage reference, leading to data errors and communication codes like U0418.
• CAN C Star Connector — Ram trucks use a star connector (also called a diagnostic junction port) to branch the CAN bus to different modules. Its location can vary but is often behind the instrument panel or kick panels.. This connector is a central hub for the CAN C network. Technicians can use it to isolate different legs of the network to find a short or a module that is bringing the bus down.
• Front Axle Actuator Connector — On the front axle housing, connecting to the four-wheel-drive actuator.. Though not directly part of the brake system, damaged wiring at this connector is a known issue on 4th and 5th gen Rams that can cause a cascade of communication faults, including 4WD service lights and sometimes network codes like U0418. The wires can break right at the back of the connector from stress.

Real Owner Repair Stories

• Reddit user in r/Cartalk (2010 Ram 1500 (similar grounding principles apply)) — Multiple electrical issues, fuel pump stopped working.
  ❌ Tried (didn't work) Initial diagnosis pointed to individual component failures.
  ✅ What actually fixed it The main frame ground strap from the engine block to the chassis was corroded and broken. When it fails, modules try to find other ground paths (like through shifter cables), causing high resistance, voltage drops, and communication errors. Replacing the main ground strap with a new 4-gauge cable resolved the issues.

OEM Part Supersession History

• 68436462AL → 68436462AM — Standard part revision by the manufacturer. This often includes internal hardware or firmware updates to improve reliability or address known issues.
  Heads up: These parts are generally interchangeable, but the newest revision (AM) is always preferred. A new module requires programming to the vehicle's VIN.

Model Year Variations Within This Range

• 2025: The 2025 model year marks a significant refresh for the Ram 1500. The 5.7L HEMI V8 is replaced by new 3.0L 'Hurricane' twin-turbo inline-six engines. The interior receives updated technology, including a larger optional 14.5-inch Uconnect screen and a new top-tier 'Tungsten' trim. While the underlying network architecture is similar, these new powertrain and electronic components could introduce different diagnostic paths or failure modes for codes like U0418 compared to the 2023-2024 models.
• 2023 (June 16-24 build dates): As per TSB 0823723, vehicles built in this specific 8-day window are uniquely prone to a loose transfer case shift motor wire harness connector, which is a primary suspect for code U0418-00 on these trucks.
