OBD-II Code U0645: Lost Communication With Front Controls/Active Air Dam Module

What Does U0645 Mean?

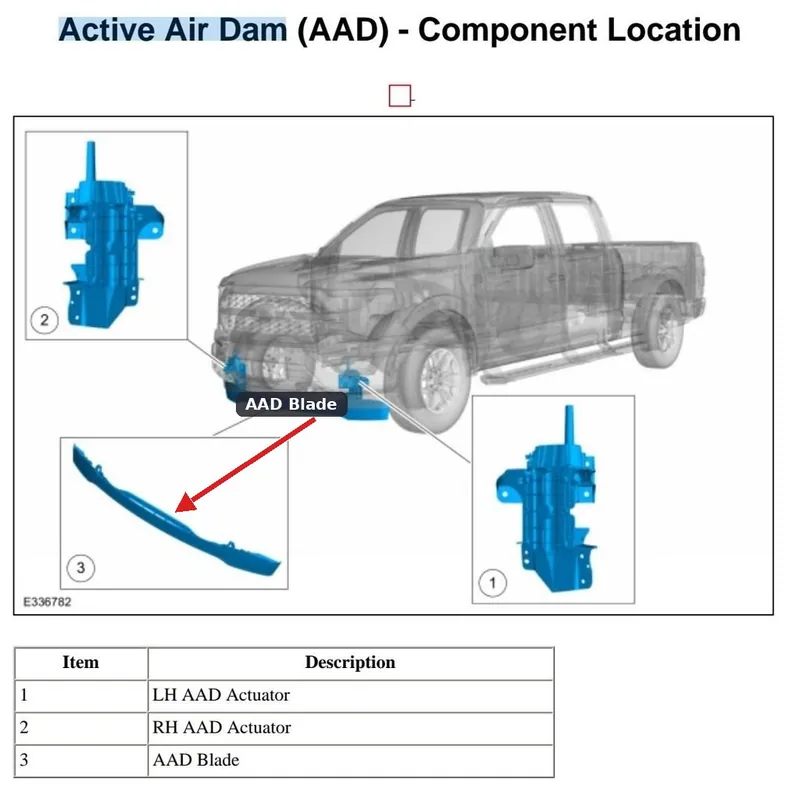

Code U0645 signifies your vehicle's Powertrain Control Module (PCM) lost communication with the Active Air Dam Module. The active air dam is a deployable panel under the front bumper that automatically lowers at speeds above 40 mph to improve aerodynamics and fuel efficiency. When communication fails, the system cannot verify the air dam's position or command it to move, triggering the check engine light.

Technical definition: The SAE/ISO definition for U0645 is "Lost Communication With Front Controls Interface Module 'A'". In modern trucks and SUVs, this refers to the Active Air Dam Module (AADM). This module communicates with the PCM over a Local Interconnect Network (LIN) bus to deploy and retract the aerodynamic flap.

Can I Drive With U0645?

⚠️Yes, But With Caution. Yes, you can continue to drive. U0645 does not indicate a critical mechanical failure. However, you will experience a 5-10% decrease in highway fuel economy because the active air dam is inoperative. The primary immediate risk is if the dam is stuck in the deployed (down) position, making it highly susceptible to being torn off by curbs, parking blocks, or road debris.

Common Causes

• Water Intrusion into Module or Actuator (Very Common) — Water entering the motor housing is the leading cause of failure, leading to internal short circuits and corrosion. The module's low mounting position exposes it directly to rain, puddles, and car washes.
• Physical Impact Damage (Very Common) — Impacts with curbs, speed bumps, snowbanks, or road debris frequently break the air dam panel, its mounting brackets, the motor, or sever the electrical wiring entirely.
• Corroded Wiring or Connectors (Very Common) — Road salt and moisture intrusion lead to severe corrosion on the connector pins. This degrades the electrical connection, causing a loss of power, ground, or the LIN bus communication signal.
• Power or Ground Supply Failure (Common) — The module requires a stable 12V power supply and a clean ground connection. A blown fuse, a broken power wire, or a corroded ground strap prevents the module from powering on.
• Low System Voltage / Weak Battery (Less Common) — A weak or failing battery causes low system voltage during startup. This prevents multiple modules, including the air dam, from initializing correctly, logging random communication codes.
• LIN Bus Network Short (Rare) — A short-to-ground or an open circuit in the LIN bus wiring prevents multiple modules from communicating. On some Ford F-150s, a specific wire chafing on an engine bracket causes this exact fault.
• Corrupted Module Software (Rare) — A software glitch or a failed over-the-air update locks up the module, stopping communication. This requires a software re-flash from a dealer.

Symptoms

• Check Engine Light is On — The Malfunction Indicator Lamp (MIL) illuminates immediately upon detecting the communication loss.
• Air Dam Visibly Stuck or Damaged — The air dam panel under the front bumper remains stuck in the down position when parked, is physically broken, or never deploys at highway speeds.
• Reduced Fuel Economy — Gas mileage drops by 5-10% because the vehicle is less aerodynamic at highway speeds.
• Warning Message on Dash — The instrument cluster displays a "Service Active Air Dam" or "Active Air Dam System Fault 🎬 Watch: Removing the active air dam on a 2023 RAM" message.
• Unstable or Rough Idle — A communication fault with the air dam module occasionally causes a slightly fluctuating idle speed as the engine's control strategy adjusts to the network error.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Replacing the Active Air Dam Assembly — Parts: $250-$500, Labor: $200-$450, ~2 hr book time (Professional)
  : OEM
  : OEM
• Repairing Damaged Wiring or Connector Pigtail — Parts: $15-$75, Labor: $150-$300, ~1.5 hr book time (Intermediate)
  : OEM
• Removing the Active Air Dam (De-modification) — Parts: $10-$20, Labor: $75-$150, ~0.8 hr book time (DIY)
  : OEM
• Replacing a Blown Fuse — Parts: $1-$10, Labor: $0-$50, ~0.1 hr book time (DIY)
• Updating/Re-flashing Module Software — Parts: $0, Labor: $120-$250, ~1 hr book time (Professional)

DIY vs Professional

• Replacing a Blown Fuse — Beginner: Yes
  Tools: ['Fuse puller']
• Removing the Active Air Dam (De-modification) — Beginner: Yes
  Tools: ['Socket set', 'Ratchet', 'Waterproof electrical tape or sealing caps']
• Repairing Damaged Wiring or Connector Pigtail — Beginner: No
  Tools: ['Digital Multimeter', 'Wire strippers', 'Wire crimpers', 'Heat-shrink tubing', 'Soldering iron']
• Replacing the Active Air Dam Assembly — Beginner: No
  Tools: ['Jack and jack stands', 'Socket set', 'Trim removal tool kit']

Used vs. New Parts: Buying Guide

When a used part is worth it: A used assembly makes sense for older vehicles if sourced from a vehicle with no front-end damage.

Donor-vehicle mileage cap: roughly under 60000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• Inspect for cracks or impact marks on the plastic dam and motor housing.
• Ensure the electrical connector is free of corrosion.

Decision logic:

• If Vehicle is under warranty or Ram X96 extension → Use a new OEM part installed by a dealer.
• If The failure is a known software TSB → Pay for a dealer software update.
• If Vehicle is out of warranty and budget is tight → Use a new aftermarket assembly.

Warranty tradeoff: Used parts offer 30-90 days. Aftermarket parts offer 1-year to lifetime. OEM parts carry standard manufacturer warranties.

Worst-case if a used part fails: $250-$600 if a used part fails prematurely.

What Happens If You Wait — Timeline

1. 0-1 month: Code U0645 sets, the Check Engine Light turns on, and the active air dam is disabled in the retracted position. (MPG impact: 3-5%% · Added cost: $0-$40 in wasted fuel)
2. 1-6 months: Fuel economy loss becomes noticeable on highway drives. The Check Engine Light guarantees a failed emissions inspection. (MPG impact: 5-10%% · Added cost: $50-$200 in wasted fuel)
3. 6-12 months: If stuck down, the dam is highly likely to be torn off by road debris. Wiring corrosion creeps up the harness, making a simple connector repair impossible. (MPG impact: 5-10%% · Added cost: $300-$1200 for full assembly replacement)
4. 12+ months: A shorted air dam module corrupts the shared LIN bus, causing permanent failure of other modules like the Active Grille Shutters. (MPG impact: 5-10%% · Added cost: $500-$1500+ for multiple module replacements)

Cost of Not Fixing It

• 0-3 months: A persistent 5-10% reduction in fuel economy. (Added cost: $20-$60 per month in extra fuel)
• 3-12 months: If stuck deployed, high risk of being torn off by road debris. (Added cost: $300-$1200 for full assembly replacement)
• 12+ months: Water intrusion shorts the shared LIN bus, causing other modules to fail. (Added cost: $500-$1500+ for complex network repairs)

Diagnosis Steps

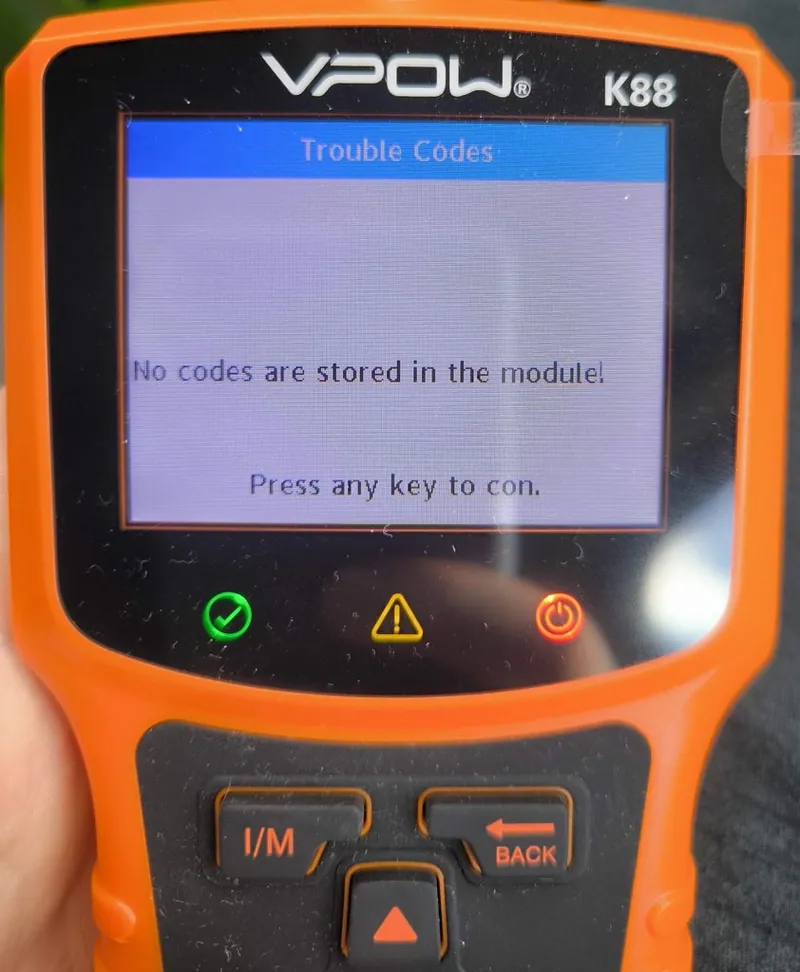

1. Read the Trouble Codes
   Use an OBD-II scanner to confirm U0645 is present. Note all other codes, especially U11E9 (Active Grille Shutters), as they point to a shared LIN bus network issue.
   Tools: ['OBD-II Scanner'] (Beginner)
2. Visually Inspect the Air Dam Assembly and Wiring
   Safely raise the front of the vehicle. Inspect the air dam, motor, and electrical harness for physical impact damage, corrosion, or severed wires.
   Tools: ['Flashlight', 'Jack and Jack Stands'] (Beginner)
3. Isolate the Faulty Component (Pro Tip)
   If both U0645 (Air Dam) and U11E9 (Grille Shutter) codes are present, unplug the active air dam module and clear the codes. If the U11E9 code disappears and the grille shutters work, the air dam module is shorted internally and bringing down the network.
   Tools: ['None'] (Beginner)
4. Inspect Fuses and Relays
   Locate and inspect all fuses related to the active air dam or front controls module. A blown fuse disables the entire circuit.
   Tools: ['Fuse Puller', 'Digital Multimeter'] (Beginner)
5. Check for Power and Ground at the Module Connector
   Disconnect the electrical connector at the active air dam module. With the ignition on, use a multimeter to verify battery voltage (12.0-13.8V) at the power pin and less than 0.2 Ω resistance on the ground pin.
   Tools: ['Digital Multimeter', 'Socket Set'] (Intermediate)
6. Use a Scan Tool Active Test
   Use a bidirectional scan tool to command the Active Air Dam Module to deploy or retract. If the module does not respond despite having verified power and ground, the module has failed internally.
   Tools: ['Professional Bidirectional Scan Tool'] (Advanced)
7. Test the Communication (LIN) Bus Voltage
   Test the LIN bus wire at the module connector with a multimeter set to DC Volts. A healthy, active LIN bus fluctuates between 7V and 11V. A reading of 0V indicates a short to ground; a constant 12V indicates an open circuit.
   Tools: ['Digital Multimeter', 'Back-probe pins'] (Advanced)
8. Perform a Parasitic Draw Test
   If the vehicle battery dies overnight, perform a parasitic draw test. If the draw exceeds 50mA, pull the fuse for the active air dam. If the draw drops, the module is faulty and draining the battery.
   Tools: ['Digital Multimeter with 10A setting', 'Fuse Puller'] (Advanced)
9. Analyze the LIN Bus Waveform
   Use an oscilloscope to view the LIN bus signal. A healthy bus shows a clean square wave (0V to 12V). A flat line or distorted signal confirms a wiring short or a faulty module corrupting the data.
   Tools: ['Oscilloscope', 'Back-probe pins'] (Advanced)

When This Code Triggers (Freeze-Frame Conditions)

• Vehicle Speed: 40-55 mph (The code sets when the PCM commands the air dam to deploy at highway speeds.)
• Engine Coolant Temp: 180-210°F (The vehicle is at normal operating temperature.)
• Engine RPM: 1500-2500 (Corresponds to steady-state highway cruising speed.)

Related Codes

• U11E9 — Lost Communication with Active Grille Shutter. This is the most common companion code. The air dam and grille shutters share the same LIN bus. A water-damaged air dam shorts the line, preventing the grille shutters from communicating.
• C0604 — Active Air Dam Control Circuit Performance. This means the PCM communicates with the module, but the module reports an internal motor problem (jammed or shorted). The air dam assembly requires replacement.
• P0645 — A/C Clutch Relay Circuit. This is completely unrelated. Always verify the first letter: 'U' is for network communication, 'P' is for powertrain.
• U3000 — Control Module Internal Malfunction. Appears alongside U0645 if the active air dam module suffers a catastrophic internal electronic failure.

Climate & Environmental Factors

• Water, Snow, and Road Salt: The low mounting position exposes the module to puddles, snowbanks, and salt spray. Water intrusion causes internal short circuits, while salt drastically accelerates corrosion on the electrical connector pins.
• Physical Impact (Off-Roading / Debris): Debris, rocks, and uneven terrain easily impact and destroy the low-hanging air dam assembly, severing wires or shattering the motor housing.

How to Talk to a Mechanic About This Code

Say this: "I have code U0645, 'Lost Communication with Active Air Dam Module'. Please check for TSBs, and verify power, ground, and LIN bus integrity at the module connector before recommending a full assembly replacement. If code U11E9 is also present, please isolate the modules to confirm which one is causing the network fault."

Directs the technician to perform a logical electrical diagnosis instead of immediately defaulting to the most expensive parts replacement.

Avoid saying:

• 'My check engine light is on, can you look at it?'
• 'The internet says I need a new air dam.'

Questions to ask before authorizing the repair:

• Did you find a specific TSB for my vehicle?
• Did you test the power, ground, and communication wires at the connector? What were the voltage readings?
• If other modules on the LIN bus were affected, are they communicating properly now that the air dam is disconnected?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: Recommended if the vehicle is under warranty or if a specific software TSB applies.
  Best for: Vehicles under warranty or Ram X96 extension., Software re-flashing or updates.
  Downsides: Significantly higher labor rates and parts costs. (Typical cost: +50% vs. baseline)
• Independent Shop: Best fit for out-of-warranty repairs. A good shop performs electrical tests at a lower cost than a dealer.
  Best for: Out-of-warranty vehicles., Diagnosing and repairing wiring issues.
  Downsides: Diagnostic capabilities vary; ensure they handle CAN/LIN bus issues. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID. High risk of misdiagnosis and unnecessary parts replacement.
  Best for: Simple maintenance like oil changes.
  Downsides: Technicians lack training for complex network diagnosis. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the estimated repair cost exceeds 50% of the vehicle's current value, consider de-modifying the vehicle.

• Car worth $30000, fix is $1300: Fix it. The repair cost is a small fraction of the value.
• Car worth $8000, fix is $1300: Consider walking away or de-modifying.

What Scan Tool You Need for This Code

Minimum: A code reader that reads manufacturer-specific 'U' codes and displays Freeze Frame data.

A basic reader won't show if other network modules are offline, nor can it perform an active test to command the motor.

Budget: BlueDriver Pro (~$90) — Reads and clears 'U' codes and provides freeze frame data. Lacks bidirectional control.

Mid-range: XTOOL D7 or Innova 5610 (~$300-400) — Provides full bidirectional control to command the air dam to deploy, confirming motor functionality.

Professional: Autel MaxiCOM MK808 (~$500-1200) — Offers OE-level bidirectional control and network topology maps to visualize offline modules.

Rent vs buy: Buying a midrange tool with bidirectional control is highly recommended for accurately diagnosing this issue.

How to Clear the Code After You Fix It

1. Use an OBD-II scan tool to clear the fault codes.
2. Perform a complete drive cycle to allow the system's self-tests to run.
3. Check for returning codes.

Drive cycle (~30 minutes): A cold start, 3 minutes of idling, 15 minutes of steady highway driving (55 mph), followed by 10 minutes of stop-and-go city driving.

Readiness monitors affected: Comprehensive Component Monitor

Before emissions retest: drive at least 100 miles to fully set monitors.

Watch out for:

• Disconnecting the battery does not fix the issue and resets all emissions monitors.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: An illuminated Check Engine Light results in an automatic failure.
• New York: Automatic failure if the Check Engine Light is on.
• Texas: In testing counties, an illuminated MIL is an automatic failure.

Most Commonly Affected Vehicles

• Ram 1500 (2019-2024) — Extremely common failure. TSB 23-029-22 REV. A directs replacement of the entire assembly. Warranty extension X96 covers some 2019 models for 8 years/unlimited miles due to water intrusion.
• Ford F-150 (2021-2024) — TSB SSM 50737 points to a specific LIN bus wire (White-Green) shorting to ground near the left engine mount on 2021-2022 models with the 2.7L EcoBoost.
• Ford F-150 Lightning (2022-2023) — TSB 23-2126 addresses this code, indicating a software issue in the PCM resolved with an update.
• Jeep Wagoneer / Grand Wagoneer (2022-2024) — Sharing a platform with the Ram 1500, these vehicles suffer the exact same water intrusion and wiring damage faults.
• Chevrolet Silverado 1500 (2019-2024) — The module and wiring are highly vulnerable to road debris. The diagnostic logic of unplugging modules on the shared LIN bus applies heavily here.
• GMC Sierra 1500 (2019-2024) — Mechanically identical to the Silverado, experiencing identical failures due to the exposed location.
• Cadillac XT5, XT6 (2020-2024) — Equipped with active aerodynamic features that use a similar LIN bus communication protocol, triggering this code upon physical damage.

Manufacturer-Specific Notes

• Ram / Dodge (FCA/Stellantis): Warranty extension X96 covers the active air dam for 8 years/unlimited miles on certain 2019 Ram 1500s due to known water intrusion. TSB 23-029-22 REV. A instructs dealers to replace the entire assembly.
• Ford: On F-150 models, U0645 often stores as a 'soft code' without illuminating the check engine light. TSB SSM 50737 identifies a specific wire chafe point near the left engine mount for 2021-2022 2.7L models.
• GM (Chevrolet / GMC): The Active Air Dam and Active Grille Shutters share a LIN bus. Unplug the air dam module to see if communication restores to the grille shutters, isolating the shorted component.

Real Owner Stories

2019 Ram 1500 with 37,000 miles

Check Engine Light illuminated with codes U0645 and U11E9 (Lost Communication with Active Grille Shutters).

What they tried:

1. The dealer diagnosed a bad Active Air Dam (AAD) module.
2. The owner unplugged the AAD module as a test. The U0645 code remained, but the U11E9 code disappeared, and the grille shutters began working correctly.

Outcome: The test confirmed the AAD module failed internally and shorted the communication network, disabling the grille shutters. The owner replaced the AAD assembly (Mopar Part 68274406AH) for $400, resolving both codes.

Lesson: If you have both U0645 and U11E9 codes, unplug the vulnerable air dam module first. If communication restores to the grille shutters, you have isolated the bad part and prevented replacing the wrong component.

2021 Ford F-150 2.7L EcoBoost

A 'Check Charging System' message appeared alongside a stored U0645 code.

What they tried:

1. The owner took the truck to the dealership.
2. The technician consulted Ford TSB SSM 50737.

Outcome: The TSB identified a known issue where the White-Green LIN bus wire chafes and shorts to ground on a bracket near the left engine mount. The technician repaired the wire and secured the harness, fixing the issue without replacing any modules.

Lesson: Always check for TSBs. A complex communication error is often a known wiring issue that a TSB pinpoints exactly, saving hours of diagnostic time.

2019 Ram 1500 with water-filled motor

Check Engine Light on with code U0645. The air dam was stuck down.

What they tried:

1. The owner removed the air dam assembly for inspection.
2. The actuator motor housing was completely full of water.

Outcome: The owner permanently removed the assembly and sealed the electrical connector to prevent corrosion. The U0645 code remained stored, but it did not trigger the Check Engine Light on the dash for this specific model year.

Lesson: Water intrusion kills these modules. If not covered by warranty, permanent removal is a common no-cost fix if you accept the stored code and minor fuel economy loss.

How to Prevent This Code From Triggering

• Periodically clean the air dam assembly and connector (Every oil change or after off-road/winter driving) — Hosing off the motor and wiring removes road salt and mud that accelerate corrosion and cause the mechanism to bind.
• Apply dielectric grease to the electrical connector pins (Whenever the connector is disconnected) — Dielectric grease blocks moisture and oxygen, preventing the pins from corroding and losing communication.
• Avoid driving through deep snow or puddles (Daily habit) — The low-slung position makes it highly susceptible to impact and submersion, forcing water into the motor housing.

Frequently Asked Questions

Can I just remove the active air dam to fix the code?

Yes, many owners remove it after damage. This permanently stores the U0645 code and triggers the check engine light on most Ram and GM vehicles. Use weatherproof caps to protect the disconnected harness.

Will a U0645 code cause me to fail an emissions test?

Yes. An active check engine light for any reason, including a 'U' code, results in an automatic failure during an OBD-II emissions inspection.

How much does it cost to fix U0645?

Costs range from $150 for a simple wiring repair to $1,300 for a full dealership assembly replacement. Aftermarket assemblies cost $250-$550, making DIY replacement a viable option for intermediate mechanics.

Is the Active Air Dam the same as the Active Grille Shutters?

No, but they often share the same LIN bus communication network. A failure in the lower air dam module frequently shorts the network, causing the grille shutters to also fail and log code U11E9.

My truck is a 2019 Ram 1500 with a U0645 code. Is the repair covered?

Stellantis issued an 8-year, unlimited-mile warranty extension (X96) for the active air dam on certain 2019 Ram 1500s due to water intrusion. Contact a dealer with your VIN to confirm eligibility.

What are the most common misdiagnosis mistakes for U0645?

The most common mistake is replacing the expensive air dam assembly without testing power, ground, and wiring integrity first. Another error is replacing the grille shutter module when the air dam is actually shorting the shared network.

Will disconnecting the battery clear the U0645 code?

No. Disconnecting the battery temporarily clears the code, but it returns immediately on the next drive cycle when the PCM fails to communicate with the module.

What does the active air dam module do?

The module lowers a panel below the front bumper at highway speeds to reduce aerodynamic drag and improve fuel efficiency. It retracts at lower speeds to increase ground clearance.

Key Takeaways

• Code U0645 indicates a total communication failure between the Powertrain Control Module (PCM) and the Active Air Dam Module.
• Water intrusion into the motor housing and physical impact damage account for over 80% of these failures.
• Driving with this code is safe, but you will experience a 5-10% drop in highway fuel economy.
• Owners of 2019 Ram 1500s should check their VIN against warranty extension X96, which covers this exact failure for 8 years or unlimited miles.
• Never replace the $400+ air dam assembly without first verifying the 12V power, ground, and LIN bus wiring at the connector.
