U1000 on 2018-2019 Jaguar XJ: BCM Protection Mode Causes and Fixes

What's Unique About the 2018-2019 Jaguar XJ

Unlike many vehicles where a U-code implies a general network failure, on this Jaguar platform (X351) and its JLR contemporaries, U1000 is a very specific BCM status code. The BCM is designed to disable outputs that see repeated short circuits. Critically, Jaguar Technical Service Bulletin SSM74171 explicitly warns 'Do not replace the BCM' as a first step. The correct procedure is to find the external short circuit that caused the BCM to protect itself, repair it, and then use a Jaguar-specific diagnostic tool (like SDD or Pathfinder) to run the 'Enable Protected Outputs' function, which re-enables the protected circuit.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• One or more exterior lights not working (e.g., headlights, tail lights, reverse lights, license plate lights).
• Reverse camera inoperative, showing a black or blue screen.

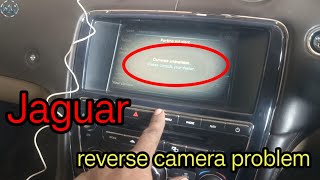

🎬 Watch this guide on fixing the common blue screen issue.
• False 'Boot Open' warning on the instrument cluster.
• Interior lights not functioning.
• Power adjustable steering wheel not working.
• Sunroof blinds inoperative.
• Eco start/stop system unavailable.
• Inability to open the fuel filler door.

Most Likely Causes

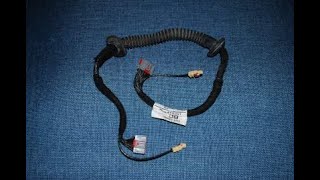

1. Short Circuit in Trunk/Boot Lid Wiring Harness 🔴 High Probability → Shop Body Wiring Harness The wiring harness that passes through the flexible conduit at the right-side trunk hinge is a known weak point. 🎬 See how to inspect the boot harness for damaged wires. Repeated opening and closing of the trunk lid causes wires to fatigue, break, and short circuit. This commonly affects the reverse camera, license plate lights, and trunk latch mechanism.
   How to confirm: Use a Jaguar-specific scan tool to check for other codes ending in '-11' (short to ground) or '-12' (short to power), which will identify the specific faulty circuit. Visually inspect the wiring inside the rubber conduit between the trunk lid and the car body for any signs of damage, chafing, or broken wires. Owners on JaguarForums.com report finding visibly broken wires in this exact location.
   Typical fix: Repair the damaged section of the wiring harness by soldering and using heat-shrink tubing, 🎬 Watch a step-by-step walkthrough of the trunk wiring harness repair. or replace the entire harness section. After the physical repair, the BCM must be reset using the 'Enable Protected Outputs' function in the Jaguar SDD or Pathfinder software.
   Est. part cost: $75-$300
2. Weak or Failing Battery 🟡 Medium Probability → Shop Vehicle Battery Modern Jaguars are highly sensitive to battery voltage. A weak or failing battery can cause voltage drops and electrical 'noise' that can cause modules to behave erratically, sometimes triggering a U1000 code or corrupting BCM data.
   How to confirm: Perform a professional load test on the battery. A simple voltage check is not sufficient. The battery should be tested for its State of Health (SOH) and State of Charge (SOC). A resting voltage below 12.4V is a strong indicator of a weak battery.
   Typical fix: Replace the vehicle's 12V battery with a high-quality AGM (Absorbent Glass Mat) battery of the correct specification. A battery support unit should always be used during diagnostics and programming to ensure stable voltage.
   Est. part cost: $250-$500

Rare But Worth Checking

• Short Circuit in Other External Component: While the trunk harness is most common, a short in any BCM-controlled component can trigger U1000. This includes the fuel filler door actuator, tail light assemblies, or other lighting modules.
• Faulty Body Control Module (BCM): → Shop Body Control Module This is extremely rare. The U1000 code is designed to signal that the BCM is *protecting* itself from an external fault. The BCM should only be replaced after all other possibilities, especially external shorts, have been exhaustively ruled out. TSB SSM74171 explicitly warns against replacing the BCM as a first step.

Diagnosis Steps

1. Connect a JLR-approved battery support unit to maintain stable system voltage during diagnosis.
2. Connect a Jaguar-specific diagnostic tool (Pathfinder for 2017+ models, SDD for pre-2017) to the vehicle.
3. Perform a full vehicle scan and confirm the presence of U1000-00 in the Body Control Module (BCM).
4. Look for any accompanying Diagnostic Trouble Codes (DTCs), especially any ending in -11, -12, -14, or -15. These codes will pinpoint the exact circuit that is shorted.
5. Based on the specific short-circuit code, locate the component and its wiring harness (e.g., reverse camera, trunk latch, left reverse lamp).
6. Visually inspect the wiring harness for any signs of physical damage, chafing, corrosion, or water ingress. Pay close attention to the harness inside the rubber conduit at the right-side trunk/boot hinge.
7. If no visual damage is found, use a multimeter to test the circuit for a short to ground or a short to power.
8. Once the short is located, repair the wiring or replace the faulty component.
9. After the repair, connect the diagnostic tool again. Navigate to the BCM ECU Functions and run the 'Enable Protected Outputs' routine.
10. - In Pathfinder (2017+): Select 'ECU Diagnostics' -> 'Body Control Module [BCM]' -> 'ECU Functions' -> 'Enable Protected Outputs'.
11. - In SDD (pre-2017): Select 'Service Functions' -> Run 'Body systems - Enable Protected Outputs'.
12. Follow the on-screen prompts to complete the task, then clear all DTCs and verify that the affected component now functions correctly and the U1000 code does not return.

Parts You'll Likely Need

• Trunk Lid Wiring Harness / Loom (OEM #C2Z19978 (example from XF, for camera)) — This is the most common point of failure due to repeated flexing. The harness contains wires for the camera, lights, and latch. Replacing the harness is often more reliable than repeated wire repairs.
  Trusted brands: Jaguar (OEM)
  OEM price range: $150-$300
  Aftermarket price range: $50-$100
• AGM Battery — A weak battery is a common underlying cause of numerous electrical faults on this platform.
  Trusted brands: Bosch, Interstate, Varta
  OEM price range: $350-$500
  Aftermarket price range: $250-$400
• Body Control Module (BCM) — This is RARELY the fix and should only be replaced as a last resort after confirming it has an internal failure and the external short has been fixed.
  Trusted brands: Jaguar (OEM)
  OEM price range: $800-$1500
  Aftermarket price range: $400-$800

Related Codes That Often Appear With This One

• U3000-49 — This code for 'Control Module - Internal Electronic Failure' often appears with U1000 when the BCM is under stress from the short circuit or has disabled a driver.
• Bxxxx-11, Bxxxx-12, Cxxxx-11, etc. — These codes are crucial for diagnosis. They indicate the specific circuit that has a short to ground (-11) or short to power (-12), which is the root cause for the BCM triggering the U1000 protection mode.
• P04BB-12 — This is a specific example of a companion code, indicating a short circuit in the fuel filler door lock actuator, which would cause the BCM to log U1000.

Technical Service Bulletins (TSBs) & Recalls

• SSM74171: Defines U1000-00 as the BCM entering a self-protection mode due to repeated short circuits. It lists affected systems (lighting, etc.), warns not to replace the BCM, and details the 'Enable Protected Outputs' reset procedure required after repair. Applies to XJ, XF, XE, F-Pace, and F-Type.
• SSM74176: The Land Rover equivalent of SSM74171, confirming the same BCM logic is used across JLR brands on contemporary platforms.

Platform-Specific Known Issues

• The Body Control Module on this platform uses solid-state drivers that will shut down a circuit after detecting a repeated short, logging U1000 as a status. This is a protective feature, not a failure.
• The wiring harness for the trunk/boot lid is a known weak point due to the repeated motion of opening and closing. This frequently leads to frayed wires and short circuits that affect the reverse camera, license plate lights, and trunk latch, triggering the U1000 code.

Hidden / Shadow Codes Worth Checking

• DTC Suffix -11: Indicates a short circuit to ground in the specified circuit (e.g., B109B-11 for License Plate Lamp Circuit Short to Ground). (see via Jaguar SDD or Pathfinder diagnostic software.)
• DTC Suffix -12: Indicates a short circuit to power (battery) in the specified circuit. (see via Jaguar SDD or Pathfinder diagnostic software.)
• DTC Suffix -14: Indicates a circuit is shorted to ground or is open. (see via Jaguar SDD or Pathfinder diagnostic software.)
• DTC Suffix -15: Indicates a circuit is shorted to power (battery) or is open. (see via Jaguar SDD or Pathfinder diagnostic software.)

Scan Tool Commands That Help

• Pathfinder / SDD: Enable Protected Outputs — This is the mandatory reset procedure to re-enable a BCM circuit after the physical short circuit has been repaired. It is found under 'ECU Functions' in Pathfinder or 'Service Functions' in SDD.
• Pathfinder / SDD: Active Test / Actuate Component — To command a specific component (e.g., a specific light, a door lock) to turn on or off. This can help confirm if the component is responding and if the BCM is attempting to control it, aiding in pinpointing the fault.
• Pathfinder / SX-Tool: Replace ECU / Write VIN / Write CCF — Used only in the rare event the BCM itself is faulty and needs to be replaced. A used BCM must have the vehicle's correct VIN and Car Configuration File (CCF) written to it to function.

Wiring & Ground Locations

• Central Junction Box (CJB) — Located centrally behind the rear seat back. This is the module that serves as the Body Control Module (BCM) on the X351 platform.. This module is what logs the U1000 code. Physical access may be required to inspect its main connectors (e.g., C3BP01A, C3BP01B) for corrosion or damage if a widespread fault is suspected.
• Trunk Lid Harness Conduit — The flexible rubber conduit at the right-side trunk/boot hinge.. This is the most common location for wire fatigue and breakage, leading to the short circuits that trigger the U1000 code.
• Tail Lamp Cluster Ground Stud — A ground stud on the vehicle's chassis in the trunk area where the rear tail light harness connects.. A poor or corroded ground at this point can create high resistance, which the BCM may misinterpret as a short circuit, causing it to disable the circuit and log U1000.

Real Owner Repair Stories

• JaguarForums.com user 'Iggysun' (Jaguar XJ (X350, a predecessor with identical failure mode)) — Trunk would not unlock electrically; 'boot open' error message on dash.
  ❌ Tried (didn't work) Initial diagnosis focused on the latch mechanism itself.
  ✅ What actually fixed it The user found and repaired three broken wires inside the multi-wire cable located at the pivot point by the trunk hinge.

OEM Part Supersession History

• C2Z19626, C2Z23756 → C2Z19978 — Part revision or update for the trunk lid camera wiring harness.
  Heads up: This part number is for the related Jaguar XF, which suffers the exact same failure mode. It serves as an example of harness revisions. Always verify the correct XJ part number by VIN before ordering.

Model Year Variations Within This Range

• 2018-2019: These model years specifically require the Jaguar Pathfinder diagnostic software for all module-level diagnostics and functions, including the 'Enable Protected Outputs' routine. Earlier models in the same generation use the older SDD software.
