U1109 on 2011-2016 Jeep Wrangler: Lost Communication With Steering Wheel Controls Fixes

What's Unique About the 2011-2016 Jeep WRANGLER

The Jeep Wrangler JK platform is notoriously prone to clockspring failures. Because the vehicle is designed to be driven with the top and doors off, the steering column is more exposed to dust and moisture than in a typical car. This exposure causes the delicate ribbon cables inside the clockspring to wear out and fail, leading to a host of electrical issues, including the U1109 code. The problem is so widespread that FCA (Jeep's parent company) issued a 15-year/unlimited-mileage extended warranty (code X68) 🎬 Watch: Understanding the X68 extended warranty coverage for your Jeep. for this specific part on these vehicles.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Steering wheel-mounted radio/volume controls do not work.
• Cruise control is inoperative.
• Airbag warning light is illuminated on the dashboard.
• Traction control light may illuminate intermittently.
• Horn works intermittently or not at all when pressed on the steering wheel, but may still work with the key fob's panic button.
• Gauges on the dashboard may flicker or reset randomly.
• Backlights for steering wheel buttons are off.

Most Likely Causes

1. Faulty Clockspring 🔴 High Probability → Shop Air Bag Clockspring The open-air design of the Wrangler allows dust and moisture to enter the steering column, causing premature failure of the clockspring's internal ribbon circuits. This is a well-documented weak point, leading to an extended warranty (X68) from the manufacturer for 2011-2016 models.
   How to confirm: Use a scan tool to confirm the U1109 code is active. Check for other related codes for airbags (B-codes) or cruise control switches (P-codes). If multiple steering wheel functions (horn, buttons, airbag light) are failing simultaneously, the clockspring is the most likely cause. A key test is checking if the horn works with the key fob panic button but not the steering wheel pad; this isolates the failure to the steering column circuit.
   Typical fix: Replace the clockspring assembly. This part is located behind the steering wheel. Due to the extended warranty, it is highly recommended to check with a Jeep dealer first, as the repair may be free. Be aware that owners have reported dealership parts being on backorder.
   Est. part cost: $50-$250
2. Faulty Steering Wheel Control Switch ⚪ Low Probability
   How to confirm: If only a specific button or group of buttons (e.g., only volume up/down) is failing but other functions like the horn and cruise control work, the switch itself may be the issue. A diagnostic scan tool can sometimes view live data to see if the computer registers button presses.
   Typical fix: Replace the specific switch assembly on the steering wheel.
   Est. part cost: $40-$100
3. Wiring or Connector Issue ⚪ Low Probability
   How to confirm: After accessing the clockspring, visually inspect the connectors for pushed-out pins, corrosion, or damage. Test for continuity through the clockspring and associated wiring harnesses if you have a multimeter and wiring diagram.
   Typical fix: Repair the damaged wire or clean/replace the faulty connector.
   Est. part cost: $5-$30

Diagnosis Steps

1. Check for the FCA Extended Warranty X68: Before any diagnosis, contact a Jeep dealership with your Vehicle Identification Number (VIN). This repair is often covered for free under a 15-year/unlimited mileage warranty. Be prepared to specifically mention 'X68' as some service advisors may not offer it proactively.
2. Scan for All Trouble Codes: Use an OBD-II scanner capable of reading all modules (not just engine codes) to confirm U1109 and any other codes listed in TSB 08-005-17 REV. A.
3. Test All Steering Wheel Functions: Systematically check the horn, cruise control buttons, and all radio/EVIC buttons. Note which ones are and are not working. Test the horn with the panic button on the key fob.
4. Safety First - Disconnect Battery: Before working on the steering column, disconnect the negative battery terminal and wait at least 15 minutes for the airbag system's backup power to discharge.
5. Access Clockspring and Switches: This requires removing the driver's airbag (typically held by two 10mm bolts from behind the steering wheel) and the main steering wheel bolt (13mm). A steering wheel puller may be necessary if the wheel is stuck.
6. Inspect Connectors: Check all electrical connectors at the clockspring and switches for damage, corrosion, or loose pins.
7. Test Clockspring (Advanced): Using a multimeter and a pinout diagram, check for continuity through the clockspring's circuits. A failed continuity test confirms a bad clockspring.
8. Replace Faulty Component: Based on the diagnosis, replace the clockspring. The multi-function stalks (wipers, turn signals) are usually transferred from the old clockspring to the new one.

Parts You'll Likely Need

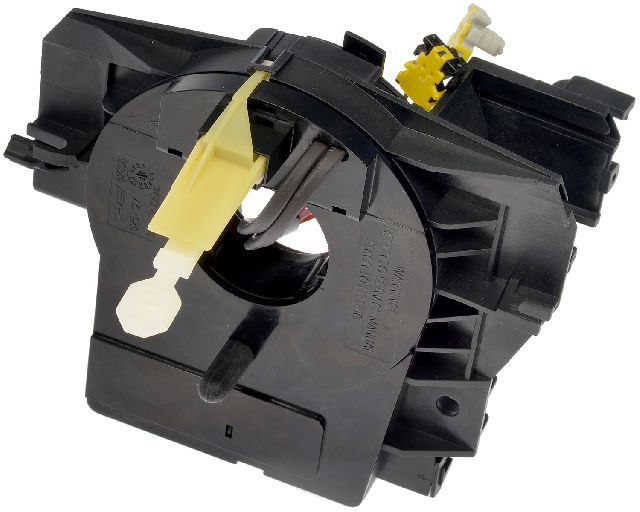

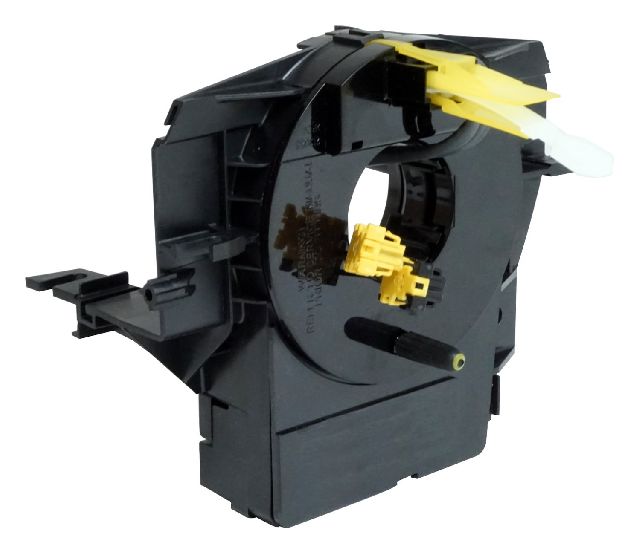

• Clockspring (OEM #5156106AD, superseded by 5156106AE, 5156106AF, 5156106AG) — This is the overwhelmingly most common failure part for code U1109 on the JK Wrangler, responsible for connecting all steering wheel electronics.
  Trusted brands: Mopar, Dorman, Standard Motor Products, Crown Automotive
  OEM price range: $180-$250
  Aftermarket price range: $50-$150

Related Codes That Often Appear With This One

• P0581 — Speed Control Multiplexed Switch #1 High - This code is often set with U1109 because the clockspring is the common electrical pathway for these switches.
• P0591 — Speed Control Multiplexed Switch #2 Performance - Like P0581, this points to a failure in the steering wheel control circuits, often caused by the clockspring.
• B1B02 — Driver Airbag Squib 1 Circuit Open - This is an airbag code frequently caused by a broken ribbon circuit inside the same clockspring that handles the steering wheel controls.
• C123F — Steering Angle Sensor Comparative Performance - The Steering Angle Sensor is integrated into the clockspring assembly, and its failure will set this code along with U1109.

Technical Service Bulletins (TSBs) & Recalls

• 08-005-17 REV. A: This Technical Service Bulletin directly addresses the clockspring issue and lists U1109 as a primary diagnostic trouble code indicating the failure. It outlines the repair procedure under the X68 warranty extension and applies to left-hand drive vehicles built between Feb 16, 2010, and May 02, 2016.

Platform-Specific Known Issues

• Extended Warranty (X68): Chrysler extended the warranty on the clockspring to 15 years/unlimited miles for 2011-2016 Wranglers due to the high failure rate. Code U1109 is one of the specific DTCs covered by this warranty extension. Owners must often specifically mention 'X68' to the dealer.
• Recall History (Pre-2011 Models): While the X68 warranty covers 2011-2016 models, earlier JK models (2007-2010) were subject to recalls (like NHTSA recall 16V-288, also known as FCA L02) for the same dust intrusion issue. This establishes a long history of this specific part failing on the JK platform.
• Right-Hand-Drive (RHD) Recalls: Specific recalls, such as NHTSA 24V-196, were issued for RHD 2011-2016 models for the same clockspring dust intrusion problem, further highlighting the part's vulnerability.
• Owner Reimbursement Success: There are documented cases of owners who paid for the repair at an independent shop before learning about the X68 warranty, and were later able to get a full reimbursement from FCA by submitting their receipts and diagnostic codes.

Mechanic-Grade Diagnostic Values

• LIN Bus Voltage — expected: A 'recessive' bit should be >80% of battery voltage (approx. 12V), and a 'dominant' bit should be <20% of battery voltage (approx. 1V). At rest, the voltage should be a steady 12V.. Failure: A LIN wire shorted to ground will read 0V. A wire shorted to power will read constant battery voltage. An open circuit will prevent communication entirely. Readings between 2V and 10V that do not correspond to the high/low toggling pattern indicate a fault.
• Clockspring Circuit Continuity — expected: Near-zero ohms of resistance when testing continuity between corresponding pins on either side of the clockspring assembly.. Failure: Infinite resistance (OL) on a multimeter indicates a broken or open circuit within the clockspring's ribbon cable.

Scan Tool Commands That Help

• wiTECH: View LIN Slave/Master Data — To verify if the master module (often the instrument cluster or TIPM) is attempting to send data and to see if it receives a response from the slave module (the steering wheel switch assembly). This can help differentiate between a module failure and a wiring/clockspring failure.
• wiTECH: Proxy Configuration Alignment — After replacing a major module like the clockspring (which contains the Steering Angle Sensor) or TIPM, a proxy alignment may be required to ensure all modules on the network recognize the new component and communicate correctly.

Wiring & Ground Locations

• G201 / G203 — Under the kick panel in the passenger footwell.. These are primary grounding points for various interior and dash electronics. A loose or corroded ground here can cause intermittent communication issues for modules connected to the LIN bus, potentially mimicking a clockspring failure.
• Clockspring Connectors — On the back of the clockspring assembly, behind the steering wheel.. There are multiple connectors on the clockspring that route signals for the airbag (yellow connectors), horn, and the LIN bus for the steering wheel controls. Simply reseating these connectors can sometimes resolve intermittent communication issues. The main connector for the steering wheel controls is often a multi-pin white or black connector.

Real Owner Repair Stories

• Reddit user on r/WranglerJK (Jeep Wrangler JK (year not specified)) — After having an aftermarket radio installed by a garage, the middle-left button on the steering wheel that used to cycle through presets started causing the radio to scan erratically.
  ❌ Tried (didn't work) Owner could not resolve the issue on their own.
  ✅ What actually fixed it The owner took the vehicle to an audio specialist who determined it was a 'programming issue during the installation'. This implies the interface module used to retain steering wheel controls with the aftermarket radio was either faulty, misconfigured, or incompatible, causing incorrect LIN bus signals.

OEM Part Supersession History

• 5156106AD → 5156106AE, 5156106AF, 5156106AG — Revisions to improve durability and address the widespread failure issues related to dust and moisture intrusion.
  Heads up: All listed part numbers (AD, AE, AF, AG) are generally interchangeable for the 2011-2018 JK Wrangler. However, it is always best practice to use the latest available revision (AG) for the most updated design.

Model Year Variations Within This Range

• 2011: The 2011 model year received a significantly upgraded interior compared to previous years, including a new dashboard and steering wheel controls. However, it retained the older 3.8L V6 engine.
• 2012-2016: Starting in 2012, the Wrangler received the more powerful and efficient 3.6L Pentastar V6 engine, but kept the 2011 interior design. The clockspring failure and U1109 code are common across the entire 2011-2016 range regardless of the engine change.
