U1346 on 2023-2024 Cadillac Escalade: MAF Sensor Communication Fault Causes and Fixes

What's Unique About the 2023-2024 Cadillac ESCALADE

General Motors has identified a specific vulnerability on these vehicles leading to code U1346. TSB #24-NA-158 explicitly calls out that water infiltration into the MAF sensor connector during the vehicle's assembly process can cause this fault. This makes the issue less about random component failure and more about a known potential defect. The official fix requires replacing both the sensor and its connector pigtail. This issue often appears alongside codes P0102 (MAF Circuit Low) and U060F (Lost Communication With Mass Airflow Sensor).

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Check Engine Light (Malfunction Indicator Lamp) is on

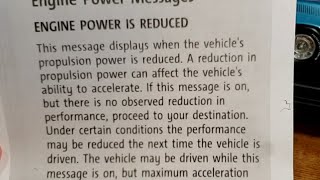

• Message on Driver Information Center (DIC) like 'Reduced Engine Power'
• Engine may run rough or idle poorly
• Hesitation or jerking during acceleration
• Reduced engine power
• Poor fuel economy
• Engine may stall
• Harsh or rough transmission shifting
🎬 Watch: 5 common symptoms of a failing mass air flow sensor.

Most Likely Causes

1. Water Intrusion in MAF Sensor Connector 🔴 High Probability → Shop Fuel Injection Air Flow Meter This is the specific cause identified in GM Technical Service Bulletin #24-NA-158 for the 2023-2024 Escalade and its platform mates. It states water can enter the connector during vehicle assembly.
   How to confirm: Visually inspect the MAF sensor electrical connector (both sensor and harness side) for signs of moisture, or corrosion (green/white powder).
   Typical fix: Per TSB #24-NA-158, the official fix is to replace the MAF sensor with part number 12711681 and the MAF sensor connector with service kit 85519071.
   Est. part cost: $80-$200
2. Damaged or Broken Wire in MAF Sensor Harness 🟡 Medium Probability → Shop Fuel Injection Air Flow Meter GM TSB #22-NA-008, for similar models, identifies that the wiring harness may be secured too tightly with a zip tie from the factory. Engine movement can cause the wire to stretch and break internally at this stress point. Owners on forums have confirmed this repair was needed on platform-mate trucks.
   How to confirm: With the engine running, carefully wiggle the wiring harness leading to the MAF sensor, paying close attention to the area around any zip ties or retainers. TSB #22-NA-008 specifies inspecting the 2nd retainer back from the MAF sensor. 🎬 See how a broken wire causes these specific communication codes. If the engine stumbles or the code appears/disappears, a broken wire is likely. A multimeter can be used to check for continuity on the signal wire.
   Typical fix: Repair the broken wire using an approved wire-to-wire splice repair. Reroute the harness to relieve stress and replace the overly tight zip tie. In severe cases, the entire connector pigtail may need to be replaced.
   Est. part cost: $15-$600 (pigtail vs. shop labor for diagnosis and wire repair)
3. Faulty Mass Air Flow (MAF) Sensor 🟡 Medium Probability → Shop Fuel Injection Air Flow Meter The sensor itself can fail internally, especially if it has been compromised by moisture as noted in the TSB. The complex internal electronics that manage the LIN bus communication can fail even if the primary sensing element is functional.
   How to confirm: After confirming the wiring and connector are intact and free of moisture, the most practical test is to replace the sensor. A technician can also monitor the LIN bus data stream on a high-end scan tool to check for a complete lack of signal from the sensor.
   Typical fix: Replace the Mass Air Flow sensor. The TSB-recommended part is GM #12711681.
   Est. part cost: $50-$120

Rare But Worth Checking

• Engine Control Module (ECM) Fault: → Shop Engine Control Module (ECM) This is extremely rare. The ECM should only be considered a potential cause after all wiring, connector, and sensor issues have been definitively ruled out by a professional.

Diagnosis Steps

1. Scan the vehicle for all stored Diagnostic Trouble Codes. Confirm the presence of U1346 and note if P0102 or U060F are also present.
2. Obtain and review GM Technical Service Bulletin #24-NA-158.
3. Locate the Mass Air Flow (MAF) sensor on the engine's air intake tube, between the air filter box and the throttle body.
4. Disconnect the electrical connector from the MAF sensor. Carefully inspect both the sensor side and the harness side of the connector for any signs of moisture, corrosion, or damaged/bent pins.
5. Inspect the wiring harness leading to the MAF sensor. Per TSB #22-NA-008, pay close attention to the second harness retainer back from the MAF sensor, checking for an overtightened zip tie. Gently wiggle the wire at this point to check for an internal break.
6. If moisture or corrosion is found, the recommended fix per TSB #24-NA-158 is to replace both the MAF sensor (GM #12711681) and the connector using the pigtail kit (GM #85519071).
7. If the connector is clean and the harness appears undamaged, test the LIN bus circuit. Using a multimeter set to 'peak' min/max, probe the signal wire. A healthy, communicating LIN bus will toggle between approximately 1V (min) and battery voltage (max, approx. 12V). A steady 12V indicates no communication, while 0V could indicate a short to ground.
8. If wiring and the connector are confirmed to be good, the fault is likely the MAF sensor itself. Replace the sensor.
9. After the repair, clear all DTCs and perform a test drive to ensure the code does not return.

Parts You'll Likely Need

• Mass Air Flow Sensor (OEM #12711681 (per TSB); originally 12714453) — This is the component that has lost communication. TSB #24-NA-158 explicitly requires replacing the sensor with the updated part number 12711681 when performing the water intrusion repair. The original part was 12714453, which was also superseded by 12711405.
  Trusted brands: ACDelco, GM Genuine Parts
  OEM price range: $50-$90
  Aftermarket price range: $40-$70
• Mass Air Flow Sensor Connector (Pigtail Kit) (OEM #85519071) — TSB #24-NA-158 specifies replacing the connector with this kit if water intrusion is found, as corrosion can prevent a reliable connection. It is also the correct part to use if the harness is damaged near the connector.
  Trusted brands: ACDelco, GM Genuine Parts
  OEM price range: $40-$60
  Aftermarket price range: $20-$40

Related Codes That Often Appear With This One

• P0102 — This code for 'Mass or Volume Air Flow 'A' Circuit Low' is explicitly mentioned in TSB #24-NA-158 as appearing with U1346, as a communication failure often results in a circuit low reading.
• U060F — This is another communication code, 'Lost Communication With Mass Airflow Sensor', that is also cited in TSB #24-NA-158 as potentially appearing alongside U1346 and P0102.

Technical Service Bulletins (TSBs) & Recalls

• 24-NA-158: Malfunction Indicator Lamp Illuminated with Active DTC P0102 and Possibly U060F and U1346 at the Mass Air Flow Sensor. Points to water infiltration in the MAF connector as the cause and provides specific part numbers for the replacement sensor and connector kit.
• 22-NA-008: Malfunction Indicator Lamp (MIL) Illuminated, Reduced Engine Power Message... with DTCs U060F, U1346, P0102... This TSB identifies a broken wire in the MAF sensor harness, often caused by an overtightened zip tie, as a potential cause on similar GM models.

Platform-Specific Known Issues

• TSB #24-NA-158 specifically addresses the 2023-2024 Escalade (with L87 or L84 gas engines), indicating the cause of U1346 is likely water infiltration into the MAF connector during vehicle assembly. The official fix is to replace the sensor with GM part #12711681 and the electrical connector with kit #85519071.
• TSB #22-NA-008, while for other models, describes a highly relevant issue where the MAF sensor harness is secured too tightly by a zip tie, causing wire breakage from engine flex. This is a known issue on the broader GM truck/SUV platform.

Mechanic-Grade Diagnostic Values

• LIN Bus Signal Wire Voltage (at MAF connector) — expected: Toggling between ~1.0V (low/dominant) and ~12V (high/recessive, or 1V less than battery voltage) when communicating.. Failure: A steady voltage of ~12V indicates the bus is at rest or a device isn't communicating. A steady 0V or low voltage could indicate a short to ground. An oscilloscope will show a square wave on a healthy bus, while a multimeter on a standard setting may show an average of 7-9V.
• LIN Bus 'Peak' Min/Max Voltage (using Fluke 87 or equivalent) — expected: Max reading of ~12V and a Min reading of ~1.0V.. Failure: Readings that do not span this full range, or are stuck high or low, indicate a communication problem, short, or open circuit.

Scan Tool Commands That Help

• GM GDS2 (Global Diagnostic System 2): Module Diagnostics > ECM (Engine Control Module) > Data Display — To monitor live data parameters from the MAF sensor, such as grams/sec, IAT, and humidity. If the values are frozen, zero, or nonsensical, it confirms a communication or sensor fault. GDS2 is the OEM tool used to query modules on the vehicle.
• GM GDS2 (Global Diagnostic System 2): Module Diagnostics > BCM (Body Control Module) > Control Functions — While not directly for the MAF sensor, GDS2's bidirectional control functions allow a technician to command various modules on and off to test the integrity of the vehicle's data networks. This can help rule out broader network issues that might be affecting the ECM's LIN bus.

Wiring & Ground Locations

• MAF Harness Zip Tie — On the MAF sensor wiring harness, at the second plastic retainer back from the sensor connector.. TSB #22-NA-008 identifies that this zip tie can be overtightened from the factory, creating a stress point. Engine movement can cause the LIN bus signal wire (Circuit 492) to break internally at this exact spot, causing a total loss of communication.
• G103 — Located at the left rear of the engine compartment on the cowl, above the brake booster.. This is a primary ground point for the Engine Control Module (ECM) and the Data Link Connector (DLC). A poor connection at G103 could cause a variety of communication codes, including U1346, by disrupting the ECM's ability to communicate properly on its various networks.
• MAF Sensor Connector (X131) — Directly on the Mass Air Flow sensor, which is situated on the air intake tube between the air filter housing and the throttle body.. This is the primary connection point for power, ground, and the LIN bus signal wire. TSB #24-NA-158 identifies water intrusion at this specific connector as a high-probability cause for U1346 on these vehicles.

Real Owner Repair Stories

• Reddit user 'onlyAnotherHalfMile' (2019 Chevrolet Silverado 1500 5.3L with 98,000 miles) — Check Engine Light with code U1346.
  ❌ Tried (didn't work) The user did not report trying other fixes first; they took it to a shop for diagnosis.
  ✅ What actually fixed it A shop confirmed the wiring harness was chafed and too short, as described in TSBs for GM trucks. The shop performed a wire-to-wire repair and rerouted the harness. The repair took two days and cost $600.

OEM Part Supersession History

• 12594942, 12644228, 12694725, 12701247 → 12711681 — GM regularly updates service parts to integrate new materials, technologies, or fix known issues. For this sensor, updates likely improve durability or resistance to environmental factors like moisture.
