U1500 on 2015-2020 Ford F-150: Active Grille Shutter Communication Fault Causes and Fixes

What's Unique About the 2015-2020 Ford F-150

The F-150 from this generation relies on the Active Grille Shutter (AGS) system to improve aerodynamics and engine warm-up times. Unlike many other vehicles where U-codes can be complex to trace, the U1500 on this F-150 has a very high correlation with the AGS. The most common point of failure is not the electronic motor itself, but the physical plastic frame of the shutter assembly. A small, brittle plastic stop tab breaks off, preventing the motor from finding its home position during its startup calibration sequence, which causes repeated clicking and eventually a communication fault.

Generation note: The 2015-2020 year range covers the 13th generation of the Ford F-150. This generation received a significant facelift for the 2018 model year. While the function of the Active Grille Shutter system is the same, part numbers and the front bumper design differ between the 2015-2017 and 2018-2020 models. It is crucial to order parts for your specific year and configuration (e.g., with or without skid plate).

Symptoms You May Notice

• Check Engine Light is on
• Audible clicking or grinding noise from the front grille area during vehicle startup as the shutter motor attempts to calibrate up to 20 times before faulting.
• Shutters are visibly stuck in the open or closed position.
• Individual shutter louvers (fins) are broken, misaligned, or loose.
• Slower engine warm-up in cold climates.
• In rare cases where shutters are stuck closed, the engine may run hotter than normal, especially in traffic or while towing.
• Potential for a parasitic battery drain if the module fails to enter sleep mode.

Most Likely Causes

1. Faulty Active Grille Shutter (AGS) Assembly 🔴 High Probability → Shop Grille Shutter Actuator The assembly is made of plastic and is located at the front of the vehicle, making it susceptible to damage from road debris. The most common failure is a small plastic stop tab on the frame breaking off, which prevents the motor from finding its home position during its startup calibration. This causes the motor to cycle repeatedly until it gives up and logs a communication fault.
   How to confirm: Visually inspect the shutters for broken fins, debris, or ice. Listen for repeated clicking on startup. A mechanic's video on YouTube clearly shows the broken tab on a failed unit compared to the tab on a new one. If other causes are ruled out, the assembly is the likely culprit.

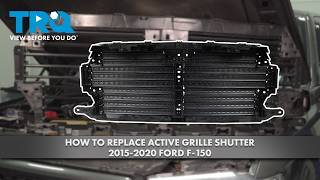

   Typical fix: Replace the entire Active Grille Shutter assembly. Most aftermarket units come complete with a new motor/actuator.
   Est. part cost: $150-$300
2. Blown Fuse 🟡 Medium Probability Electrical faults or a seized motor can cause a surge that blows the protective fuse.
   How to confirm: Locate and inspect the fuse for the Active Grille Shutters in the under-hood fuse box. For 2015-2017 models, this is confirmed to be fuse #97, a 10A fuse. 🎬 Watch: How to locate and replace the grille shutter fuse Always verify the correct fuse location for your specific model year in the owner's manual as locations can vary.
   Typical fix: Replace the blown fuse. If the new fuse blows immediately, it indicates a short circuit in the wiring or a seized actuator motor.
   Est. part cost: $1-$5
3. Jammed or Obstructed Shutters 🟡 Medium Probability Due to their location, the shutters can easily get clogged with snow, ice, leaves, or other road debris, preventing them from moving.
   How to confirm: Perform a careful visual inspection through the front grille. Look for any foreign objects lodged in the shutter mechanism.
   Typical fix: Carefully clear the obstruction. Gently try to move the shutters by hand to ensure they are free. Do not force them.
   Est. part cost: $0
4. Damaged Wiring or Connector ⚪ Low Probability The wiring harness to the shutter actuator is located at the front of the vehicle and can be damaged in a minor front-end impact or by road debris.
   How to confirm: Visually inspect the wiring harness and connector leading to the AGS actuator for any signs of cuts, corrosion, or damage. The connector is on the actuator motor, typically accessed after removing splash shields.
   Typical fix: Repair the damaged section of wiring or replace the connector pigtail.
   Est. part cost: $10-$40

Rare But Worth Checking

• Failed Actuator Motor Only: While possible for the motor to fail on its own, it's much more common for the entire assembly to be the root cause of the problem due to the broken plastic stop tab. Many owners replace only the motor to find the issue persists because the shutter frame itself was the problem.
• Powertrain Control Module (PCM) Fault: This is extremely rare. Before suspecting the PCM, all other possibilities related to the shutter assembly, wiring, and fuses must be exhaustively ruled out.

Diagnosis Steps

1. Scan the vehicle for all DTCs. Note if U1500 is present with U0284 or any P05xx codes.
2. With the engine off, look through the front grille. Inspect the shutter fins for any visible damage, misalignment, or obstructions like leaves, ice, or debris.
3. Have an assistant start the truck while you watch the shutters. Listen for a series of clicks and observe if the shutters attempt to cycle open and closed. Note if they get stuck or make grinding noises. This clicking is the sound of the motor repeatedly trying and failing to calibrate due to a broken stop.
4. Check the fuse for the Active Grille Shutters. For 2015-2017 models, this is fuse 97 (10A) in the engine bay fuse panel. Verify the location for your specific year in the owner's manual.
5. If the fuse is good and the shutters are malfunctioning, the next step is to gain access to the shutter assembly, which typically requires removing the front bumper cover and/or splash shields.
6. Disconnect the electrical connector at the shutter actuator motor. Inspect it for corrosion or damage.
7. With a multimeter, check for battery voltage and a good ground at the appropriate pins on the connector (wiring diagram recommended).
8. If power and ground are present but the unit does not function, the Active Grille Shutter assembly (including the motor) is faulty and requires replacement. The root cause is almost certainly the physical assembly, not just the motor.

Parts You'll Likely Need

• Active Grille Shutter Assembly (Upper) (OEM #2015-2017: FL3Z8475E / FL3Z8475F | 2018-2020: JL3Z8475D) — This is the most common failure. The assembly often fails physically (broken stop tab), causing the included motor to lose its calibration point. 🎬 See this step-by-step upper grille shutter replacement walkthrough It is replaced as a complete unit.
  Trusted brands: Motorcraft, Dorman, TRQ
  OEM price range: $250-$400
  Aftermarket price range: $150-$300

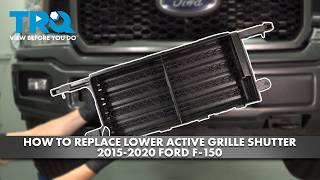

• Active Grille Shutter Assembly (Lower) (OEM #2015-2017: FL3Z8475D | 2018-2020 w/o Skid Plate: JL3Z8475G / JL3Z8475B | 2018-2020 w/ Skid Plate: JL3Z8475F) — The lower shutter can also fail and is a separate part. For 2018-2020 models, it is critical to order the correct part based on whether the truck has a factory skid plate. 🎬 Watch: How to replace the lower active grille shutter
  Trusted brands: Motorcraft, Dorman, Replacement
  OEM price range: $200-$350
  Aftermarket price range: $120-$250

Related Codes That Often Appear With This One

• U0284 — This code specifically means 'Lost Communication With Active Grille Air Shutter Module A'. It is a more direct pointer to the same fault and frequently appears with U1500.
• P05A0, P05AE, P05B0 — These codes indicate 'Active Grille Air Shutter Performance/Stuck On/Off'. They are performance-related codes that can be set when the shutter fails its calibration or gets stuck, often triggering the U1500 communication fault as a result. Codes referencing 'B' (like P05AE) often point to the lower shutter assembly.

Platform-Specific Known Issues

• The F-150 can have both an upper and a lower active shutter assembly, which are separate parts and can fail independently.
• For 2018-2020 models, the lower shutter assembly has two different versions. Owners MUST verify if their truck is equipped with a factory skid plate to order the correct replacement part.

Mechanic-Grade Diagnostic Values

• AGS Actuator Connector Pinout Test — expected: Using a wiring diagram for your specific year: Pin 1: Battery Voltage (12V+), Pin 2: Ground (continuity to chassis ground), Pin 3: LIN Bus (variable voltage, typically around 10-11V when communicating, but best checked with an oscilloscope or high-end scan tool).. Failure: Absence of 12V power or a solid ground indicates a wiring or fuse issue, not a faulty AGS assembly. An unchanging or 0V reading on the LIN wire when commanded suggests a communication breakdown.

Scan Tool Commands That Help

• FORScan or Ford IDS: AGS Self-Test / Output Control Mode (OCM) — This is a critical diagnostic step. After verifying power and ground, a technician can use this function to command the AGS to open, close, and calibrate. If the shutter fails to respond to the command despite having good power and ground, it confirms a failure within the AGS assembly (motor or mechanism). It allows for testing without having to wait for the PCM to initiate a calibration on its own.

Wiring & Ground Locations

• Main Battery Ground — On the body just in front of the washer fluid reservoir in the engine compartment.. While not the direct ground for the AGS, ensuring the main body ground is clean and tight is a foundational step for any electrical diagnosis.
• G108 / Front End Grounds — Located on the upper radiator support. There are multiple grounds in this area for various front-end components.. The AGS assembly is grounded to the chassis in the front of the vehicle. A corroded or loose ground in this area can cause intermittent communication faults and is a likely culprit if the main harness connector shows no signs of damage.

Real Owner Repair Stories

• Reddit user on r/FordF150 (2018 Ford F150 Lariat 3.5EB, ~105k miles) — No symptoms or Check Engine Light were reported. The discovery was accidental.
  ✅ What actually fixed it The owner was upgrading fog lights and discovered the lower grille shutter had been unplugged the entire time since a bumper repair was performed two years prior. This implies that on some configurations, the system may not immediately set a hard fault or CEL if a shutter is disconnected, or that the monitoring strategy is not continuous.
• YouTube - Gaskins Motorsports (Ford F-150 (year not specified, but within generation)) — Check engine light with codes U1500/U0284, clicking noise from front of truck on startup.
  ❌ Tried (didn't work) Initially, one might suspect only the motor, but the video advises against replacing just the motor.
  ✅ What actually fixed it The root cause was a broken plastic stop tab on the shutter frame itself. The motor was repeatedly trying to calibrate (clicking 20 times) but could never find its home position. Replacing the entire shutter assembly, which includes a new frame with an intact stop tab, resolved the issue permanently.

Model Year Variations Within This Range

• 2015-2017 vs 2018-2020: The front fascia, grille, and bumper were redesigned for the 2018 model year. This means the Active Grille Shutter assemblies are not interchangeable between the two ranges. 2015-2017 parts (e.g., FL3Z-8475-E) have a different shape and mounting points than 2018-2020 parts (e.g., JL3Z-8475-D). The diagnostic procedure, however, remains the same.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Warped Dashboard Near Windshield 🟠 Medium — Common on XL and XLT trim levels. The plastic dashboard lifts and separates from the defrost vents due to heat and sun exposure. (Ref: TSB 20-2268 (supersedes 19-2041, SSM 47270). Ford provides a procedure to replace the upper dash panel, often covered under warranty.)
• Frozen or Inoperative Door Latches 🔴 High — Widespread issue, especially in cold or wet climates. Doors may fail to latch closed or could unlatch while driving. (Ref: Recalls 17S33 and 20S30. A class-action lawsuit was also settled. The fix involves installing water shields and replacing faulty latch mechanisms.)
• 10R80 10-Speed Transmission Harsh Shifting 🔴 High — Common complaint of harsh/erratic shifts, clunks, and delayed engagement across many model years and engines. (Ref: Multiple TSBs exist (e.g., 18-2274, 23-2129) addressing software updates, valve body issues, and mechanical failure of the CDF clutch drum.)
• 5.0L V8 Engine Excessive Oil Consumption 🟠 Medium — Affects some 2018-2020 models with the 5.0L V8 engine, leading to low oil levels between changes. (Ref: TSB 19-2365 outlined steps for diagnosis and potential long block replacement. Earlier communications include SSM 47687.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For this specific repair, a used part is NOT recommended. The primary failure mode is a brittle plastic tab breaking due to age and heat cycles. A used part from a salvage yard will have experienced similar wear and is highly likely to fail in the same manner shortly after installation.

What to inspect on the donor part:

• If forced to consider a used part, you must physically inspect the small plastic stop tab on the frame to ensure it is present and not cracked.
• Manually actuate the louvers to ensure they move freely without binding.
• Inspect the actuator motor's electrical connector for any signs of corrosion or broken locking tabs.

Aftermarket brands forum-validated for this vehicle:

• TRQ: Featured in DIY repair videos as a viable alternative.
• Dorman: A widely available aftermarket option, though general brand reputation can vary among professional technicians.

Brands owners have reported issues with on this vehicle:

• No specific brands are consistently reported as problematic for this part, but it is wise to avoid unbranded, no-name parts from online marketplaces that lack a warranty or clear return policy.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• U0284 — A communication fault code that frequently appears alongside U1500 when the Active Grille Shutter module fails to communicate or calibrate.
• P05XX — A series of powertrain codes related to the Active Grille Shutter system performance that are often logged concurrently with U1500.
