OBD-II Code U1548: Lost Communication on LIN Bus

What Does U1548 Mean?

Code U1548 means a control module, usually the Body Control Module (BCM), lost connection to 'smart' devices on a single-wire network called a LIN (Local Interconnect Network) bus. When communication drops, parts on that network stop working because the master module cannot send commands or receive status updates.

Technical definition: Lost Communication with Device on Local Interconnect Network (LIN) Bus. This manufacturer-specific code indicates a master control module (like the BCM) stopped receiving signals from slave devices on a single-wire data network. Each device creates its own reference voltage; when a wire breaks or shorts, that signal drops, triggering the fault.

Can I Drive With U1548?

⚠️Yes, But With Caution. You can drive the vehicle, but you risk being stranded by a dead battery and unpredictable electrical failures like non-working wipers, windows, or radio. Severe electrical faults linked to this code cause intermittent loss of power steering assist or engine stalling, significantly increasing crash risk at low speeds. While manual steering remains, the increased effort is dangerous in an emergency.

Common Causes

• Pinched Instrument Panel (IP) Wiring Harness (Very Common) — On 2014-2020 General Motors trucks and SUVs, a metal mounting bracket near the parking brake pedal crushes the main dashboard wiring harness. This severs LIN and CAN network wires, causing communication failures documented in GM TSB PIT5288H.
🎬 See how a pinched harness causes communication and starting failures
• Poor Ground Connection (G218) (Common) — The G218 ground point under the driver's side dashboard traps factory sound-deadening material underneath its lug. This creates high electrical resistance for the BCM, triggering communication drops that mimic a pinched harness.
• Aftermarket Accessory Interference (Less Common) — Improperly installed remote starters, alarms, or dash cams interfere with data networks. Tapping into the wrong wire or introducing electrical noise disrupts LIN bus communication.
• Weak or Failing Battery (Less Common) — Low system voltage from a dying battery causes electronic modules to drop off the network. LIN bus diagnosis requires a stable 12.6V, as the network operates on a sensitive 1V to 12V range.
• Corroded Engine-to-Frame Ground Strap (Less Common) — The main braided ground strap connecting the engine block to the frame corrodes and breaks, creating system-wide voltage instability that drops modules offline.
• Failed LIN Bus Slave Device (Rare) — A single 'slave' device, like an active grille shutter actuator or window motor, shorts out internally and brings down the entire LIN bus circuit.
• Corroded Connector Pins (Rare) — A terminal pin within a large harness connector corrodes or backs out, creating an open circuit identical to a broken wire.
• Failed Body Control Module (BCM) (Very Rare) — BCMs rarely fail internally. Unnecessary BCM replacement is the most common expensive mistake made when diagnosing U1548.

Symptoms

• Inoperative Rear Windows or Wiper — Rear window switches and the rear wiper motor lose communication and stop working entirely.
• Blank Radio or Infotainment Screen — The center display screen goes black or flickers because the Human Machine Interface (HMI) module drops offline.
• Erratic Warning Lights — Unrelated warnings like 'Service Stabilitrak,' 'Service Power Steering,' or 'No Fob Detected' flood the instrument cluster.
• Flickering Lights — Interior or exterior lights flicker as modules lose and regain communication, usually indicating a poor ground at G218.
• Steering Wheel Controls Inoperative — Audio and cruise control buttons on the steering wheel stop responding.
• Dead Battery / Parasitic Drain (also visible on scanner) — The battery dies overnight because the communication fault prevents modules from entering 'sleep' mode, causing a continuous 200mA+ power draw.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this code.

Common Fixes & Costs

• Repair and Reroute Pinched Dash Harness — Parts: $10-$30 (for wiring repair supplies), Labor: $300-$500 (parts and labor), ~2.5 hr book time (Professional)
• Clean and Secure BCM Ground Connection (G218) — Parts: $0-$5 (for cleaning supplies), Labor: $100-$200 (parts and labor), ~1.0 hr book time (DIY)
• Repair/Remove Aftermarket Accessories — Parts: $0-$20 (for wiring supplies), Labor: $150-$300 (parts and labor), ~1.5 hr book time (Intermediate)
• Replace Battery — Parts: $150-$300 (parts only), Labor: $25-$50 (parts and labor), ~0.5 hr book time (DIY)
• Replace Body Control Module (BCM) — Parts: $300-$450 (parts only), Labor: $150-$300 (parts and labor, includes programming), ~2.0 hr book time (Professional)

Used vs. New Parts: Buying Guide

When a used part is worth it: Buying a used BCM is almost never recommended for this repair. Unlike mechanical parts, a BCM is a computer programmed with a specific vehicle's Vehicle Identification Number (VIN) and options. A used BCM from a donor car retains the original VIN and cannot be reprogrammed to a new vehicle.

Donor-vehicle mileage cap: roughly under 10000 miles for the part to have meaningful remaining life.

Donor quality checklist:

• The only scenario where a used BCM works is if purchased from a specialist that 'unlocked' or 'virginized' it, or if sold as a pair with its matching key and immobilizer module.

Decision logic:

• If The BCM is suspected to be faulty (after ruling out all wiring/ground issues) → Buy a new OEM or high-quality remanufactured BCM. Do not buy a used BCM from a junkyard or online marketplace.
• If You are attempting a DIY repair → Do not attempt to replace the BCM. The part requires professional programming with a GM-specific scan tool (GDS2) to function. The vehicle will not start with an unprogrammed module.

Warranty tradeoff: Used BCMs typically have a 30-day warranty covering only the part, not labor or programming costs. New OEM and reputable remanufactured BCMs carry a 1-year or longer warranty.

Worst-case if a used part fails: $300-$600 if a used BCM is purchased and fails to program. This includes the useless part, programming attempt labor, and towing a non-starting vehicle to a capable shop.

What Happens If You Wait — Timeline

1. 0-2 weeks: Code U1548 sets. The battery dies intermittently overnight. Random electrical glitches begin, such as rear windows not working or the radio screen going blank. (MPG impact: 0%% · Added cost: $50-$200 (for towing or jump-start service calls))
2. 2 weeks - 3 months: The parasitic drain becomes constant. The battery requires jump-starting almost daily. Repeated deep discharging causes permanent sulfation damage to the battery's lead plates. (MPG impact: 0%% · Added cost: $150-$350 (for a new battery that will also be ruined if the root cause isn't fixed))
3. 3-6 months: The original battery is completely dead and will not hold a charge. The wiring chafe in the harness worsens from vibration, causing more wires to short to each other or to ground. (MPG impact: 0-1%% · Added cost: $350-$700 (cost of a ruined battery plus increasing diagnostic time as more systems show faults))
4. 6+ months: Unstable voltage and repeated hard power-downs damage the BCM, radio, or instrument cluster. A short circuit in the harness sends 12V power down 1V data lines, destroying a module's internal circuitry. (MPG impact: 0-1%% · Added cost: $700-$2500+ (cost of original repair plus potential replacement of a BCM, HMI module, or other damaged electronics))

Cost of Not Fixing It

• Immediate (1-7 days): High risk of being stranded by a dead battery due to parasitic drain. Unpredictable loss of electrical functions like windows, wipers, and radio. (Added cost: $50-$200 (for towing or a service call to jump-start the vehicle))
• Short-Term (1-3 months): Permanent sulfation damage to the vehicle's battery from repeated deep discharging, requiring premature replacement. Continued exposure to safety risks from loss of power steering. (Added cost: $150-$350 (for a new battery, in addition to the eventual repair cost))
• Long-Term (6+ months): Unstable system voltage and repeated hard shutdowns destroy sensitive electronic modules like the BCM or radio. The initial wiring fault worsens, leading to complex and expensive diagnostic procedures. (Added cost: $500-$2000+ (if other modules are damaged or the harness requires more extensive repair))

Diagnosis Steps

1. Scan for All Trouble Codes
   Use a quality OBD-II scanner that reads manufacturer-specific codes (B-codes, C-codes, and U-codes) from all modules. Note all 'U' codes present. Seeing U1548 alongside codes like U1549, U0028, or B3101 strongly indicates the common pinched harness issue.
   Tools: Professional OBD-II Scan Tool (Beginner)
2. Check Battery and Connections
   Test the battery's voltage and have it load-tested. A healthy battery should be above 12.4V at rest. Clean any corrosion from the terminals. Connect a battery tender during LIN bus diagnosis to maintain a stable system voltage of ~12.6V.
   Tools: Multimeter, Battery Terminal Brush, Battery Tester, Battery Tender (Beginner)
3. Visually Inspect the Dash Wiring Harness
   Remove the lower driver-side dash panels to access the area above the parking brake pedal. Locate the large wiring harness passing a black metal I/P mounting bracket. Feel if the harness moves freely. If it is stuck or trapped by the bracket, it is pinched.
   Tools: Flashlight, Trim Removal Tools, Socket Set (Intermediate)
4. Inspect the BCM Ground (G218)
   Locate the main ground connection for the BCM on a metal stud under the dash near the A-pillar speaker. Remove the nut and check for corrosion or foam insulation trapped underneath the ground lug. Clean and re-secure it firmly.
   Tools: Socket Set, Wire Brush or Abrasive Pad (Intermediate)

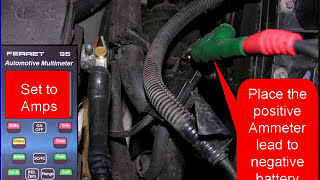

5. Perform a Parasitic Draw Test
   Connect a multimeter in series with the negative battery cable and allow all modules to enter sleep mode (up to 75 minutes). The current draw should be 50 milliamperes (0.050A) or less. A reading of 300mA (0.3A) or more confirms a module is not sleeping.
   Tools: Multimeter with 10A fused capability (Advanced)
6. Test Ground Circuit Resistance
   Set a multimeter to Ohms (Ω). Place one lead on the cleaned ground lug and the other on a known-good chassis ground point. A good ground circuit has a resistance of 2 ohms or less. A higher reading indicates a poor connection.
   Tools: Multimeter (Advanced)
7. Test LIN Bus Voltage with Multimeter
   Set a multimeter to DC volts and the 'Peak Min/Max' function. Connect the red lead to the LIN bus wire at a non-communicating component and the black lead to ground. A healthy LIN bus toggles rapidly, showing a MAX voltage of ~11-12V and a MIN voltage of ~1V. If stuck high or low, a fault is present.
   Tools: Multimeter with Peak Min/Max, Wiring Diagrams (Professional)
8. Isolate the LIN Bus (Advanced)
   Using a scan tool, see which module is not communicating. Disconnect other slave devices on the same circuit one by one. If disconnecting a specific device allows the others to start working, that device failed and is shorting out the network.
   Tools: Professional Scan Tool, Wiring Diagrams (Professional)
9. Analyze LIN Bus Signal with Oscilloscope
   Connect an oscilloscope to the LIN bus wire and ground. A healthy bus shows a clean square wave pattern, toggling between ~11-12V and ~1V. A flat line at 12V indicates a short to power. A flat line at 0V indicates a short to ground.
   Tools: Oscilloscope, Wiring Diagrams (Professional)
10. Isolate and Repair Damaged Wires
    If the harness is pinched, disconnect the battery. Loosen the bracket bolts to free the harness. Cut open the harness tape and inspect each wire for crushed insulation or severed copper strands. Repair damaged wires using sealed butt connectors or solder and heat shrink tubing. Re-wrap with anti-abrasion tape.
    Tools: Wire Strippers, Butt Connectors/Soldering Iron, Heat Gun, Tesa Tape, Zip Ties (Advanced)

When This Code Triggers (Freeze-Frame Conditions)

• Ignition Status: On / Run (The code sets shortly after the ignition turns on when the master module attempts to 'wake up' and communicate with slave devices on the LIN bus.)
• Communication Status: No Response (The fault triggers when the master module sends a request to a slave device and does not receive the expected signal back within a specified timeout period.)
• System Voltage: 9V - 16V (Low system voltage from a weak battery or poor ground exacerbates the issue, as LIN bus communication is highly sensitive to voltage levels.)
• Time: Variable (milliseconds to seconds) (The code logs after the communication loss persists for a manufacturer-defined duration, indicating a hard fault rather than a momentary glitch.)

Related Codes

• U1549, U154A — These are identical in nature to U1548 but for different LIN Bus circuits. Seeing them together with U1548 confirms a larger physical problem, like the pinched dash harness. One damaged area easily affects multiple LIN circuits.
• U0028, U0029, U0077 — These codes indicate a fault on the high-speed CAN bus. Because CAN and LIN wires route together in the main dash harness, the pinch point damages both simultaneously. Seeing high-speed CAN codes together with a low-speed LIN code like U1548 points directly to the harness.
• B3101 — This code means 'Keyless Entry Data Link Circuit' fault. The keyless entry receiver communicates with the BCM over a LIN bus. U1548 indicates the BCM lost communication, making B3101 a specific symptom of that failure.
• U0126, U0151 — These codes indicate a loss of communication with the Steering Angle Sensor and Airbag Control Module. Their wiring runs through the same dash harness, and damage triggers these codes alongside U1548. Their presence elevates the urgency of the repair.

Climate & Environmental Factors

• High Humidity and Moisture: Moisture and high humidity accelerate the failure of compromised wiring. If the pinched harness has chafed wire insulation, humidity seeps in, causing corrosion on the copper wire itself. This increases resistance and leads to intermittent signal loss.
• Corrosive Environments (Road Salt): In regions using road salt, corrosive spray attacks electrical grounds like the main engine-to-frame ground strap. A corroded ground path creates system-wide voltage instability. This instability forces sensitive modules on the LIN bus offline, setting communication codes like U1548.

How to Talk to a Mechanic About This Code

Say this: "I have a U1548 code on my GM vehicle with a parasitic battery drain and intermittent electrical issues. I want to schedule a diagnostic appointment to specifically investigate TSB PIT5288H for a pinched dash harness and check the G218 ground connection."

This signals to the shop that you are an informed customer, directing them to the most probable cause. It prevents them from starting with expensive, unnecessary steps like replacing the battery or BCM.

Avoid saying:

• 'My battery keeps dying, can you figure it out?'
• 'My radio and windows stopped working.' (Too vague, invites guessing)
• 'Just fix whatever is wrong.'

Questions to ask before authorizing the repair:

• Did you physically inspect the dash harness near the parking brake and find evidence of it being pinched or damaged?
• If wires are damaged, what is your proposed repair method? Will you be using solder and heat shrink or sealed connectors?
• Have you confirmed the G218 ground is clean and tight?
• Before we consider replacing any modules like the BCM, can you confirm you've 100% ruled out the harness and ground issues?

Where to Take It: Dealer vs Independent vs Chain

• Dealer: A strong, reliable choice. Dealer technicians are factory-trained and have direct access to the TSBs for this specific issue, speeding up diagnosis. However, it is the most expensive option.
  Best for: Vehicles still under a bumper-to-bumper warranty., Complex diagnostics requiring manufacturer-specific tools (like GDS2).
  Downsides: Labor rates are 25-50% higher than independent shops., May follow a rigid diagnostic tree that leads to replacing parts before finding a simple wiring issue. (Typical cost: +40% vs. baseline)
• Independent Shop: Best fit, with a condition. An independent shop well-regarded for electrical work is the ideal choice for an out-of-warranty vehicle. Ask them if they are familiar with GM's pinched harness issues before booking.
  Best for: Out-of-warranty vehicles where cost is a major factor., Shops that specialize in electrical diagnostics or specifically in GM vehicles.
  Downsides: Quality and experience vary greatly. A shop unfamiliar with TSB PIT5288H wastes hours on diagnosis., May not have the advanced GM-specific scan tools for deep-level diagnostics. (Typical cost: +0% vs. baseline)
• Chain Shop: AVOID. This repair requires specialized diagnostic knowledge and intricate wiring work, not simple part replacement. The risk of an expensive misdiagnosis or a poor-quality wire repair is extremely high.
  Best for: Simple jobs like battery replacement or oil changes.
  Downsides: Technician skill is highly variable., High pressure to sell parts leads to misdiagnosis (e.g., selling a battery when the problem is a parasitic drain)., Unlikely to be equipped for or experienced with complex dash wiring repairs. (Typical cost: -10% vs. baseline)

When to Walk Away From the Repair

If the total estimated repair cost exceeds 50% of your vehicle's current private-party market value (e.g., from Kelley Blue Book), seriously consider if the investment is worthwhile.

• Car worth $15000, fix is $800: Fix it. This is a common and relatively low-cost repair compared to the vehicle's value. The truck has significant life left.
• Car worth $8000, fix is $1800: Borderline. This cost assumes the harness repair is complex and a module was also misdiagnosed and replaced. Get a second opinion from a trusted independent shop before proceeding.
• Car worth $4000, fix is $2500: Walk away. The repair cost is over 60% of the vehicle's value. It's not economically sensible unless the truck is in otherwise perfect condition.

What Scan Tool You Need for This Code

Minimum: A scanner that reads manufacturer-specific 'U' (network) and 'B' (body) codes from all vehicle modules, not just generic 'P' (powertrain) codes.

A basic $20 code reader shows 'No Codes' if the check engine light isn't on, completely missing the U1548 stored in the Body Control Module (BCM). You need to see codes from the BCM to diagnose this issue.

Budget: BlueDriver Pro or TopDon TopScan (~$100) — These Bluetooth scanners connect to a smartphone app and perform a full system scan, allowing you to read U-codes from the BCM.

Mid-range: Foxwell NT510 Elite (with GM software) or Launch Creader Elite for GM (~$180) — Adds bidirectional control, allowing you to command specific components to activate. If the component works via the scan tool, it proves the motor is good and confirms a wiring problem.

Professional: Autel MaxiCOM MK808 / ThinkCar 689BT (~$500-700) — Offers full bidirectional controls, extensive live data graphing, and access to all modules with OE-level detail. These tools provide comprehensive data for diagnosing complex network issues.

Rent vs buy: Free rental scanners from auto parts stores are basic code readers and will NOT be sufficient for this code. If you are a serious DIYer, buying a midrange tool is a good investment. For a one-time fix, spend your money on a professional diagnosis rather than a tool that cannot read the necessary codes.

How to Clear the Code After You Fix It

1. Reconnect the negative battery terminal.
2. Use a professional OBD-II scan tool to perform the 'Clear All DTCs' command.
3. Perform at least one complete drive cycle to ensure the fault does not return and to allow readiness monitors to run.

Drive cycle (~20 minutes): Cold start the vehicle. Allow it to idle for 2-3 minutes. Drive in stop-and-go city conditions for 10-15 minutes, including several acceleration and deceleration cycles. Drive at a steady highway speed (55-65 mph) for 5-10 minutes. Allow the vehicle to cool down completely.

Readiness monitors affected: Comprehensive Component Monitor, Misfire Monitor

Before emissions retest: drive at least 50 miles to fully set monitors.

Watch out for:

• Disconnecting the battery does not clear the code from all modules and resets all readiness monitors to 'Not Ready', causing an emissions test failure.
• The code returns immediately upon the next startup if the underlying wiring or ground fault has not been properly repaired.
• Using a basic code reader that only clears powertrain (P-codes) fails to clear body (B-codes) or network (U-codes) faults.

Will This Fail Emissions / State Inspection?

Yes — this code typically fails an OBD-II emissions inspection.

• California: An active U-code that illuminates a malfunction indicator lamp (MIL) causes an automatic smog check failure. After the repair, a full drive cycle must be completed to set all readiness monitors to 'Ready' before a re-test passes.
• New York: The NYS vehicle inspection includes an OBD-II scan. Any diagnostic trouble code (DTC) that commands the MIL on, including a U-code, results in an emissions failure.
• Texas: In counties requiring emissions testing, an illuminated 'Check Engine' light results in an automatic failure. If the battery was disconnected for the repair, the readiness monitors reset to incomplete, causing a failure until a proper drive cycle is performed.

Most Commonly Affected Vehicles

• Chevrolet Silverado 1500 / 2500 / 3500 (2014-2019) — Affected by the pinched dash wiring harness flaw as part of the GM K2XX platform. The 2019 model year includes the 'Silverado LD' continuation of this platform.
• GMC Sierra 1500 / 2500 / 3500 (2014-2019) — Shares the same K2XX platform and wiring harness pinch point issue as the Silverado. The 2019 model year includes the 'Sierra Limited' continuation of this platform.
• Chevrolet Tahoe / Suburban (2015-2020) — This generation of GM's full-size SUVs is widely known for the pinched harness issue documented in TSB PIT5288H.
• GMC Yukon / Yukon XL (2015-2020) — As a K2XX platform vehicle, it is extremely prone to the dash harness being crushed by a support bracket.
• Cadillac Escalade / Escalade ESV (2015-2020) — The luxury version of the K2XX platform suffers from the exact same factory assembly flaw, causing U1548 and related electrical issues.
• Chevrolet Colorado (2017-2022) — The Colorado experiences U1548 related to failures in the data gateway module or its associated wiring, affecting infotainment and other systems.
• GMC Canyon (2017-2022) — Shares its platform with the Chevrolet Colorado and exhibits the same U1548 faults related to gateway module communication.
• Cadillac CT6 (2016-2020) — On these models, the U1548 code triggers from a failure of the Active Grille Shutter actuator, which is a slave device on a LIN bus.
• Chevrolet Corvette (2014-2019) — The C7 Corvette logs U1548 for LIN bus faults related to various body components, including the power convertible top control module or interior sensor modules.

Manufacturer-Specific Notes

• General Motors (Chevrolet, GMC, Cadillac): The code is almost exclusively caused by a specific manufacturing flaw where the main instrument panel harness is pinched by a metal bracket above the parking brake pedal, documented in TSB PIT5288H. GM issued service campaign N152003120 for some 2014-2015 trucks to proactively add a tie-strap to secure the harness away from the bracket.
• Chrysler / Dodge / Ram: LIN bus communication codes are frequently associated with the Active Grille Shutter (AGS) system. A stuck shutter or damaged wiring brings down its LIN bus and triggers this code, often accompanied by P1D73.
• Ford: LIN bus communication is essential for the Battery Management System (BMS). A failure on this circuit leads to improper charging, 'Battery Saver' messages, and disabled features like auto start-stop. A BMS reset is required after battery replacement.
• Peterbilt / Eaton: On heavy-duty trucks with Eaton UltraShift transmissions, a U1548 code is a software glitch logged with no other symptoms. Service bulletin 13-17 indicates the fix is a software update, not a physical repair.

Real Owner Stories

2016 GMC Sierra 1500 with 75,000 miles

The truck's battery died overnight repeatedly. The rear windows and radio randomly stopped working. The dealer replaced the battery, but the problem returned the next day.

What they tried:

1. Dealer replaced the battery ($350), which did not solve the problem.
2. Owner researched forums and found TSB PIT5288H about a pinched harness.
3. A second mechanic removed the lower dash panel and found the main wiring harness crushed by a metal bracket near the parking brake pedal.

Outcome: The mechanic freed the harness, repaired three chafed wires using solder and heat shrink, and rerouted the harness with zip ties. Total cost was $450 for 3 hours of labor. All electrical issues and the parasitic drain were resolved.

Lesson: Do not replace the battery or BCM before physically inspecting the dash harness as described in TSB PIT5288H. The symptoms are classic signs of this specific factory flaw.

2014 Chevy Silverado with intermittent electrical issues

Headlights and dash lights flickered and dimmed, especially when braking or turning. The truck occasionally stalled at low speeds, losing power steering. The battery and alternator tested fine.

What they tried:

1. Had battery and alternator tested, which were found to be good.
2. Researched online and found information about the G218 ground point.
3. Removed the driver-side dash trim panels to access the ground stud near the A-pillar speaker.

Outcome: The owner discovered sound-deadening insulation material trapped underneath the main ground lug for the BCM. They removed the nut, trimmed the excess material, cleaned the contact surfaces, and re-tightened the ground nut. This completely solved the flickering lights and stalling issues.

Lesson: A poor ground connection at G218 causes the exact same symptoms as the pinched wiring harness. It is a faster check and should be the first inspection when diagnosing U1548.

2015 Chevy Tahoe LTZ with 110,000 miles

Vehicle randomly refused to start, displaying a 'Theft Deterrent' message alongside Stabilitrak errors. The owner was about to buy a new, programmed BCM for over $600.

What they tried:

1. Owner planned to replace the BCM, assuming it failed.
2. Decided to check other modules on the data bus first.
3. Disconnected the driver-side blind spot detection module located behind the rear bumper.

Outcome: The owner found a broken, corroded pin on the disconnected blind spot module. By leaving the module disconnected, all communication issues and starting problems resolved immediately. They replaced the faulty module later.

Lesson: A single faulty module corrupts the entire bus, causing widespread issues that look like a BCM failure. Disconnect non-essential modules one by one to see if the problem disappears before replacing the BCM.

How to Prevent This Code From Triggering

• Proactively Inspect and Secure Grounds (Once, or during any under-dash work) — Key ground points like G218 and the engine-to-frame strap are often loose or corroded from the factory. Cleaning these contact points prevents voltage instability that causes communication errors.
• Use High-Quality Wiring Repair Supplies (During any electrical repair) — Using solder and heat shrink tubing or sealed crimp connectors creates a durable, moisture-proof connection. Simple electrical tape or twist caps fail due to vibration and temperature changes.
• Wrap and Secure Wiring Harnesses (During any repair near wiring) — Wrapping harnesses in high-quality cloth tape (like Tesa tape) provides abrasion resistance. Securing them with zip ties away from sharp metal edges prevents chafing and shorts.
• Ensure Proper Aftermarket Accessory Installation (During installation of any new electronics) — Improperly installed accessories are a major cause of parasitic drains and data bus interference. Always use dedicated power sources and avoid tapping into sensitive data bus wires.
• Maintain Battery Health (Seasonally) — A weak battery provides unstable voltage, causing sensitive electronic modules to malfunction and drop off the network. Regularly cleaning terminals and ensuring the battery is fully charged provides a stable electrical foundation.

Frequently Asked Questions

What is a LIN bus and why does it cause so many problems?

A LIN (Local Interconnect Network) bus is a simple, single-wire network used to connect 'smart' components to a main computer like the BCM. Because it uses a single wire, a break or short to ground stops all components on that line from communicating. This explains why one small wiring issue causes multiple, seemingly unrelated parts to fail at once.

My mechanic replaced the BCM but the problem is still there. What's next?

This is a common and expensive misdiagnosis indicating the root cause is a wiring or ground problem. Immediately have the shop inspect the pinched dash harness and the G218 ground connection detailed in GM TSB PIT5288H.

Could my recently installed remote start or alarm be causing this?

Yes. Aftermarket electronics are a primary source of network communication problems. If an installer tapped into a data wire by mistake or created a short, it disrupts the entire network and triggers a U1548 code.

Why did my battery die and my windows stop working at the same time?

The single wiring harness damaged in this common flaw contains communication wires for many different components. The fault prevents window modules from receiving signals and stops the car's computers from entering sleep mode, which drains the battery.

What is TSB PIT5288H?

PIT5288H is a General Motors Technical Service Bulletin detailing a known manufacturing defect on 2014-2020 trucks and SUVs where a bracket pinches the main dash wiring harness. It lists common symptoms and instructs technicians on how to locate, repair, and reroute the damaged wires.

Can I fix the U1548 pinched harness myself?

A DIY repair requires advanced skills and working in a cramped space to perform precise wire repairs. Stop DIY and take the vehicle to a professional shop if you are uncomfortable removing dash panels or soldering wires. The risk of causing further damage to the harness is high.

Is there a recall for the U1548 code?

No, there is no safety recall for this specific issue. General Motors issued Technical Service Bulletins (TSBs), like PIT5288H, instructing dealers on how to diagnose and repair the wiring harness problem when a customer reports symptoms.

Key Takeaways

• Code U1548 indicates a broken communication wire, not a failed computer module, saving you from buying a $400 BCM unnecessarily.
• On 2014-2020 GM trucks and SUVs, a pinched dash wiring harness behind the parking brake pedal causes 90% of U1548 codes.
• A parasitic battery drain exceeding 50mA combined with dead rear windows or a blank radio confirms the dash harness is shorting out.
• Inspect the G218 ground stud and the dash harness per GM TSB PIT5288H before spending any money on diagnostic parts.
