U1601 on 2019-2020 Ram 2500: ECM Software Corruption Causes and Fixes

What's Unique About the 2019-2020 Ram 2500

For this generation of Ram HD trucks, U1601 is a well-documented software issue, not a random hardware failure. Ram has issued specific Technical Service Bulletins (TSBs) for this code, acknowledging that it often occurs after a failed or interrupted software update (a 'flash'). A common cause for the interruption is electrical interference on the vehicle's CAN C data bus from aftermarket accessories like GPS trackers, electronic logbooks (ELDs), or even aftermarket tuners. The issue is so known that Ram has specific procedures for technicians to disconnect these devices before attempting a re-flash. Furthermore, TSBs dating back over a decade explicitly state that a U1601 code set due to unauthorized 'up-rate' software will not be covered under warranty.

Diagnostic Flowchart

Tap your situation to follow the diagnostic path that matches what you're seeing on this vehicle.

Symptoms You May Notice

• Engine will not crank or start (no-crank, no-start).
• Check Engine Light (Malfunction Indicator Lamp) is on.
• Vehicle is completely unresponsive to the ignition key or start button, just a 'click' may be heard.
• VIN may be missing or show as zeros on a scan tool.
• Aftermarket tuning devices may show an error, such as '$0340: Download not Accepted' on an EFILive device.

Most Likely Causes

1. Interrupted or Failed ECM Software Flash 🔴 High Probability Software updates for emissions or performance are common. Any interruption from voltage drops, data interference, or a failed aftermarket tuner can corrupt the ECM's memory.
   How to confirm: This code typically appears immediately after a failed programming attempt at a shop or with a handheld tuner. The vehicle, which ran previously, will suddenly refuse to start.
   Typical fix: The ECM must be successfully re-flashed with the correct factory software using a dealership scan tool like wiTECH. This overwrites the corrupted data.
   Est. part cost: $0
2. Interference from Aftermarket Devices 🟡 Medium Probability Many Ram HD trucks are used in fleets and have aftermarket GPS trackers, ELDs, or trailer brake controllers wired in. These can create electrical noise on the CAN C bus, interrupting communication during a key cycle or flash update.
   How to confirm: A technician will need to check for any non-factory devices wired into the OBD-II port or vehicle network. TSB S2008000186 REV. A specifically advises pulling the 20-amp radio fuse in the under-hood Power Distribution Center to help isolate interfering modules.
   Typical fix: Disconnect all aftermarket devices from the vehicle's data network. After removal, the ECM will need to be re-flashed by a dealer or qualified shop.
   Est. part cost: $0
3. Failed Aftermarket Tune Installation 🟡 Medium Probability Owners use tuners like EFILive or others to modify engine software. If the process is interrupted or the file is bad, it can 'brick' the ECM and set U1601.
   How to confirm: The code appears immediately after attempting to load a custom tune. The tuning device itself will likely show an error. A real-world example involved an EFILive user getting a '$0340' error, U1601, and a no-start condition.
   Typical fix: First, attempt to flash the ECM back to the stock factory file or a 'recovery file' using the same tuning device. If that fails, a dealer re-flash with wiTECH or a specialized bench-flash service is necessary.
   Est. part cost: $0
4. Failed Engine Control Module (ECM) ⚪ Low Probability → Shop Engine Control Module (ECM)
   How to confirm: This is a diagnosis of exclusion. If the ECM cannot be reprogrammed ('flashed') by a dealer with wiTECH, even after being removed and 'bench flashed' under ideal conditions, the module itself is considered failed.
   Typical fix: Replacement of the Engine Control Module, followed by programming it to the vehicle.
   Est. part cost: $1500-$2500

Rare But Worth Checking

• Low Battery Voltage During Flash: A weak or failing battery can cause a voltage drop during a key-on/off cycle or a software update, which is enough to corrupt the ECM's memory. TSBs specifically recommend maintaining a stable voltage between 13.2 and 13.5 volts during the entire flash process.

Diagnosis Steps

1. Verify the presence of code U1601 using a compatible scan tool. Note if the ECM is in a 'ROM boot state' or if the VIN is missing.
2. Question the driver about any recent service, programming attempts (dealer or aftermarket), or installation of aftermarket electronics.
3. Inspect the vehicle for any aftermarket devices connected to the OBD-II port or wired into the vehicle's network (e.g., GPS trackers, ELDs, tuners).
4. If aftermarket devices are found, disconnect them completely.
5. Connect a high-quality, high-amperage power supply to the vehicle to ensure stable battery voltage. TSBs recommend maintaining 13.2-13.5V during programming.
6. Using a factory-approved scan tool (FCA's wiTECH 2.0), attempt to re-flash the Engine Control Module (ECM) with the latest approved software calibration.
7. If the flash fails due to suspected interference, follow TSB S2008000186 REV. A and pull the 20-amp radio fuse to isolate the bus, then re-attempt the flash.
8. If the flash is successful, clear all DTCs. A full key-off cycle is often required. The 'Restore Vehicle Configuration' routine in wiTECH may also be necessary.
9. If the flash continues to fail on a clean bus with stable voltage, the ECM may need to be removed for bench flashing.
10. If bench flashing also fails, the ECM is faulty and requires replacement.

Parts You'll Likely Need

• Engine Control Module (ECM) Reprogramming — This is a software corruption issue. The most common fix is not a part, but a service to reinstall the correct software on the existing ECM.
  OEM price range: $275-$350
• Engine Control Module (ECM) (OEM #68363277AA (Example of a 2019-2021 unlockable ECM)) — This is only needed in the rare case that the ECM is physically damaged or cannot be reprogrammed after multiple attempts by a professional. The part number listed is an example of an earlier, unlockable ECM sometimes swapped in by tuners.
  Trusted brands: Mopar
  OEM price range: $1500-$1800
  Aftermarket price range: $800-$1200

Technical Service Bulletins (TSBs) & Recalls

• S2008000186 REV.B: Engine Control Module (ECM) Flash Failure, Diagnostic Trouble Code (DTC) U1601 – ECU Application Software Code 1 Missing Or Corrupted
• S2008000186REVA: Engine Control Module (ECM) Flash Failure, Diagnostic Trouble Code (DTC) U1601 – ECU Application Software Code 1 Missing Or Corrupted
• 18-007-09: No Crank, No Start - Malfunction Indicator Lamp (MIL) With DTC U1601

Platform-Specific Known Issues

• Manufacturer Technical Service Bulletin #S2008000186 REV.B directly addresses DTC U1601, identifying it as an 'Engine Control Module (ECM) Flash Failure'.
• An earlier revision, #S2008000186REVA, also points to this code and cause, specifically mentioning interference from aftermarket devices on the CAN C bus.
• TSBs for older models, like 18-007-09 for 2009 trucks, show a long history of this code being caused by interrupted flashes or unauthorized aftermarket software, and state that such repairs will not be covered by warranty.

Mechanic-Grade Diagnostic Values

• CAN Bus Network Resistance — expected: ~60 Ohms. Failure: A reading of ~120 Ohms indicates one of the two terminating resistors is missing or the circuit to it is open. A reading near 0 Ohms indicates a short between the CAN High and CAN Low wires.
• Battery Voltage During Flash — expected: 13.2 - 13.5 Volts. Failure: Voltage dropping below 13.2V or climbing above 13.5V can cause the flash process to fail and trigger U1601.

Scan Tool Commands That Help

• wiTECH 2.0: Restore Vehicle Configuration — After replacing or successfully reprogramming the ECM, this function under the 'Guided Diagnostics' tab is used to ensure all modules on the network recognize the new software/hardware and that all vehicle features are properly configured.
• wiTECH 2.0: Proxi Configuration Alignment — Used in conjunction with 'Restore Vehicle Configuration' to align all module configurations across the vehicle's networks, ensuring features that rely on inter-module communication (like connected services) function correctly.
• wiTECH 2.0: Check PCM VIN / Check PCM Odometer — These functions, found in the 'Misc Functions' menu, are required after installing a new, blank ECM to write the vehicle's correct VIN and mileage to the new module.
• Aftermarket Tuner (e.g., EFILive): Flash Recovery File — If U1601 was caused by a failed aftermarket tune, the first step before going to a dealer is to attempt flashing a 'recovery' or 'stock' file provided by the tuner manufacturer. This can often restore the ECM to a state where it can be properly programmed again.

Wiring & Ground Locations

• Security Gateway Module (SGW) — For 2019+ Ram HD trucks, the SGW is located behind the instrument/gauge cluster, often mounted on top of the steering column.. The SGW prevents unauthorized access to the vehicle's networks. To use aftermarket scan tools for deep diagnostics or to use tuners, a bypass harness must be installed. A dealer using wiTECH does not need a bypass. Forgetting to remove a bypass before a dealer visit can prevent them from connecting to the vehicle.
• CAN C Star Connector (Green) — Located under the driver's side dash, near the steering column and behind the light switch panel. It serves as a central hub for the powertrain CAN network.. This is a critical diagnostic point. If a reflash fails due to interference, a technician can disconnect individual modules from this star connector to isolate the source of the network noise before re-attempting the flash.
• CAN IHS Star Connector (Brown) — Located near the green CAN C star connector under the driver's side dash.. While U1601 is a powertrain CAN C issue, a fault in the Interior High Speed (IHS) network can sometimes cause unpredictable issues. The TSB-recommended step of pulling the radio fuse helps isolate this bus.
• ECM Grounds — Key grounds for the ECM are typically located near the battery (G101) and on the engine block itself (G103).. While not a primary cause for a software-based code like U1601, poor grounding can cause electrical noise and intermittent voltage drops that could potentially interrupt a flash process, leading to the code.

Real Owner Repair Stories

• EFILive Forum User (2011 Ram 6.7L Cummins (process is identical for 2019-2020)) — No-start condition, DTC U1601 present, and EFILive AutoCal device showed error '$0371 Transfer Suspended'.
  ❌ Tried (didn't work) Updating the AutoCal firmware., Attempting to re-flash the same tune file.
  ✅ What actually fixed it The user had to obtain a specific 'recovery file' from the tuner provider. Flashing this recovery file successfully restored the ECM to a bootable state, after which the desired custom tune could be applied.

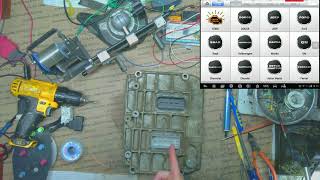

• YouTube user 'BackwoodsBrotherhood' (2014 Ram 3500 6.7L Cummins) — U1601 code and no-start after a failed tune flash with EFILive, suspected to be from a battery voltage drop during the process. The ECM lost its programming and did not know the truck had an automatic transmission.
  ❌ Tried (didn't work) Disconnecting both vehicle batteries for several hours.
  ✅ What actually fixed it The owner contacted the tune provider, who supplied a stock recovery file. Flashing the recovery file with the EFILive device restored the ECM, and the truck started and ran normally.

OEM Part Supersession History

• 68363277AA (Mopar) / 4384696 (Cummins) → N/A - This part number is still current. — This specific ECM is for the 2019-2021 model years.
  Heads up: Starting in 2022, Ram introduced a new, locked ECM that cannot be tuned by aftermarket software. As a result, tuners performing an 'ECM swap' on a 2022+ truck will specifically use this 2019-2021 ECM (P/N 68363277AA) as the hardware foundation for their tuning.

Model Year Variations Within This Range

• 2019-2020: The 2019-2020 model years use the same fundamental electronic architecture, including the Cummins CM2450B ECM and the Security Gateway Module (SGW). There are no significant variations between these two years that would alter the diagnosis or cause of a U1601 code.
