U2101 on 2009-2017 Chevrolet Traverse: Control Module Incompatible Fixes

What's Unique About the 2009-2017 Chevrolet Traverse

While U2101 is a generic GM programming error, the first-generation Traverse and its platform mates (Buick Enclave, GMC Acadia, Saturn Outlook) have specific common failures that often lead to the module replacement that causes this code. Early models are known for Transmission Control Module (TCM) failures and related shifting problems. More critically, the wiring harness leading to the TCM is known to chafe against the chassis or the connector itself, causing broken wires and communication loss (U0101) that can be misdiagnosed as a failed TCM. Additionally, loose or corroded connections at the Engine Control Module (ECM) are a known issue that can cause a flood of communication codes, potentially leading to an unnecessary ECM replacement.

Symptoms You May Notice

• Check Engine Light is on
• Service StabiliTrak warning light
• ABS and Traction Control warning lights
• Transmission may be stuck in one gear or shift erratically
• Vehicle may not start (no-crank condition)
• Loss of communication with the scan tool for a specific module
• Various electrical systems may not work (e.g., radio, power windows)
• Flashing odometer (on some GM vehicles with this fault)

Most Likely Causes

1. Control Module Replaced But Not Programmed 🔴 High Probability GM vehicles of this era require VIN-specific programming for most major control modules to function. Swapping modules, even with an identical part number, will cause this code until programmed. This is the primary cause of U2101.
   How to confirm: Ask the vehicle owner if any modules (TCM, BCM, ECM, radio, etc.) have been recently replaced. A professional scan tool will show a configuration mismatch for a specific module.
   Typical fix: The newly installed module must be professionally programmed to the vehicle's VIN using the GM Service Programming System (SPS).
   Est. part cost: $0
2. TCM Wiring Harness Chafing 🎬 Watch: Diagnose TCM communication loss and wiring issues 🟡 Medium Probability On the Traverse and its platform mates, the wiring harness to the Transmission Control Module (TCM) can rub against the chassis or the sharp edge of the plastic connector itself, eventually breaking wires. This causes communication loss (e.g., U0101) and often leads to the TCM being replaced, which then triggers U2101 if not programmed.
   How to confirm: Visually inspect the wiring harness that runs to the transmission for signs of rubbing, exposed copper, or green corrosion, especially right at the connector. This often occurs where the harness makes turns near the engine and subframe.
   Typical fix: Repair the damaged wires in the harness with solder and heat shrink or weatherproof butt connectors. Protect the repaired area from future chafing. If the TCM was already replaced, it will still need to be programmed after the wiring is fixed.
   Est. part cost: $10-$30
3. Loose or Corroded ECM Connectors ⚪ Low Probability The first-generation Traverse platform has documented cases of intermittent connections at the Engine Control Module (ECM) causing widespread communication codes. This can be due to fretting corrosion on the pins.
   How to confirm: With the battery disconnected, unplug, inspect, and firmly reseat the main electrical connectors at the ECM. Check for any corrosion, bent pins, or signs of moisture intrusion.
   Typical fix: Clean the connector pins and apply a small amount of dielectric grease before reseating. If this was the root cause and an ECM was already replaced, the new ECM will still require programming.
   Est. part cost: $5-$10

Rare But Worth Checking

• Failed OnStar Module (TCICM): → Shop Telematics Interface Module TSB 16-NA-227 addresses a parasitic drain from the OnStar module on 2016-2017 models. If this module is replaced with a used unit, it cannot be reprogrammed by a dealer and will cause network issues. A used module must be 'virginized' by a specialist before it can be programmed to a new VIN.

Diagnosis Steps

1. Verify the battery is fully charged (above 12.4V) and the charging system is working correctly. Low voltage can cause random communication errors.
2. Perform a full vehicle scan with a professional, bidirectional scan tool to see which module is reporting the U2101 code and which other modules are reporting a loss of communication.
3. Interview the owner/review service history to determine if any control modules have been recently replaced. This is the most common cause.
4. If a module was replaced, the vehicle must be taken to a dealer or qualified shop for SPS programming.
5. If no module was recently replaced, suspect a wiring issue. Visually inspect the TCM wiring harness for chafing, especially right where the wires enter the connector on the front of the transmission.
6. Check TCM-related fuses in the under-hood fuse block (often labeled 'TCM' and 'Trans').
7. Inspect the main connectors at the ECM for looseness or corrosion.
8. If wiring and connections are good, the module that is setting the U2101 code may have an internal failure, but this is less common than a programming or wiring issue.

Parts You'll Likely Need

• Module Programming Service 🎬 See this step-by-step GM module reprogramming walkthrough — This is not a physical part, but a required software service to make a replaced control module compatible with the vehicle.
  Trusted brands: GM Dealer Service, ACDelco TDS
  OEM price range: $125-$250
• Transmission Control Module (TCM) (OEM #24256524, 24287422, 24252114) — The TCM is a common failure point on early Traverse models, often due to internal failure or external wiring damage. If it fails and is replaced, the new unit will trigger U2101 until it is programmed.
  Trusted brands: ACDelco (GM Genuine), Dorman (Remanufactured)
  OEM price range: $250-$400
  Aftermarket price range: $150-$300

Related Codes That Often Appear With This One

• U0101 — Stands for 'Lost Communication with TCM'. This code often precedes U2101. A wiring fault or internal TCM failure causes U0101, a technician replaces the TCM, and the unprogrammed new part then sets U2101.
• U0100 — 'Lost Communication with ECM'. This can be caused by the known ECM connector issues on this platform or an improperly replaced ECM.
• U0140 — 'Lost Communication with Body Control Module'. If the BCM is the module that was improperly replaced, other modules will log this code because they can no longer hear it.
• U0073 — 'Control Module Communication Bus A Off'. This is a general network failure code that can appear alongside other U-codes when a primary module is offline or misconfigured.

Technical Service Bulletins (TSBs) & Recalls

• PIP4670H: Addresses a no-start condition or other concerns after swapping a control module from one vehicle to another without proper programming.
• TSB 16-NA-227: Details a condition on 2016-2017 models where the OnStar module (TCICM) can fail to enter sleep mode after a Bluetooth call, causing a parasitic battery drain. The fix is a software recalibration.
• PIP5108D: While not directly for U2101, this TSB addresses the U0101 code caused by the known TCM wiring harness chafing issue, which is a primary reason for TCM replacement that then leads to U2101.

Platform-Specific Known Issues

• The wiring harness for the Transmission Control Module (TCM) is known to rub against the sharp edge of its own connector or the chassis, leading to broken wires and a loss of communication (U0101) that is often misdiagnosed as a failed TCM.
• Early models (especially 2009) had a high rate of failure for the 3-5-R wave plate inside the 6T75 transmission, which could lead to a TCM replacement during the transmission repair.
• Intermittent electrical connections at the Engine Control Module (ECM) can cause numerous communication codes, leading to confusion during diagnosis.

Mechanic-Grade Diagnostic Values

• High-Speed GMLAN (CAN Bus) Network Resistance — expected: Approximately 60 Ohms (± 5 Ohms). Failure: A reading of ~120 Ohms indicates an open circuit or a disconnected module. A reading near 0 Ohms indicates a short between the CAN High and CAN Low wires.
• CAN Bus Voltage (Key On, Engine Off) — expected: CAN High (Pin 6) should be ~2.5V idling, switching to ~3.5V with data. CAN Low (Pin 14) should be ~2.5V idling, switching to ~1.5V with data.. Failure: Voltages stuck high or low, or not switching, indicate a wiring short or a faulty module pulling the bus down.
• Alternator Charging Voltage — expected: 13.7 - 14.7 Volts. Failure: Voltage below 13.2V or above 15.0V can cause unpredictable communication errors across various modules.

Scan Tool Commands That Help

• GDS2 (Global Diagnostic System 2): Module Diagnostics / DTC Display — Use this to perform a full vehicle scan to see which module is reporting 'Incompatible Software' and which other modules are reporting 'Lost Communication' with it. This is the first step in identifying the problem module.
• Techline Connect / SPS2 (Service Programming System): SPS2 Programming / Module Setup — This is the function required to fix U2101. After installing a new or used-but-cloned module, this function must be run to load the correct VIN and software configuration into the module, making it compatible with the vehicle.
• GDS2 (Global Diagnostic System 2): Control Functions / Output Controls — After a successful programming, use bidirectional output controls to command functions related to the new module (e.g., command transmission solenoids, BCM-controlled lights) to verify it is now communicating and functioning correctly.

Wiring & Ground Locations

• G110 — On the right rear of the engine, mounted to the back of the passenger-side cylinder head. It may be on a bracket directly above the power steering pump pressure hose.. This is a critical ground point shared by both the Engine Control Module (ECM) and the Transmission Control Module (TCM). A loose or corroded connection here is a known cause of intermittent communication loss (U0100, U0101) that often leads to unnecessary module replacement, which in turn causes U2101.
• TCM Connector (X1 on TCM) — The main 20-way electrical connector on the Transmission Control Module, which is located on the front top side of the transmission inside the engine bay.. The wiring harness leading to this connector is known to chafe on the connector body itself or the surrounding chassis, causing broken wires for power, ground, or CAN bus signals. This damage is a primary reason for TCM failure/communication loss.
• Data Link Connector (DLC) — Under the driver's side dashboard.. Pin 6 (CAN High) and Pin 14 (CAN Low) are used to test the overall health of the main communication network.
• Underhood Fuse Block — In the engine compartment, typically on the driver's side.. Contains the primary fuses for the TCM, often labeled 'TCM' (15A) and 'TRANS' (10A). A loss of power from a blown fuse will cause a U0101 and could lead to a misdiagnosis and replacement of the TCM.

Real Owner Repair Stories

• Reddit user in r/Chevy (2011 Chevrolet Traverse) — Multiple DTCs for communication loss between modules, intermittent no-crank no-start condition.
  ❌ Tried (didn't work) Initial diagnostics pointed towards multiple failed modules due to widespread communication loss.
  ✅ What actually fixed it The root cause was a loose G110 ground connection. A shop had previously replaced the transmission and cross-threaded the bolt holding the G110 ground to the back of the cylinder head. The bolt wasn't fully tightened, causing an intermittent loss of ground for the ECM and TCM. Tightening the ground bolt resolved all communication issues.

Documented NHTSA Reports

• An owner reported in NHTSA ODI #11581420 that their vehicle displayed U2101 alongside P219A, U0121, U0140, U0256, and U0452, accompanied by a strange warning chime without any dashboard lights.
• NHTSA ODI #10694215 describes a case where U2101 and C1B00 were present, leading to a recommendation to replace the electronic steering rack.

OEM Part Supersession History

• 24256524 (TCM) → 24041956 — Manufacturer revision and consolidation of part numbers.
  Heads up: Part number 24256524 itself is a replacement for a long list of earlier part numbers for the 6T70/6T75 transmission. Regardless of the part number, any replacement TCM will require VIN-specific programming to function.

Model Year Variations Within This Range

• 2013-2017: The 2013 facelift introduced the Chevrolet MyLink infotainment system with a 6.5-inch touchscreen as standard. This adds another complex module to the CAN network. While not a common cause of U2101, a failure or improper replacement of the MyLink radio or its interface module could potentially trigger network configuration codes.
• 2009-2012: These pre-facelift models have a simpler radio/infotainment system, meaning fewer complex modules on the network compared to the later MyLink-equipped vehicles. Diagnosis is more likely to be focused on the core ECM/BCM/TCM modules and their wiring.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• Premature Timing Chain Stretch (3.6L V6) 🔴 High — Very common, especially on 2009-2012 models. Often occurs between 70,000 and 120,000 miles. Triggers codes like P0008, P0016, P0017. (Ref: GM Special Coverage Adjustment 11340C (for 2009 models) extended warranty to 10 years/120k miles, now expired. TSB 12-06-01-009F provides service info.)
• Power Steering Pump/Gear Leaks or Whine 🟠 Medium — Common across the model years, particularly noticeble in cold weather. Can lead to stiff steering or complete loss of power assist. (Ref: NHTSA Campaign 14V118000 (power steering pump fracture) and TSB 13-02-32-001D (cold weather noise/leaks) address some of these issues.)

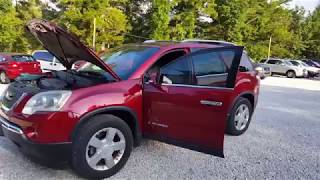

• Water Leaks into Cabin 🔴 High — Extremely common. Water enters through clogged sunroof drains, a poorly sealed body seam in the cowl, or a clogged A/C evaporator drain, often soaking the passenger floorboard and damaging the fuse block. (Ref: TSB 08-08-57-003F details the un-sealed body seam in the cowl area as a major source of leaks.)
• 3-5-R Wave Plate Failure (6T75 Transmission) 🔴 High — Common on earlier models (approx. 2009-2012). The wave plate breaks, causing loss of 3rd, 5th, and Reverse gears, requiring a transmission rebuild. (Ref: Multiple TSBs exist regarding transmission issues, though no specific recall for the wave plate itself.)
• Stretched or Broken Throttle Body Wires 🟡 Low — Can occur at higher mileage, causing reduced engine power mode, stalling, and throttle body-related codes. The wires in the harness near the throttle body connector can break from vibration.

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: A used TCM is a viable option ONLY IF you use a 'cloning' service. This involves sending your original (faulty) TCM and the used donor TCM to a specialist who will copy all the programming, VIN, and solenoid calibration data from your original module to the donor. This makes the used part a plug-and-play replacement without needing dealer programming.

Donor-vehicle mileage cap: roughly under 120000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the part number on the donor TCM matches your original TCM exactly.
• Inspect the electrical connector pins for any signs of corrosion, bending, or damage.
• Ask the seller if the donor vehicle had any transmission-related trouble codes before it was dismantled.
• Avoid modules from flood-damaged vehicles at all costs.

OEM-only on this vehicle (don't cheap out):

• While remanufactured TCMs exist, this is a part where using a genuine GM/ACDelco unit (new or cloned used) is highly recommended due to the complexity of the internal electronics and software.

Aftermarket brands forum-validated for this vehicle:

• ACDelco (GM Genuine)
• Sellers offering pre-programmed OEM modules (requires sending VIN)
• Mail-in cloning services (e.g., Velectronix)

Brands owners have reported issues with on this vehicle:

• Unknown, no-name brands from online marketplaces that do not offer pre-programming or a clear warranty. A 'blank' module is useless without the expensive equipment to program it.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• U0101 — Lost Communication with TCM; often the precursor to U2101 if the TCM is replaced due to wiring harness chafing but not programmed.
• P0008 — Engine Position System Performance; a common companion code on the Traverse platform related to timing chain stretch.
• P0016 — Crankshaft Position - Camshaft Position Correlation; frequently seen alongside communication issues on 2009-2012 3.6L models.
• P0017 — Crankshaft Position - Camshaft Position Correlation (Bank 1 Sensor B); another common code related to the platform's known timing chain issues.
• U0100 — Lost Communication with ECM; can occur due to fretting corrosion or loose connections at the main ECM connectors.
