U3001 on 2016-2022 Honda Pilot: Improper Shutdown Causes and Fixes

What's Unique About the 2016-2022 Honda Pilot

On the third-generation Honda Pilot, a U3001 code, often accompanied by a dashboard full of warning lights (ABS, VSA, ACC, etc.), is not typically a sign of a single, specific part failure. While the root cause is very often a simple weak battery, this vehicle is also known to have issues with its advanced driver-assistance systems (ADAS). Specifically, the forward-facing multipurpose camera unit has been identified by owners and technicians as a point of failure that can trigger a cascade of communication faults, often storing a more specific U3000-49 code internally.

Symptoms You May Notice

• Multiple warning lights on the instrument cluster, often described as a 'Christmas tree' effect (ABS, VSA, Power Steering, ACC, LKAS, etc.)

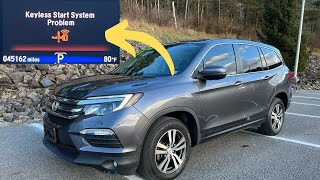

• Error messages on the multi-information display, such as 'Keyless Start System Problem' or 'Some driver assist systems cannot operate'
• Parasitic battery drain, leading to a dead battery overnight or after a few days
• Features like interior lights or the infotainment screen staying on after the ignition oxff
• Vehicle failing to start on the first button press
• Randomly activating car alarm

Most Likely Causes

1. Weak or Failing 12V Battery 🔴 High Probability → Shop Vehicle Battery Modern vehicles like the Pilot have a high electrical demand with numerous control modules. A battery with low voltage or diminished capacity can cause modules to shut down improperly during the key-off sequence, triggering a U3001 code.
   How to confirm: Use a digital multimeter to check the battery voltage at rest (should be above 12.4V). For a definitive test, use a digital battery load tester to check its health and cold cranking amps (CCA) capacity. Many auto parts stores offer this service for free.
   Typical fix: Replace the 12V battery. After replacement, a Battery Management System (BMS) reset with a capable scan tool may be required to ensure proper charging and longevity of the new battery. Some sources suggest a manual reset procedure may also be possible.
   Est. part cost: $150-$300
2. Faulty Multipurpose Camera Unit 🟡 Medium Probability → Shop Video Camera Owner forums and mechanic experiences confirm the forward-facing camera (part of Honda Sensing) is a known failure point on this generation of Pilot and its platform mates, causing numerous communication errors. The failure is often internal to the camera's electronics.
   How to confirm: A professional-level scan tool is needed to check for specific fault codes. A code like U3000-49 (internal electronic failure) or B2A60-49 logged in the ADAS module is a strong indicator of camera failure. Sometimes a software update is available per a TSB to fix glitches before replacing the unit.
   Typical fix: The camera unit, located behind the windshield near the rearview mirror, must be replaced. The new module must then be statically calibrated using a specific scan tool and targets to ensure the ADAS features (like lane keeping and collision mitigation) work correctly. This is not a DIY job. 🎬 Watch: Honda multipurpose camera replacement walkthrough
   Est. part cost: $600-$1300
3. Poor Battery Terminals or Ground Connections ⚪ Low Probability → Shop Vehicle Battery Corrosion or looseness at the battery terminals or main chassis ground straps can create intermittent voltage drops, mimicking the symptoms of a failing battery. This is a common issue on all modern vehicles, not specific to the Pilot. Some owners have noted the factory chassis ground connection point was painted, creating a poor connection.
   How to confirm: Visually inspect the battery terminals for white or blue-green corrosion. Clean them with a wire brush. Trace the main negative cable to the chassis and ensure the connection is clean and tight. A voltage drop test across the ground connection should show less than 0.1V (100mV).
   Typical fix: Clean the battery terminals and posts thoroughly. If a ground strap is corroded, it should be cleaned or replaced. Some owners proactively upgrade the main ground wire and add supplementary grounds.
   Est. part cost: $0-$50

Rare But Worth Checking

• Faulty ABS/VSA Modulator: While a very common failure on the previous generation Pilot, it's less documented on the 2016-2022 models. However, if ABS and VSA lights are prominent and the battery is good, this module can be a suspect. Failure often triggers multiple communication codes like U0121. Replacement requires programming and a 'VSA Sensor Neutral Position Memorization' procedure.
• Faulty Engine Start/Stop Switch: Honda issued a warranty extension (TSB 20-117) for the Engine Start/Stop switch on 2016-17 Pilots for DTC B12C5, which causes a 'Keyless Start System Problem' message. A failing switch could potentially disrupt the power-down sequence of other modules, contributing to a U3001 code.
• Faulty Smart Power Control Unit: A failure in this unit can cause a significant parasitic battery drain, leading to a dead battery and associated voltage-related codes like U3001. Symptoms include the alarm going off randomly. Owners have reported that this part has been on national backorder, making repairs difficult.

Diagnosis Steps

1. Read All Codes: Use an OBD-II scanner capable of reading codes from all vehicle modules (ABS, SRS, BCM, ADAS etc.), not just the engine computer.
2. Inspect and Test the Battery: Visually inspect the battery terminals for corrosion. Test the battery's state of charge and health using a multimeter and a digital load tester. A resting voltage below 12.4V indicates a need for charging and re-testing. This is the most common fix.

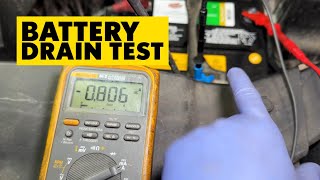

3. Check for Parasitic Draw: If the battery is good or new but continues to die, perform a parasitic draw test. This involves connecting a multimeter in series with the negative battery cable to measure current draw after the vehicle has gone to sleep (can take up to 30 minutes). 🎬 Watch: How to perform a parasitic draw test A draw over 50mA is excessive. Pulling fuses one by one can help isolate the draining circuit.
4. Check Main Fuses and Grounds: Inspect the main fuses in the under-hood fuse box. Check that the main battery ground strap to the chassis is clean and tight. Perform a voltage drop test on the ground connection.
5. Check for TSBs and Recalls: Check for open recalls or Technical Service Bulletins (TSBs) using the vehicle's VIN. Honda has several relevant software updates and warranty extensions for this platform. Recall T89 (NHTSA 20V-439) addresses instrument panel software.
6. Advanced Diagnostics (Professional): If the battery and basic connections are good, a technician will use an advanced scan tool like the Honda HDS to run checks like the 'F-CAN Bus Connected Unit Check' to see which specific module is not communicating or logging the U3001 fault. This can isolate the problem to a specific part like the ADAS camera or Smart Power Unit.
7. Module Replacement and Calibration: If a module is confirmed to be faulty, it must be replaced. Critical safety modules like the ADAS camera or ABS unit require professional calibration after installation.

Parts You'll Likely Need

• 12V AGM Battery — This is the most frequent cause of the U3001 code due to low voltage during the vehicle's shutdown sequence.
  Trusted brands: Interstate, DieHard, Duralast
  OEM price range: $250-$350
  Aftermarket price range: $150-$250
• Multipurpose Camera Unit (Monocular Camera) (OEM #36160-TG7-A84 (supercedes 36160-TG7-A82, A83)) — A known failure point on this platform that causes a cascade of communication errors and warning lights, often with code U3000-49.
  Trusted brands: Honda (OEM)
  OEM price range: $600-$1300
• Engine Start/Stop Switch Assembly (OEM #35881-TG7-A04) — Fails to register a button press, causing a 'Keyless Start System Problem' message and is covered by a warranty extension for some model years. A faulty switch can disrupt the power-down sequence.
  Trusted brands: Honda (OEM)
  OEM price range: $90-$120

Related Codes That Often Appear With This One

• U3000-49 — This is a more specific Honda code that points directly to an internal electronic failure in a control unit, most commonly the Multipurpose Camera Unit.
• B12C5 — This code indicates a failure of the Engine Start/Stop Switch. It is the primary code addressed by Honda's warranty extension TSB 20-117 and often appears with the 'Keyless Start System Problem' message.
• U0121 — This code means 'Lost Communication With ABS Control Module'. It could appear alongside U3001 if the ABS/VSA modulator is the module that failed to shut down properly.
• B2A60-54 — This code indicates 'Static camera alignment not done' and is a direct indicator that the multipurpose camera unit requires calibration, which may be necessary after a battery replacement or if the unit itself is failing.

Technical Service Bulletins (TSBs) & Recalls

• 20-117: Warranty Extension: 2016-17 Pilot and 2017 Ridgeline Keyless Start System Error with DTC B12C5.
• 18-006: Addresses ADAS warning lights with DTC B2A60-49 due to a software issue in the multipurpose camera, fixed by a software update.
• 20-100: Warranty Extension for MIL on with various codes (P0420, P030x, P219A/B) due to faulty fuel injectors or PCM software on 2016 Pilots.

Platform-Specific Known Issues

• A recall (Honda T89, NHTSA 20V-439) was issued for 2019-2021 Pilots for incorrect instrument panel control module software that could cause the display to go blank or fail to show critical info. The fix is a software reprogram by the dealer.
• A warranty extension (TSB 20-117) was issued for the Engine Start/Stop switch on 2016-2017 models to 9 years/125,000 miles, which could cause starting issues and the code B12C5. The fix is to replace the switch.
• A rearview camera recall (NHTSA 23V-431) affects 2019-2022 Pilots for a faulty MOST coaxial cable that causes the backup camera image to fail, often preceded by audio popping or a flickering screen.

Mechanic-Grade Diagnostic Values

• Parasitic Current Draw — expected: < 50 mA. Failure: A reading greater than 50 mA after all modules have entered sleep mode (approx. 30 minutes) indicates a component is not shutting down properly.
• Module Chassis Ground Resistance — expected: < 0.2 Ω. Failure: A reading higher than 0.2 ohms indicates a high-resistance ground connection that can cause improper module function and shutdown issues.
• Battery Resting Voltage — expected: > 12.4 V. Failure: A voltage below 12.4V indicates the battery is discharged or has diminished capacity and needs load testing.
• Main Ground Cable Voltage Drop — expected: < 0.1 V (100 mV). Failure: A voltage drop greater than 100mV between the battery negative post and the chassis ground point (with the engine running) indicates excessive resistance in the ground cable or connection.

Hidden / Shadow Codes Worth Checking

• B2A60-54: Static camera aiming incomplete. This code is stored in the ADAS control unit and specifically indicates that the forward-facing multipurpose camera has not been calibrated. (see via A professional-level scan tool capable of reading codes from the ADAS/Honda Sensing module, such as the Honda HDS.)

Scan Tool Commands That Help

• Honda HDS (or equivalent professional scanner): 12 Volt Battery Internal Resistance Reset — After replacing the 12V battery, this function updates the Powertrain Control Module (PCM) with the new battery's state of health. This is crucial for vehicles with Auto Idle Stop to ensure the system functions correctly and the new battery is charged properly.
• Honda HDS (or equivalent professional scanner): VSA Sensor Neutral Position Memorization — After replacing the ABS/VSA modulator, this procedure (also called Zero Point Calibration) must be performed to teach the system the neutral position of the steering angle and yaw rate sensors.
• Honda HDS (or equivalent professional scanner): Static Camera Aiming / Calibration — Required after replacing the multipurpose camera unit or the windshield. It uses physical targets placed at a specific distance and height to align the camera correctly.
• Honda HDS (or equivalent professional scanner): F-CAN Bus Connected Unit Check — When diagnosing a general communication failure like U3001, this function polls all modules on the Fast Controller Area Network (F-CAN) to see which ones are responding ('Detected') and which are not ('Not Available'), helping to pinpoint the source of the communication breakdown.

Wiring & Ground Locations

• G501 — Under the left side of the dash, near the base of the A-pillar.. This is a major interior ground point for multiple modules. A loose or corroded connection here can cause widespread communication issues on the B-CAN and F-CAN networks.
• G502 — Under the front passenger's seat.. This ground serves several components, and while less central than G501, a fault here could contribute to network instability.
• Main Chassis Ground — The main negative battery cable connects to a bolt on the chassis near the battery tray in the engine compartment.. This is the primary ground for the entire vehicle's electrical system. Corrosion or looseness here is a direct cause of voltage drops that can trigger U3001. Some owners note this connection is made over a painted surface from the factory, which can be improved by sanding to bare metal.

Real Owner Repair Stories

• Piloteers.org forum user (2016 Honda Pilot EX-L) — Dead battery overnight, multiple warning lights on the dash.
  ❌ Tried (didn't work) Replaced the 12V battery twice., Dealer could not find a parasitic draw after multiple attempts.
  ✅ What actually fixed it The owner isolated the parasitic draw to a faulty fuel injector relay. Replacing the relay resolved the battery drain and the associated warning lights.
• Reddit user DillingerLost (2016 Honda Pilot Touring, 127k miles) — Intermittent 'Christmas tree' of warning lights (ACC, LKAS, etc.).
  ❌ Tried (didn't work) Disconnecting the battery for 30 minutes., Replacing the 3.5-year-old 12V battery.
  ✅ What actually fixed it The user was advised by others that the symptoms, especially after a good battery was confirmed, strongly pointed to a failing monocular (multipurpose) camera, a known issue. The final fix was not posted, but the diagnosis path is a valuable real-world example.

Documented NHTSA Reports

• While U3001 is often a battery-related shutdown code on Honda platforms, cross-manufacturer records such as NHTSA ODI #11725794 show this code appearing alongside a wide array of communication and voltage faults (including P1EOO and POAFA) in complex electrical systems.
• NHTSA ODI #10937177 notes that U3001:00 can be logged in modules like the Battery Energy Control Module (BECM) and is sometimes associated with other voltage codes like U3003, highlighting the code's relationship to power management systems.

When the Usual Fixes Don't Work

• In several owner-reported cases, replacing the battery did not resolve the U3001 code and accompanying warning lights. In these instances, the next most likely culprit identified by forum veterans and technicians was the multipurpose camera unit, which can fail internally and disrupt network communication even when the vehicle has a stable power supply.

OEM Part Supersession History

• 35881-TG7-A01, 35881-TG7-A02, 35881-TG7-A03 → 35881-TG7-A04 — Revisions to improve reliability and address failures causing the 'Keyless Start System Problem' message.
  Heads up: The newest part number, 35881-TG7-A04, is the correct replacement for all prior versions.
• 36160-TG7-A82, 36160-TG7-A83 → 36160-TG7-A84 — Internal electronic revisions to improve the durability of the multipurpose camera unit.

Model Year Variations Within This Range

• 2019-2022: The 2019 model year refresh made the Honda Sensing suite of safety features (which includes the multipurpose camera) standard on all trims. Pre-2019 models only had it on higher trims. The refresh also included a revised 9-speed transmission on Touring/Elite trims, a new instrument cluster, and an updated Display Audio system with a volume knob.
• 2016-2017: These model years are specifically covered by Honda's warranty extension (TSB 20-117) for the Engine Start/Stop switch, a potential contributor to shutdown issues.

Diagnostic Flowchart

Other Known Issues on This Vehicle

Issues unrelated to this code that are worth knowing about as an owner of this generation:

• 9-Speed Automatic Transmission Behavior 🟠 Medium — Common on models equipped with the ZF 9-speed (Touring/Elite trims). Complaints include harsh shifting, hesitation, and lurching, especially at low speeds. (Ref: Multiple software updates (e.g., TSB 19-053) were released to improve shift logic. A class-action lawsuit alleges design defects.)
• Fuel Injector Failure 🔴 High — A known issue, particularly on 2016 models, that can cause misfires, stalling, and check engine lights with codes like P030x or P219A/B. Can occur around 60k miles. (Ref: TSB 20-100 extends the warranty for this issue to 10 years/150,000 miles for certain 2016 models.)
• Infotainment System Glitches 🟡 Low — Widespread complaints of the infotainment screen freezing, going black, or being unresponsive. Audio system may make popping or crackling sounds. (Ref: Often related to the MOST network connection. NHTSA recall 23V-431 addresses a faulty coaxial cable causing display failure. Other issues may be resolved with software updates.)
• Engine Auto Idle Stop/Start Malfunction 🟡 Low — A very common complaint where the system fails to restart the engine after a stop, sometimes requiring a full power cycle. Often related to battery health but can be a system fault.
• Leaking A/C Condenser 🟠 Medium — Common across many Honda models of this era. Tiny holes develop in the condenser, allowing refrigerant to leak out and causing the A/C to stop blowing cold. (Ref: TSB 19-091 extended the warranty on the A/C condenser to 10 years with unlimited mileage for affected vehicles.)

Used vs. New Parts: Buying Guide for This Vehicle

When a used part is the smart pick: For purely mechanical or simple electronic parts like the Engine Start/Stop Switch, a used part from a reputable dismantler can be a cost-effective option. Since it does not typically require programming, it is a simple swap.

Donor-vehicle mileage cap: roughly under 80000 miles for the part to have meaningful remaining life.

What to inspect on the donor part:

• Verify the part number matches exactly or is a compatible supersession.
• For electronic parts, ensure the donor vehicle was not involved in a flood or fire.
• Check for any visible corrosion on connector pins.
• Ask for a warranty from the dismantler (many offer 30-90 days).

OEM-only on this vehicle (don't cheap out):

• Multipurpose Camera Unit: This is a critical safety component that requires precise calibration to the specific vehicle. Aftermarket or used units may have compatibility issues or fail calibration. Given the known failure rate, a new OEM part with the latest revisions is the wisest choice.
• ABS/VSA Modulator: This is another safety-critical part. While used modules are available, they must be VIN-programmed by a dealer or specialist. Repairing your original module is often a better choice to avoid programming hassles.

Aftermarket brands forum-validated for this vehicle:

• Batteries: Interstate, DieHard, Duralast (AGM models are recommended)

Brands owners have reported issues with on this vehicle:

• There is no specific consensus on aftermarket brands to avoid for these components, but for critical electronic modules, OEM is consistently recommended over unproven aftermarket alternatives.

Real Owner Stories

Aggregated from forums and TSBs cited above. Mileages and costs reflect what owners reported in those sources.

Related OBD-II Codes

• U3000-49 — Internal electronic failure of the multipurpose camera; often logged alongside U3001 when ADAS systems fail.
• B2A60-49 — A specific fault code logged in the ADAS module indicating a multipurpose camera failure, often addressed by TSB 18-006.
• B12C5 — Related to a faulty Engine Start/Stop switch; covered under a warranty extension (TSB 20-117) for 2016-2017 models.
• P0420 — Mentioned in TSB 20-100 as a code that may appear on 2016 Pilots due to faulty fuel injectors or PCM software.
• P219A — Air-fuel ratio imbalance code associated with the same fuel injector/PCM software issues found in 2016 models per TSB 20-100.

Frequently Asked Questions
