2003-2008 Lamborghini Gallardo Parking Brake: Fixing a Weak Handle and Adjusting the Cables

Symptoms of a Failing Parking Brake

The Gallardo's parking brake system is known for a few distinct issues. Recognizing these symptoms early can prevent a dangerous roll-away situation.

1. Parking Brake Handle Pulls Up Too High

The most common symptom is a weak or loose-feeling handbrake lever. You may find yourself pulling the lever all the way to its limit (more than 5-6 clicks) with very little resistance, yet the car still doesn't feel secure. This almost always points to stretched cables or a system that is severely out of adjustment. In a properly functioning system, the brake should feel tight and fully engage within 4-5 clicks.

2. Vehicle Rolls When Parked

This is a critical safety failure. If you engage the parking brake and the car still rolls forward or backward, immediate attention is required. This indicates that the parking brake pads are not making sufficient contact with the rotors to hold the vehicle. The cause could be excessively stretched cables, worn-out parking brake pads, or an improperly adjusted mechanism at the caliper.

3. Failure to Pass Safety Inspection (MOT)

In regions that require annual safety inspections, a weak parking brake is a common reason for failure. Technicians use a brake dynamometer to measure the holding force, and a worn or misadjusted Gallardo system may not meet the minimum requirements.

4. Parking Brake Light Stays On

A small switch is located at the base of the handbrake lever assembly. Its purpose is to illuminate the 'BRAKE' warning light on the dashboard when the handbrake is engaged. If this light stays on even when the lever is fully down, the switch may be faulty or misaligned. Conversely, if the light never comes on, the switch or its wiring could be damaged.

Buying a Used Parking Brake Kit

Given the high cost of new OEM components like the handle assembly, purchasing a used parking brake kit can be a smart financial decision. However, careful inspection is key to ensure you get a functional and safe part. A 'kit' may refer to the handle, cables, and caliper mechanisms sold together or as individual components.

What to Inspect Before Buying Used

• Handbrake Lever Assembly (400711327B): This is the most expensive component. Physically operate the lever. The ratchet mechanism should produce crisp, audible clicks. Check the button and spring action; it should depress smoothly and return firmly. Inspect the leather grip for excessive wear or damage. Most importantly, check the mounting points and the cable attachment point for any cracks or stress marks.
• Parking Brake Cables (e.g., 40060972A): This is the most common failure point due to stretching. Inspect the entire length of the cable sheathing for cracks, kinks, or melting. Look closely at the ends for any signs of fraying steel cable. While it's impossible to know the exact extent of stretching, avoid any cables that show obvious physical damage.
• Rear Caliper Parking Brake Mechanism: If included, check the small lever arm on the caliper for free movement and ensure the return spring is intact. The piston should not be seized.
• Parking Brake Pads: Check the thickness of the friction material. While these pads wear much slower than main brake pads, they should still have visible life remaining.

Known Issues, Recalls, and TSBs

While there are no specific recalls for the parking brake system itself on the 2003-2008 Gallardo, there is a critical safety recall concerning the main braking system that owners must be aware of.

• NHTSA Recall 13V471000 (September 2013): This recall affects 2007-2009 Gallardo models equipped with carbon ceramic brakes. The stainless steel screws that secure the brake rotors can fail after exposure to salt (e.g., from winter roads). This failure can reduce braking performance and increase the risk of a crash. The fix involves dealers replacing the screws with an updated design. Even if you are working on the parking brake, it is vital to verify if this recall has been performed on your vehicle.

Cost Breakdown

Prices can vary significantly between new OEM, used OEM, and aftermarket parts. Labor costs are also high due to the complexity of the vehicle.

Installation and Adjustment Guide

Replacing and adjusting the parking brake system is a complex job with a high difficulty rating. It requires both interior and brake work.

Installation Difficulty: 4/5

Estimated Time: 3-5 hours

Step-by-Step Overview:

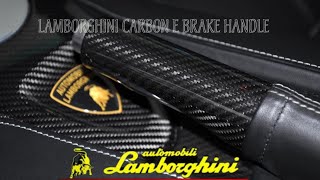

1. Access the Adjuster: The primary adjustment point is on the handbrake assembly itself. You must remove the center console trim 🎬 Watch: How to remove the console and install the handle. to access the two nuts that tension the left and right cables.
2. Lift and Support the Vehicle: Safely lift the rear of the car and remove the rear wheels.
3. Access the Caliper Mechanism: To replace the pads or cables, the main rear brake caliper must be unbolted and moved aside. This provides access to the small, separate parking brake pads and mechanism.

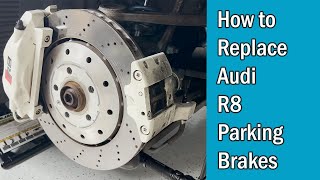

🎬 See this walkthrough for replacing the parking brake pads.
4. Replace Components: Replace the parking brake pads and/or disconnect the old cable from the caliper arm. Route the new cable through the chassis.
5. Initial Caliper Adjustment: Before connecting the new cable, the parking brake mechanism at the caliper must be adjusted. This is often done by repeatedly actuating the lever arm on the caliper until the piston extends and there is minimal gap between the arm and its stop. This step is crucial and often missed, leading to a weak brake.
6. Final Cable Adjustment: With everything reassembled, use the adjustment nuts at the handbrake lever to set the final tension. The goal is to have the wheels lock firmly with about 4-5 clicks of the handle. Ensure there is no drag on the rotors when the handbrake is fully released.
