A Guide to Spark Plugs for the 1946-1961 Ford Prefect
Keep your classic Ford's side-valve engine running smoothly with the correct new spark plugs.
- The most critical factors are choosing a spark plug with the correct 14mm thread size, 1/2-inch reach, and proper heat range.
- Standard copper core plugs from brands like Champion or Autolite are inexpensive and ideal for the Prefect's original ignition system.
- Always check and set the spark plug gap to approximately 0.025 inches (0.6mm) before installation.
- To prevent plugs from getting stuck, change them periodically and consider using a small amount of anti-seize on the threads.
Signs of Failing Spark Plugs in Your Prefect
The spark plugs in your 1946-1961 Ford Prefect are simple but vital components. Because they are a regular wear item, they need to be replaced periodically. If your plugs are old or fouled, you'll likely notice some clear symptoms.
- Hard Starting: Weak or inconsistent spark makes it difficult for the engine to fire up, especially when cold.
- Rough Idle: A car that shakes or sounds uneven when stopped is often suffering from a misfire caused by a bad spark plug.
- Engine Misfires: You might feel a hesitation or stumble from the engine, particularly when you try to accelerate. This is a classic sign of a plug not firing correctly.
- Poor Fuel Economy: When a plug fails to ignite the fuel mixture completely, that unburnt fuel is wasted, and you'll find yourself visiting the gas station more often.
- Black, Sooty Plugs: When you remove the plugs, inspect their tips. A black, sooty deposit indicates the engine may be running too rich (too much fuel) or the plug is not getting hot enough to burn off carbon. Oily blackness can point to worn engine components.
Choosing the Right Aftermarket Spark Plug
For a classic vehicle like the Ford Prefect, the distinction between "OEM" and "aftermarket" is different than for a modern car. The original equipment supplier was often Champion, and these are still widely available. Aftermarket brands like Autolite also produce perfectly suitable replacements. The most important factor is not the brand, but choosing a plug with the correct specifications for your engine.
Key Spark Plug Specifications
| Specification | Why It Matters for Your Prefect |
|---|---|
| Thread Size & Reach | The Prefect's side-valve engine typically uses a 14mm thread with a 12.7mm (1/2 inch) reach. Using the wrong size can damage the cylinder head. |
| Heat Range | This refers to how hot the plug gets during operation. A plug that is too "hot" can cause engine damage, while a plug that is too "cold" can foul with carbon deposits. The original Champion L10S or a cross-referenced equivalent from Autolite will have the correct heat range. |
| Spark Gap | This is the small space between the center and ground electrodes. For a Prefect, a gap of around 0.025 inches (0.6mm) is a common starting point. Always check the gap with a feeler gauge before installation, even if the box says they are "pre-gapped". |
Pro Tip: While modern iridium or platinum plugs are available, a standard copper core plug, like the originals, is all your Prefect needs. They are inexpensive and conduct electricity very well, which is perfect for the lower-voltage ignition systems of this era.
Aftermarket Spark Plug Cost for Ford Prefect (1946-1961)
| Part Type | Price Range (Per Plug) | Notes |
|---|---|---|
| New Aftermarket (Autolite, Champion) | $3.68 - $12.36 | This is the most common and recommended option. Standard copper plugs are at the lower end of this range. |
Frequently Asked Questions (FAQ)
What is the correct spark plug for my Ford Prefect?
The most commonly cited original spark plug is the Champion L10 or L10S. Many brands, including Autolite, offer direct cross-references. For example, an Autolite 425 is a potential replacement for a Champion L10. Always verify the 14mm thread and 1/2 inch reach for your specific engine.
What should the spark plug gap be?
A common gap setting for these engines is 0.025 inches or 0.6mm. Some sources for similar Ford engines of the era suggest a range up to 0.035 inches. A smaller gap is often safer. It's best to start with the smaller gap and adjust if needed. Always use a proper gapping tool.
How often should I change the spark plugs?
With standard copper plugs, a good interval is every 10,000 to 15,000 miles or every few years. Given the low cost and ease of replacement, changing them as part of your annual tune-up is a great way to ensure reliability.
Are there any recalls or common issues?
No recalls or Technical Service Bulletins (TSBs) exist for spark plugs on a vehicle of this age. The most common issue reported by owners is plugs seizing in the cylinder head if they are overtightened or left in for too long. Applying a small amount of anti-seize compound to the threads of the new plugs can help prevent this.
Technical Specifications

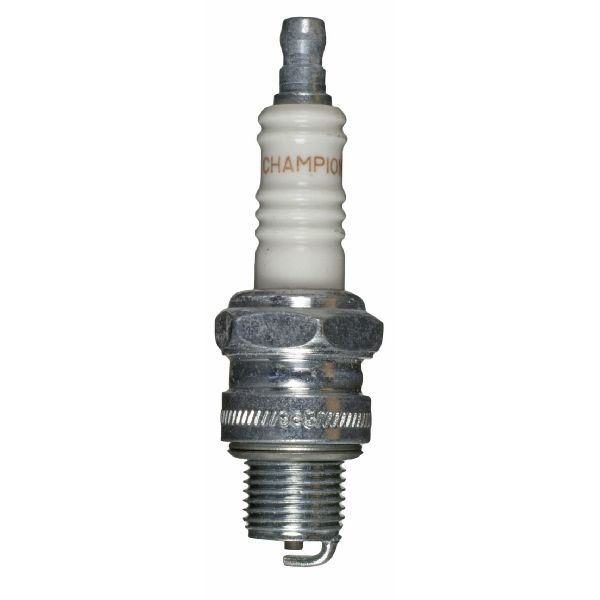

OEM Part Numbers: Champion L10 Champion L10S
Thread Size: 14mm, Thread Reach: 12.7mm (1/2"), Gap: 0.025 in (0.6mm)
