Ford Thunderbird Universal Joint Replacement Guide (1955-1961)
Address drivetrain clunks and vibrations by choosing the right U-joints for your classic T-Bird.
- A clunking noise when shifting into gear is the most common sign of a bad U-joint.
- For maximum durability, choose a premium sealed (non-greasable) U-joint from a brand like Dana Spicer.
- It is strongly recommended to replace both U-joints at the same time to prevent future issues and ensure a balanced driveline.
- Do not ignore symptoms, as a complete failure can cause the driveshaft to detach from the vehicle.
Is Your Thunderbird's Drivetrain Making Noise?
A worn-out universal joint is a common problem on classic cars like the 1955-1961 Thunderbird. Years of use cause the small needle bearings inside the U-joint's caps to wear down. When this happens, you'll start to notice distinct sounds and vibrations. Ignoring these signs can lead to more severe damage or a complete failure that leaves you stranded.
Symptoms of a Failing U-Joint
🎬 Watch: See and hear these common U-joint failure symptoms- Clunking Noise: The most common sign is a sharp 'clunk' or 'ping' when you shift from park into drive or reverse. This is caused by excessive play in the worn joint.
- Vibrations: You may feel a vibration through the floor or seats that gets worse as you increase speed. This is often confused with an unbalanced tire, but a U-joint vibration is felt throughout the car.
- Squeaking or Chirping: A rhythmic squeak that matches your wheel speed, 🎬 Learn how to properly check your U-joints for play especially at low speeds, points to a dry, failing U-joint bearing.
Choosing the Right Aftermarket U-Joint
Since original Ford parts for this era are no longer made, you will be choosing from aftermarket brands. Quality varies, so it's important to pick a part that matches your needs. For a classic Thunderbird, reliability and smooth operation are key.
Brand Quality Tiers
Based on owner feedback and mechanic consensus, aftermarket U-joints for your Thunderbird can be grouped into the following tiers:
- Premium (Best for Longevity): Brands like Dana Spicer Chassis are widely considered the gold standard, often exceeding original equipment quality. They are known for durability and are a top choice for owners who want the best possible replacement. Their non-greasable joints are particularly strong. Yukon Gear also offers high-strength joints, though they are typically designed for heavy-duty or off-road use and may be overkill for a stock T-Bird.
- Quality Standard (Reliable Replacements): Moog and SKF are well-respected brands that offer a good balance of quality and price. They are a solid choice for most owners. Some forum users note that Moog's quality can be inconsistent, but it remains a popular option.
- Economy (Budget-Friendly): Brands like GMB and ACDelco often provide a reliable, budget-friendly option that meets original equipment specifications. They are a good choice for a car that is driven less frequently.

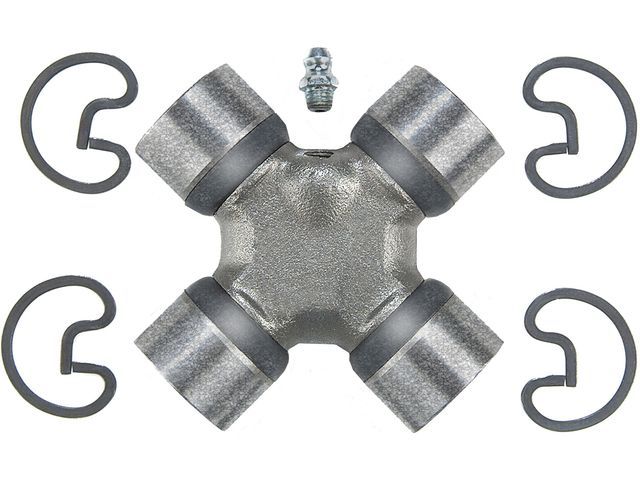

Greasable vs. Non-Greasable (Sealed) U-Joints
You will see options for both greasable and sealed U-joints. Greasable joints have a zerk fitting that allows you to add fresh grease periodically. Sealed joints are lubricated for life. While greasable joints can last a long time with proper maintenance, many experts argue that sealed joints from premium brands like Spicer are stronger because the cross is solid, without the channels drilled for grease. For a classic car that may not be driven daily, a high-quality sealed joint is often a fit-and-forget solution.
Estimated Costs for Universal Joint Replacement
| Part/Service | Estimated Cost |
|---|---|
| Premium Aftermarket U-Joint (e.g., Spicer, Yukon) | $50 - $110 per joint |
| Standard Aftermarket U-Joint (e.g., Moog, SKF) | $30 - $60 per joint |
| Economy Aftermarket U-Joint (e.g., GMB) | $18 - $35 per joint |
| Shop Labor for Replacement (2 joints) | $150 - $300 |
Cost estimates are approximate and can vary by location and supplier.
Frequently Asked Questions
How many U-joints does my 1955-1961 Thunderbird have?
Your Thunderbird has a single driveshaft with two universal joints: one at the front connecting to the transmission and one at the rear connecting to the differential.
Can I replace the U-joints myself?
Yes, this is a DIY-feasible job for someone with mechanical experience. However, it requires safely raising the vehicle, removing the driveshaft, and using a large bench vise, a ball joint press, or a hammer and sockets to press the old joints out 🎬 See how to replace a U-joint using a bench vise and the new ones in. If the needle bearings fall out of the cap during installation, the joint can fail prematurely.
Should I have my driveshaft balanced after replacing the U-joints?
While not always required, having the driveshaft balanced is a good practice, especially if you were experiencing significant vibration before the replacement. A specialty driveline or machine shop can perform this service to ensure the smoothest possible operation.
What is a 1310 series U-joint?
"1310" is a standard size for U-joints. It refers to specific dimensions, including a bearing cap diameter of 1.0625 inches and a width of 3.219 inches. This is a very common size for classic cars and light trucks from this era.
Helpful Videos
Technical Specifications
The most common U-joint for this vehicle is the 1310 series. It has a bearing cap diameter of 1.0625 inches and an overall width of 3.219 inches with external clips. Always measure your original parts before ordering to confirm fitment.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
