Universal Joint Guide for the 1957-1964 Buick Roadmaster
Your Roadmaster's driveshaft design changed significantly during this era; here's what you need to know to get the right U-joint.
- First, confirm if your Roadmaster has a torque tube (1957-58) or an open driveshaft (1959-64) to ensure you get the right parts.
- A clunking noise when shifting into gear or a vibration that increases with speed are critical signs of a failing U-joint.
- Choose a high-quality, greasable aftermarket U-joint from a reputable brand like Dana Spicer for long-term reliability.
- Do not drive with a suspected bad U-joint; a complete failure can cause the driveshaft to detach, leading to a dangerous situation and costly damage.
Important: Check Your Roadmaster's Drivetrain Type
The 1957-1964 period saw major changes in the Buick Roadmaster's design. Before ordering a universal joint, you must identify your car's specific driveshaft setup, as a standard U-joint may not be what you need.
- 1957-1958 Models: These cars use a Torque Tube design. This is an enclosed driveshaft and it does not have traditional U-joints at the rear axle. It uses a single U-joint at the front where the driveshaft connects to the transmission. Service for this system is very different from later models.
- 1959-1960 Models: These years may feature a more complex multi-piece open driveshaft with more than two U-joints and a center support bearing.
- 1961-1964 Models: These models use a more modern and familiar open driveshaft with a U-joint at each end (front and rear).
This guide primarily focuses on the replaceable U-joints found on 1959-1964 models and the single front U-joint on 1957-1958 models.
Symptoms of a Failing Universal Joint
A bad U-joint gives several warning signs. Ignoring them can lead to the driveshaft detaching from the car, causing a total loss of power and severe damage.
- Clunking Noise: A distinct “clunk” or “ping” sound when you shift from Park into Drive or Reverse is a classic sign of a worn U-joint. This is caused by excessive play in the joint.
- Vibration at Speed: A vibration that you can feel through the floor or seats that gets worse as you increase speed is a common symptom. This is often confused with an unbalanced tire, but U-joint vibration is felt during acceleration and deceleration.
- Squeaking or Chirping: A rhythmic squeak that matches the rotation of the driveshaft (not the wheels) often points to a dry, failing U-joint bearing.
Choosing the Right Aftermarket U-Joint
For a classic vehicle like the Roadmaster, new original equipment (OEM) parts are not available. The market consists of aftermarket parts, where quality can vary. For a part this critical, it's best to choose a trusted brand.
Pro Tip: Choose a greasable U-joint. While sealed joints are often called "service-free," the ability to add fresh grease periodically can significantly extend the life of the part on a classic car, especially one that may sit for periods. Dana Spicer is a highly-regarded brand known for durability and is often considered an OEM-equivalent for classic American cars.

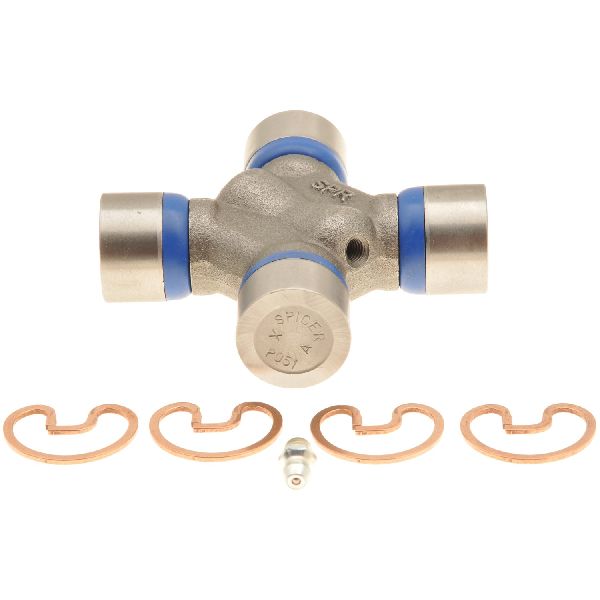

Brand Quality: Dana Spicer Chassis
Dana Spicer is a well-known and respected manufacturer of drivetrain components. Their U-joints are often considered a top-tier choice for classic cars due to their robust construction and long-term reliability. Tests have shown Spicer U-joints to last significantly longer than many competitors, making them a solid investment for the heavy, high-torque application of a Buick Roadmaster.
Estimated Replacement Costs
The cost to replace a U-joint can vary, but here is a general breakdown. Keep in mind that cars with multi-piece driveshafts may have more joints, increasing the total cost.
| Item | Estimated Cost |
|---|---|
| New Aftermarket U-Joint (Part) | $39 - $54 |
| Shop Labor | $110 - $170 |
| Total Estimated Cost | $149 - $224 |
Note: Prices are estimates and can vary based on your location and the specific repair shop. This estimate is for a single U-joint replacement.
Frequently Asked Questions
How many U-joints does my 1957-1964 Roadmaster have?
It depends on the year. 1957-1958 models with a torque tube have one U-joint at the transmission. 1961-1964 models with an open driveshaft typically have two, one at the front and one at the rear. 1959-1960 models may have a more complex setup with multiple joints and a center bearing. Always inspect your specific vehicle.
What's the difference between a greasable and a sealed U-joint?
Greasable U-joints have a small fitting (a zerk fitting) that allows you to inject new grease with a grease gun. This pushes out old grease and contaminants. Sealed U-joints are greased at the factory and cannot be re-greased. For classic cars, greasable joints are often preferred for longevity.
Is Dana Spicer a good brand for my classic Buick?
Yes. Dana Spicer has a strong reputation for producing high-quality, durable drivetrain parts that meet or exceed OEM standards. They are a trusted choice in the classic car community.
Can I replace just one bad U-joint?
Yes, you can replace only the failing joint. However, if your driveshaft has multiple U-joints and they are all the same age, it's often cost-effective to replace them all at the same time to prevent future issues. A professional shop may also recommend balancing the driveshaft after replacement.
Technical Specifications
Driveshaft design varies significantly by year. 1957-1958 models feature a torque tube design with a single front U-joint. 1959-1964 models use an open driveshaft with at least two U-joints. Part compatibility must be verified for your specific year and model.
