Ford Ranchero Universal Joint Guide: 1957-1965
Diagnose and choose the right replacement U-joint to fix vibrations and clunking noises in your classic Ranchero.
- Vibrations and clunking noises when shifting are the most common signs of a failing U-joint on a Ranchero.
- Before ordering, you must measure your old U-joint's cap-to-cap width and cap diameter to ensure you get the correct size.
- Dana/Spicer is the most recommended brand for quality and durability, with their non-greasable joints being the strongest option.
- Ignoring a bad U-joint can lead to a driveshaft failure, which is a serious safety risk and can cause expensive damage.
Is Your Ranchero's U-Joint Failing?
A worn-out universal joint is a common problem on classic vehicles like the 1957-1965 Ford Ranchero. Because these parts are under constant stress, they wear out over time. Ignoring the symptoms can lead to more damage or even the driveshaft separating from the vehicle, which is a critical safety failure. Listen and feel for these common warning signs.
Key Symptoms of a Bad U-Joint
- Vibrations: A rhythmic vibration felt through the floor or seats that gets worse with speed is a classic sign of a bad U-joint. Owners often first notice this at highway speeds between 55 and 70 mph.
- Clunking Noise: A loud 'clunk' or 'bang' when you shift into Drive or Reverse is a tell-tale sign. This sound is caused by excessive play in the worn-out joint.
- Squeaking or Chirping: A steady, bird-like squeak at low speeds that matches the rotation of your wheels points to a U-joint that has lost its grease. The sound may fade as you drive faster.
- Visible Rust or Leaks: If you look under your truck, you might see rust-colored dust around the U-joint's bearing caps. This indicates the internal needle bearings are failing.
Pro Tip: Check for Play
With the truck safely parked and the parking brake on, get underneath and try to twist the driveshaft by hand. If you can feel movement or hear a noise at the U-joint, it needs to be replaced.

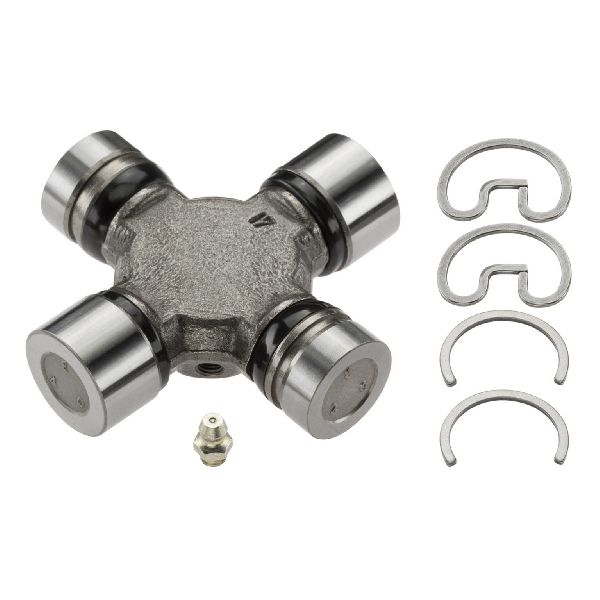

Choosing the Right Aftermarket U-Joint
For a vehicle from this era, new OEM Ford parts are not available. However, the aftermarket offers a wide range of quality replacements. The most important step before ordering is to measure your old U-joints, as sizes can vary between model years and even production runs. You will need to measure the width from cap to cap and the diameter of the caps themselves.
Brand Quality Tiers
Based on owner experiences and mechanic consensus, aftermarket brands for your Ranchero fall into a few tiers:
- Premium (High Strength / OEM Quality): Dana/Spicer and Yukon Gear are top choices. Spicer is widely considered the gold standard and was an original equipment supplier for many vehicles. Their non-greasable joints are often preferred for maximum strength as the internal cross is solid steel. Yukon Gear is known for high-performance parts that are very durable.
- Standard (Good Quality): SKF and GMB are reliable choices for a daily driver. They offer a good balance of price and quality for standard replacement needs. While most feedback is positive, some users have had negative experiences with SKF, so quality may be inconsistent.
- Economy / Mixed Reviews: Moog has a mixed reputation among classic car owners. While once a top aftermarket brand, many recent forum discussions report a decline in quality, with some parts failing prematurely. It may be a budget-friendly option, but other brands offer more consistent quality.
Greaseable vs. Non-Greasable (Sealed) U-Joints
Greasable U-joints have a zerk fitting that allows you to add fresh grease, which can extend their life if done regularly. However, the channels drilled for the grease can make the U-joint slightly weaker. Non-greasable (sealed) joints are stronger and maintenance-free, making them a popular 'fit-it-and-forget-it' option. For most Ranchero owners, a quality sealed joint from a brand like Spicer is the strongest and simplest choice.
Cost of Replacing a Ford Ranchero U-Joint
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket U-Joint | $18.53 - $107.89 |
| Shop Labor | $120 - $250 |
| Total Professional Replacement | $140 - $360 |
Cost estimates are for a single U-joint and can vary by location and the specific parts chosen. Your Ranchero has at least two U-joints.
Frequently Asked Questions
Do I need to replace both U-joints at the same time?
It is highly recommended. If one U-joint has failed due to age and mileage, the other is likely not far behind. Replacing them all at once saves you from doing the same job twice.
Are there any recalls for the 1957-1965 Ranchero U-joint?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no open recalls for universal joints on the 1957-1965 Ford Ranchero.
How do I know which U-joint size to buy?
Because of variations over the years, you must measure your existing U-joints before ordering. You need two measurements: the width from the outside of one bearing cap to the outside of the opposite cap, and the diameter of the bearing caps. Also, note how the caps are held in place (e.g., external clips, internal c-clips, or U-bolts).
What is the difference between a 1957-1959 and a 1960-1965 Ranchero U-joint?
The first generation (1957-59) was based on the full-size Fairlane, while the second generation (1960-65) was based on the smaller Falcon platform. This means driveline components, including U-joints, can be different. Always verify by measuring your specific parts.
Technical Specifications
Part sizes vary. Measurement of the original part is required. Key dimensions are cap-to-cap width and cap diameter. Retention methods can include external clips, internal clips, or U-bolts.
