Ford Custom Ignition Lock Cylinder Replacement Guide (1959-1963)
If your key is sticking, binding, or won't turn, it's likely time for a new ignition lock cylinder.
- Failure is almost always due to simple mechanical wear from age; symptoms include a sticking or binding key.
- Replacement is an extremely easy DIY job that takes less than 15 minutes and only requires a paperclip.
- New aftermarket parts are the only practical option, with brands like Standard Motor Products (SMP) and Dorman being common choices.
- A new cylinder comes with new keys, meaning you will need a separate key for your ignition and doors unless you buy a matched set.
Is Your Ignition Lock Cylinder Failing?
After more than 60 years of use, the original ignition lock cylinder in your Ford Custom is prone to wear. The small metal tumblers and springs inside the cylinder wear down from repeated use. This wear prevents the key from properly aligning the tumblers, leading to several common and frustrating symptoms.
Symptoms of a Bad Ignition Lock Cylinder
- Key is Hard to Turn: You feel significant resistance when trying to turn the key to the 'ON' or 'START' position. This is often the first sign of wear.
- Key Gets Stuck: The key may get stuck in one position, such as 'ACC' or 'ON', and you may have trouble removing it.
- Jiggling Required: You have to wiggle or jiggle the key to get it to turn and start the car. This indicates significant wear in the tumblers and the key itself.
- Key Won't Turn at All: The cylinder is completely seized, and the key will not rotate, leaving you unable to start the car. This is a critical failure.
Pro Tip: Don't Confuse the Cylinder with the Switch
The lock cylinder is the mechanical part your key fits into. The ignition switch is the electrical part behind it that the cylinder turns. If your car starts but accessories like the radio or heater fan don't work, the problem is more likely the ignition switch, not the lock cylinder. For the 1959-1963 Custom, these are two separate parts.
Choosing the Right Aftermarket Ignition Lock Cylinder
Original Ford (OEM) ignition lock cylinders for this vehicle are no longer manufactured. Your only options are New Old Stock (NOS) parts, which can be rare and expensive, or new aftermarket reproductions. For a simple mechanical part like this, a quality aftermarket cylinder is a reliable and cost-effective solution.
- Standard Replacement Grade (Good): Brands like Dorman or the house brands from classic car suppliers (e.g., CJ Classic Trucks) offer direct-fit replacement cylinders. These are affordable and will get the job done. They are a great choice for a daily driver or a budget-conscious repair.
- Professional Grade (Better): Brands like Standard Motor Products (SMP) are often considered a higher-quality option by professional mechanics. They may use materials like solid brass tumblers that more closely match the original construction, potentially offering a smoother feel and longer service life.
A Note on Keys
A new aftermarket ignition lock cylinder will come with a new set of keys. Your original door keys will not work in the new ignition. This means you will have to carry two separate keys. To avoid this, you can purchase a complete lock set that includes the ignition cylinder and matching door lock cylinders, all keyed alike.

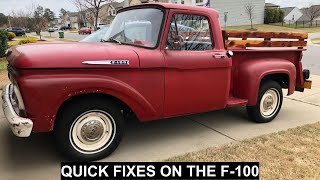

🎬 See how to replace both ignition and door lock cylinders.Cost to Replace a 1959-1963 Ford Custom Ignition Lock Cylinder
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Cylinder | $15 - $40 |
| New Aftermarket Lock Set (Ignition & Doors) | $40 - $75 |
| Shop Labor | $75 - $150 |
Cost estimates are for parts and labor only and do not include taxes or shop supplies. Labor is based on a 0.5-1.0 hour job at typical shop rates, as most shops have a one-hour minimum charge.
DIY Replacement Guide
Replacing the ignition lock cylinder on a 1959-1963 Ford Custom is a very easy DIY job that can be done in less than 15 minutes with a simple tool.
- Disconnect the Battery: Always disconnect the negative battery terminal as a safety precaution.
- Insert the Key: Put the key into the ignition. You must have a key that can turn the cylinder to perform this job.
- Turn to 'ACC' Position: Turn the key counter-clockwise to the 'ACC' (Accessory) position.
- Depress the Retaining Pin: Look for a small pinhole on the face of the chrome ignition bezel. Insert a bent paperclip or a small pick into this hole to press down on the spring-loaded retaining pin.
- Remove the Cylinder: While keeping the pin depressed, you should be able to pull the key, and the entire lock cylinder will slide straight out of the ignition switch housing. 🎬 Watch this quick demonstration of the paperclip removal method.
- Install the New Cylinder: Take your new lock cylinder with its new key. You may need to turn the key slightly to ensure the retaining pin is depressed. Slide the new cylinder into the housing until it clicks securely into place.
- Test and Reconnect: Turn the key through all positions (ACC, OFF, ON, START) to ensure it operates correctly. Reconnect the battery and test again.
Frequently Asked Questions (FAQ)
Can I use my old key with the new lock cylinder?
No. A new ignition lock cylinder is a self-contained unit that comes with a new, unique set of keys. Your old keys will not work.
What if my key is lost or won't turn at all?
If you cannot turn the key to the 'ACC' position, you cannot depress the retaining pin to remove the cylinder. In this case, the cylinder must be drilled out. This is a job best left to a professional locksmith to avoid damaging the surrounding ignition switch or dashboard.
🎬 Watch a professional locksmith drill out a seized lock cylinder.Is there a recall on the ignition lock cylinder for my Ford Custom?
No, there are no recalls or Technical Service Bulletins (TSBs) from the NHTSA for the ignition lock cylinder on the 1959-1963 Ford Custom. This is normal for a vehicle of this age.
Do I need to program the new key?
No. The 1959-1963 Ford Custom has a purely mechanical ignition system. There are no electronic chips in the key (like a PATS system) that require programming.
Helpful Videos
Technical Specifications
OEM Part Numbers: B9A-11582-A C3AZ-11582-A C5OZ-11582A
Purely mechanical, die-cast metal construction with internal tumblers. Does not require electronic programming. Removal requires depressing a retaining pin through a hole on the cylinder face.
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
