Buick Electra Universal Joint Replacement Guide (1959-1970)
Stop driveline clunks and vibrations in your classic Electra by choosing the right U-joint.
- Symptoms like clunking, vibrations, and squeaking should be addressed immediately to prevent a catastrophic failure.
- For best results, choose a premium aftermarket brand like Dana Spicer, which is known for its strength and durability.
- Confirm if your Electra has a one-piece or two-piece driveshaft before ordering parts, as this affects the number of U-joints needed.
- Driving with a failing U-joint is not recommended due to the risk of the driveshaft separating from the vehicle.
Is Your Electra's U-Joint Failing?
A failing universal joint gives clear warning signs. Because the Buick Electra is a heavy car with a powerful engine, its U-joints are under significant stress. Ignoring these symptoms can lead to a complete failure where the driveshaft disconnects, causing major damage and leaving you stranded.
Common Symptoms:
🎬 Watch: A quick guide to identifying bad U-joint symptoms.- Clunking Noise: A distinct “clunk” or “ping” when you shift from Park into Drive or Reverse is a classic sign of a worn U-joint with too much play.
- Vibrations: You may feel a new vibration through the floor of the car, especially at certain speeds like 25-35 mph or above 60 mph. This is caused by the driveshaft becoming unbalanced as the U-joint wears out.
- Squeaking Sounds: A rhythmic squeaking or chirping noise that changes with your speed, often heard at slower speeds, points to a dry, failing U-joint that has lost its internal lubrication.
- Visible Rust or Looseness: If you look under the car, you might see rust-colored dust around the U-joint bearing caps. You can also check for looseness by putting the transmission in neutral (with the car safely secured) and trying to twist the driveshaft by hand. 🎬 See how to check for U-joint play like a pro. Any play or movement in the joint itself means it's time for a replacement.
Warning: Do Not Ignore a Failing U-Joint
A complete U-joint failure is not a minor issue. It can cause the driveshaft to fall while you are driving, potentially digging into the pavement and causing a loss of control or severe damage to your transmission, exhaust, and the underbody of your car. The repair cost skyrockets from a simple part replacement to a major driveline overhaul.
Choosing the Right Aftermarket U-Joint
For a vehicle from the 1959-1970 model years, new original equipment (OEM) U-joints from GM are no longer available. The market consists entirely of aftermarket brands. Quality varies significantly, so choosing a reputable brand is essential for the durability and safety of your Electra.
Aftermarket Brand Tiers
Based on enthusiast feedback and mechanic experience, aftermarket U-joints for classic American cars fall into a few quality tiers:
- Premium (Best Quality): Dana Spicer
Dana Spicer is widely considered the gold standard for universal joints and was the original supplier for many classic cars. They are known for strength and durability. For a heavy car like the Electra, a Spicer U-joint is the top recommendation. Many enthusiasts prefer their non-greaseable (solid-body) joints, as they are considered stronger than the greaseable versions which are hollowed out for a zerk fitting. - Quality Aftermarket (Good Quality): SKF, ACDelco
SKF is a well-respected bearing manufacturer that produces quality U-joints. ACDelco is GM's official parts brand, and while their professional-grade parts are generally reliable, some may be re-branded parts from other manufacturers. Both are solid choices if a Spicer part is not available. - Standard/Economy (Acceptable Quality): Moog, GMB
Moog was once a top-tier brand, but many classic car owners feel the quality has become inconsistent in recent years. They can still be a viable option, particularly their 'Super Strength' line, but careful inspection is recommended. GMB is generally considered a standard or economy-grade brand suitable for a stock vehicle under normal driving conditions.
Pro Tip: Greaseable vs. Non-Greaseable
Non-greaseable (sealed) U-joints are forged from solid steel and are stronger, which is a benefit for the high torque of a Buick V8. Greaseable joints have a zerk fitting that allows you to add new grease, which can push out moisture and contaminants. However, the internal passages for the grease make the joint slightly weaker. For most classic car owners who are not frequently driving in harsh conditions, a high-quality sealed joint like a Spicer is often the best 'fit-and-forget' option.
Cost of Replacement
The cost to replace a U-joint on a 1959-1970 Electra is reasonable, as the part itself is not expensive. Labor is the main variable.
| Item | Estimated Cost |
|---|---|
| New Aftermarket U-Joint | $20 - $85 per joint |
| Shop Labor | $120 - $250 |
| Total Estimated Cost | $140 - $335 |
Note: Some Electra models may have a two-piece driveshaft with a center support bearing. If this bearing also needs replacement, the total cost will be higher.
Frequently Asked Questions (FAQ)
How many U-joints does my Buick Electra have?
Most 1959-1970 Buick Electras have a one-piece driveshaft with two universal joints—one at the transmission end and one at the differential end. However, some models, particularly longer wheelbase versions, may have a two-piece driveshaft with three U-joints and a center support bearing. It is crucial to inspect your specific vehicle to confirm the configuration before ordering parts.
Can I replace a U-joint myself? 🎬 Watch: How to handle GM's factory nylon-injected U-joint replacement.
If you have experience with auto repair and the right tools, yes. The job requires safely lifting the vehicle, removing the driveshaft, and using a bench vise or a hydraulic press to remove the old joint and install the new one. It can be difficult if the original joints are rusted and seized. If you are not comfortable with this process, it is a straightforward job for a qualified mechanic.
Do I need to get my driveshaft balanced after replacing the U-joints?
If you are only replacing the U-joints and the driveshaft is otherwise in good condition (not bent or dented), balancing is usually not necessary. However, it is critical to mark the driveshaft's orientation to the yokes on the transmission and differential before removal and reinstall it in the exact same position to prevent new vibrations.
What is a GM 3R Series U-Joint?
The GM 3R series is a specific size of universal joint used on many General Motors vehicles, including Buicks from this era. It is defined by its dimensions, such as the bearing cap diameter (1.125 inches) and the overall width. When ordering, ensure the part is listed as compatible with the GM 3R series to ensure a proper fit for your Electra.
Helpful Videos
Technical Specifications
OEM Part Numbers: 7807531
Most 1961-1970 Buick Electras use a GM 3R Series universal joint. Key dimensions include a bearing cap diameter of 1.125 inches and a width of approximately 2.562 inches between the inside clips. Always verify the specific part number for your vehicle's year and model.

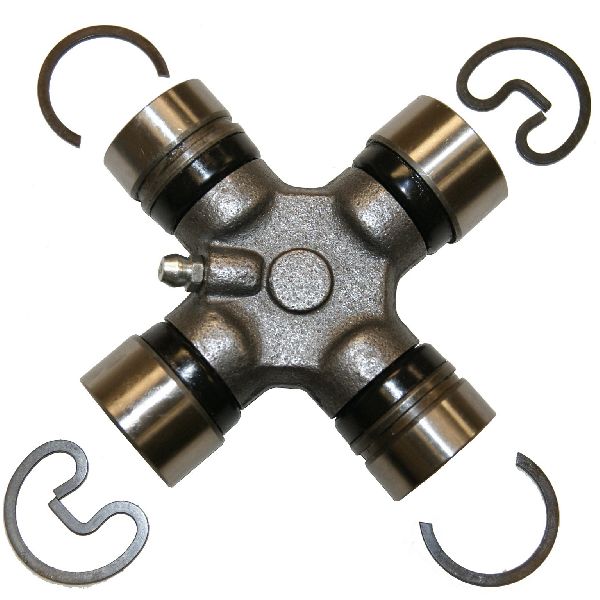

We Have This Part in Stock
