Choosing Spark Plug Wires for Your 1960-1966 Chevrolet C30 Panel
Keep your classic C30's engine running strong by selecting the right spark plug wire set.
- Verify your C30's engine (I6 or V8) before ordering, as wire sets are engine-specific.
- For a stock truck, ACDelco and NGK offer OEM-quality performance and fit.
- Replacement is an easy DIY job; swap wires one at a time to maintain the correct firing order.
- If you have an electronic ignition upgrade, you must use suppression-style wires, not solid core.
Signs of Failing Spark Plug Wires
The spark plug wires in your C30 Panel live in a harsh environment. Constant heat from the engine and exhaust, vibration, and exposure to oil can cause them to wear out. When they start to fail, you'll notice changes in how your truck runs. Common symptoms include:
- Rough Idle: The engine may shake or run unevenly at a stop because one or more cylinders aren't firing correctly.
- Engine Misfires: You might feel a stumble or hesitation from the engine, especially when you accelerate. This happens when a wire can't deliver enough spark.
- Reduced Power and Fuel Economy: When your engine doesn't fire efficiently, it has to work harder, which uses more fuel and reduces power.
- Hard Starting: Weak or inconsistent spark can make the engine difficult to start, especially when cold.
- Visible Damage: A visual inspection may reveal cracks, burns, or melting on the wire's outer insulation. You might even see a spark jump from the wire to a metal part of the engine in the dark, which is called arcing.
Choosing the Right Aftermarket Spark Plug Wires
For a classic truck like the 1960-1966 C30 Panel, you have several excellent aftermarket options that meet or exceed original specifications. The term "OEM" refers to parts made by GM decades ago, which are no longer available. Today's replacement is an "OEM-style" part. It's crucial to select a wire set that matches your specific engine, as Chevrolet offered several inline-six and V8 options during these years.
Brand Quality Tiers
| Tier | Brands | Description |
|---|---|---|
| Premium / OEM-Style | ACDelco, NGK | ACDelco is General Motors' own parts brand and is the modern equivalent of the original factory part. NGK is a highly respected manufacturer that produces high-quality ignition components; in some cases, they even manufacture parts for ACDelco. Both are excellent choices for a stock or lightly modified truck. |
| Quality Aftermarket | Standard Motor Products (Standard Wires) | Standard is a well-regarded brand that offers reliable, quality replacement parts. Their wire sets are a dependable choice and often come with a warranty. |
| Standard Aftermarket | Walker Products | Walker is a known aftermarket supplier that provides functional, budget-friendly options for repairs and maintenance. |
Pro Tip: If you have upgraded your ignition system from the original points and condenser to an electronic system (like a Pertronix), you must use modern suppression-style wires (carbon or spiral core). Do not use old-fashioned solid metal core wires, as they can create electrical interference and damage the electronic ignition module.
Cost of Replacing Spark Plug Wires on a 1960-1966 C30 Panel
Replacing the spark plug wires is one of the more affordable maintenance jobs for your classic truck. The parts are not expensive, and the job is straightforward for a DIY mechanic or a professional shop.
| Cost Category | Estimated Price Range |
|---|---|
| New Aftermarket Wire Set | $24.15 - $62.18 |
| Estimated Shop Labor | $75 - $150 |
| Total Professional Replacement | $100 - $215 |
Frequently Asked Questions (FAQ)
Do I need special tools to replace my spark plug wires?
No special tools are required. A good set of spark plug wire pullers can be helpful to avoid damaging the boots, but often you can remove them by twisting and pulling firmly on the boot itself. It's important to replace the wires one at a time to ensure the firing order remains correct.
What's the difference between 7mm and 8mm wires?
The measurement refers to the diameter of the wire's outer insulation. Stock replacement wires are typically 7mm. Performance wires are often 8mm or larger, offering thicker insulation for better heat protection and electrical isolation, which can be beneficial for modified engines or those with aftermarket exhaust headers.
Can I replace just one broken wire?
While you can, it is not recommended. Spark plug wires are exposed to the same conditions and tend to age at the same rate. If one has failed, others are likely to fail soon. It is best practice to replace them as a complete set to ensure reliable performance.
How do I make sure I order the right set for my engine?
The 1960-1966 C30 Panel was available with several engines, including inline-sixes (like the 230, 250, and 292) and V8s (like the 283 and 327). Spark plug wire sets are specific to the engine type (I6 or V8) and sometimes the distributor style. Always verify your truck's engine before ordering to ensure a perfect fit.
Technical Specifications

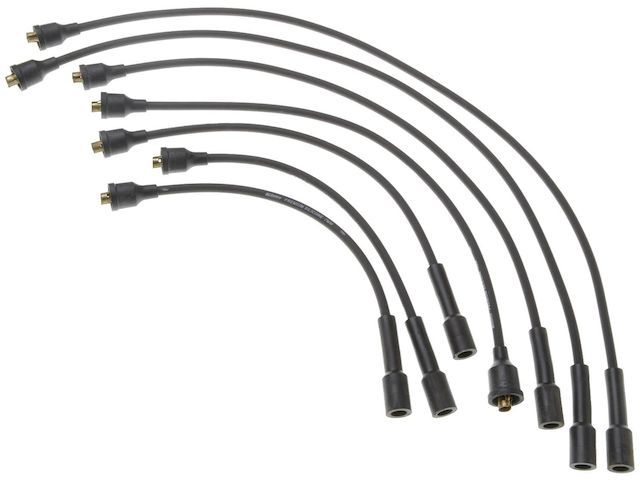

Vehicle-specific fit for 1960-1966 Chevrolet C30 Panel with either an inline-6 or V8 engine. Wires typically feature a 7mm diameter for stock replacement, with suppression cores (carbon or spiral wound) to prevent radio frequency interference. Sets include a coil wire and individual wires for each spark plug.
