Ford F-100 Headlight Switch Replacement Guide (1961-1973)
Having trouble with flickering headlights or dead dash lights in your classic Ford F-100? Your headlight switch is the likely cause.
- Flickering headlights are the number one sign of a failing switch in these trucks, caused by an aging internal circuit breaker.
- Replacement is a simple, beginner-friendly DIY job that takes under an hour.
- Standard Motor Products is a trusted aftermarket brand for this part; New OEM parts are generally not available.
- Verify the correct switch for your specific model year, as there are variations between 1961 and 1973.
Is Your F-100 Headlight Switch Failing?
An old headlight switch can cause frustrating and dangerous problems. Because it controls so many lighting circuits and has an internal breaker, the signs of failure can be confusing. If you notice these issues, it's probably time for a replacement.
Symptoms of a Bad Headlight Switch
- Flickering Headlights: This is the most common sign. The internal circuit breaker in the switch overheats from age and resistance, causing it to trip and reset continuously.
- Dash Lights Don't Work: The rheostat that controls the instrument panel light brightness is a common failure point. You might lose all dash lights, or they may not dim properly.
- Switch is Hot to the Touch: A switch that feels warm or hot after use has too much internal resistance and is a fire hazard.
- Burning Smell: A distinct plastic or electrical burning smell from the dash area when the lights are on is a critical warning sign. Stop using the vehicle if this occurs.
- Partial or Total Light Failure: Headlights might work but tail lights don't, or vice-versa. Sometimes, jiggling the knob can make them work temporarily.
Choosing the Right Aftermarket Switch
For a truck that is 50+ years old, finding a "New Old Stock" (NOS) Ford switch is both difficult and very expensive. The most practical and common solution is a new aftermarket replacement.
Quality and Brands
Aftermarket quality can range from poor to excellent. For a critical safety part like this, it's best to choose a reputable brand. Standard Motor Products (Standard Ignition) is a well-regarded brand that produces reliable, OE-spec replacement switches for these trucks. Owners in forums and reviews report good experiences with Standard switches, noting proper fit and long-term function.
Estimated Replacement Costs
Replacing the headlight switch is an affordable repair, especially if you do it yourself.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Switch | $45 - $60 |
| Shop Labor | $75 - $150 |
| Total Estimated Cost | $120 - $210 |
Frequently Asked Questions (FAQ)
Is this a difficult part to replace myself?

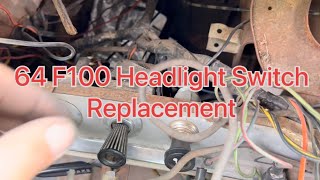

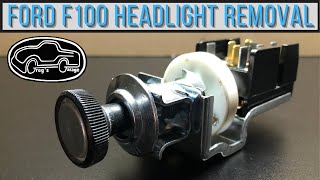

No, this is a great DIY job for beginners. It typically takes less than an hour with basic hand tools. The process involves disconnecting the battery, removing the knob and shaft (by pressing a small button on the switch body), unscrewing the bezel nut from the dash, 🎬 Watch this quick guide on how to remove the switch. and unplugging the wiring connector.
Are there any recalls for the 1961-1973 F-100 headlight switch?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls for the headlight switch on these specific models. Recalls for Ford truck lighting systems are for much newer vehicles and different types of switches.
Do I need to buy a new knob and bezel?
Maybe. Most aftermarket switches are sold as the switch body only. You will likely need to reuse your original knob, shaft, and the bezel nut that secures it to the dash. Inspect yours for damage before ordering; replacements are available if needed.
Why do my dash lights and dome light not work?
This is a classic symptom of a failed headlight switch. The internal components that control the dash light dimmer (rheostat) and the dome light function often wear out or get corroded over time. Replacing the switch assembly usually solves this problem.
🎬 See how a new switch fixed this truck's dome light.Helpful Videos
Technical Specifications
OEM Part Numbers: C1DF-11654-A C2DZ-11654-A D3ZZ-11654-A
Pull-knob switch with integrated rotating rheostat for dash dimming. Contains an internal, self-resetting circuit breaker. Multiple versions exist depending on year and application.
