A Guide to the 1962-1968 Chevrolet Corvette Speedometer Cable
If your C2 Corvette's speedometer needle is bouncing or not moving at all, it's likely time for a new cable.
- A bouncing speedometer needle is the number one symptom of a failing cable in a C2 Corvette.
- Confirm your transmission type (manual or automatic) and required cable length before ordering a replacement.
- Lubricating the new inner cable with a proper lubricant before installation is highly recommended to ensure smooth operation and long life.
- While the cable is the most likely cause of speedometer issues, also check the plastic driven gear in the transmission.
Is Your Speedometer Cable Failing?
For the C2 Corvette, a faulty speedometer cable is a common issue that develops over time. The original lubricants inside the cable housing dry up, causing the inner cable to bind, stretch, or break. Look for these classic signs of a bad or failing cable:
- Bouncing Speedometer Needle: This is the most common symptom. As you drive at a steady speed, the needle will jump or waver erratically. This is caused by the cable binding and releasing as it rotates.
- No Speed Reading: If the needle stays at zero, the inner cable has likely snapped or disconnected from the transmission or the speedometer head.
- Squealing or Grinding Noises: A dry, unlubricated cable can make audible noises from behind the dashboard as it struggles to turn.
- Sticking Needle: The needle might get stuck at a certain speed and only return to zero after you tap on the dash, or it may not return at all.
A Note on Other Possible Issues
While the cable is the most frequent culprit, a bouncing or inoperative speedometer can sometimes be caused by a worn plastic driven gear inside the transmission. It's worth inspecting this small, inexpensive gear when you replace the cable. In rarer cases, the speedometer head unit itself may require a professional rebuild, which is a much more involved and costly repair.
Choosing the Right Aftermarket Cable
Since New Old Stock (NOS) GM parts are rare and expensive, the aftermarket is the go-to source for a new speedometer cable. The key to ordering the right part is verifying the length and transmission type for your specific Corvette.
Important Considerations:
- Transmission Type: Cables are often specific to either manual (4-speed) or automatic (Powerglide) transmissions.
- Cable Length: Different year and transmission combinations may require different lengths. Common replacement lengths are around 69 to 72 inches. Always measure your old cable or confirm the required length for your specific setup before ordering.
- Quality: Corvette owners on forums often advise against the cheapest generic cables, citing poor fitment or premature failure.
Aftermarket Brand Tiers
The available brands for your C2 Corvette generally fall into a few categories:
- Standard Replacement (ATP, Pioneer Cable): These brands manufacture parts to meet or exceed original equipment (OE) specifications. They are designed to be a direct fit and restore original function. Pioneer is a common brand found at major auto parts stores, with reviews indicating they are a good value, though some users recommend lubricating them before installation as they may not come pre-lubed.
- Performance/Custom (Lokar, B&M): Brands like Lokar specialize in high-performance and custom applications. Their products are often higher-end, designed for durability and a premium look, which is reflected in their higher price. B&M is well-known in the performance transmission and shifter space. These options are often chosen for modified or restomod Corvettes.
Pro Tip: Lubricate Before You Install
Many experienced owners and mechanics strongly recommend lubricating the new inner cable before installation, even if it feels pre-lubed. Use a dedicated speedometer cable lubricant (often graphite-based) or white lithium grease. Apply a light coat along the length of the cable, but avoid putting too much grease on the top few inches that insert into the speedometer head, as excess grease can migrate into the gauge and cause problems.
Speedometer Cable Replacement Cost for 1962-1968 Corvette
Replacing the speedometer cable is a cost-effective repair, especially if you do it yourself. The primary cost is the part itself, with labor being a factor if you take it to a shop.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Cable | $15 - $152 |
| Shop Labor | $100 - $200 |
| Total (Shop Installed) | $115 - $352 |
Frequently Asked Questions
Can I just lubricate my old cable instead of replacing it?
You can try, and sometimes it helps temporarily. However, if the cable is old, the internal housing is likely full of dried, hardened grease and debris that is hard to clean out. Often, the cable itself is stretched or frayed, and a new cable assembly is the only reliable, long-term fix.
How hard is it to replace the speedometer cable myself?

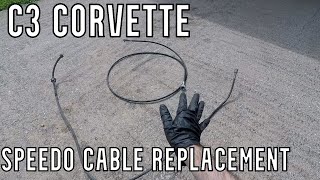

The job is mechanically simple but can be frustrating due to tight access behind the instrument cluster. Many owners find it difficult to reach the knurled nut that attaches the cable to the back of the speedometer. A common trick is to remove the cluster mounting screws and use long bolts as guides to slide the cluster forward a few inches 🎬 Watch a step-by-step guide on replacing a Corvette speedometer cable., providing more room for your hands. Disconnecting the battery is a critical safety step before attempting this.
Are there any recalls for the speedometer cable on a C2 Corvette?
No, there are no recalls or Technical Service Bulletins (TSBs) from the NHTSA related to the speedometer cable for the 1962-1968 Chevrolet Corvette. Any issues you experience are due to the age and wear of the part.
Does the cable length matter?
Yes, absolutely. Using a cable that is too long or too short can cause problems. A cable that is too short will not connect, while one that is too long will need to be carefully routed to avoid sharp bends or kinks, which can cause the needle to bounce or the cable to fail prematurely. Always try to order the correct length for your car's specific year and transmission combination.
Helpful Videos
Technical Specifications
OEM Part Numbers: 3862809
Common lengths range from 69 to 72 inches. The cable connects the transmission to the speedometer head via threaded nuts on both ends. The inner cable has squared ends to engage the drive gears.
