1962-1969 Buick Electra Back Up Light Switch: A Comprehensive Guide
Having trouble with your reverse lights? This guide covers the common causes and solutions for your classic Electra.
- The back up light switch is part of the neutral safety switch on a 1962-1969 Electra.
- Always check bulbs and fuses first before replacing the switch.
- Aftermarket brands like Standard Ignition and Mcleod are quality, affordable replacements.
- The location depends on your shifter: it's on the steering column for column shifts or in the console for floor shifts.
Understanding the Back Up Light Switch in Your Electra
When you shift your Buick Electra into reverse, a small but crucial part is responsible for turning on your back-up lights: the back up light switch. For the 1962-1969 model years, this switch is typically part of the larger neutral safety switch assembly. Depending on your car's configuration, this switch is located either on the steering column (for column-shifted models) 🎬 Watch this walkthrough for replacing a column-mounted switch. or within the center console, attached to the shifter mechanism (for floor-shifted models). Over decades of use, these switches can wear out, become misaligned, or suffer from hardened internal grease, leading to failure.
Common Symptoms of a Failing Back Up Light Switch
Before you assume the switch is bad, it's important to rule out simpler issues. The most common cause for reverse lights not working is simply burnt-out bulbs. Always check the bulbs and the fuse for the circuit first. 🎬 See how to troubleshoot and fix common reverse light failures. If those are good, you may have a faulty switch. Symptoms include:
- Reverse lights do not turn on at all: When you shift into reverse, the lights fail to illuminate.
- Intermittent operation: The lights may flicker or only work when you jiggle the shifter. This can indicate a worn or misaligned switch.
- Reverse lights stay on: A switch that is stuck in the 'on' position can cause the back-up lights to remain illuminated constantly.
Safety First
A faulty back up light switch is also a faulty neutral safety switch. If the switch fails completely, it could prevent your car from starting. Conversely, a severely damaged switch could potentially allow the car to start in gear, which is a major safety hazard. Address any issues with this switch promptly.
Choosing the Right Aftermarket Back Up Light Switch
For a classic vehicle like the 1962-1969 Electra, finding a New Old Stock (NOS) OEM part can be difficult and expensive. Aftermarket parts are a reliable and accessible alternative. The two primary brands available are Standard Ignition and Mcleod.
- Standard Ignition (Standard Motor Products): A well-known brand in the aftermarket world, Standard often produces parts that meet or exceed original specifications. Their switches are noted for using copper alloy conductors which ensure good electrical conductivity.
- Mcleod: Often associated with performance drivetrain components, Mcleod also produces replacement switches designed for dependability and to exceed OEM standards.
Both brands are considered quality replacements for your vehicle. Since they are identically priced, the choice comes down to brand preference or availability. There is no significant performance difference between these two for a stock application.
Part Cost Comparison
| Part Type | Price Range |
|---|---|
| New Aftermarket (Standard, Mcleod) | $46.29 - $46.29 |
| New OEM (NOS) | Varies Greatly / Often Unavailable |
| Used OEM | $20 - $60+ (Varies by condition) |
| Shop Labor | $100 - $200 |
Pro Tip: Check for Adjustment
Sometimes, the switch itself isn't bad, but its alignment with the shifter linkage is off. On column-mounted switches, there is often a small amount of adjustment possible by loosening the mounting screws and repositioning the switch until the reverse lights work correctly in reverse and the car starts only in Park and Neutral.
Frequently Asked Questions (FAQ)
Where is the back up light switch located on my 1962-1969 Electra?
For models with an automatic transmission and a column shifter, the switch is typically mounted on the steering column under the dashboard. For models with a floor shifter, it is usually located inside the center console, attached to the shifter assembly.
Can I replace the back up light switch myself?
Yes, this is a DIY-feasible repair for most home mechanics. Access is the main challenge. For column-mounted switches, it is relatively straightforward. For console-mounted switches, you will need to disassemble parts of the center console to reach it. Basic hand tools are all that is required.
Are there any recalls for the back up light switch on the Buick Electra?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no recalls or technical service bulletins (TSBs) specifically for the back up light switch on the 1962-1969 Buick Electra.
Do I need to adjust the new switch after installation?
Yes, adjustment is often necessary. After installing the new switch, you must verify that the reverse lights only come on in reverse and that the car will only start in Park or Neutral. You may need to slightly reposition the switch to achieve the correct alignment with the shift linkage.

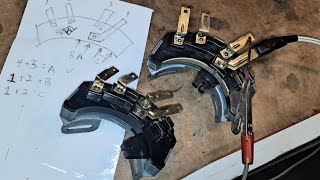

Helpful Videos
Technical Specifications
Functions as both a neutral safety switch and a back-up light switch. Location is dependent on shifter type (column or floor).
