Choosing the Right Transmission Filter Kit for Your 1964-1970 Ford Ranchero
Keep your classic Ranchero's automatic transmission shifting smoothly by selecting the correct filter for your specific model.
- You must identify your transmission (C4, C6, or FMX) by its pan shape and bolt count before ordering a kit.
- Symptoms like harsh shifting, whining, or leaks should be addressed immediately to prevent catastrophic transmission failure.
- Aftermarket brands like Wix, ATP, and Motorcraft are all reliable choices for this vehicle.
- Regularly changing the filter and fluid every 30,000 miles is the best way to ensure a long life for your classic transmission.
Is Your Ranchero's Transmission Acting Up?
The automatic transmissions in the 1964-1970 Ford Ranchero are known for their durability, but they depend on clean fluid to survive. If the transmission filter becomes clogged with debris, it can starve the transmission of fluid, leading to serious problems. Watch for these common symptoms that indicate it's time for a new filter kit.
- Delayed or Harsh Shifting: You might notice a long pause before the truck goes into gear, or the shifts may feel jerky and abrupt.
- Whining or Buzzing Noises: A struggling transmission pump, starved for fluid, will often make a whining noise that changes with engine RPM.
- Transmission Fluid Leaks: A clogged filter can increase pressure inside the transmission, forcing fluid past gaskets and seals. You may see puddles of red or brown fluid under the vehicle.
- Overheating: Restricted fluid flow means less cooling, which can cause the transmission to overheat. You might notice a distinct burning smell.
- Slipping Gears: The transmission may unexpectedly slip out of gear while driving because there isn't enough hydraulic pressure to hold it.
Pro Tip: You MUST Identify Your Transmission Before Buying
The single most common mistake when ordering this part is buying a kit for the wrong transmission. Ford used several different automatic transmissions in the Ranchero from 1964-1970, most commonly the C4, C6, and FMX. A filter kit for a C4 will not fit a C6. The easiest way to identify your transmission is by the shape of the oil pan on the bottom:
- Ford C4: The pan is small and almost perfectly square. It has 11 bolts.
- Ford C6: The pan is much larger and has a distinctive irregular shape, often described as looking like the state of Utah or having an "L" shape. It has 17 bolts.
- Ford FMX: The pan is a medium-sized rectangle and has 14 bolts.
Before you order, get under your truck and count the bolts and check the pan shape to guarantee you get the right kit.
Choosing the Right Aftermarket Filter Kit
Since original Ford parts for these vehicles are rare, the aftermarket is your primary source. Quality among aftermarket brands is generally good, but there are tiers to consider.
OEM & Premium Aftermarket Brands
These brands are known for excellent quality control and fitment, making them a top choice for owners who want the best available parts.
- Motorcraft: As Ford's own parts division, Motorcraft is the original equipment (OEM) benchmark. While more expensive, many mechanics trust only Motorcraft for transmission filters to avoid any chance of poor fitment that could lead to pressure loss.
- Wix: Wix is a top-tier aftermarket filter manufacturer with a reputation for quality that rivals OEM. They are a trusted choice among professional mechanics and DIYers alike.
Standard Aftermarket Brands
These brands offer a great balance of quality and value and are perfectly suitable for a stock 1964-1970 Ranchero.

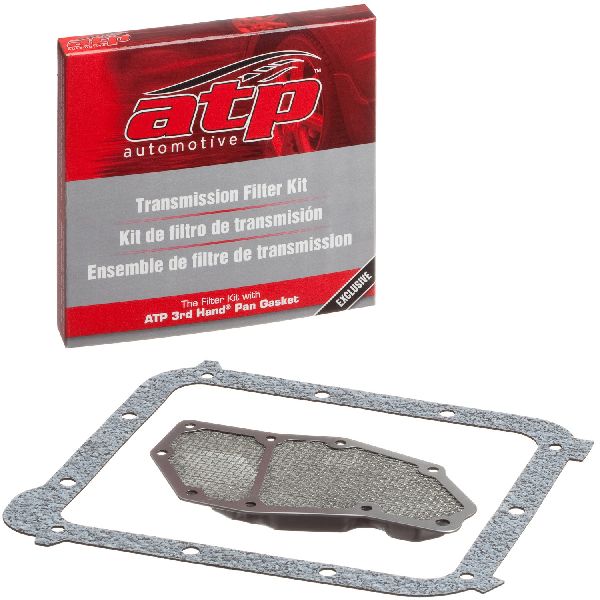

- ATP (Automatic Transmission Parts): ATP is a long-standing brand in the transmission world. Many users report good experiences with their filters. They are well-known for their "Third Hand" gaskets, which have slightly smaller bolt holes that grip the bolts, making it easier to install the pan. However, be sure to inspect the gasket upon arrival to ensure it wasn't damaged by being folded in the box.
- Premium Guard: This brand manufactures its parts to meet or exceed OEM specifications. Their kits typically include high-quality rubber gaskets for a reliable seal.
- Pioneer Cable: Pioneer offers a wide variety of stock replacement parts. Their products are considered reliable for standard applications and are a dependable budget-friendly option.
A Note on a Historic Ford Transmission Issue
During the late 1970s, NHTSA investigated an issue where many Ford automatic transmissions from this era, including the C4, C6, and FMX, could slip from 'Park' into 'Reverse'. This was determined to be a design issue unrelated to the transmission filter. While it's a known part of these transmissions' history, it does not affect your choice of filter kit.
Cost of a New Transmission Filter Kit (1964-1970 Ford Ranchero)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Kit | $12 - $57 |
| New OEM (Motorcraft) Kit | $30 - $70 |
| Shop Labor | $100 - $225 |
Cost estimates are approximate and can vary based on your location and the specific transmission in your vehicle.
Frequently Asked Questions
How often should I change my Ranchero's transmission filter?
For these classic vehicles, a good rule of thumb is to change the transmission fluid and filter every 30,000 miles or every 2-3 years. This is considered cheap insurance against a major transmission failure.
Does the filter kit come with a new gasket?
Yes, all the recommended aftermarket kits include a new transmission pan gasket. Some, like those from ATP, have special gaskets designed to make installation easier. Never reuse your old gasket, as it will likely leak.
What kind of transmission fluid should I use?
Most Ford automatic transmissions from this era, including the C4, C6, and FMX, require Type F automatic transmission fluid. Using a modern fluid like Mercon V or Dexron can cause shifting problems and damage to the clutch materials. Always use Type F unless your transmission has been specifically rebuilt to use a different fluid.
Is changing the transmission filter a DIY job?
Yes, this is a job that a home mechanic can do. However, it is very messy. The process involves draining the fluid by carefully lowering the pan, replacing the filter, cleaning the pan and magnet, and installing the new gasket and pan. It requires basic hand tools and a large drain pan. The job typically takes 1-2 hours.
Technical Specifications
The correct filter kit is determined by the specific automatic transmission model (C4, C6, or FMX), not the vehicle model year. Identification is made by visually inspecting the transmission pan shape and counting the number of bolts.
