Choosing the Right Transmission Filter Kit for Your 1964-1972 Ford Custom
Keep your classic Ford shifting smoothly by picking the correct new aftermarket transmission filter and avoiding common issues.
- You must identify your specific transmission (C4, C6, or FMX) before purchasing, as the filter kits are not interchangeable.
- Symptoms like gear slipping, whining noises, and fluid leaks are strong indicators of a clogged filter needing immediate attention.
- Use Type F automatic transmission fluid, as specified for most Ford transmissions of this era.
- Choosing a quality aftermarket brand like Motorcraft, Wix, or ATP provides reliability and proper fitment.
Is Your Ford Custom Shifting Poorly? It Could Be the Transmission Filter
The automatic transmissions used in the 1964-1972 Ford Custom, such as the C4, C6, and FMX, are generally robust. However, their performance depends on clean transmission fluid. A clogged transmission filter is a common reason for shifting problems. When the filter gets blocked with debris, it restricts fluid flow, which can lead to serious symptoms and, if ignored, expensive transmission damage.
🎬 Watch: 6 common symptoms of a failing transmissionSymptoms of a Clogged Transmission Filter
- Delayed or Slipping Gears: You might feel a long pause when shifting from Park to Drive, or the engine may rev up without the car accelerating properly. This happens because the clogged filter lowers the fluid pressure needed to engage the gears.
- Whining or Grinding Noises: A filter that is starving the transmission pump for fluid can cause a whining sound that changes with engine RPM. Grinding noises can indicate parts are not getting enough lubrication.
- Fluid Leaks: A blocked filter can cause pressure to build up, forcing fluid out past seals and gaskets. You might see reddish fluid spots under your car.
- Burning Smell: Restricted fluid flow prevents the transmission from cooling properly, causing the fluid to overheat and create a distinct burning smell.
First Step: Identify Your Transmission
Before you buy a kit, you MUST know which transmission is in your Ford Custom. The C4, C6, and FMX transmissions were all used during this period and require different filter and gasket shapes. Check the shape of your transmission pan against online guides or look for an identification tag on the transmission case. Buying the wrong kit is the most common mistake.
Choosing the Right Aftermarket Transmission Filter Kit
For a classic vehicle like the 1964-1972 Ford Custom, you don't necessarily need to hunt down a rare Ford-branded part. Several aftermarket brands offer quality kits that meet or exceed original specifications. The key is to choose a reputable brand to ensure proper fit and function.
Brand Quality Tiers
- Premium Aftermarket (OEM Quality): Brands like Motorcraft and Wix are top choices. Motorcraft is Ford's own parts brand, so it's the closest you can get to the original part. Wix has a strong reputation for making high-quality filters that are considered equivalent to OEM parts.
- Quality Aftermarket: ATP has been making transmission parts for a long time and is a trusted name. They are known for making reliable filters and innovative gaskets that can help prevent leaks.
- Standard/Economy Aftermarket: Brands like Premium Guard and Pioneer Cable are typically more budget-friendly. While they can be a good value, they may not have the same long-standing reputation for transmission parts as the brands above. For a critical component like a transmission filter, sticking with a more established brand is often a wise investment.
Pro Tip: Upgrade Your Pan
When you service the filter, consider replacing the stock transmission pan with an aftermarket one that has a drain plug. This makes future fluid changes much faster, cleaner, and easier, as you won't have to drop the entire pan just to drain the fluid.
🎬 Watch this walkthrough on changing Ford C6 fluid and filters| Part Type | Estimated Price Range |
|---|---|
| New Aftermarket | $12.19 - $56.59 |
| New OEM (Motorcraft) | $22.00 - $60.00 |
| Shop Labor | $100 - $200 |
Frequently Asked Questions (FAQ)
How often should I change my transmission filter?
For a classic car under normal use, changing the transmission fluid and filter every 30,000 to 60,000 miles is a good rule of thumb. If you drive the car hard, tow, or it sees heavy use, consider a shorter interval of around 15,000-20,000 miles.
What type of transmission fluid should I use?
Most Ford automatic transmissions from this era, including the C4, C6, and FMX, require Type F fluid. Using a modern fluid like Mercon or Dexron can cause shifting problems in these older transmissions. Always double-check the fluid requirement for your specific transmission.
Do I need to use a gasket sealer with the new pan gasket?
It depends on the gasket. Some high-quality rubber or cork gaskets are designed to be installed dry. Some mechanics prefer to use a very thin layer of RTV sealant to hold the gasket in place on the pan during installation, but be careful not to use too much, as excess can squeeze into the pan and clog the new filter.
Are there any recalls for the transmission filter on my Ford Custom?
No, there are no active NHTSA recalls or widespread technical service bulletins (TSBs) for transmission filters on the 1964-1972 Ford Custom. Any issues you experience are likely due to age and normal wear.
Helpful Videos
Technical Specifications
OEM Part Numbers: C5AZ-7A098-C (C4, 1965-69) C6AZ-7A098-A (C6, 1966-74) D0AZ-7A098-A (FMX)

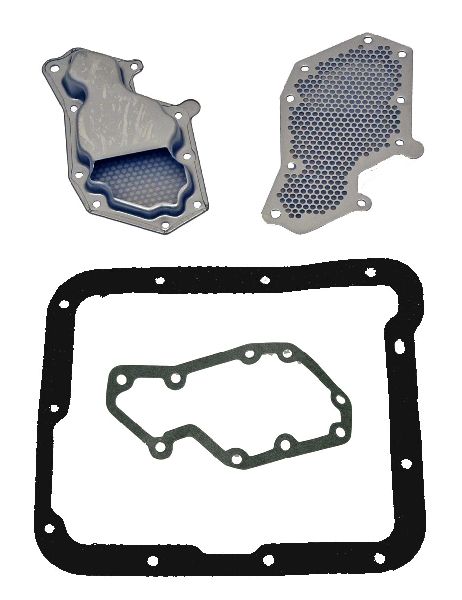

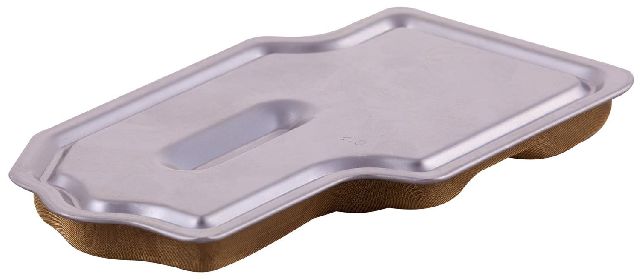

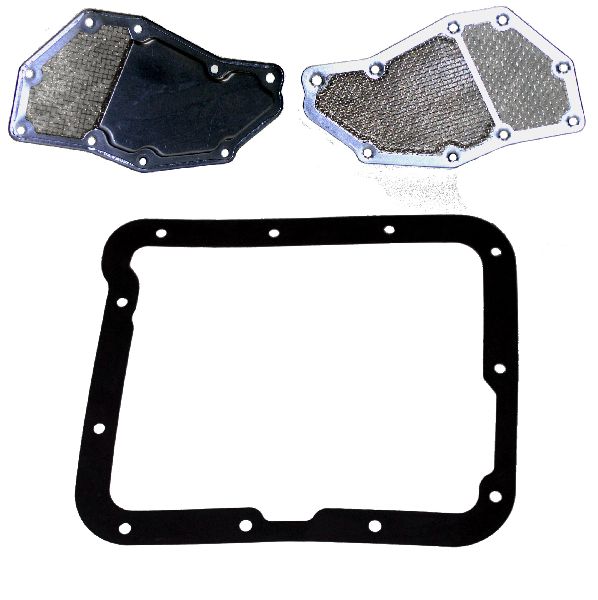

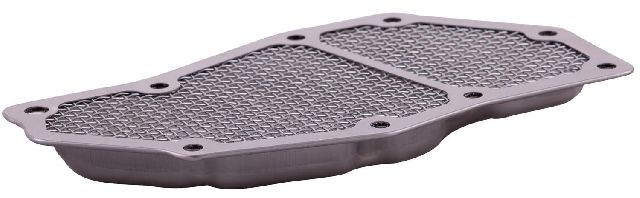

Kit typically contains one transmission filter (screen or felt type) and one pan gasket (cork or rubber). The correct kit depends on the transmission model (C4, C6, or FMX).
