1964-1975 Cadillac DeVille Engine Cooling Fan Clutch Guide
If your classic DeVille is running hot in traffic, the fan clutch is a prime suspect.
- Overheating at idle is the #1 sign of a failing fan clutch on a DeVille.
- Replacement is a straightforward DIY job for most owners with basic tools.
- No recalls or TSBs exist for this part; failures are due to age and wear.
- Choose a quality aftermarket brand like GMB or a heavy-duty Hayden to handle the V8's heat.
Signs of a Failing Fan Clutch
A bad fan clutch can fail in two ways: it can get stuck engaged, or it can fail to engage. Both cause problems. Here’s what to look for:
- Engine Overheating at Idle: This is the most common symptom. If your temperature gauge climbs in stop-and-go traffic but returns to normal on the highway, the fan clutch is likely not engaging to pull enough air when needed.
- Loud Roaring Engine Noise: If the clutch is stuck in the engaged position, the fan will spin at full speed all the time. This creates a loud, continuous roaring sound that gets louder with engine RPM.
- Reduced Power and Fuel Economy: A fan that is always engaged puts a constant drag on the engine. This robs horsepower and can lead to a noticeable decrease in acceleration and fuel efficiency.
- Freely Spinning Fan When Hot: After getting the engine to full operating temperature, shut it off. If you can spin the fan blade by hand and it rotates more than one to one-and-a-half times, the clutch is weak and not engaging properly. 🎬 Watch: How to test if your clutch fan has failed
Testing Your Fan Clutch
With the engine OFF, try to spin the fan blade. When the engine is cold, it should spin with some light resistance. When the engine is hot, it should be much harder to turn. If it spins freely when hot or feels seized when cold, it needs replacement.
Choosing the Right Aftermarket Fan Clutch
Finding a new-old-stock (NOS) OEM fan clutch for a 1964-1975 Cadillac is nearly impossible. The aftermarket is your primary source. For a classic car like the DeVille, you want a reliable part that performs like the original. Here is an honest look at the available brands:

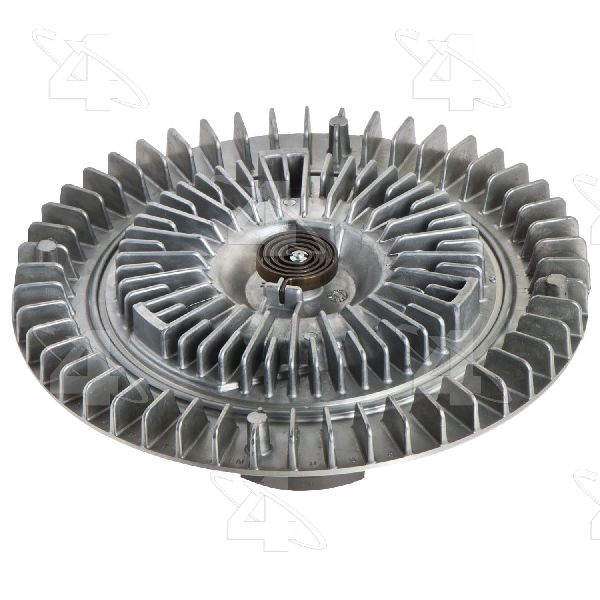

- Hayden: Hayden is one of the original and most well-known aftermarket brands for fan clutches. They offer different duty ratings (standard, heavy-duty, severe-duty). For a large, heat-producing Cadillac V8, a heavy-duty or severe-duty option is a wise choice. While many have had good luck with Hayden on classic cars, some users report issues with premature failure or overly aggressive engagement, causing noise.
- GMB: GMB is another established aftermarket manufacturer. In a video showing a fan clutch replacement on a 1968 Cadillac DeVille, the owner referred to the GMB unit as a "good clutch." 🎬 See this walkthrough of a fan clutch replacement on a DeVille They are generally considered a solid, reliable option.

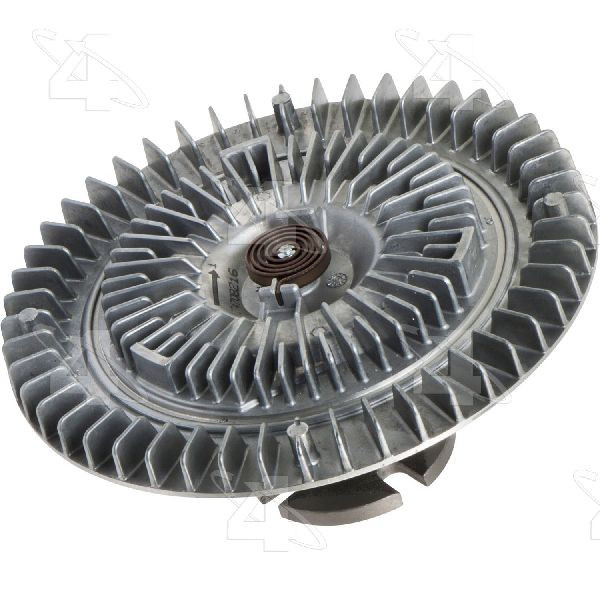

- Four Seasons: This brand is widely available. However, in forum discussions, some users have reported negative experiences or have been advised to avoid them for this specific part.
- Global Parts (GPD): Often positioned as a budget-friendly option, GPD provides a functional replacement that can get your car back on the road.
Pro Tip: Given the significant heat generated by the 429, 472, and 500 cubic-inch engines in these DeVille models, investing in a reputable brand like Hayden (severe-duty) or GMB is recommended over a standard or budget option. The small difference in price is worth the peace of mind.
Known Issues, Recalls, or TSBs
There are no active recalls or Technical Service Bulletins (TSBs) from the National Highway Traffic Safety Administration (NHTSA) for the engine cooling fan clutch on the 1964-1975 Cadillac DeVille. Any failures are due to the age and wear of the original component.
Cost of Replacement Parts
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Fan Clutch | $60 - $126 |
| Shop Labor | $100 - $200 |
Frequently Asked Questions
What does a thermal fan clutch do?
The fan clutches on these Cadillacs are thermal. They use a bi-metallic spring on the front that reacts to the temperature of the air coming through the radiator. As the air gets hotter, the spring expands and opens a valve inside the clutch. This allows silicone fluid to flow and engage the clutch, making the fan spin faster.
Can I drive with a bad fan clutch?
It depends on how it failed. If it's stuck engaged (loud roaring), you can drive it, but you'll suffer from poor performance and fuel economy. If it's not engaging (overheating at idle), you can drive it on the highway but risk severe engine damage from overheating in traffic. 🎬 See how a bad fan clutch also affects your A/C system It is highly recommended to replace it as soon as possible.
Is replacing a fan clutch a difficult DIY job?
For a 1964-1975 DeVille, this is a relatively easy job for a DIY mechanic. Access is good compared to modern cars. The process involves removing the fan shroud, unbolting the clutch from the water pump pulley (usually four bolts), swapping the clutch from the fan blade, and reinstalling. You will need basic hand tools. One owner on a Cadillac forum described the job as a "piece of cake."
Should I replace my water pump at the same time?
While you don't have to, it's a good idea to inspect the water pump while the fan clutch is off. Check for any play in the water pump shaft or signs of coolant leakage from the weep hole. Since you have already done much of the disassembly, replacing a questionable water pump at the same time can save you from doing the job twice.
Helpful Videos
Technical Specifications
The fan clutch for this vehicle is a thermal, bolt-on type with a clockwise rotation.
