GMC G1500 Universal Joint Replacement Guide (1964-1978)
Don't let a bad U-joint leave your classic GMC van stranded; learn the symptoms and find the right replacement part.
- A clunking noise when shifting or a vibration at speed are the most common signs of a failing U-joint on your G1500.
- Before ordering, you must inspect your van to see if it uses U-joints with inside or outside lock rings.
- Dana/Spicer is a highly recommended premium brand known for durability, making it a strong choice for these classic vans.
- Ignoring a bad U-joint can lead to a complete failure where the driveshaft disconnects, leaving you stranded and causing more damage.
Is Your G1500's U-Joint Failing?
Universal joints on a workhorse van like the G1500 live a tough life. They are constantly under stress and can wear out from use, age, or lack of lubrication. Ignoring the signs of a bad U-joint can lead to a disconnected driveshaft, which can cause significant damage to the underside of your van and leave you stranded.
Key Symptoms of a Bad U-Joint:
- Clunking Noises: A loud 'clunk' or 'bang' when you shift from Park into Drive or Reverse is a classic sign of a worn U-joint with too much play.
- Vibrations While Driving: You might feel a vibration throughout the van, especially at highway speeds. This is often caused by a U-joint that is worn and has thrown the driveshaft out of balance.
- Squeaking or Chirping: A rhythmic squeaking noise that changes with your speed, often heard at slower speeds, usually means the U-joint has lost its grease and is running dry.
- Leaking Fluid: In some cases, a very worn U-joint can cause excessive movement that damages the transmission or differential seals, leading to fluid leaks.

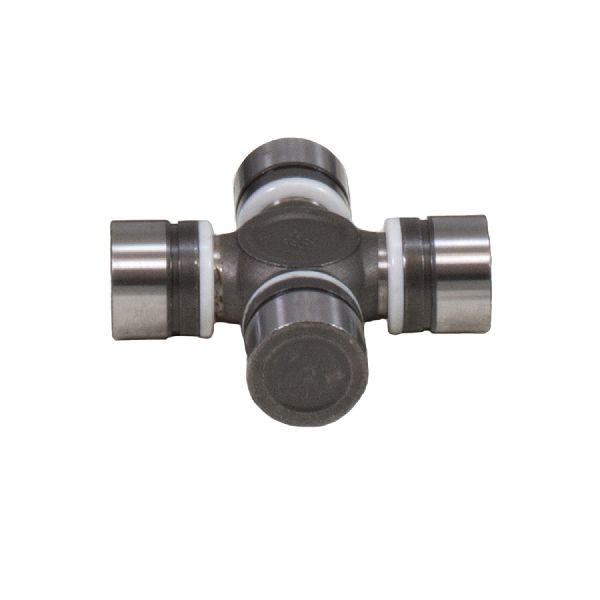

Choosing the Right Aftermarket U-Joint
For a vehicle from the 1964-1978 era, aftermarket parts are the most common and practical choice. Original OEM parts are likely discontinued and difficult to find. The quality of modern aftermarket parts from reputable brands often meets or exceeds the original specifications.
Important: Check Your Lock Ring Style!
During this period, GM used different driveshaft styles. You must check if your G1500 uses U-joints with inside lock rings (GM style) or outside lock rings (Spicer style). Ordering the wrong type is a common mistake. Inspect your old U-joints before purchasing replacements.
Brand Quality Tiers
When shopping for a new U-joint, you'll find several brands. Based on owner experiences and industry reputation, they generally fall into these tiers:
- Premium/Heavy-Duty (Dana/Spicer): Dana Spicer is widely considered a top-tier choice, often used as the original equipment manufacturer for many vehicles. They are known for durability and strength, with fatigue testing showing they can last significantly longer than competitors. Many classic truck owners prefer Spicer U-joints, both in non-greaseable (sealed for life) and greaseable versions.
- Standard/Quality (Yukon Gear): Yukon Gear is another well-regarded brand in the drivetrain and axle space. Their U-joints are a solid choice for stock replacement and offer a good balance of performance and price.
Greaseable vs. Non-Greaseable U-Joints
Non-greaseable (sealed) U-joints, like many modern OEM parts, are filled with synthetic grease and sealed for life. They are stronger because the cross is not drilled for a grease channel. Greaseable U-joints have a zerk fitting that allows you to add new grease periodically. If you choose a greaseable joint, you must be diligent about regular maintenance to push out contaminants and prevent them from running dry.
Estimated Costs
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket U-Joint (Single) | $19.89 - $107.89 |
| Shop Labor for Replacement (One Joint) | $120 - $250 |
| Total Professional Installation | $140 - $360+ |
Note: Prices are estimates and can vary based on your location, the specific part chosen, and the condition of your vehicle. Your G1500 has at least two U-joints.
Frequently Asked Questions
How many U-joints does my 1964-1978 GMC G1500 have?
Most standard-length G1500 vans have a two-piece driveshaft, which means they typically use three universal joints. However, this can vary, so it's always best to inspect your specific vehicle to confirm the number before ordering parts.
Are there any recalls for the U-joints on my G1500?
No recalls or specific Technical Service Bulletins (TSBs) for universal joint failure were found for the 1964-1978 GMC G1500. This is common for vehicles of this age, as issues were typically handled as standard repairs.
Can I replace a U-joint myself?
Yes, if you have the right tools and mechanical experience, this is a feasible DIY job. It requires safely lifting the vehicle, removing the driveshaft, and using a press or a hammer-and-socket method to remove the old U-joint and install the new one. If you are not comfortable with this process, a professional mechanic can perform the replacement.
Should I replace all my U-joints at once?
If one U-joint has failed due to age or high mileage, the others are likely in similar condition. While it costs more upfront, it is often recommended to replace all the U-joints on the driveshaft at the same time to ensure reliability and avoid another repair in the near future.
Technical Specifications
Varies by model year and driveshaft configuration. Key identifiers are cap diameter and lock ring style (inside vs. outside). Visual inspection is required for accurate part selection.
