Universal Joint Guide for the 1965-1971 Chrysler 300
Don't let a clunking driveshaft ruin your cruise; learn how to spot a bad U-joint and choose the right replacement.
- Listen for clunking, squeaking, or vibrations, as these are the primary signs of a failing U-joint.
- For maximum durability, choose a high-quality non-greasable U-joint from a brand like Dana Spicer.
- Before ordering, confirm if your Chrysler 300 requires the smaller 7260 or larger 7290 style U-joint.
- Do not drive with a severely worn U-joint; complete failure can cause significant and expensive damage.
Is Your Chrysler 300's U-Joint Failing?
A failing universal joint gives you clear warning signs. Because your 1965-1971 Chrysler 300 is a rear-wheel-drive vehicle, any problems with the U-joints are usually easy to hear and feel. The most common reason for failure is a lack of lubrication, which causes the small needle bearings inside the joint to wear out, rust, and create play where there shouldn't be any. Ignoring these symptoms can lead to a complete failure where the driveshaft disconnects, potentially causing major damage to the underside of your car.
Key Symptoms to Watch For:
- Clunking Noise: A loud 'clunk' when you shift from drive to reverse, or vice-versa, is a classic sign of a worn U-joint. This is caused by excessive play in the joint.
- Vibrations: A rhythmic vibration felt through the floor or seats, especially at certain speeds (like 25-35 mph or above 60 mph), points to a U-joint or driveshaft issue.
- Squeaking or Clicking: A repetitive, rotational squeak that gets faster as you speed up often means the U-joint is dry and lacks grease.
- Shuddering on Acceleration: If the car seems to shudder or hesitate when you accelerate from a stop, it could be due to a binding U-joint.
Can You Drive with a Bad U-Joint?
It is not recommended. While you might be able to drive for a short time, a failing U-joint is a serious safety risk. If it breaks completely while driving, the driveshaft can fall and dig into the pavement, potentially causing you to lose control or severely damaging your transmission, exhaust, and the floor of your car.
Choosing the Right Aftermarket U-Joint
For a classic car like the 1965-1971 Chrysler 300, aftermarket parts are often the only option, and they can be excellent. The key is choosing a quality brand. Most classic Mopar cars from this era, including the C-body platform your 300 is built on, used one of two common U-joint sizes: the 7260 or the larger 7290. It is crucial to measure your existing parts or consult a service manual to ensure you order the correct size.
Brand Tiers for Your Chrysler 300:
- Top Tier (High Quality): Dana Spicer is widely considered the gold standard for universal joints. They are known for durability and are often the original equipment manufacturer for many vehicles. Many enthusiasts recommend using their non-greasable (solid) joints, as they are considered stronger and last longer because the cross isn't hollowed out for a grease channel.

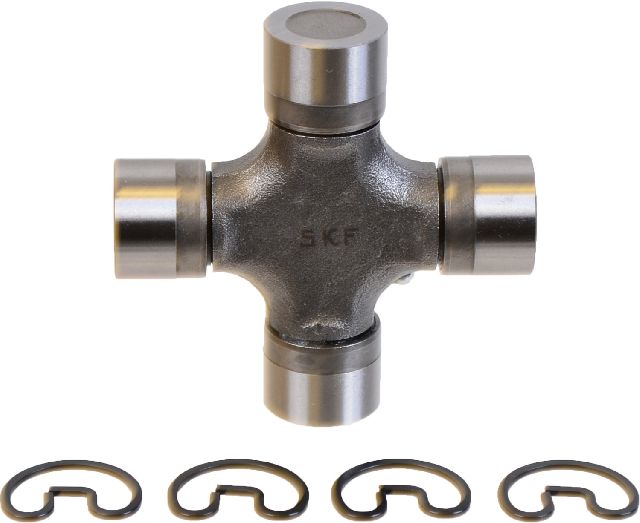

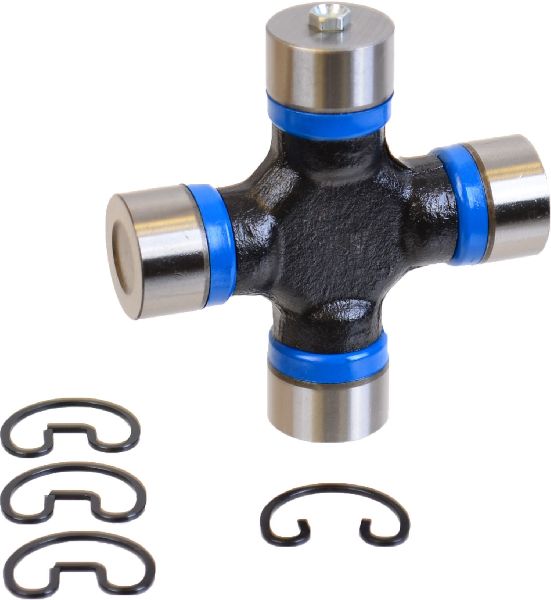

- Mid-Grade (Reliable): SKF is another well-respected brand that offers quality driveline components. They are a solid choice and often provide a good balance between price and performance.
- Standard (Good Value): GMB is a common aftermarket brand that provides a cost-effective solution. While they may not have the same high-performance reputation as Spicer, they are a suitable replacement for standard driving conditions.
Pro Tip: Many classic car owners prefer non-greasable U-joints. While it seems counterintuitive, factory-sealed joints are often stronger than greasable ones because the U-joint body isn't drilled out, which can be a weak point. If you do choose a greasable joint, make sure the grease fitting (zerk) is installed facing the driveshaft to make future maintenance possible.
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket U-Joint | $17.14 - $57.10 |
| Shop Labor for Replacement (per joint) | $100 - $200 |
Frequently Asked Questions (FAQ)
Are there any recalls for the 1965-1971 Chrysler 300 U-joints?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database did not show any recalls specifically for universal joints on the 1965-1971 Chrysler 300. Recalls for this vehicle era were generally for other issues like brakes or seat belts.
How many U-joints does my Chrysler 300 have?
A typical rear-wheel-drive car like your Chrysler 300 has two U-joints on the main driveshaft—one at the transmission end and one at the rear axle end. It's a good practice to inspect both and replace them in pairs if one is found to be worn.
Is replacing a U-joint a DIY job?
For a hobbyist with the right tools, yes. The process involves removing the driveshaft, then using a bench vise and sockets or a specialized press to remove the old joint and install the new one. It can be difficult if the parts are rusted together. If you're not comfortable with this, a professional mechanic can do the job relatively quickly.
What's the difference between a 7260 and 7290 U-joint?
The main difference is size and strength. The 7260 is smaller, with 1.078" bearing caps, while the 7290 is larger and more robust, with 1.125" caps. Cars with more powerful engines or heavy-duty packages often used the larger 7290 joint. Always measure your old parts before ordering to guarantee a match.
Technical Specifications
Commonly uses either a Spicer 7260 (1.078" cap diameter) or 7290 (1.125" cap diameter) style U-joint with internal clips. Measurement of the original part is required for confirmation.
