Ford F-100 Engine Timing Set Guide for 1965-1971 Models
Keep your classic F-100 running strong by understanding when and how to replace your engine's timing set.
- Upgrade from the original nylon-toothed cam gear to an all-metal aftermarket set for much better durability.
- Symptoms include engine rattling, rough running, backfiring, and power loss.
- Brands like Cloyes and Melling are excellent choices for a stock replacement.
- While you're replacing the set, it's smart to also replace the timing cover gasket, front crank seal, and consider a new water pump.
Is Your F-100's Timing Set Failing?
For the 1965-1971 F-100, especially those with V8 engines, the original timing sets had a weakness. The larger camshaft sprocket was often made with nylon-coated teeth to keep the engine quiet. After decades of heat and use, this nylon becomes brittle and can break off, leaving the timing chain very loose. This is a common reason for replacement.
A loose timing chain can cause a range of problems. You might hear a rattling sound from the front of the engine, especially at idle. The truck may run rough, backfire through the carburetor or exhaust, and feel low on power because the valve timing is no longer accurate. If the chain stretches enough, it can even jump a tooth on the sprocket, which will make the engine run very poorly or not at all.
Don't Ignore a Rattling Noise
🎬 Watch: Ford experts show you how to diagnose engine noises.A rattling from the front of the engine could be a loose timing chain hitting the inside of the timing cover. If the chain fails completely, your engine will stop running and could potentially suffer serious damage if you have an interference engine.
Choosing the Right Aftermarket Timing Set

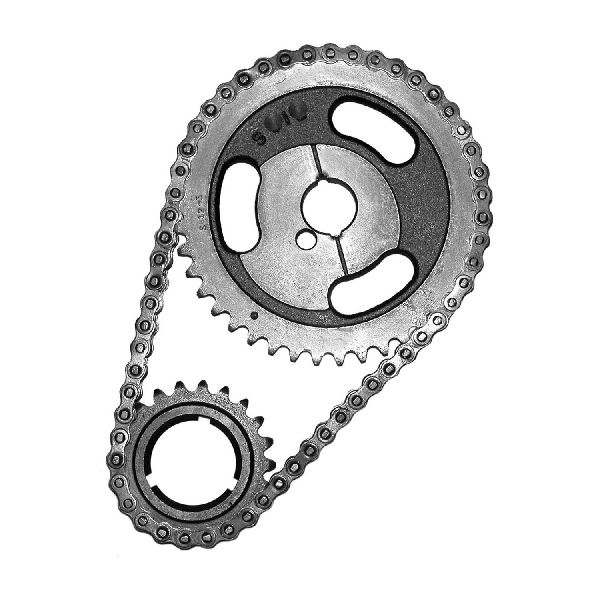

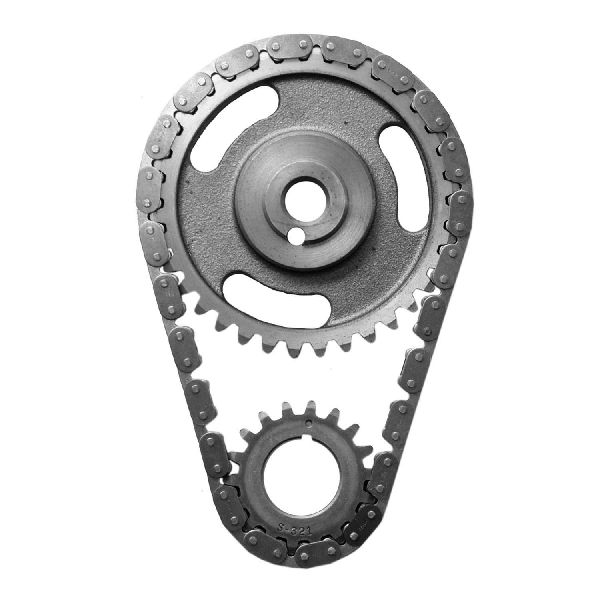

Since these trucks are over 50 years old, new original Ford parts are not really an option. The good news is that aftermarket quality is excellent and often better than the original parts. Nearly all aftermarket timing sets for the V8s use an all-metal camshaft sprocket, which is a significant durability upgrade over the factory nylon-toothed gear. For the inline-six engines, you can get durable all-metal replacement gears.
Brand Quality Tiers
When shopping for a new timing set, you'll find a few trusted brands. They generally fall into two categories:
- Standard Replacement (Good for Stock Engines): Brands like Cloyes and Melling are the go-to choice for a stock or daily-driven F-100. They meet or exceed original quality and are very reliable for normal use. Both are well-regarded in forums for these 🎬 See a Cloyes timing set installation on a 360 V8. vintage Ford engines.

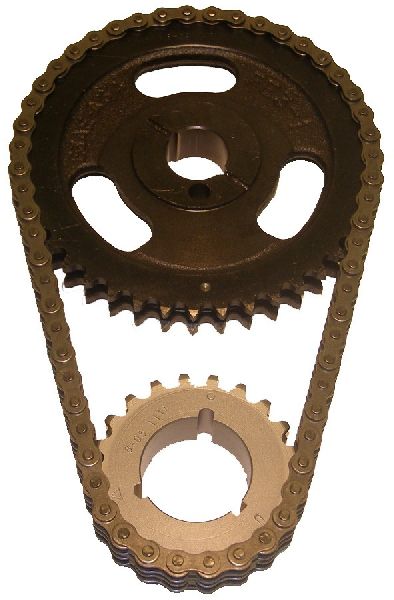

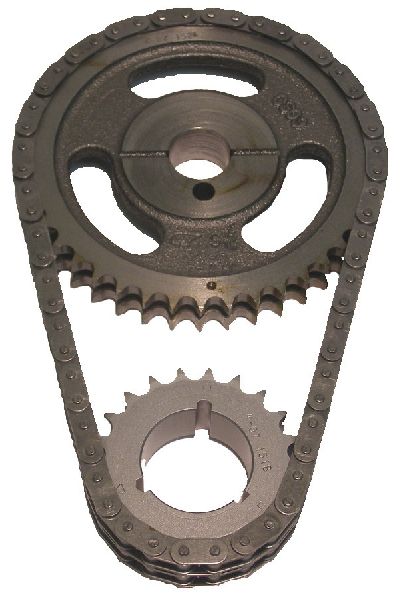

- High Performance (For Modified Engines): Brands like Edelbrock and Ford Performance offer sets for engines that have been modified for more power. These often include a stronger "double roller" chain and a crank sprocket with multiple keyways. This allows for precise adjustments to camshaft timing, which is useful for performance tuning but not necessary for a stock engine.
Pro Tip: Check Your Engine
Before ordering, be certain which engine you have. The 1965-1971 F-100 was available with inline-six engines (240 or 300 cid) that use a gear-to-gear timing setup, and several V8s (like the 352, 360, and 390) that use a chain and sprockets. The parts are not interchangeable.
🎬 Watch: How to replace timing gears on an inline-six engine.Frequently Asked Questions
Do I need special tools to replace a timing set?
You will need a good set of mechanic's tools, a torque wrench, and a harmonic balancer puller. The job requires removing many parts from the front of the engine, including the radiator, fan, belts, pulleys, water pump, and fuel pump to get the timing cover off.
Should I replace anything else at the same time?
Yes. Since you have to remove the timing cover, it is the perfect time to replace the timing cover gasket, the front crankshaft seal, and the water pump gaskets. It's also a good time to consider replacing the water pump and fuel pump if they are old.
What are the timing marks and why are they important?
Timing marks are dots or other indicators on the cam and crank sprockets (or gears). For the engine to be in time, these marks must be aligned perfectly during installation. This ensures the pistons and valves are synchronized. Incorrect alignment will cause the engine to run poorly or not at all.
Are there any recalls on the timing set for my truck?
No, there are no official recalls or Technical Service Bulletins (TSBs) from the NHTSA for timing set issues on the 1965-1971 Ford F-100. Any common problems are well-known from decades of real-world owner experience.
Helpful Videos
Technical Specifications
V8 engines use a chain and sprocket set. Inline-6 engines use a gear-drive set. Most aftermarket V8 sets feature a cast iron or steel camshaft sprocket, replacing the original nylon-toothed design. Performance sets may include a double-roller chain and multi-keyway crank sprocket for timing adjustments.
