Ford Thunderbird Disc Brake Calipers: A Guide for 1965-1972 Models
Before you buy a brake caliper for your classic Thunderbird, you must know which of the two different factory systems your car has.
- You must first identify if your car has the 1965-1967 four-piston calipers or the 1968-1972 single-piston calipers.
- For 1965-1967 models, be aware of potential fitment issues with aftermarket calipers that may require modification to prevent leaks.
- It is highly recommended to replace old rubber brake hoses at the same time as the calipers to prevent dragging issues.
- Always replace calipers in pairs (both front wheels) to ensure safe, balanced braking.
Two Generations of Brakes: Know Your Caliper
The most important factor when replacing a front disc brake caliper on a 1965-1972 Thunderbird is identifying which system your car is equipped with. The parts are not interchangeable.

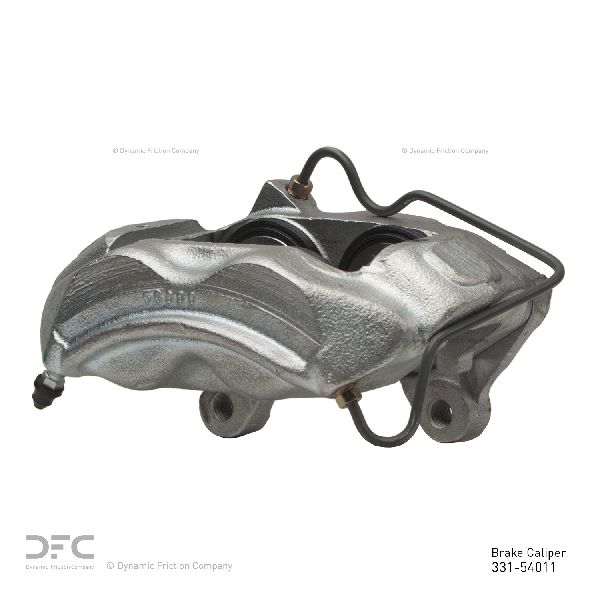

- 1965-1967 Models: These cars feature a Kelsey-Hayes four-piston fixed caliper. This design has two pistons on each side of the brake rotor that press inward. While powerful, this system is known for being sensitive to rotor imperfections and can be more complex to service. 🎬 Watch this detailed 1966 Thunderbird caliper refurbishment walkthrough.

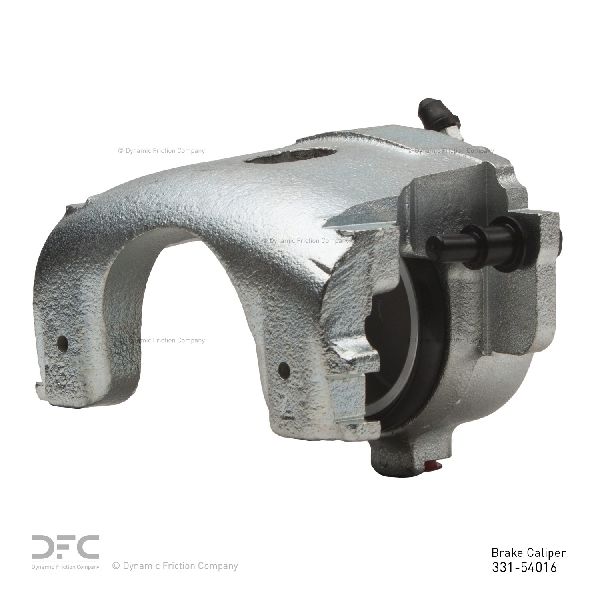

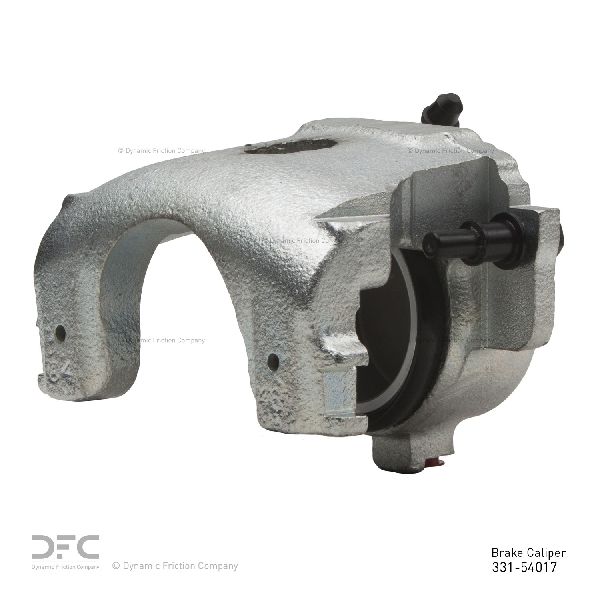

- 1968-1972 Models: Ford switched to a more common single-piston floating caliper. This design uses a single large piston to push the inboard pad, which then pulls the entire caliper body inward to apply the outboard pad. This system is generally more forgiving and easier to work on.
Symptoms of a Failing Brake Caliper
A bad caliper is a serious safety issue. If you notice any of these symptoms, inspect your brake system immediately.
🎬 See how to diagnose a locked or dragging brake caliper.- Vehicle Pulling to One Side: When braking, a seized caliper will cause the car to pull towards the opposite side. If the caliper is stuck and dragging, it will pull towards the affected side even when not braking.
- Brake Fluid Leaks: Visible fluid around the wheel or a drop in the master cylinder level points to a leaking caliper seal. Leaks are especially common on the older four-piston design due to having more seals.
- Dragging Brakes or a Burning Smell: A caliper piston or slide pin that fails to retract will keep the brake pad pressed against the rotor. This creates constant friction, which you may feel as a lack of power or smell as burning brake pads. On 1965-1967 models, this is a very common issue, often related to warped rotors that the fixed caliper cannot adjust to.
- Uneven Brake Pad Wear: If one pad is significantly more worn than the other, it's a classic sign of a seized caliper slide pin or a stuck piston.
- Spongy or Soft Brake Pedal: While this can have many causes, a leaking caliper can allow air into the system, resulting in a soft pedal that goes too far to the floor.
Known Issue: Aftermarket Caliper Fitment on 1965-1967 Models
Some aftermarket four-piston calipers for 1965-1967 Thunderbirds may have casting flaws. One known issue is excess material near the brake hose inlet, which prevents the banjo bolt from seating and sealing correctly. This can cause a catastrophic fluid leak. Always test-fit the brake hose to the new caliper before installation and be prepared to grind away a small amount of material if the hose fitting does not sit perfectly flat.
Choosing the Right Aftermarket Part
For a vehicle of this age, new Original Equipment (OEM) calipers are not available. Your options are new aftermarket parts or remanufactured parts. The brands available in our inventory are all viable choices, but they fit into different tiers.
- Dynamic Friction (New): This brand produces new calipers that are not rebuilt from old parts. They are generally considered a reliable OE-quality replacement and a good choice for owners who prefer a brand-new component.

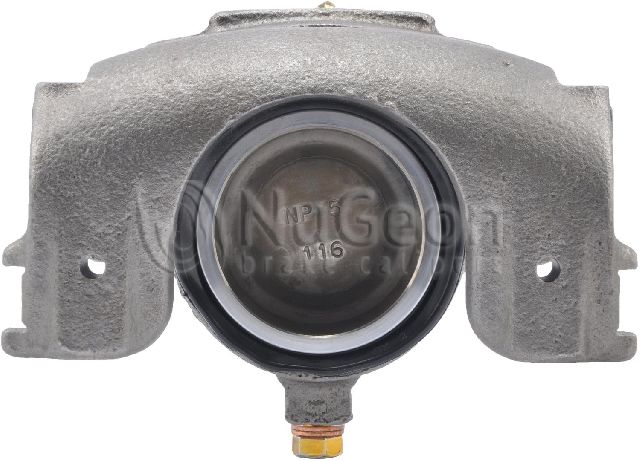

- BBB Industries (Remanufactured): BBB specializes in remanufacturing parts to meet or exceed original specifications. They replace all rubber seals and wear components, and their process includes anti-corrosion coatings. This is a quality choice for a remanufactured part.
- Cardone (Remanufactured): Cardone is one of the largest remanufacturers and often offers the most budget-friendly price. However, owner feedback suggests that quality control can be inconsistent, with occasional reports of issues like poorly installed seals or cosmetic blemishes on remanufactured units. It's a viable option, but inspect the part carefully before installation.
Pro Tip: Replace Your Brake Hoses
Many caliper failure symptoms, especially dragging brakes, are actually caused by old, internally collapsed rubber brake hoses. These hoses can act like a one-way valve, trapping fluid pressure in the caliper. Since you will already be opening the hydraulic system, it is highly recommended to replace the flexible brake hoses 🎬 Watch these expert tips for removing classic car brake hoses. at the same time you replace the calipers.
Aftermarket Disc Brake Caliper Cost for 1965-1972 Ford Thunderbird
| Part Type | Price Range |
|---|---|
| New Aftermarket Caliper | $40.13 - $165.57 |
| Shop Labor | $100 - $250 per caliper |
Frequently Asked Questions
Why are my brakes dragging on my '66 Thunderbird after replacing parts?
This is a common problem with the 1965-1967 fixed four-piston calipers. Unlike later floating calipers, they cannot move to compensate for any wobble (runout) in the brake rotor. If the rotor is not perfectly true, it will push the pistons back into the caliper, but they may not retract fully, causing drag. This can also be caused by collapsed brake hoses or an improperly adjusted master cylinder pushrod.
Should I buy a new aftermarket or a remanufactured caliper?
For this Thunderbird, both are good options. Remanufactured calipers from a quality brand like BBB Industries use the original Ford/Kelsey-Hayes caliper body, which is a heavy, durable casting. They are rebuilt with all new seals and pistons. New aftermarket calipers from a brand like Dynamic Friction are built from scratch. The choice often comes down to brand preference and price, as both can provide reliable service.
Do I need to replace calipers in pairs?
Yes. It is critical to replace brake calipers in pairs (both front wheels at the same time). This ensures even braking force and prevents the car from pulling dangerously to one side during a stop. It also ensures that both calipers are of the same age and condition.
Are there any recalls on my Thunderbird's brake calipers?
No. Searches of the National Highway Traffic Safety Administration (NHTSA) database show no open or historical safety recalls for the disc brake calipers on 1965-1972 Ford Thunderbirds. Any safety campaigns from that era would have expired decades ago.
Helpful Videos
Technical Specifications
1965-1967 Models: Kelsey-Hayes 4-Piston Fixed Caliper. 1968-1972 Models: Single-Piston Floating Caliper.
