A Guide to Spark Plug Wire Sets for the 1966-1975 Chevrolet Caprice
Keep your classic Caprice running strong by choosing the right spark plug wires for its powerful V8 engine.
- For a stock 1966-1975 Caprice, a quality replacement set from ACDelco or Standard is a reliable and cost-effective choice.
- If your engine is modified or has headers, invest in a performance wire set from brands like MSD or Taylor for better heat resistance.
- Replacing wires is an easy DIY job; just be sure to swap them one at a time to maintain the correct firing order.
- Symptoms of bad wires include rough idle, hesitation, and poor fuel economy; don't ignore them.
Signs of Failing Spark Plug Wires
The ignition system on a classic car like the 1966-1975 Chevrolet Caprice is simpler than on modern vehicles, but the spark plug wires are just as important. When they start to fail, you'll notice. Common symptoms include a rough idle, engine hesitation or stumbling during acceleration, and a general loss of power. You might also experience a decrease in fuel economy or have difficulty starting the engine. In some cases, you can see physical damage like cracks, melting, or burn marks on the wires or boots.
Don't Ignore the Signs
Continuing to drive with bad spark plug wires can lead to incomplete fuel combustion. This not only wastes gas but can also cause engine misfires that may lead to more significant engine problems over time.
Choosing the Right Aftermarket Spark Plug Wires
For a vintage vehicle like the 1966-1975 Caprice, original equipment (OEM) wires are no longer available from Chevrolet. However, ACDelco, GM's parts division, is widely considered the closest to original and is a trusted choice for stock restorations. Aftermarket brands offer a wide range of options, from standard replacements to high-performance upgrades.
Standard & OEM-Style Replacements
These brands are excellent for daily drivers and stock restorations. They are designed to meet or exceed the original factory specifications from the 1960s and 70s, offering reliable performance at a good price.
- ACDelco: Often seen as the go-to for a factory-correct fit and performance. Many classic Chevy owners prefer ACDelco for a stock look and proven reliability.

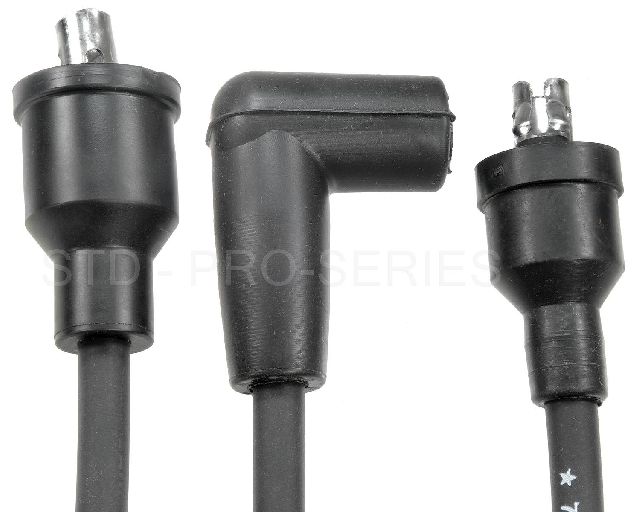

- Standard (Standard Motor Products): A well-respected brand in the aftermarket, offering quality replacement parts.

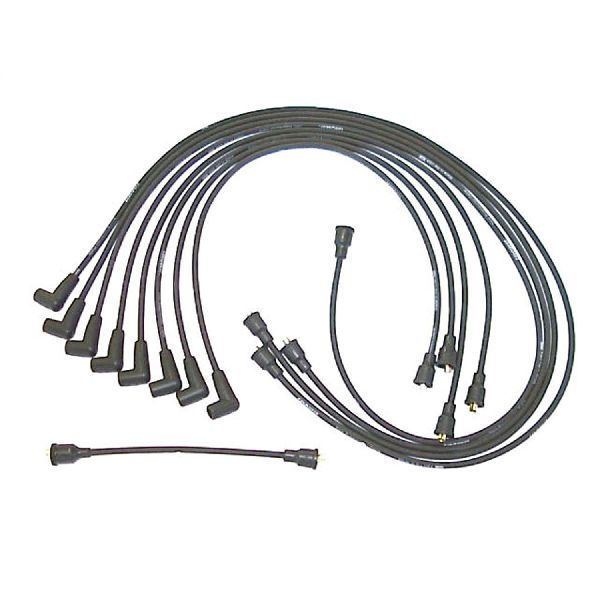

- Delphi, Denso, NGK: These are all reputable manufacturers that produce quality ignition components that serve as reliable replacements.
Performance & Street/Strip Upgrades
If your Caprice has a modified engine, especially with aftermarket headers that produce more heat, a performance wire set is a smart investment. These wires typically feature thicker jackets for better heat resistance and lower electrical resistance for a stronger spark.
- MSD (Ignition): A top name in performance ignition systems. Their 8.5mm Super Conductor wires are known for extremely low resistance and are a popular choice for modified engines.
- Taylor Cable: Another very popular choice, offering a variety of wire types, diameters, and colors. They are well-regarded for quality and are often used in both street and race applications.
- Accel, Pertronix, Edelbrock, FAST: These brands also offer high-quality performance wire sets, often with features like silicone boots and jackets to withstand high engine bay temperatures.
Wire Diameter and Material
Stock wires were typically 7mm. Many aftermarket sets are 8mm, 8.5mm, or even larger. A thicker wire offers better insulation and heat resistance, which is beneficial if your wires are routed near hot exhaust manifolds or headers. Performance wires often use a spiral-wound conductor, which provides low resistance for a hotter spark while suppressing the radio frequency interference (RFI) that can cause static in your AM radio.
Estimated Costs for Spark Plug Wire Replacement
| Item | Estimated Cost |
|---|---|
| New Aftermarket Wire Set | $24 - $253 |
| Shop Labor | $100 - $200 |
| Total Estimated Cost | $124 - $453 |
Cost estimates are for parts and labor and can vary based on your location and the specific parts chosen.
Frequently Asked Questions
How hard is it to replace spark plug wires on a 1966-1975 Caprice?
This is a straightforward job that most DIY mechanics can complete in under an hour. The key is to replace one wire at a time to avoid mixing up the firing order. Make sure each new wire is the same length as the one it's replacing and that the boots click firmly into place on the distributor cap and spark plug.
Do I need special tools?
No special tools are usually required. A spark plug wire puller can be helpful to avoid damaging the boots when removing old wires, but they can often be removed by hand. Applying a small amount of dielectric grease to the inside of the new boots can make installation easier and prevent them from getting stuck in the future.
Are expensive performance wires worth the money for a stock engine?
For a stock, unmodified engine, a quality standard replacement set from a brand like ACDelco is perfectly adequate. While high-performance wires won't harm a stock engine, you are unlikely to notice a significant performance gain to justify the extra cost. Their main benefits—superior heat resistance and low electrical resistance—are most valuable on high-compression or modified engines.
What is the difference between universal and custom-fit wire sets?
Custom-fit sets come with all the wires pre-cut to the correct length for your specific engine, with the boots already installed. Universal sets provide long lengths of wire and a collection of terminals and boots, requiring you to cut each wire to length and crimp the ends yourself. For most owners, a custom-fit set is the easier and more reliable option.
Technical Specifications
Common Wire Diameters: 7mm (stock), 8mm, 8.5mm. Conductor Types: Carbon Core (stock-style), Spiral Core (performance). Boot Material: Silicone is common for its high heat resistance. Boot Angle: Typically straight or 90-degree boots are used.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
