Electric Fuel Pump Upgrade Guide for the 1966-1975 Chevrolet Corvette
Move on from the original mechanical pump to a more reliable and better-performing electric fuel pump.
- Upgrading to an electric fuel pump is a modification, not a direct replacement, for 1966-1975 Corvettes.
- Choose a low-pressure pump (5-7 PSI) designed for carbureted engines to avoid flooding.
- For safety, wire the pump with an oil pressure cut-off or inertia switch.
- Mount the pump near the fuel tank and install a filter before the pump's inlet to ensure longevity.
Mechanical vs. Electric: Why Upgrade Your Corvette's Fuel Pump?
Your classic Corvette was built with a mechanical fuel pump mounted to the engine block. 🎬 Watch: How to install and test a mechanical fuel pump. This pump uses a lever that rides on the camshaft to pump fuel. While simple and reliable for its era, it has drawbacks today. Modern gasoline can boil at lower temperatures in the fuel line, a problem known as vapor lock, which starves the engine of fuel. Also, if the car sits for a while, it can take a lot of engine cranking to get fuel up to the carburetor.
An electric fuel pump solves these problems. Mounted near the fuel tank, it pushes fuel to the engine at a constant pressure. This setup is less prone to vapor lock and ensures the carburetor is ready to go as soon as you turn the key. It's a common and highly recommended upgrade for classic Corvette owners who want to improve drivability and reliability.
Safety First When Installing
Installing an electric fuel pump involves working with fuel lines and electrical wiring. It is critical to ensure there are no leaks and that the wiring is done correctly. A safety shut-off switch, such as an oil pressure switch or an inertia switch, is highly recommended. This will cut power to the pump if the engine stalls or in case of an accident, preventing fuel from being pumped continuously.
Signs of a Failing Fuel Pump
Whether you have a mechanical or electric pump, the signs of failure are similar and usually involve fuel starvation. Common symptoms include:
- Engine Sputtering: Especially at high speeds or under load, the engine may sputter or jerk as if it's running out of gas.
- Loss of Power: You might notice the car struggles to accelerate, climb hills, or tow.
- Hard Starting: The engine cranks but takes a long time to start, or fails to start at all.
- Engine Stalling: The engine may stall unexpectedly, particularly when it's hot.
- Sudden Surges: A failing pump can sometimes send inconsistent pressure, causing the car to surge forward unexpectedly.
Choosing the Right Aftermarket Electric Fuel Pump
For a carbureted Corvette, you don't need high pressure. In fact, too much pressure can overwhelm the carburetor's needle and seat, causing flooding. Look for a low-pressure, high-volume pump. The ideal pressure is typically between 5 and 7 PSI.
A fuel pressure regulator is a wise investment. It allows you to dial in the exact pressure your carburetor needs and ensures it remains stable.
Brand Quality Tiers
When choosing a brand, you'll find options that fit different needs and budgets:

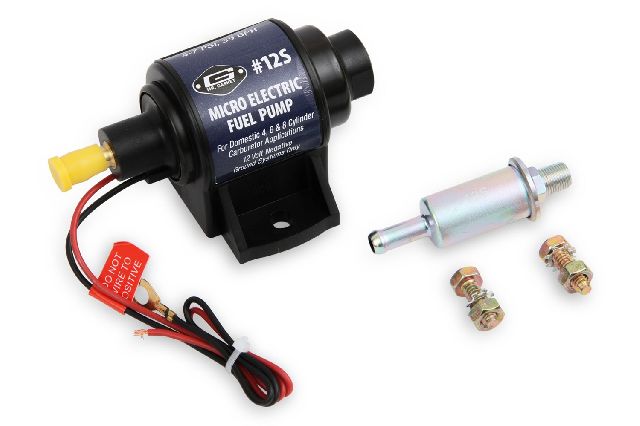

- Performance/Reliable Tier (Carter, Mr. Gasket): Brands like Carter are well-regarded in the classic car community for their reliability and suitability for street use. They are known to be durable and compatible with modern fuels. Mr. Gasket also offers popular, budget-friendly pumps that are suitable for stock to mildly modified engines.

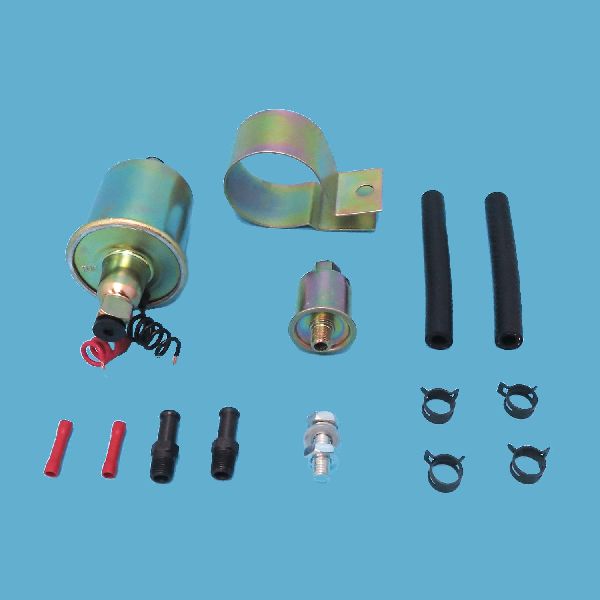

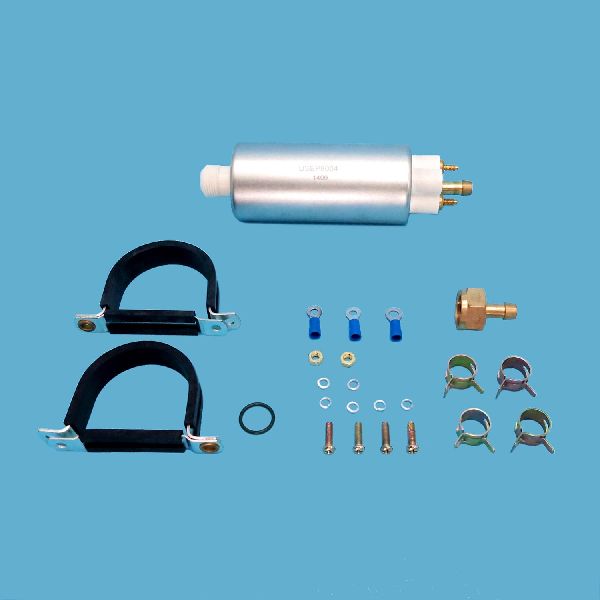

- Standard/Budget Tier (GMB, US Motor Works): These brands offer a more affordable entry point. GMB and US Motor Works are known to produce a wide range of automotive parts. While they can be a cost-effective solution, some user reviews suggest a higher potential for early failure compared to premium brands, particularly with check valves in some designs. For a daily driver or a car you depend on, investing in a more reputable brand may be worthwhile.
Estimated Costs for Electric Fuel Pump Conversion
| Item | Estimated Cost |
|---|---|
| New Aftermarket Electric Fuel Pump | $54 - $98 |
| Fuel Pressure Regulator (Recommended) | $30 - $100 |
| Installation Supplies (hoses, clamps, wiring, filter) | $40 - $80 |
| Shop Labor for Installation | $250 - $450 |
Note: Costs are estimates and can vary based on your location, the specific parts chosen, and the rates of your mechanic.
Frequently Asked Questions
Do I have to remove my old mechanical pump?
Yes. Once you install an electric pump, the old mechanical pump is no longer needed. You must remove it and use a fuel pump block-off plate to seal the opening on the engine block. This is a simple plate that bolts in place of the old pump.
🎬 Watch: A step-by-step guide to fuel pump removal and installation.What fuel pressure (PSI) do I need for my Corvette?
For a stock or mildly modified carbureted engine, you typically need 5-7 PSI. It is crucial not to use a high-pressure fuel injection pump, as it will flood the carburetor. Always check the specifications for your carburetor model.
Where should the electric fuel pump be mounted?
Electric fuel pumps are designed to push fuel, not pull it. For best results, the pump should be mounted as close to the fuel tank as possible and at a level below the tank's fuel outlet. 🎬 See this walkthrough for installing an in-tank electric pump. This ensures it gets a steady supply of fuel by gravity.
Do I need a special filter?
It is highly recommended to install a fuel filter between the tank and the inlet of the electric pump. This protects the pump from any debris or rust from the fuel tank, extending its life.
Helpful Videos
Technical Specifications
Required Pressure: 5-7 PSI for carbureted applications. Flow Rate: Varies by engine needs, but a pump rated for 70-100 GPH (Gallons Per Hour) is typically sufficient for most small-block and big-block V8s.
