A Caprice Owner's Guide to Universal Joint Replacement (1966-1976)
That clunking or vibration from under your classic Caprice could be a bad U-joint; here's how to choose the right replacement.
- Symptoms like clunking, squeaking, and highway vibrations are clear signs of a failing U-joint that should not be ignored.
- Original U-joints from this era were often held in with injected plastic, making the first replacement more difficult.
- For maximum durability, choose a premium non-greasable U-joint from a brand like Dana Spicer or SKF.
- It is strongly recommended to replace both U-joints on the driveshaft at the same time to save on future labor.
Symptoms of a Failing Universal Joint
When a U-joint wears out, it will give you clear warning signs. Ignoring them can lead to the driveshaft separating from the car, causing major damage and a dangerous loss of control. Look out for these common symptoms:
🎬 Watch: Hear what a failing U-joint clunk sounds like- Clunking or Banging Noise: A loud "clunk" or "ping" when you shift from Park into Drive or Reverse is a classic sign of a worn U-joint with too much play.
- Vibration at Speed: A vibration or shudder that you can feel through the floor or seats is very common. This vibration often appears at highway speeds (above 40-50 mph) and may change or disappear when you let off the gas.
- Squeaking or Chirping: A rhythmic squeaking sound that gets faster as you drive, especially at low speeds, usually means the U-joint has lost its grease and the internal needle bearings are failing.
- Visible Rust or Dryness: If you look under the car, you might see rust-colored dust around the U-joint's bearing caps. This indicates the internal grease is gone and the bearings are turning to dust.
A Note on Original GM U-Joints
Many 1966-1976 Caprice models came from the factory with non-serviceable U-joints. Instead of using clips, GM held the bearing caps in with injected plastic. 🎬 See how to safely melt out factory plastic injected joints To replace these original joints, the plastic must be melted out with a torch or pressed out with significant force. The new aftermarket U-joints will then be secured with the included C-clips or snap rings. This makes the first U-joint replacement more difficult than subsequent ones.
Choosing the Right Aftermarket U-Joint
You have several excellent brands to choose from. They generally fall into three tiers of quality and price. Your choice depends on your budget and how you use your Caprice.
Brand Quality Tiers
| Tier | Brands | Best For |
|---|---|---|
| Premium / Heavy-Duty | Dana Spicer, SKF (Brute Force), Yukon Gear | Owners who want the best durability and strength, especially for modified cars or heavy use. Spicer is often the original equipment manufacturer and a top choice in forums. Yukon Gear offers extreme-duty joints for maximum strength. |
| OEM Quality / Standard | ACDelco, Moog | A reliable, stock replacement. ACDelco is GM's own parts brand, offering a direct-fit, quality part. Moog is a well-known aftermarket brand, though some users note recent quality can be inconsistent. |
| Value / Economy | GMB | Daily drivers and budget-conscious repairs. GMB is a Japanese manufacturer that provides a good quality part for the price, meeting or exceeding OEM specs. |
Greasable vs. Non-Greasable: You'll see options for U-joints with or without a grease zerk fitting. Non-greasable (sealed) joints are generally considered stronger because the main body isn't drilled, which can be a weak point. Greasable joints allow you to add fresh grease to push out water and dirt, but they must be serviced regularly. For most classic car owners, a high-quality sealed joint from a premium brand is a great, maintenance-free choice.
Frequently Asked Questions (FAQ)
How many U-joints does my 1966-1976 Caprice have?
Most standard Caprice models of this era have a one-piece driveshaft with two U-joints: one connecting to the transmission and one connecting to the rear differential. Some station wagon or heavy-duty models might have a two-piece driveshaft, which would have three U-joints and a center support bearing.
Should I replace both U-joints at the same time?
Yes. It is highly recommended to replace both U-joints at the same time. The labor to remove the driveshaft is the same, and if one joint has failed due to age and mileage, the other is likely not far behind. This saves you from doing the same job twice.

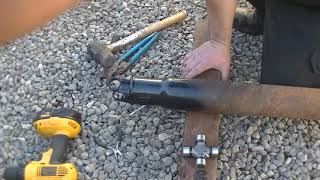

🎬 Watch this step-by-step U-joint replacement on a '66 CapriceCan I replace a U-joint myself?
Yes, this is a DIY-feasible job for someone with mechanical experience and the right tools. You will need a good set of wrenches, a hammer, and either a bench vise with large sockets or a dedicated U-joint press tool to remove the old joint and install the new one. Be careful not to drop the needle bearings inside the new caps during installation.
Are there any recalls for my Caprice's U-joints?
No. There are no known safety recalls from the NHTSA for universal joints on the 1966-1976 Chevrolet Caprice.

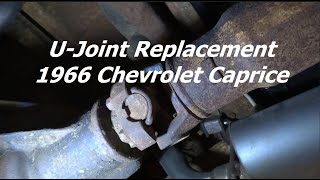

Helpful Videos
Technical Specifications
Most 1966-1976 Caprice models use a 1310 series U-joint, but variations exist. Always verify the correct part for your specific year, engine, and transmission combination. Original joints were held by injected plastic; replacements use inside C-clips or outside snap rings.
