A Guide to Replacing the Engine Oil Pan on a 1966-1977 Chevrolet Caprice
Stop messy oil leaks and protect your classic Caprice's engine by choosing the right new aftermarket oil pan.
- The most common failures on a 1966-1977 Caprice are rust, impact damage, and stripped drain plugs.
- You must confirm if your Caprice has a Small Block or Big Block V8, as the oil pans are different.
- Replacement almost always requires lifting the engine slightly to gain clearance for removal.
- While the pan is off, it is a smart and inexpensive upgrade to also replace the oil pump and pickup tube.
Why Replace Your Caprice's Oil Pan?
On a classic car like the 1966-1977 Chevrolet Caprice, the original stamped steel oil pan has faced decades of use. The most common reasons for replacement are rust, damage from road debris, and stripped drain plug threads from years of oil changes. A leaking oil pan isn't just messy; it can lead to dangerously low oil levels, risking severe engine damage. Since new original equipment (OEM) pans are generally unavailable, a new aftermarket part is the most practical solution.
Symptoms of a Failing Oil Pan
- Oil Puddles: The most obvious sign is a puddle of brown or black oil on the ground where you park.
- Low Oil Level: You may find yourself needing to add oil frequently between changes, or the oil pressure warning light may flicker or stay on.
- Visible Damage: A visual inspection might show that the pan is dented, scraped, or covered in a film of oily grime.
- Leaking Drain Plug: Oil dripping from the drain plug even after it's been tightened is a common failure point.
Check for Other Leaks First
Before blaming the oil pan, make sure the leak isn't coming from higher up on the engine. Leaks from valve covers or the rear main seal can drip down and make it look like the oil pan is the problem. Thoroughly clean the engine with a degreaser, drive it for a short time, and then re-check to pinpoint the source of the leak.
🎬 Watch this guide on how to confirm an oil pan leak.Choosing the Right Aftermarket Oil Pan
For your Caprice, several aftermarket brands offer replacement oil pans. They generally fall into two categories: standard replacement and performance/custom. Your choice depends on your needs and budget.
Standard Replacement Brands
These brands focus on providing a direct, factory-style fit and finish. They are ideal for owners looking for a reliable, stock-like solution.
- Dorman: A well-known aftermarket brand, Dorman often provides parts that fit and function like the original. They are a dependable choice for daily drivers and restorations.
- Spectra: Often compared to Dorman, Spectra also produces quality replacement pans. Some users report they are made from a thick gauge of steel. In some cases, Dorman and Spectra parts may even be identical.
- ATP & Pioneer Cable: These brands are also known for producing OE-style replacement parts. Some users have noted that ATP pans can have good corrosion resistance.
Performance & Custom Brands
These brands often offer features not found on stock pans, such as chrome finishes, increased oil capacity, or finned aluminum construction for better cooling.

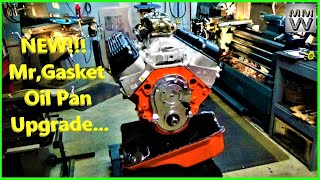

- Mr. Gasket, Proform, Trans-dapt: These brands cater to the performance and custom car scene. They may offer pans with extra capacity (e.g., 5 or 6 quarts), which can be beneficial for modified engines. While the chrome looks great, be aware that some lower-quality chrome pans can be prone to leaks, especially around the drain plug. 🎬 See a performance oil pan upgrade on a Big Block Chevy. Always check for fitment notes, especially regarding engine crossmembers or windage trays.
A Note on Gaskets
Choosing the right gasket is as important as the pan itself. For Small Block Chevys, there are "thick" and "thin" front seals depending on the year (1975 and later typically use the thick seal). Most aftermarket pans use the thick seal. Using a modern one-piece rubber gasket can often provide a better seal than the original four-piece cork style.
Estimated Replacement Costs
The cost to replace the oil pan on your Caprice will vary based on the parts you choose and labor rates in your area.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Oil Pan | $104.94 - $292.22 |
| Used OEM Oil Pan | $50 - $150+ (if available) |
| Gasket Set | $20 - $50 |
| Shop Labor | $250 - $500 |
| Total Estimated Cost | $375 - $840+ |
Frequently Asked Questions
Is replacing the oil pan a DIY job?
For an experienced home mechanic, yes. However, it's a messy job that requires safely lifting the vehicle. On many 1966-1977 GM cars, you must lift the engine an inch or two off the motor mounts to get enough clearance to remove the pan. This adds significant complexity to the job.
🎬 Watch a step-by-step oil pan gasket replacement on a Caprice.Do I need to get a Small Block or Big Block pan?
Yes, this is critical. The oil pans for Small Block Chevy engines (like the 307, 327, 350, 400) and Big Block Chevy engines (like the 396, 427, 454) are different and are not interchangeable. You must order the correct pan for the engine in your Caprice.
Should I replace the oil pump at the same time?
While the oil pan is off, you have direct access to the oil pump and pickup tube. It is highly recommended to replace the oil pump and pickup tube as a preventative measure, especially on a high-mileage engine. It's an inexpensive part that is critical to engine survival.
Can I just repair my old oil pan?
For small dents that don't affect the gasket surface or oil pickup clearance, a repair might be possible. However, for cracks, severe rust, or stripped drain plugs, replacement is the safer and more reliable option. Given the reasonable cost of a new aftermarket pan, replacement is usually the better choice.
Helpful Videos
Technical Specifications
OEM Part Numbers: 14079399 3974252
The standard oil pan for a Small Block Chevy in this era is made of stamped steel with a rear sump location. It typically has a 4 or 5-quart capacity (not including the filter). Pans for engines from 1975-onward generally require a 'thick' front seal, while pre-1975 pans use a 'thin' seal. Most aftermarket pans are designed for the thick seal.
