Engine Coolant Bypass Hose Guide for the 1966-1979 Chevrolet Caprice
Keep your classic Caprice from overheating by understanding this small but critical cooling system part.
- A failing bypass hose will cause coolant leaks and can lead to critical engine overheating.
- Always use a pre-molded hose from a quality brand like ACDelco, Gates, or Dayco; do not use a straight hose, as it can kink.
- This is an inexpensive and simple DIY repair that can prevent very expensive engine damage.
- If the bypass hose has failed from age, it is wise to replace all other coolant hoses, clamps, and the thermostat at the same time.
Is Your Caprice's Engine Coolant Bypass Hose Failing?
On a classic car like the 1966-1979 Chevrolet Caprice, rubber components are often the first parts to fail simply due to age. The bypass hose is constantly exposed to high heat and pressure. After decades, the original rubber becomes hard, brittle, and prone to cracking. Failure isn't a matter of if, but when. Ignoring the warning signs can lead to severe engine damage from overheating.
Signs of a Bad Bypass Hose
- Coolant Leaks: This is the most obvious symptom. You may find bright green or orange fluid dripping under the front of the engine. A small leak can leave behind a white or greenish crusty residue around the hose clamps.
- Sweet Smell: Antifreeze has a distinct sweet odor. If you smell this in your engine bay, you likely have a coolant leak, even if you can't see it yet.
- Engine Overheating: A complete hose failure will cause a rapid loss of coolant, making the temperature gauge spike. This can quickly lead to a blown head gasket or cracked cylinder head.
- Visible Hose Damage: Inspect the hose. If it looks swollen, feels spongy, or has visible cracks, it needs to be replaced immediately.
Choosing the Right Aftermarket Bypass Hose
Since New Old Stock (NOS) GM parts for this specific hose are rare and expensive, the aftermarket is your best source. For a simple molded rubber part like a bypass hose, quality aftermarket brands offer excellent performance and value.
- Premium Brands (ACDelco, Gates, Dayco): These are all trusted names in the industry. ACDelco is GM's own parts brand and is often considered the original equipment equivalent. Gates and Dayco are major manufacturers of belts and hoses, and their products are known for good fitment and durability. For a classic Caprice, any of these brands will provide a reliable, long-lasting replacement. The most important factor is ensuring the part number matches your specific engine (e.g., small-block vs. big-block V8).
Molded vs. Straight Hose
Always use a pre-molded hose designed for your Caprice. The bypass hose often has a specific shape to navigate around other engine components. Using a generic straight piece of hose can cause it to kink, which restricts coolant flow and can lead to overheating.
Estimated Cost for Replacement
| Part Type | Cost Range |
|---|---|
| New Aftermarket Hose | $12.66 - $97.57 |
| Shop Labor | $50 - $150 |
Cost estimates are for the part and labor only and do not include the cost of new coolant or other related parts.
Frequently Asked Questions
Can I drive my Caprice with a leaking bypass hose?
No. A coolant leak can quickly lead to engine overheating, which can cause catastrophic and expensive engine damage. It is not safe to drive the vehicle until the leak is repaired.
How difficult is it to replace the bypass hose myself?
For a mechanically inclined owner, this is a relatively easy job. Access on these older V8 engines is generally good. The job requires basic hand tools, a drain pan, and new coolant. Ensure the engine is completely cool before starting.
Should I replace other parts at the same time?
Yes. If the bypass hose has failed due to age, it's highly likely your main radiator hoses and heater hoses are also near the end of their life. It is strongly recommended to replace all coolant hoses, the thermostat, and the hose clamps at the same time as a preventative measure.
Are there any recalls for this part?
No specific recalls were found for the engine coolant bypass hose on the 1966-1979 Chevrolet Caprice. Searches for recalls primarily show issues for much newer models concerning power steering and airbags.
Technical Specifications

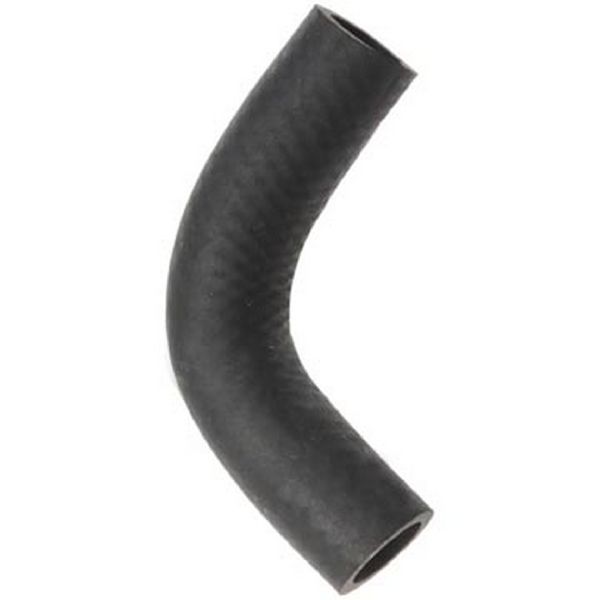

This is a molded EPDM rubber hose, typically with 5/8" or 3/4" inner diameters depending on the specific engine application (small block vs. big block). It is designed to connect the water pump to the intake manifold.
