Chevrolet C10 Suburban Headlight Switch Guide (1967-1981)
Having trouble with your lights? Your dash-mounted headlight switch is a common and easy-to-fix problem.
- Failure symptoms include flickering lights, lights not turning on, or a non-functional dash dimmer.
- Replacement is very easy and DIY-friendly, typically taking under 30 minutes.
- Always inspect the wiring connector for heat damage or corrosion when replacing the switch.
- For improved reliability, consider a known brand like Standard Ignition and add a headlight relay harness to reduce the electrical load on the switch.
Is Your Headlight Switch Failing?
The headlight switch on these classic Suburbans is a simple part, but it handles a lot of electrical load. Over decades of use, the internal contacts can wear out, get corroded, or fail from heat. If you're experiencing lighting problems, there's a good chance this switch is the culprit.
Common Symptoms of a Bad Switch:
- No Headlights or Parking Lights: The most obvious sign is when your lights don't turn on at all when you pull the switch.
- Intermittent Lights: Your headlights or dash lights may flicker, or cut out when driving over bumps.
- Works in Only One Position: You might have parking lights but no headlights, or vice-versa.
- Dimmer Failure: The function that dims and brightens the instrument panel lights may stop working.
- Switch is Hot to the Touch: A failing switch or poor connection can create high resistance, generating heat that you may feel or smell.
Choosing the Right Aftermarket Headlight Switch
For a vehicle of this age, new Original Equipment Manufacturer (OEM) parts are generally not available. The good news is that the aftermarket offers reliable options that are easy to install.
Brand Quality Tiers
- Better (Standard Ignition): Standard Motor Products (SMP), or Standard Ignition, is a well-regarded aftermarket brand known for producing quality electrical components. For a critical safety part like a headlight switch, choosing a brand with a reputation for reliability is a smart investment for long-term peace of mind.
- Good (Replacement): A generic "Replacement" brand switch will get the job done and is the most budget-friendly option. These parts will restore function and are perfectly adequate for many owners. However, quality can be less consistent than with a named brand.
Headlight Switch Replacement Cost
Replacing the headlight switch is one of the easier and more affordable repairs you can do on your C10 Suburban.
| Part or Service | Estimated Cost |
|---|---|
| New Aftermarket Headlight Switch | $27 - $59 |
| Shop Labor | $50 - $100 |
| Total Estimated Cost | $77 - $159 |
Cost estimates are for parts and labor and may vary based on your location and specific vehicle condition.
Frequently Asked Questions
How do I know if it's the headlight switch or the dimmer switch?
If none of your lights work (headlights, parking lights, dash lights), the main headlight switch is the most likely cause. If your headlights turn on but you can't switch between high and low beams, the floor-mounted dimmer switch is the probable culprit.
Is replacing the headlight switch a difficult job?
No, this is a very easy job for a DIYer. It typically takes less than 30 minutes and requires no special tools. The process involves pressing a release button on the switch body to remove the knob, unscrewing a retaining nut, and unplugging the connector.
🎬 Watch this step-by-step guide to replacing your headlight switch.Why did my new headlight switch fail so quickly?
If a new switch fails, the problem is likely in the wiring. A common issue is a melted or corroded electrical connector that plugs into the switch. This creates a poor connection and high resistance, which generates heat and can burn out the new switch. Always inspect the connector and replace it if it shows any signs of damage.
Do I need to disconnect the battery to replace the switch?
Yes, it is always recommended to disconnect the negative battery terminal before working on any electrical components in your vehicle. This prevents accidental short circuits that could damage parts or cause injury.

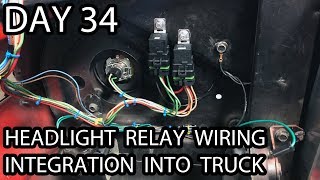

Helpful Videos
Technical Specifications
Due to the long 15-year production run, several different part numbers were used. The switch is a dash-mounted, 7-pin pull-style switch that controls headlights, parking lights, and instrument panel dimming. Always verify fitment for your specific year before ordering.
