Toyota Corolla Engine Timing Chain Tensioner Guide (1968-1983)
Hearing a rattle when you start your classic Corolla? Your timing chain tensioner might be the cause.
- The most common sign of failure is a rattling noise from the engine on cold startups.
- Do not ignore a rattling noise; a loose chain can jump time and cause catastrophic engine damage.
- Quality aftermarket brands like Cloyes and INA are excellent, practical choices as new OEM parts are unavailable.
- For a complete and lasting repair, replace the timing chain and guides along with the tensioner.
Is Your Corolla's Timing Chain Tensioner Failing?
For classic Corollas with engines like the K-series and T-series, the timing chain system is built to last. However, after decades of service, the tensioner is a common wear item. Its failure is often the first sign of trouble in the timing system.
Symptoms of a Bad Tensioner
Listen carefully to your engine, especially when it's cold. The signs of a failing tensioner are usually easy to hear.
- Rattling Noise on Startup: This is the most common symptom. A metallic rattle or clatter for a few seconds after starting the engine, which may quiet down as oil pressure builds, points to a weak or worn-out tensioner.
- Consistent Engine Noise: If the rattling doesn't go away as the engine warms up, the tensioner may have failed completely, leaving the chain loose at all times.
- Rough Idle or Misfires: A very loose chain can cause the engine's timing to be slightly off, leading to poor performance, a shaky idle, or misfiring.
- Engine Won't Start: In a worst-case scenario, a completely failed tensioner can allow the chain to jump a tooth on the sprockets. This will prevent the engine from starting and can cause severe internal damage.
Don't Ignore the Rattle
A rattling timing chain should be addressed immediately. Continuing to drive with a loose chain risks the chain skipping time or breaking, which can lead to bent valves and catastrophic engine failure, especially on interference engines.
Choosing the Right Aftermarket Tensioner
For a vehicle from this era, finding a new Original Equipment Manufacturer (OEM) tensioner from Toyota is nearly impossible. The good news is that reputable aftermarket brands produce high-quality replacements that meet or exceed original specifications.
| Brand Tier | Our Available Brands | Quality & Performance Notes |
|---|---|---|
| Premium Aftermarket | Cloyes, INA | Both brands are highly regarded for timing components. Cloyes is a well-known and trusted name in the aftermarket, often considered a top-tier choice by mechanics. INA (part of the Schaeffler group) is known for its German engineering and focus on producing parts to OEM quality standards. For your Corolla, either brand is a reliable choice for durability and proper function. |
| OEM / Dealer | N/A | New OEM parts for this vehicle are generally discontinued or only available as expensive New Old Stock (NOS) through specialty suppliers. An aftermarket part from a quality brand is the most practical and reliable option. |
Pro Tip: Replace More Than Just the Tensioner
Since replacing the tensioner requires removing the timing cover, it is highly recommended to replace the timing chain and the plastic or metal guides at the same time. These components wear together, and installing a new tensioner with an old, stretched chain is not a complete or lasting repair.
Frequently Asked Questions (FAQ)
Are there any recalls for the 1968-1983 Corolla timing chain tensioner?
No, searches of the National Highway Traffic Safety Administration (NHTSA) database show no open recalls for the timing chain or tensioner on these model years.
Why does the tensioner fail?
Failure is typically due to age and mileage. The internal spring can weaken, or if it's a hydraulic design, seals can wear out. Infrequent oil changes can also contribute to premature wear by allowing sludge to build up and block small oil passages that lubricate and operate the tensioner.
Can I replace just the tensioner O-ring if it's leaking oil?
While a leaking O-ring is a common issue on some Toyota engines, it is generally recommended to replace the entire tensioner assembly. The cost of the full part is low compared to the labor involved, and replacing the whole unit ensures the internal mechanics are fresh and reliable.
Will a new tensioner fix my engine's rattle?
If the tensioner is the cause of the slack, yes. However, the rattle could also be from worn timing chain guides or a stretched chain. That's why it's best practice to replace the tensioner, chain, and guides as a complete kit.
Technical Specifications

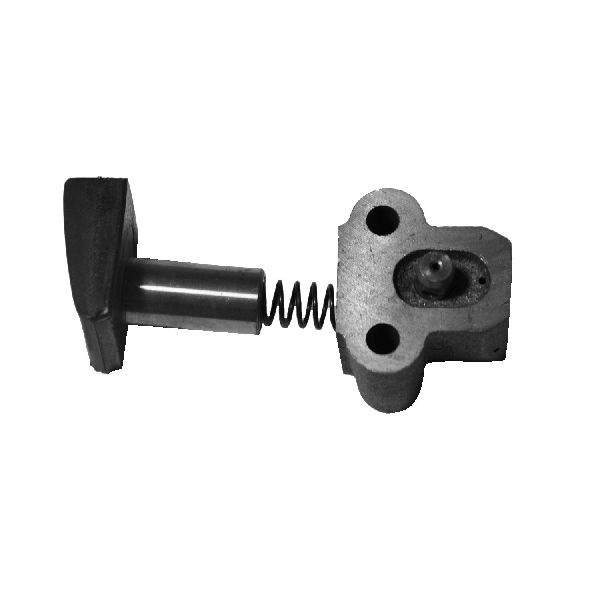

Primarily mechanical spring-loaded or hydraulic-assisted tensioner designed for Toyota K-series and T-series engines.
