Volvo 164 Engine Oil Pressure Switch: A Guide for 1969-1975 Models
Understanding the simple but critical oil pressure switch in your classic Volvo 164's B30 engine.
- A flickering or illuminated oil light is a critical warning; stop the engine immediately and check the oil level.
- Replacing a faulty switch is a simple, inexpensive DIY job that can prevent misdiagnosis of a larger issue.
- No recalls or TSBs exist for this part; failures are due to age.
- Always confirm actual oil pressure with a mechanical gauge before assuming the switch is the only problem.
Understanding Failures in Your Volvo 164
The oil pressure switch is a straightforward part, but it lives in a harsh environment of heat and vibration. Over decades, the internal diaphragm can fail, or the housing can crack and leak oil. Sometimes, the electrical connection can become corroded or the wire leading to it can break, causing the light to not work at all or flicker. It's important to remember that a flickering oil light doesn't always mean the switch is bad; it could be warning you of a genuine and serious low oil pressure problem.
Choosing the Right Aftermarket Switch
For a vehicle like the 1969-1975 Volvo 164, the distinction between OEM and quality aftermarket parts is less about advanced technology and more about manufacturing quality. The original switches are long out of production, so a new aftermarket part is the standard choice. Brands like Standard Ignition and Calorstat are common in the aftermarket. Standard Ignition is a well-established brand known for producing a wide range of vehicle electronics. Calorstat is often an OE supplier for some components, though their aftermarket quality can vary like any brand. Given the low cost and critical function of this switch, choosing a recognized brand is a wise investment over a generic, unbranded part.
Estimated Costs
| New Aftermarket Switch | $10 - $21 |
| Shop Labor to Install | $50 - $100 |
Diagnosing the Problem Correctly
An oil pressure warning is one of the most serious lights you can see on your dashboard. If the light comes on while driving, pull over safely and turn off the engine immediately to prevent damage. The first step is always to check the engine oil level. If the level is correct, the issue could be a faulty switch, a wiring problem, or a more serious internal engine issue like a worn oil pump.
A simple way to test if the switch is the problem is to temporarily install a mechanical oil pressure gauge in its place. This will give you a true reading of the engine's oil pressure. 🎬 Learn how to diagnose if your oil pressure problem is serious. If the pressure is good, you know you just need to replace the switch.
Frequently Asked Questions (FAQ)
Where is the oil pressure switch located on a Volvo 164?
On the Volvo B30 engine, the oil pressure switch is typically found on the driver's side of the engine block, often near the front and below the exhaust manifold. It will have a single wire connected to it.
What are the signs of a failing oil pressure switch?
The most common signs are an oil pressure light that flickers, stays on even with a correct oil level, or never comes on at all when you first turn the key. An oil leak from the switch itself is also a clear sign of failure.
Is it difficult to replace the oil pressure switch myself?
For a home mechanic, this is a relatively easy job. It typically involves unplugging the wire, and using a deep socket or wrench to unscrew the old switch and install the new one. Access can be a little tight, but it does not require complex tools. 🎬 See how to replace an oil pressure switch using basic tools. Be prepared for a small amount of oil to spill when you remove the old switch.
Are there any recalls for the Volvo 164 oil pressure switch?
No, searches of the NHTSA database show no recalls or technical service bulletins (TSBs) related to the engine oil pressure switch for the 1969-1975 Volvo 164. Any failure today is due to the age and wear of the component.
Helpful Videos
Technical Specifications

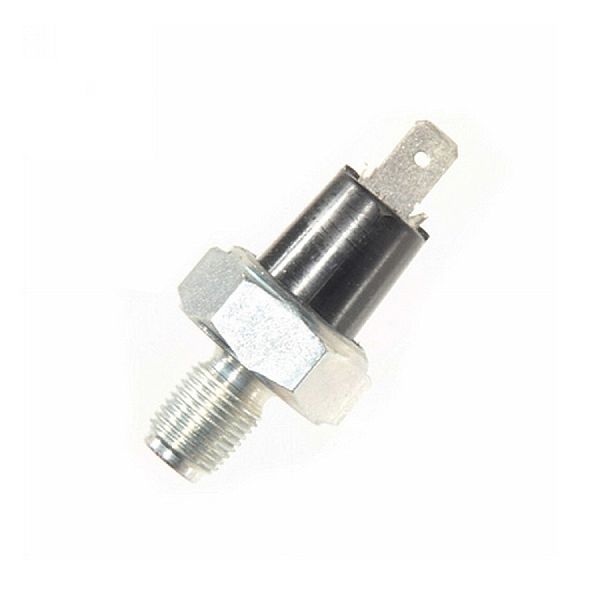

The switch is a simple on/off pressure sensor that activates the dashboard warning light. It does not provide a variable reading. Thread sizes can vary, so it is best to match the new part to the old one. Common aftermarket thread sizes include 1/8" x 27 NPT.
