Chevrolet Nova Engine Oil Pressure Switch Guide (1969-1980)
Understand the common failure points and replacement options for your Nova's oil pressure switch.
- A faulty oil pressure switch can cause a flickering or constant oil light, or leak oil.
- Always verify the engine oil level before assuming the switch is bad.
- Replacement is simple and can be done at home with basic tools, but a special socket may help.
- Stick with reputable aftermarket brands like Standard Ignition or Rostra for better reliability.
Is your Nova's oil light on? Here's what to know.
The engine oil pressure switch on a 1969-1980 Chevrolet Nova is a straightforward part, but a failing one can cause major headaches. It can either warn you of a problem that doesn't exist, or worse, fail to warn you of a real one. Because these Novas use a simple warning light system, not a full pressure gauge in most cases, this switch is your first and only line of defense against low oil pressure problems shown on the dash.
Symptoms of a Failing Oil Pressure Switch
A bad oil pressure switch can mimic the symptoms of serious engine trouble, so it's important to know what to look for. Common signs include:
- Oil Light Flickering: The oil light may flicker, especially at idle or when the engine is hot. This could mean the switch's internal diaphragm is weak.
- Oil Light Stays On: If you've checked your oil level and it's correct, but the light stays on, the switch may be stuck in the 'on' position.
- No Oil Light at Startup: The oil light should briefly illuminate when you turn the key to the 'on' position before starting the engine. If it doesn't, the switch or bulb may have failed.
- Visible Oil Leak: The switch itself can develop leaks. You might see oil seeping from the plastic connector or the threads where it screws into the engine block.
Warning: Don't Ignore the Oil Light
Never assume a lit oil light is just a faulty switch. Always check your engine oil level immediately. If the level is correct, listen for any unusual engine noises like knocking or ticking. If you hear noises, shut the engine off immediately to prevent catastrophic damage. A mechanical oil pressure test is the only way to be certain if you have a real pressure problem or just a bad switch.
🎬 Watch this guide on testing both the switch and actual engine pressure.Choosing the Right Aftermarket Switch
For a vintage vehicle like the 1969-1980 Nova, original OEM parts are long discontinued. The aftermarket is your only source for new switches. Quality is generally good for this simple part, but it's wise to stick with known brands.
- Standard Ignition (Standard Motor Products): Often considered a top-tier aftermarket brand, Standard has been making quality electrical components for decades. Their switches are known for reliability and using quality materials like high-temperature diaphragms to prevent leaks. This is often the go-to choice for mechanics.
- Rostra Powertrain: Rostra is another established brand, known for producing a wide range of automotive electronics and transmission components. They are an ISO certified company and supply parts to both OEM and aftermarket channels, indicating a strong focus on quality control.
- Global Parts: This brand typically represents a more budget-friendly option. While likely functional for its intended purpose, it may not have the same long-term durability or stringent quality control as brands like Standard or Rostra.
Pro Tip: Location, Location, Location
On most small-block and inline-six Chevy engines of this era, the oil pressure switch is located in one of two places: either on the top of the engine block behind the distributor, or on the side of the block down by the oil filter. Check both spots before ordering to be sure. Accessing the one behind the distributor can be tight, and sometimes requires a special socket.

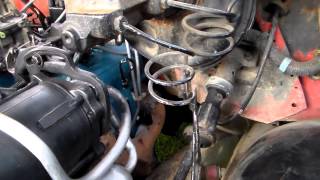

🎬 See a walkthrough of replacing sending units on a Chevy small-block.Cost of a New Oil Pressure Switch
| Part Category | Estimated Cost |
|---|---|
| New Aftermarket Switch | $14 - $20 |
| Shop Labor to Install | $50 - $100 |
Costs are estimates and can vary based on location, vehicle condition, and the specific part chosen.
Frequently Asked Questions
Can I replace the oil pressure switch myself?
Yes, this is a very DIY-friendly job for most home mechanics. It typically involves unplugging a single wire, unscrewing the old switch with a wrench or special socket, and installing the new one. The most difficult part is often just reaching the switch's location.
🎬 Watch a helpful tutorial on how to test your oil pressure switch.Do I need a special tool to replace the switch?
Sometimes. A special oil pressure switch socket can make the job easier, especially if the switch is in a tight spot. However, in many cases, a standard deep socket or a wrench will work.
Should I use thread sealant on the new switch?
Many new switches come with thread sealant already applied. If yours does not, it is a good idea to apply a small amount of automotive-grade thread sealant to prevent leaks. Do not use Teflon tape, as pieces can break off and enter the engine's oil passages.
Are there any recalls for the oil pressure switch on a 1969-1980 Nova?
No, searches of the NHTSA database and other historical records show no specific recalls for the engine oil pressure switch on this vehicle. Any recalls for this era would have been issued decades ago.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1508286
Typically a single-terminal switch with a 1/8" NPT or 3/8"-27 thread pitch. Activates the warning light at low oil pressure (usually below 5-7 PSI).
