1970-1979 Chevrolet Camaro Windshield Washer Pump: A Detailed Guide
Everything you need to know about replacing the washer pump on your second-generation Camaro.
- The washer pump on a 1970-1979 Camaro is a mechanical unit attached to the wiper motor, not a modern electric pump in the reservoir.
- Aftermarket reproduction pumps are the most common and cost-effective replacement option.
- Verify your car's specific wiper system (standard or hidden wipers) before ordering, as there are different pump designs.
- Before replacing the pump, check for simpler issues like clogged nozzles, blocked hoses, or blown fuses.
Understanding the Washer Pump in Your Classic Camaro
If you're driving a second-generation Camaro, you know that keeping it original is great, but some parts just wear out from age. The windshield washer pump is one of them. For the 1970-1979 models, this isn't a simple electric pump you drop into the fluid tank. It's a mechanical unit that bolts directly to the wiper motor. This design was common across many GM vehicles from that era. Over time, the internal rubber seals and plastic components can dry out, crack, or break, causing the pump to fail.

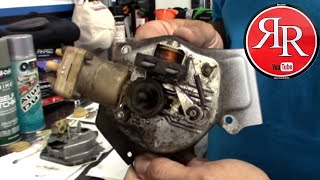

🎬 See how to rebuild a 1970-73 Camaro washer pumpSymptoms of a Failing Washer Pump
- No Fluid Spray: The most obvious sign. You press the button, the wipers move, but no fluid comes out. This could be the pump, but also check for clogged hoses or an empty reservoir first.
- Pump Runs but No Fluid: Sometimes you can hear the mechanism trying to work, but nothing happens. The internal piston or seals may have failed.
- Weak or Uneven Spray: If the fluid barely reaches the windshield, the pump may be losing its ability to build enough pressure.
- Leaks: Finding washer fluid puddles under the car could point to a cracked pump housing or bad seals.
Choosing the Right Aftermarket Part
Finding a New Old Stock (NOS) GM washer pump for a car of this age is nearly impossible and would be very expensive. Aftermarket reproduction parts are the standard and most practical solution. Brands like Trico offer universal pumps, but for a direct fit on the Camaro's wiper motor, you'll need a model-specific reproduction pump. These are designed to look and function like the original. Be aware that there were slight design changes over the years, often related to whether the car had hidden wipers. Always double-check that the pump you're buying matches your car's specific year and wiper system.
Pro Tip: Check for Simple Fixes First
Before you buy a new pump, make sure the problem isn't something simple. Check the fuse for the wiper system. Use a small pin to clear any debris from the washer nozzles. Disconnect the hose from the pump to see if it's clogged somewhere in the line. Sometimes, a new pump isn't needed at all.
Cost of Replacing a 1970-1979 Camaro Washer Pump
| Part Type | Estimated Cost |
|---|---|
| New OEM (NOS) | $100+ (if found) |
| New Aftermarket (Trico/Reproduction) | $24 - $65 |
| Shop Labor | $100 - $180 |
Frequently Asked Questions (FAQ)
Is the washer pump difficult to replace myself?

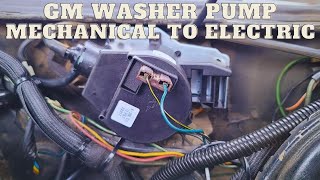

No, it's a fairly simple job for a DIY mechanic. The pump is attached to the wiper motor, which is usually located on the firewall in the engine bay. It involves removing a few screws, disconnecting the hoses and electrical connector, and swapping the pump. 🎬 Watch this walkthrough of a GM mechanical pump replacement The most difficult part can be reaching the wiper motor.
How do I know if the pump or the wiper motor is the problem?
If your wipers work in all speed settings but the washer function doesn't, the problem is likely isolated to the washer pump itself or the switch. If the wipers don't work at all, you have a larger issue with the wiper motor or the electrical circuit supplying it.

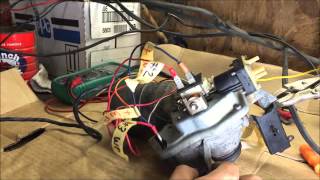

🎬 Watch: How to test your GM wiper motor and pump wiringAre there different pumps for different years in this range?
Yes. There are at least two designs. The main difference is often a slot for the wiring harness to pass through and whether the car has a recessed (hidden) wiper system. It is very important to check which version your car has before ordering a replacement part. Some owners have had to modify new pumps to get the hose outlets facing the correct direction.
Have there been any recalls for the washer pump on these Camaros?
No, there have been no specific recalls issued by the NHTSA for the windshield washer pump on the 1970-1979 Chevrolet Camaro. Any failures are due to the age and wear of the original components.
Helpful Videos
Technical Specifications
Mechanically driven pump, attaches directly to the wiper motor assembly. Available in multiple designs depending on year and wiper system options (e.g., with or without hidden wipers).
