Chevrolet C10 Suburban Disc Brake Caliper Guide (1971-1978)
Everything you need to know about replacing the front disc brake calipers on your classic 1971-1978 C10 Suburban.
- A bad caliper is a critical safety issue; symptoms include pulling to one side, a spongy pedal, or a burning smell from the wheels.
- Always replace calipers in pairs (left and right) to ensure balanced braking.
- Calipers are side-specific; installing them on the wrong side makes bleeding the brakes impossible due to incorrect bleeder screw position.
- Consider replacing the flexible rubber brake hoses at the same time, as they can degrade internally and cause calipers to stick.
Is Your C10 Suburban's Brake Caliper Failing?
A brake caliper should last a long time, but on a classic truck from the 1970s, failures can and do happen. The most common issue is a seized or sticking piston. This is often caused by a torn rubber dust boot, which lets in moisture and dirt, causing rust and corrosion on the piston. When this happens, the caliper might not squeeze the pads correctly, or worse, it might not release them. A seized caliper is a serious safety issue that needs immediate attention.
Symptoms of a Bad Caliper
- Pulling to One Side: When you hit the brakes, the truck may pull sharply to the left or right. This can happen if one caliper is working and the other is stuck.
- Spongy or Soft Brake Pedal: If a caliper piston seal is leaking brake fluid, you might notice the pedal feels soft or goes down further than usual. You may also see fluid on the inside of your wheel or on the ground.
- Dragging Sensation: A stuck caliper can cause the brake pads to constantly press against the rotor, even when you're not braking. This feels like something is holding the truck back and can cause a burning smell after driving.
- Uneven Brake Pad Wear: When you inspect your brake pads, if the inner and outer pads are worn down differently, or one side of the truck has much thinner pads than the other, a faulty caliper is a likely cause.
Safety First: Brake Work is Critical
Your truck's braking system is its most important safety feature. If you suspect a caliper has failed, it's not safe to continue driving. A stuck or leaking caliper can lead to a sudden loss of braking ability.
Choosing the Right Aftermarket Caliper
For a 1971-1978 C10 Suburban, finding a brand-new OEM caliper from GM is nearly impossible. The market consists almost entirely of aftermarket parts. You have two main choices: new aftermarket calipers or remanufactured calipers.
- New Aftermarket Calipers: These are made from 100% new materials. The caliper body, piston, and seals have never been used. This is often the preferred choice for peace of mind, as you avoid the risks associated with a previously used part. Brands like Centric and BBB Industries offer new calipers.
- Remanufactured Calipers: These use an original caliper body (the core) that has been cleaned, inspected, and rebuilt with a new piston, seals, and hardware. Cardone is a very common brand for remanufactured parts. While they can be a good value, quality can sometimes be inconsistent, as noted by owners in various forums.
Available Brands: What to Expect
The calipers on these trucks are a simple single-piston design, which makes them easier to manufacture and rebuild reliably.
- Cardone: One of the largest names in remanufactured parts. They offer a wide range of products, but online reviews show mixed experiences with quality control.
- Centric: A well-regarded aftermarket brand that offers both new and remanufactured brake components. They are often seen as a solid choice for daily drivers.

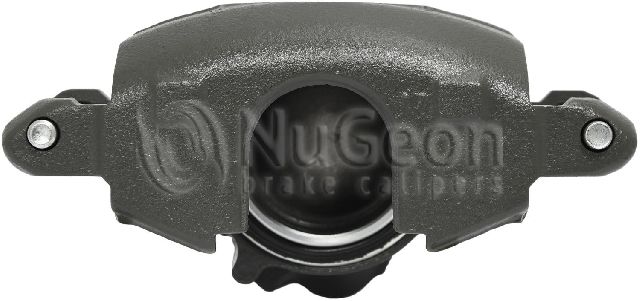

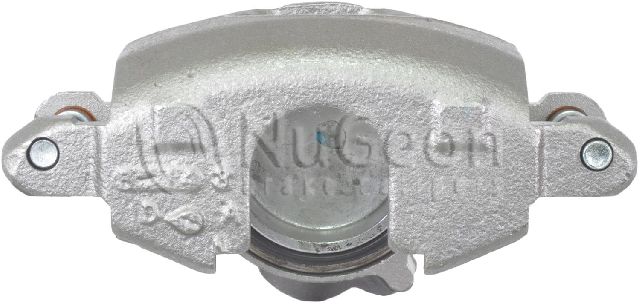

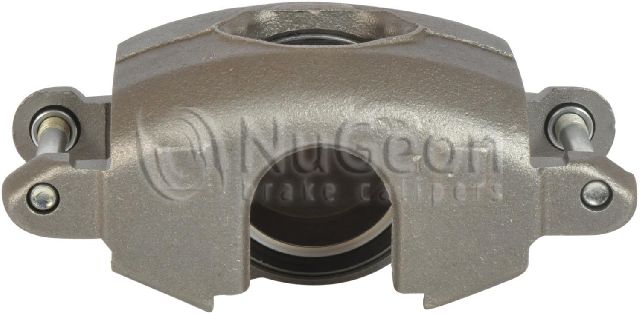

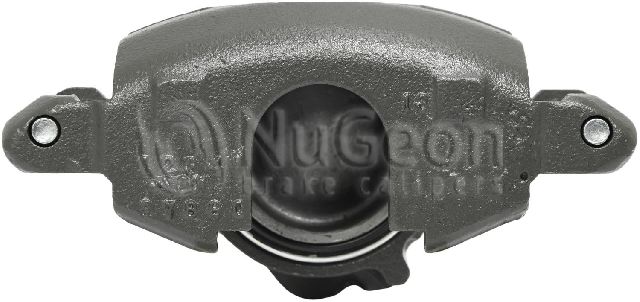

- BBB Industries: A major supplier of both new and remanufactured parts to the automotive aftermarket, known for a wide catalog of components.
Pro Tip: Inspect Before You Install
Whether you buy new or remanufactured, always inspect the caliper before installation. Check that the bleeder screw is not seized, the piston boot is properly seated, and the threads for the banjo bolt (brake hose) are clean and undamaged.
Common Ordering & Installation Mistakes
Wrong Side: Calipers are side-specific (left and right). They are marked with an "L" or "R". Installing a caliper on the wrong side will place the bleeder screw at the bottom. This makes it impossible to properly bleed the air out of the system, resulting in a spongy pedal and poor braking. The bleeder screw must always be at the highest point on the caliper to let air escape.
Not Replacing Hoses: The flexible rubber brake hoses that connect to the calipers can degrade from the inside out over 40+ years. An old hose can act like a one-way valve, trapping pressure and causing the caliper to stick. It is highly recommended to replace the front rubber brake hoses when you replace your calipers.
| Part Type | Estimated Cost (per caliper) |
|---|---|
| New Aftermarket | $27.65 - $59.72 |
| Remanufactured Aftermarket | $25 - $55 (plus core charge) |
| New OEM (NOS) | Not generally available |
| Shop Labor | $100 - $200 (per caliper) |
Frequently Asked Questions
Should I replace calipers in pairs?
Yes, it is always recommended to replace brake calipers in pairs (both front left and front right at the same time). This ensures even braking performance and prevents the truck from pulling to one side. If one caliper has failed due to age, the other is likely not far behind.
Do I need to bleed the brakes after replacing a caliper?
Absolutely. Whenever you open the hydraulic system by removing a caliper, you introduce air. You must bleed the brake system to remove all air bubbles. Failure to do so will result in a very soft, spongy pedal and dangerously reduced stopping power.
What is a "core charge"?
Remanufactured parts often have a core charge. This is a deposit you pay when you buy the part. You get the deposit back when you return your old, rebuildable caliper to the store.
Are there any recalls for my 1971-1978 Suburban's calipers?
No. There are no open recalls or Technical Service Bulletins (TSBs) from the NHTSA for the disc brake calipers on the 1971-1978 Chevrolet C10 Suburban. Any recalls you may find for Chevrolet trucks and brakes are for much newer models and different issues.
Technical Specifications

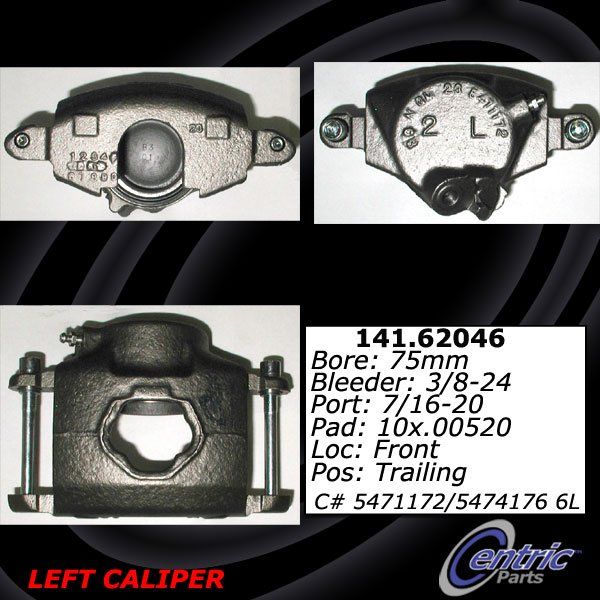

The 1971-1978 C10 Suburban uses a single-piston, floating cast iron disc brake caliper. It is a side-specific part, meaning there are unique left and right versions.
