A Guide to Front Disc Brake Calipers for the 1971-1978 GMC Jimmy
Keep your classic Jimmy stopping safely and reliably with the right set of new aftermarket brake calipers.
- Always replace front calipers as a pair to ensure safe, balanced braking.
- For this vehicle, quality remanufactured or new aftermarket calipers are the standard, as OEM parts are unavailable.
- A seized caliper is a serious safety issue; symptoms like pulling or dragging require immediate attention.
- When replacing calipers, it is essential to also inspect brake hoses and bleed the entire brake system to remove air.
Is Your Jimmy's Caliper Failing?
After five decades on the road, the original calipers on your GMC Jimmy are prone to failure from age and corrosion. The internal piston or the external slide pins can seize, and seals can dry out and leak. Recognizing the symptoms of a bad caliper is key to preventing a total brake failure.
Common Failure Symptoms:
- Vehicle Pulling to One Side: When you apply the brakes, a bad caliper can cause the truck to jerk or pull to the left or right. This happens when one caliper applies more or less force than the other.
- Brake Dragging: A seized piston or stuck slide pins can prevent the caliper from releasing the brake pad from the rotor. You might feel a dragging sensation while driving or notice excessive heat and a burning smell from one of the wheels.
- Spongy or Soft Brake Pedal: If a caliper seal fails and leaks brake fluid, it introduces air into the system. This results in a brake pedal that feels soft, spongy, or goes further to the floor than usual.
- Visible Brake Fluid Leaks: Puddles of clear or brownish fluid near your front wheels are a sure sign of a leak from the caliper or the connected brake hose.
- Uneven Brake Pad Wear: When inspecting your brake pads, if you notice one side is worn significantly more than the other, it often points to a caliper that is not functioning correctly.
Choosing the Right Aftermarket Caliper
For a classic truck like the 1971-1978 Jimmy, finding new original equipment (OEM) calipers from GM is nearly impossible. The market consists almost entirely of aftermarket parts, which are available as either remanufactured or fully new units. For this simple and robust caliper design, a quality aftermarket part is more than sufficient.
Aftermarket Brand Tiers
| Tier | Brands | Description |
|---|---|---|
| Standard / Value | Cardone, BBB Industries | These are primarily remanufactured calipers. They offer a cost-effective solution and are widely available. Quality can sometimes be inconsistent, so buying from a retailer with a good warranty is recommended. Many owners use these brands without issue. |
| Standard / Mid-Grade | Centric, Dynamic Friction | Often viewed as a step up in quality control. Centric is a popular choice for remanufactured calipers that are well-cleaned and prepared. Dynamic Friction is also well-regarded and sometimes associated with performance applications. |
| Premium | Raybestos | Raybestos is a long-standing, trusted name in brakes. They offer high-quality remanufactured calipers and, notably, completely new calipers that require no core charge and eliminate the risk of a worn-out core part. This is often the preferred choice for owners wanting extra peace of mind. |
Pro Tip: Always replace brake calipers in pairs (both front left and front right at the same time). This ensures even braking performance and prevents the truck from pulling to one side. It is also the perfect time to inspect and likely replace your flexible rubber brake hoses, which can degrade and collapse internally with age.
Frequently Asked Questions (FAQ)
Do I need to pay a "core charge"?
Most remanufactured calipers require a core charge. This is a refundable deposit you pay at the time of purchase. You get the deposit back when you return your old, worn-out caliper. New calipers, like some offered by Raybestos, typically do not have a core charge.
Should I get a loaded or semi-loaded caliper?
A "loaded" caliper comes complete with new brake pads and all necessary installation hardware (clips, pins, etc.). A "semi-loaded" or bare caliper includes the hardware but not the pads. If your pads are also due for replacement, a loaded caliper can be a convenient and cost-effective option.
Can I rebuild my original calipers?
Yes, rebuild kits with new seals and boots are available. This can be a good option if you want to keep the original parts. However, if the caliper piston is pitted with rust, you will need to replace it, and the combined cost of parts can sometimes exceed the price of a complete remanufactured caliper.
Are there any recalls on my Jimmy's calipers?
No, there are no active or historical recalls from NHTSA specifically for the disc brake calipers on the 1971-1978 GMC Jimmy. Any failures today are due to the age and wear of the components.
Technical Specifications

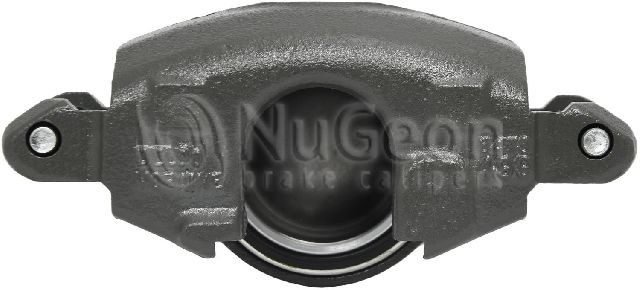

The 1971-1978 GMC Jimmy uses a single-piston, floating cast-iron front disc brake caliper, commonly known as the GM D52 style caliper. It features a large 2 15/16 inch piston. Ensure the bleeder screw is facing up during installation to allow for proper bleeding.
