A Practical Guide to Spark Plug Wires for the 1971-1980 Ford Pinto
Get your classic Pinto's ignition system firing correctly by choosing the right spark plug wire set.
- You MUST identify your Pinto's engine (1.6L, 2.0L, 2.3L, or 2.8L V6) to buy the correct wire set.
- Symptoms of bad wires include rough idle, misfiring, poor acceleration, and difficulty starting.
- For stock restoration, Motorcraft or NGK are excellent choices; for performance, consider Taylor or MSD.
- Replacing wires is an easy DIY job; change them one at a time to maintain the correct firing order.
Is Your Pinto's Engine Running Rough? It Could Be the Wires.
Over time, the spark plug wires on your 1971-1980 Ford Pinto are exposed to intense heat, vibration, and oil. The original insulation can become brittle, crack, or melt. When this happens, the electrical energy can leak out before it reaches the spark plug, a condition known as 'arcing'. This causes a weak spark or no spark at all, leading to noticeable engine problems.
Symptoms of Failing Spark Plug Wires
- Rough Idle: The engine may shake or vibrate more than usual when the car is stopped.
- Engine Misfires: You might feel a jerking or stumbling sensation as you drive, which is a cylinder failing to fire correctly.
- Hesitation During Acceleration: The car may struggle or hesitate when you press the gas pedal.
- Poor Fuel Economy: When fuel isn't burned completely due to a weak spark, your gas mileage will suffer.
- Difficulty Starting: Worn wires can make it harder for the engine to turn over, especially in damp weather.
- Visible Damage: A visual inspection may reveal cracks, burns, or melted spots on the wire jackets or boots. You might even see the spark jumping from the wire to a metal part of the engine in the dark.
The Most Common Mistake: Ordering for the Wrong Engine
The Ford Pinto was offered with several different engines over its production run, including the 1.6L, 2.0L, 2.3L, and the 2.8L V6. Each engine requires a specific spark plug wire set with the correct lengths and number of wires. Before ordering, you must confirm which engine is in your Pinto. Check the VIN or the engine block to be sure.
Choosing the Right Aftermarket Spark Plug Wires
For a classic car like the Pinto, modern aftermarket wires are often a significant upgrade over 50-year-old original technology. They offer better insulation and conductivity. Here’s a breakdown of the available brands based on common use cases.
Tier 1: Standard & OE-Style Replacement
These brands are perfect for a daily driver or a stock restoration. They meet or exceed original equipment specifications and offer reliable performance at a good price.
- Motorcraft: As Ford's own parts brand, Motorcraft is the closest you can get to an original part. They are designed for a direct fit and reliable, stock performance.
- NGK: A highly respected name in ignition parts. NGK offers vehicle-specific sets with high-temperature silicone jackets and quality terminals, making them a very popular and dependable choice.

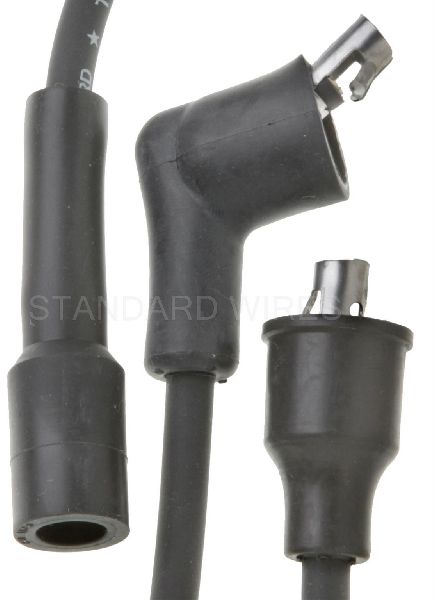

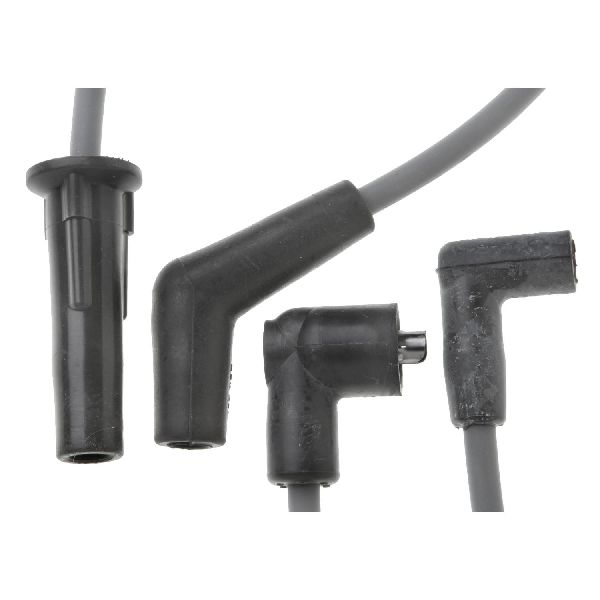

- Standard Motor Products (SMP): A long-standing aftermarket manufacturer providing affordable, OE-quality replacement wires.

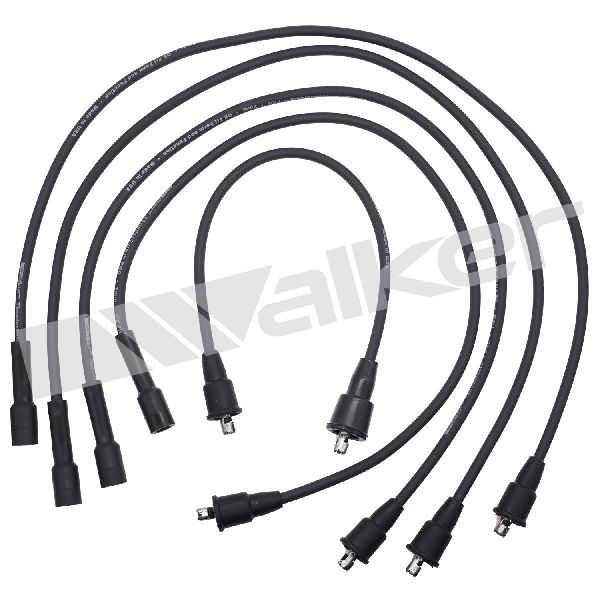

- Walker Products: Another source for standard replacement wire sets that get the job done.
Tier 2: Performance & Heavy-Duty
If your Pinto is modified, or if you simply want a more robust ignition system, these brands offer thicker wires, lower resistance, and better protection against heat and electrical interference.
- Taylor Cable: Known for performance applications, Taylor offers thicker 8mm wires that provide excellent spark delivery and durability. They are a favorite among enthusiasts for their quality and often come in different colors.
- MSD: A top name in performance ignition systems. MSD's 8.5mm Super Conductor wires have very low resistance, ensuring maximum spark energy reaches the plugs. These are ideal for highly modified or racing engines but can be used on any Pinto for maximum ignition performance.
- Granatelli: This brand also falls into the performance category, often providing upgrades for enthusiasts looking for more than just a stock replacement.
Pro Tip: A Tune-Up Opportunity
While you're replacing the spark plug wires, it's the perfect time to also replace the spark plugs, distributor cap, and rotor. These parts all wear out together. Replacing them as a set ensures your entire ignition system is refreshed for reliable performance.
Cost of a New Spark Plug Wire Set (1971-1980 Ford Pinto)
| Part Type | Estimated Cost |
|---|---|
| Standard Aftermarket (NGK, Standard, Walker) | $19 - $40 |
| OEM-Style (Motorcraft) | $40 - $60 |
| Performance (Taylor, MSD) | $60 - $75+ |
(Prices are estimates and can vary based on your specific engine and the retailer.)
Frequently Asked Questions
Do I need special tools to replace my Pinto's spark plug wires?
No special tools are required. A pair of spark plug wire pullers can be helpful to avoid damaging the boots, but you can usually remove them by hand with a firm twisting motion. The most important thing is to replace the wires one at a time to avoid mixing up the engine's firing order.
What's the difference between 7mm and 8mm wires?
The measurement refers to the diameter of the wire's outer jacket. Standard replacement wires are typically 7mm. Performance wires are often 8mm or 8.5mm, featuring a thicker jacket for better insulation and durability, especially in high-heat engine bays. For a stock Pinto, 7mm is perfectly fine, but an upgrade to 8mm can provide extra peace of mind and durability.
What is RFI, and why does it matter?
RFI stands for Radio Frequency Interference. Spark plug wires can create electromagnetic fields that cause static or buzzing in your AM/FM radio. Modern wires have a suppression core (like spiral or mag core) that cancels out this interference. All reputable aftermarket brands design their wires to suppress RFI.
Is there a recall on Ford Pinto spark plug wires?
No. There have been no recalls issued by Ford or the NHTSA for spark plug wires on the 1971-1980 Ford Pinto. The well-known Pinto recall from the 1970s concerned the fuel tank design, not ignition components.
Technical Specifications
OEM Part Numbers: WR-4010-C
Core Material: Varies by brand (Suppression, Magnetic, Spiral Core) Diameter: Typically 7mm for stock, 8mm or 8.5mm for performance. Jacket Material: Silicone for heat resistance. Terminals: Stainless steel for corrosion resistance. Engine Fitment: Specific sets required for 1.6L I4, 2.0L I4, 2.3L I4, and 2.8L V6 engines.
