A Guide to Engine Timing Sets for the 1972-1976 Pontiac Firebird
Understanding the critical timing set upgrade that every classic Pontiac V8 owner should know about.
- The original timing cam gear with nylon teeth is a known failure point; any aftermarket all-metal set is a critical upgrade.
- For stock engines, a standard replacement set is adequate. For performance or maximum durability, choose a double roller set from a brand like Cloyes or Edelbrock.
- It is highly recommended to also replace the timing cover seal, front oil pan seal, and water pump during this job.
- A rattling noise from the front of the engine is a serious warning sign that should be addressed immediately to avoid severe engine damage.
The Original Problem: Why Your Firebird Needs a New Timing Set
If your 1972-1976 Firebird is still running on its original timing set, it's not a matter of if it will fail, but when. The factory-installed camshaft gear was designed with nylon-coated plastic teeth. The idea was to make the engine run quieter. However, after decades of heat cycles and exposure to engine oil, this nylon becomes brittle. The teeth crack, break off, and fall into the oil pan.
Fortunately, every modern aftermarket timing set is an upgrade. They all use a durable, all-metal camshaft gear made from cast iron or steel, permanently solving the original design flaw.
Choosing the Right Aftermarket Timing Set
When shopping for a new timing set, you have two main categories to choose from. Your choice depends on your budget and how you use your Firebird.

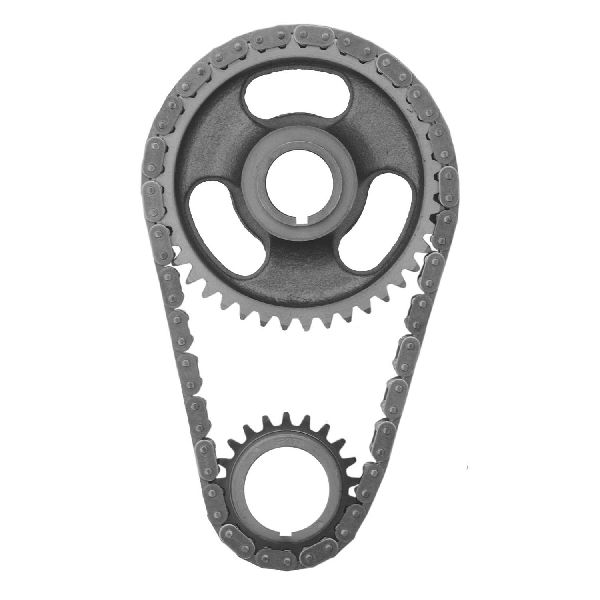

1. Standard Replacement Sets
These are excellent, budget-friendly choices for stock or mildly modified engines. They typically use a "silent" or link-belt style chain, similar to the original, but pair it with a strong, all-metal cam gear. For a daily driver or a car that isn't pushed to its limits, these are a perfect fit.
- Brands in this tier: INA, Melling (standard line)
2. Heavy-Duty & Performance Sets (Double Roller)
For high-performance engines or for owners seeking maximum durability, a double roller timing set is the best choice. These kits feature a much stronger, two-row roller chain that is less prone to stretching over time. They provide the most accurate and stable valve timing under high RPM and heavy loads. Many Pontiac enthusiasts on forums recommend a double roller set as a wise investment for any engine rebuild.
- Brands in this tier: Cloyes, Edelbrock, Melling Select Performance
Estimated Cost of Aftermarket Timing Sets
| Part Tier | Typical Price Range | Best For |
|---|---|---|
| Standard Replacement | $36.26 - $70.00 | Stock engines, daily drivers |
| Heavy-Duty / Double Roller | $70.00 - $150.00 | Mildly modified or high-mileage engines |
| High-Performance Billet Steel | $150.00 - $296.04 | Stroker, racing, or high-RPM engines |
Frequently Asked Questions (FAQ)
What is a "double roller" timing chain?
A double roller chain is a heavy-duty style of timing chain that has two rows of rollers and links, making it significantly stronger and more resistant to stretching than a standard single-row or "silent" type chain. It's a common upgrade for performance and long-term reliability.
Are there any recalls for the timing set on my Firebird?
No, there were no official recalls issued by the NHTSA for the timing chain or gears on the 1972-1976 Pontiac Firebird. The nylon gear issue was a well-known problem that was primarily solved by the aftermarket with superior replacement parts.
Is an Edelbrock or Cloyes set better?
Both brands are highly respected for Pontiac V8s. Forum discussions note that the gears from both companies can appear identical, leading to speculation that Cloyes may be the manufacturer for both. You can be confident in the quality of a double roller set from either brand for a performance application.
Should I replace my water pump at the same time?
Yes, it is highly recommended. The timing cover on a Pontiac V8 must be removed to access the timing set, and the water pump must be unbolted from the cover. Since you have to do most of the labor already, replacing the water pump, timing cover seal, and front oil pan seal at the same time is a smart and cost-effective move.
Technical Specifications
Fits all Pontiac V8 engines from 1972-1976, including 350, 400, and 455 cubic inch displacements. Aftermarket options include standard link-belt chains with cast iron gears or upgraded double roller chains with steel gears.
