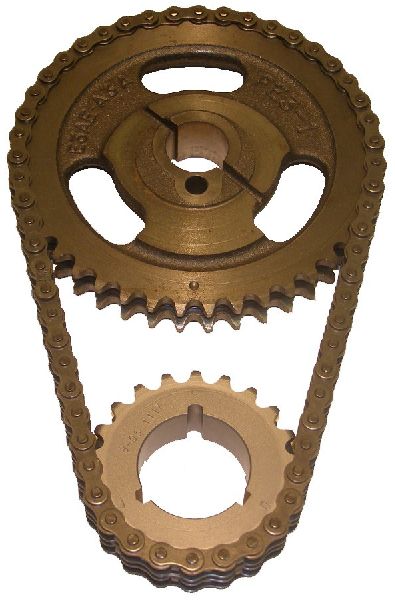

Engine Timing Set Guide for 1972-1977 Ford Bronco
Keep your classic Bronco's 302 V8 engine running strong by understanding when and how to replace its timing set.
- Any aftermarket all-metal timing set is a major reliability upgrade over the original nylon-toothed gear.
- A rattling noise from the front of the engine is the clearest sign of a worn timing chain.
- If your engine is modified, consider a 'double roller' set from Edelbrock or Melling Select for added strength and timing precision.
- Always replace the water pump, timing cover gasket, and front seal at the same time to save on future labor.
Is Your Bronco's Timing Set Failing?
The original timing sets in many Ford 302 V8 engines from this era used a camshaft gear with nylon-coated teeth. Over time, the nylon becomes brittle, breaks off, and falls into the oil pan. This can clog the oil pump pickup screen, starving the engine of oil. The timing chain also stretches with age, causing timing to become inaccurate. Listen for these common symptoms:
- Engine Rattle: A distinct rattling or scraping noise from the front of the engine, especially on startup, is a classic sign of a loose timing chain slapping against the timing cover.
- Poor Performance: A stretched chain can retard valve timing, leading to a noticeable loss of power, hesitation, and rough idling.
- Backfiring: If the chain stretches enough to jump a tooth on a gear, the valve timing will be severely off, which can cause the engine to backfire through the carburetor or exhaust.
- Metal Shavings in Oil: When changing your oil, finding small pieces of plastic (from the original gear) or metal shavings is a red flag that the timing set is coming apart.
A Critical Weak Point
The original factory-installed camshaft gear with nylon teeth is a known failure point. If you have the timing cover off for any reason, such as replacing a water pump or front seal, it is highly recommended to replace the original timing set, even if it hasn't failed yet. An all-metal aftermarket set is a significant and necessary upgrade for reliability.
Choosing the Right Aftermarket Timing Set
For the 1972-1977 Bronco, aftermarket timing sets are not just a replacement; they are an upgrade. They replace the failure-prone nylon gear with a durable all-metal design. Your choice depends on your engine's setup and how you use your Bronco.
Brand & Performance Tiers
Standard & Heavy-Duty Replacement (Good for Stock Engines):
- Cloyes & Melling: Both are highly respected brands that offer excellent OEM-quality or better replacement sets. A standard replacement set from either brand will be a reliable, all-metal upgrade over the original. They are perfect for a stock or lightly modified 302 engine used for daily driving or weekend cruising.
Performance (For Modified Engines):
- Edelbrock & Melling Select Performance: These brands offer high-performance timing sets, often featuring a "double roller" chain. A double roller chain is stronger and provides more precise timing for engines with performance camshafts, higher compression, or those that operate at higher RPMs. Some sets also offer multiple keyways on the crank sprocket, allowing for advanced or retarded cam timing to shift the engine's powerband.
Pro Tip: Straight-Up vs. Retarded Timing
Starting in 1972, Ford began installing timing sets with a built-in 4-degree timing retard for emissions purposes. Most aftermarket timing sets are "straight-up," which removes this retard and can noticeably improve engine response and low-end torque. For most owners, a straight-up set is the best choice.
Estimated Costs for Timing Set Replacement
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Timing Set | $30 - $152 |
| Shop Labor | $450 - $800 |
| New OEM (NOS) | Generally unavailable |
| Used / Remanufactured | Not recommended |
Frequently Asked Questions
Should I replace the water pump and other parts at the same time?
Yes. The replacement procedure requires removing the water pump, so it's the perfect time to install a new one. You should also plan on replacing the timing cover gasket, front crankshaft seal, and water pump gaskets to prevent future leaks. It's also a good time to inspect and replace radiator hoses and belts.
What is the difference between a standard chain and a double roller chain?
A standard, or "silent" type, chain is what came from the factory. A double roller chain has two sets of rollers and is physically stronger, reducing stretch and providing more accurate timing, which is beneficial for performance applications. For a stock 302, a quality standard replacement set is sufficient, but a double roller is a robust upgrade.
Can a bad timing chain cause a no-start condition?
Yes. If the chain breaks or jumps several teeth, the camshaft and crankshaft will no longer be synchronized. This prevents the engine from running and can cause severe internal damage if the valves hit the pistons (though the 302 is generally a non-interference engine, severe timing jumps can still cause problems).
Do I need special tools for the job?
Yes, you will need a harmonic balancer puller to remove the crankshaft pulley/balancer. The rest of the job can be done with standard mechanic's hand tools. You will also need a timing light to correctly set the ignition timing after the new set is installed.
Technical Specifications
OEM Part Numbers: F4TZ-6256-B
Engine Application: Ford 302 Windsor V8. The primary difference in aftermarket sets is the chain type (standard 'silent' vs. double roller) and whether the crank sprocket is multi-keyed for timing adjustments. Ensure the set is compatible with the two-piece fuel pump eccentric used on these engines.
