Engine Timing Set Guide for 1972-1986 Ford F-250 Trucks
Keep your classic Ford F-250 running strong by understanding when and how to replace your engine's timing set.
- You must identify your specific engine (e.g., 300 I6, 460 V8, 6.9L IDI) as they use different timing systems (gears vs. chains).
- For V8 engines, replacing the original nylon-toothed cam gear with an all-metal aftermarket set is a critical reliability upgrade.
- Consider a heavy-duty or double-roller chain set for V8s used for towing or performance.
- While replacing the timing set, it is highly recommended to also replace the water pump, timing cover gasket, and front crank seal to save on future labor.
Is Your F-250's Timing Set a Ticking Time Bomb?
For owners of 1972-1986 Ford F-250s, the engine timing set is a crucial component that demands attention, especially on high-mileage trucks. A significant issue with many original Ford V8 engines from this era, such as the 351M, 400, and 460, was the use of a camshaft sprocket with nylon-coated teeth. Over time, heat and age cause the nylon to become brittle, crack, and break off. These plastic pieces can fall into the oil pan and clog the oil pump pickup screen, potentially starving the engine of oil. When the teeth fail, the timing chain can slip or break, leading to poor performance or severe engine damage.
It's important to know which engine your F-250 has, as the timing set design varies significantly:
- V8 Engines (e.g., 302, 351W, 351M, 400, 460): These use a timing chain and sprocket set. The primary concern is the original nylon-toothed cam sprocket, which should be replaced with an all-metal set.
- Inline-6 Engine (4.9L / 300): This famously durable engine uses a set of two robust, helical-cut gears instead of a chain. While very strong, these gears can wear over time, leading to noise and incorrect timing.
- Diesel V8 Engine (6.9L IDI): Like the 300 I6, the 6.9L diesel uses a gear-driven system for the camshaft and injection pump, which is known for its reliability.
The Nylon Gear Problem

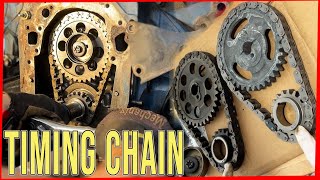

If you have a V8 engine and the timing set has never been replaced, it is highly likely to have the original nylon-toothed camshaft gear. 🎬 Watch: Why your Ford 400 V8 needs a new timing chain It is not a matter of if it will fail, but when. Upgrading to a quality aftermarket all-steel or iron set is one of the most important reliability improvements you can make.
Choosing the Right Aftermarket Timing Set
When shopping for a new timing set, you'll find several options. The best choice depends on your engine and how you use your truck.
Brand Tiers & Quality
- Performance/Heavy-Duty (Ford Performance, Edelbrock, Melling Select): These brands offer high-strength sets, often featuring double-roller chains for V8s. A double-roller chain provides more strength and accuracy, making it a great upgrade for trucks used for towing, hauling, or performance applications.
- OEM-Quality Replacement (Cloyes, Melling): Cloyes and Melling are well-respected brands that offer both standard replacement and heavy-duty options. They are a solid choice for a daily driver and are considered reliable by many mechanics and Ford truck enthusiasts. For V8s, ensure you select a kit with an all-metal camshaft gear.
- Gear Sets (for 300 I6 & 6.9L IDI): For these gear-driven engines, brands like Cloyes and Melling offer quality steel or aluminum replacement gears.
Pro Tip: While You're In There...
Replacing the timing set requires removing the timing cover. This is the perfect time to also replace the front crankshaft seal, the timing cover gasket, and often the water pump and its gasket. Doing these jobs at the same time will save you from having to tear down the front of the engine again in the near future.
Common Ordering Mistakes
The biggest mistake is ordering a part without confirming your F-250's specific engine. A timing set for a 460 V8 is completely different from the gear set for a 300 I6. Always verify your engine displacement (e.g., 4.9L, 5.8L, 7.5L) before purchasing. For V8s, some aftermarket sets offer multi-keyway crank sprockets that allow for advancing or retarding cam timing; for a stock engine, use the "straight-up" or 0-degree setting.
Frequently Asked Questions
What's the difference between a timing chain and timing gears?
A timing chain set uses a chain to connect two sprockets (gears), one on the crankshaft and one on the camshaft. This is common on the V8 engines in this F-250 series. A timing gear set uses two gears that mesh directly with each other, which is how the 300 I6 and 6.9L IDI diesel engines are timed.
Should I get a standard, single roller, or double roller chain for my V8?
A standard "silent" type chain is adequate for stock use, but a single or double roller chain is a significant durability upgrade. A double roller chain is the strongest and is recommended for heavy-duty use or modified engines.
How do I know if my timing set is failing?
Common symptoms include a rattling noise from the front of the engine (especially on startup), rough idling, loss of power, and engine misfires. In a worst-case scenario where the chain breaks or jumps several teeth, the engine will not start.
Is replacing a timing set a DIY job?
For an experienced DIY mechanic, it is feasible. The job is labor-intensive, requiring draining coolant, removing the radiator, water pump, and harmonic balancer to access the timing cover. Special tools like a gear puller may be needed. For the 300 I6, pressing the new cam gear on can be difficult 🎬 See this walkthrough on how to replace 300 I6 timing gears without the right tools.

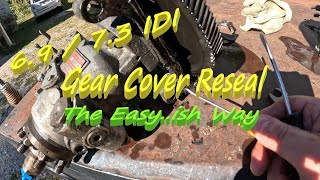

Helpful Videos
Technical Specifications
System varies by engine. Includes gear-drive sets for the 4.9L (300) I6 and 6.9L IDI Diesel V8. Chain-drive sets are used on gasoline V8 engines like the 5.0L (302), 5.8L (351W/351M), 6.6L (400), and 7.5L (460). Chain sets are available in standard silent, single roller, and double roller configurations.
