Buick Regal Front Disc Brake Caliper Guide: 1973-1977
Everything you need to know before replacing the front brake calipers on your classic 1973-1977 Buick Regal.
- A failing caliper is a serious safety issue; symptoms like pulling, a spongy pedal, or fluid leaks require immediate attention.
- For this vehicle, new aftermarket calipers from brands like Raybestos or Centric offer the best balance of quality and reliability.
- Always replace calipers in pairs and install new brake pads and hoses at the same time for safe, balanced braking.
- This is a manageable DIY job for those with mechanical experience, but it requires proper tools and knowledge of how to bleed brakes.
Is Your Regal's Braking Performance Fading?
The single-piston front disc brake calipers on the 1973-1977 Buick Regal are a simple and robust design. However, after decades of service, they are prone to failure. The most common issues are seized pistons due to rust and corrosion, or leaking seals. A failing caliper can compromise your safety, increase stopping distances, and damage other brake components like pads and rotors.
Symptoms of a Bad Brake Caliper
If your Regal's caliper is failing, you'll likely notice one or more of these signs:
- Vehicle Pulling to One Side: When a caliper piston or its slide pins get stuck, the brake on that wheel can either fail to apply or fail to release. This causes the car to pull to the left or right when you brake or even while driving.
- Spongy or Soft Brake Pedal: If a caliper seal is leaking brake fluid, air can get into the system. This leads to a mushy-feeling brake pedal that may go closer to the floor than usual.
- Brake Fluid Leaks: You might see puddles of a clear or brownish fluid near the inside of your front wheels. This is a serious safety issue that needs immediate attention.
- Dragging Sensation or Burning Smell: A seized caliper that doesn't release properly will cause the brake pad to constantly rub against the rotor. This creates a dragging feeling, reduces fuel economy, and can generate a distinct burning smell from the overheating brake components.
- Uneven Brake Pad Wear: When you inspect your brake pads, if the inner and outer pads have drastically different amounts of material left, it's a strong sign the caliper is not moving freely.
Historical Note: Power Brake Assist Recall
While not for the caliper itself, a recall was issued in 1974 for a large number of GM vehicles, including the 1973 Regal, for a potential defect in the hydraulic power brake assist unit (NHTSA Campaign ID: 74V027000). This highlights the importance of ensuring the entire brake system is in good working order on these classic vehicles.
Choosing the Right Aftermarket Caliper
For a vehicle from the 1970s, new Original Equipment (OEM) parts are generally not available. The market consists of new aftermarket parts and remanufactured parts. While remanufactured calipers are common, quality can be inconsistent. For a reliable repair, a new aftermarket caliper is often the best choice.
Here’s a breakdown of available brands:
- Standard Replacement (Good): Brands like Raybestos and Centric are well-regarded for producing quality, reliable replacement parts that meet or exceed original specifications. They are a safe and dependable choice for a daily driver or standard restoration.
- Coated & Economy (Better): Dynamic Friction and Cardone's 'Ultra' series offer calipers with protective coatings. This coating (often silver or black) helps prevent rust and corrosion, which is a major cause of caliper seizure, especially in wet climates. These are a great value, offering enhanced longevity.
- Performance Style (Best Appearance): Powerstop offers calipers that are typically remanufactured but are finished in a high-temperature powder coat, usually bright red. While they function as a stock replacement, they provide a custom, high-performance look behind open-style wheels. Quality can be mixed, so inspect them carefully upon arrival.
- Budget-Focused: BBB Industries and some base-level Cardone calipers are primarily remanufactured and aimed at the budget market. While they will function, be aware that forum discussions sometimes mention a higher rate of premature failure or quality control issues with budget remanufactured parts.
Pro Tip: Check the Slide Pin Bushings
Some new aftermarket calipers for these GM A-body cars come with a steel bushing pre-installed in the slide pin holes. If you are using aftermarket slide bolts that have an integrated bushing, you must remove the bushing from the new caliper before installation to ensure proper fit and movement.
Cost of Replacing a 1973-1977 Buick Regal Brake Caliper
| Part Type | Estimated Cost (Part Only) |
|---|---|
| New Aftermarket Caliper | $35 - $105 per caliper |
| Remanufactured Caliper | $30 - $70 per caliper (plus core charge) |
| Shop Labor | $100 - $200 per caliper |
Costs are estimates and can vary based on location, brand, and the specific condition of your vehicle. It is highly recommended to replace calipers in pairs (both front wheels) to ensure even braking performance.
Frequently Asked Questions
Do I need to replace both front calipers at the same time?
Yes, it is highly recommended. Replacing both calipers ensures that you have even braking force on both front wheels. A new caliper will behave differently than a 50-year-old one, and this imbalance can cause pulling and unsafe braking.
What else should I replace with my calipers?
You should always install new brake pads. It is also the perfect time to inspect your brake rotors for warping or excessive wear and replace your flexible rubber brake hoses, as they can degrade from the inside and cause caliper issues.
Is replacing a caliper a good DIY job?
If you are comfortable with auto repair and have the right tools, yes. The job requires safely lifting and supporting the vehicle, using a wrench on brake line fittings, and properly bleeding the brake system to remove air. If you are not 100% confident, leave this critical safety job to a professional mechanic.
What is a 'core charge'?
A core charge is a deposit you pay when buying a remanufactured part. You get the deposit back when you return your old, rebuildable caliper to the seller. New aftermarket calipers do not have a core charge.
Technical Specifications

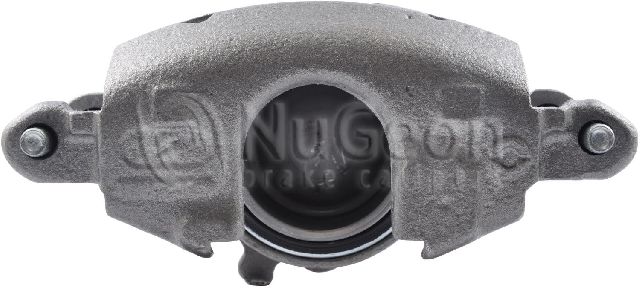

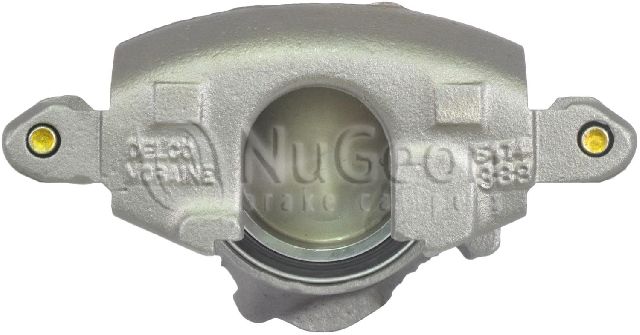

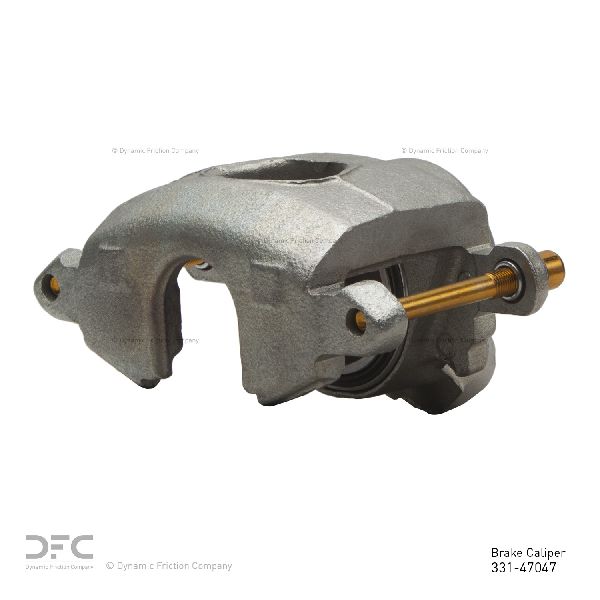

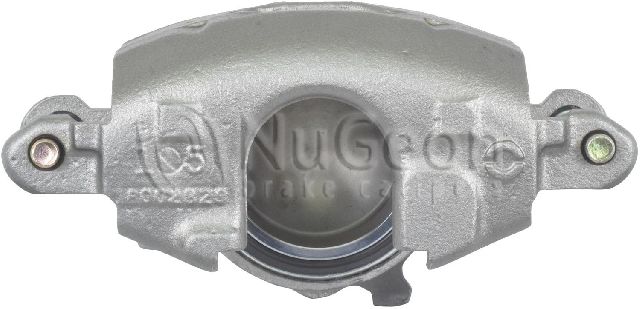

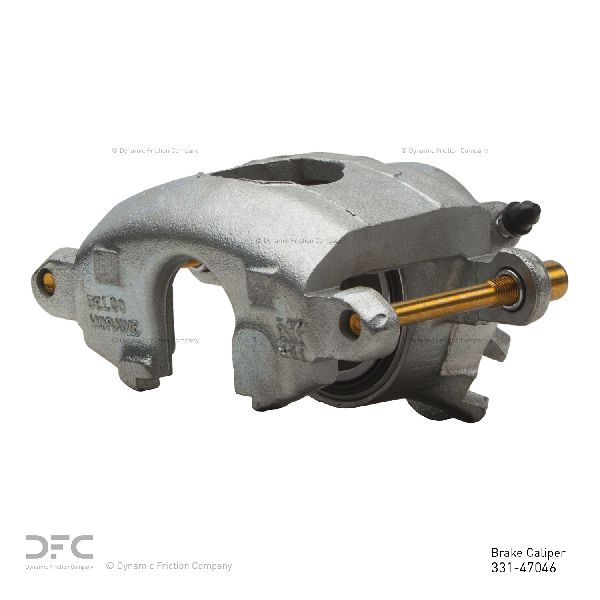

The 1973-1977 Buick Regal uses a single-piston, floating front disc brake caliper, commonly known as the GM 'D52' style caliper.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
