Jaguar XJ12 Engine Oil Pressure Sender and Switch Guide (1973-1986)
Understanding the common failure points of the V12's oil pressure sending unit and how to choose a reliable replacement.
- The most common failure is an inaccurate gauge reading; always verify with a mechanical gauge before assuming the engine is at fault.
- The sender is located in a difficult-to-reach spot at the rear of the engine valley, and replacement often requires removing the throttle pedestal.
- A new aftermarket sender from a brand like Standard Ignition is a cost-effective and reliable alternative to finding an expensive and failure-prone original part.
- An oil leak from the top electrical connector means the sender's internal diaphragm has failed and it must be replaced.
Is it a Switch or a Sender?
Your V12 engine uses two separate parts. The oil pressure sender (or transducer) operates the gauge on your dashboard, giving a variable reading. The oil pressure switch is a simpler part that only turns on the red warning light if pressure drops to a critically low level. This guide focuses on the sender for the gauge, which is the most common part to fail and cause incorrect readings.
Symptoms of a Failing Oil Pressure Sender
A bad oil pressure sender is a frequent issue on the Jaguar V12. Because the symptoms can indicate a serious engine problem, it's important to verify the engine's true oil pressure 🎬 Watch: How to verify engine pressure with a mechanical gauge. with a mechanical gauge before assuming the sender is the only problem. Common signs of sender failure include:
- Gauge Reads Zero: The most obvious symptom is the gauge showing no pressure, even when the engine is running.
- Low or Flickering Readings: The gauge may read unusually low, drop to zero after the engine warms up, or flicker erratically.
- Oil Leaks from the Sender: The sender's internal diaphragm can fail, forcing engine oil out through the electrical connector on top. If you see oil on the top of the sender, it has failed and must be replaced.
A Note on Modern Oils
Some owners report low oil pressure readings at idle, especially after the engine is warm. This can sometimes be caused by using modern, thinner multi-weight oils that were not common when the car was new. While a technical service bulletin for a later model addressed this by changing the sender to a simple switch, the first step for an XJ12 owner should always be to confirm the actual pressure with a mechanical gauge.
Choosing the Right Aftermarket Part
For a vehicle of this age, finding original "New Old Stock" (NOS) OEM parts is difficult and expensive. The original Smiths-made senders were known for inaccuracies and a high failure rate. Aftermarket parts are a practical and reliable solution.
Standard Ignition is a widely available aftermarket brand that produces a compatible oil pressure sender (part number PS60). Forum members and part suppliers list Standard Motor Products as a valid alternative to the original Jaguar part (C46272). Given the known issues with original units, a new part from a reputable aftermarket manufacturer like Standard Ignition is a sound choice for restoring proper gauge function.
Check Your Instrument Cluster Ground
Before replacing the sender, ensure your instrument cluster has a clean and solid ground connection. Inaccurate or dead gauges on these cars can often be traced back to a bad ground at the cluster itself. Cleaning the contacts and adding a redundant ground wire is a common fix.
🎬 Watch: How to remove the instrument cluster to check connections.Cost of Replacing an Engine Oil Pressure Sender
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket (Standard Ignition) | $12.56 |
| New OEM / OEM-Style | $50 - $75 |
| Shop Labor | $180 - $400 |
Frequently Asked Questions
Where is the oil pressure sender located on the V12 engine?

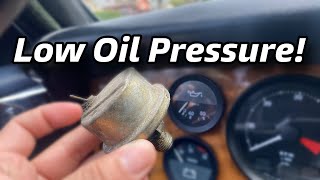

On most 1973-1986 XJ12 models, the oil pressure sender is found at the top rear of the engine, deep in the valley between the two cylinder banks. It sits on a metal pedestal that also distributes oil to the camshafts. Access is tight and typically requires removing the throttle pedestal 🎬 See this walkthrough on replacing the sensor in a Series 3. for clearance.
Can I replace the oil pressure sender myself?
Yes, this is possible for an experienced DIY mechanic. The main challenge is access. You will need socket extensions and patience. It is critical to use a wrench to hold the mounting pedestal steady when loosening the old sender to avoid breaking the pedestal or the attached oil lines.
Why does my gauge read zero but the red warning light is off?
This is a classic symptom of a failed sender. The gauge and the warning light use two separate sensors. If the sender for the gauge fails, it can read zero while the switch for the light remains untripped because the engine still has sufficient oil pressure.
Is it safe to buy a used oil pressure sender?
It is not recommended. These senders have a high failure rate due to age, heat, and internal wear. A new aftermarket part is inexpensive and will be far more reliable than a used unit of unknown condition.
Helpful Videos
Technical Specifications
OEM Part Numbers: C46272 DAC11141
The oil pressure sender for the gauge is a variable resistor transducer. It is distinct from the simple on/off switch used for the low-pressure warning light. The thread type on the mounting pedestal is typically 1/8" NPT.
