Ignition Coil Replacement Guide for the 1974-1979 Cadillac DeVille
Solving misfires and starting issues in your classic DeVille begins with understanding its unique ignition coil.
- Your DeVille uses a specific 'in-cap' HEI ignition coil; older canister coils will not fit.
- Symptoms of failure include engine misfires, hard starting, loss of power, and backfiring.
- For a reliable stock replacement, choose premium brands like ACDelco or Standard Ignition (SMP).
- Replacing the coil is an easy DIY job that takes less than an hour with basic tools.
Is Your Cadillac DeVille's Ignition Coil Failing?
The single ignition coil in your DeVille's HEI distributor is the heart of the ignition system. When it starts to weaken or fail, the entire engine's performance suffers. Because these cars have one coil for all eight cylinders, a failure will be very noticeable. Watch for these common signs.
- Engine Misfires: The car may jerk, sputter, or vibrate, especially when you try to accelerate. The idle might also feel rough.

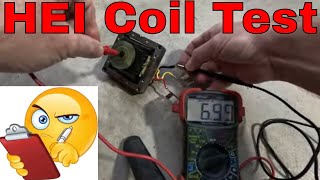

- Hard Starting or No Start: A weak or dead coil won't produce enough voltage for a spark, making the engine difficult or impossible to start. 🎬 Watch: How to test an HEI coil with a multimeter
- Loss of Power: Your large Cadillac may feel unusually sluggish and slow to respond when you press the gas pedal.
- Poor Fuel Economy: If you notice you're filling up the gas tank more often, a failing coil could be part of the problem. The engine may use more fuel to compensate for the weak spark.
- Backfiring: A loud bang from the exhaust can happen when unburnt fuel gets ignited in the hot exhaust system, a symptom of an intermittent or failing coil.
No Recalls Found for This Part
Searches of the National Highway Traffic Safety Administration (NHTSA) database did not find any recalls specifically for the ignition coil on the 1974-1979 Cadillac DeVille. Major GM ignition recalls from the 2010s were for newer models and concerned the ignition switch, not the coil itself.
Choosing the Right Aftermarket Ignition Coil
Since new original equipment (OEM) parts for a classic vehicle like this are generally not available, you will be choosing from aftermarket brands. Quality can vary, so it's important to choose a reputable brand. They generally fall into three tiers.
Tier 1: Performance Brands
These brands are for owners looking for an upgrade in spark energy, which can improve starting and high-RPM performance. They are often paired with other ignition upgrades.
- MSD: Widely regarded as a top-tier performance upgrade for GM HEI systems. Their coils are known for producing a very high-voltage, reliable spark. For best results, they are often used with an MSD ignition module.
- Accel: Another popular performance brand that engineers its coils for higher energy output than stock, promising quicker starts and better throttle response.
Tier 2: Premium OE-Equivalent Brands
These brands are trusted by professional mechanics and are known for making high-quality parts that meet or exceed the original specifications. They are an excellent choice for a reliable, stock replacement.
- ACDelco: As GM's original parts division, ACDelco is the benchmark for quality and fit. Choosing their Professional or Gold line ensures a dependable part.
- Standard Ignition (SMP): A highly respected aftermarket manufacturer known for durable and reliable electronic parts.
- NGK: While famous for spark plugs, NGK also produces high-quality ignition coils that are well-regarded by mechanics.
Tier 3: Standard/Economy Brands
This tier includes brands like DriveWire, Global Parts, and others that focus on providing a functional replacement at a lower cost. While they can be a good value, some owner and mechanic reviews suggest their long-term durability can be inconsistent compared to premium brands.
Pro Tip: Consider a Full Tune-Up
While you are replacing the ignition coil, it's a great time to also replace the distributor cap, rotor, and ignition module. These parts all work together and wear out over time. Replacing them all at once ensures the entire HEI system is refreshed for maximum reliability and performance.

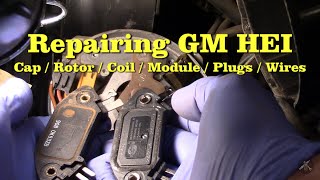

🎬 See this full HEI tune-up and component replacement walkthroughAftermarket Ignition Coil Cost for 1974-1979 Cadillac DeVille
| Part Type | Price Range | Notes |
|---|---|---|
| New Aftermarket (Economy) | $25 - $50 | Basic replacement coils. |
| New Aftermarket (Premium) | $50 - $90 | Includes brands like ACDelco, Standard Ignition, and NGK. |
| New Aftermarket (Performance) | $80 - $155+ | Includes brands like MSD and Accel. |
| Shop Labor | $60 - $120 | Typically a 0.5 to 1.0 hour job. |
Frequently Asked Questions
Where is the ignition coil located on a 1974-1979 Cadillac DeVille?
The ignition coil is located inside the distributor cap. The distributor is typically found at the front of the engine. You will need to remove the distributor cap to access the coil.
Can I replace the ignition coil myself?
Yes, this is a very DIY-friendly job for someone with basic tools. The process involves removing the air cleaner housing, disconnecting the wires from the distributor cap, removing the cap, and then unscrewing the old coil from the cap to install the new one. The job typically takes less than an hour.
🎬 Watch: How to swap an HEI in-cap ignition coilDo I need a special type of coil for my DeVille?
Yes, you need a specific "in-cap" coil designed for a GM High Energy Ignition (HEI) distributor. The older-style external canister coils will not work. Always confirm the part fits your exact year and model.
Is a more expensive performance coil worth it?
For a stock or lightly modified engine, a premium OE-equivalent coil from a brand like ACDelco or Standard Ignition is perfectly sufficient. A performance coil from MSD or Accel can provide a stronger, more consistent spark which may offer a slight improvement in starting and throttle response, but it's not essential for most owners.
Helpful Videos
Technical Specifications
OEM Part Numbers: 1875990 D504A
Coil Style: In-Cap (HEI), Internal Construction: Epoxy, Voltage: Varies by brand (Stock ~40,000V, Performance up to 65,000V)
